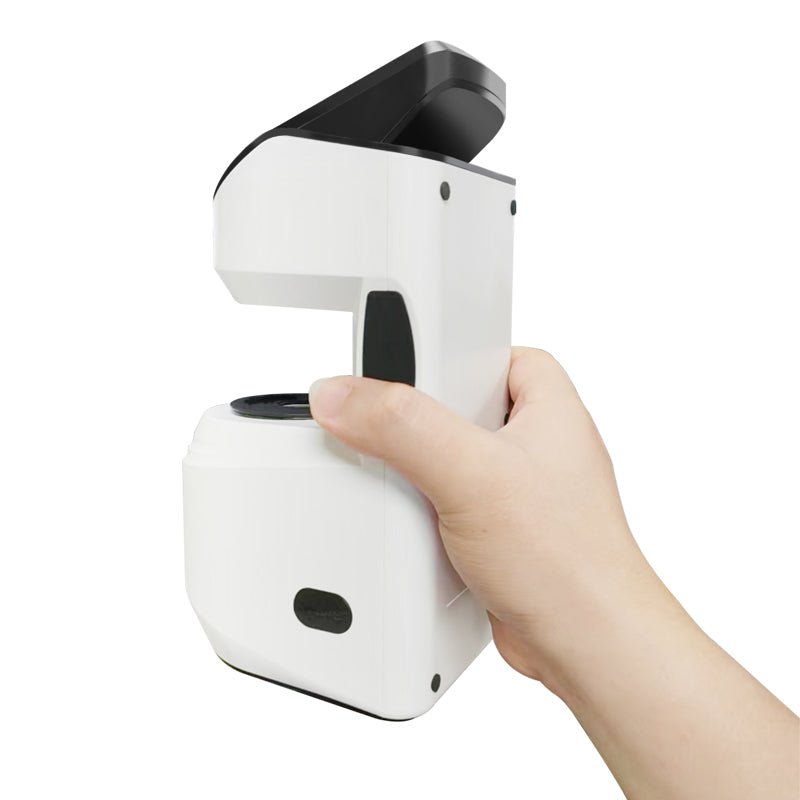

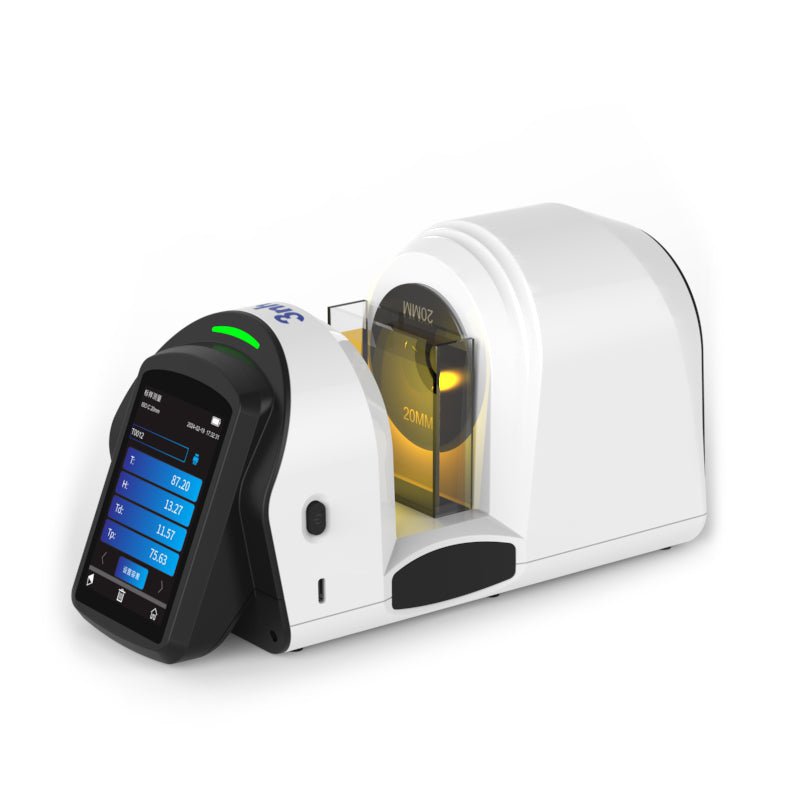

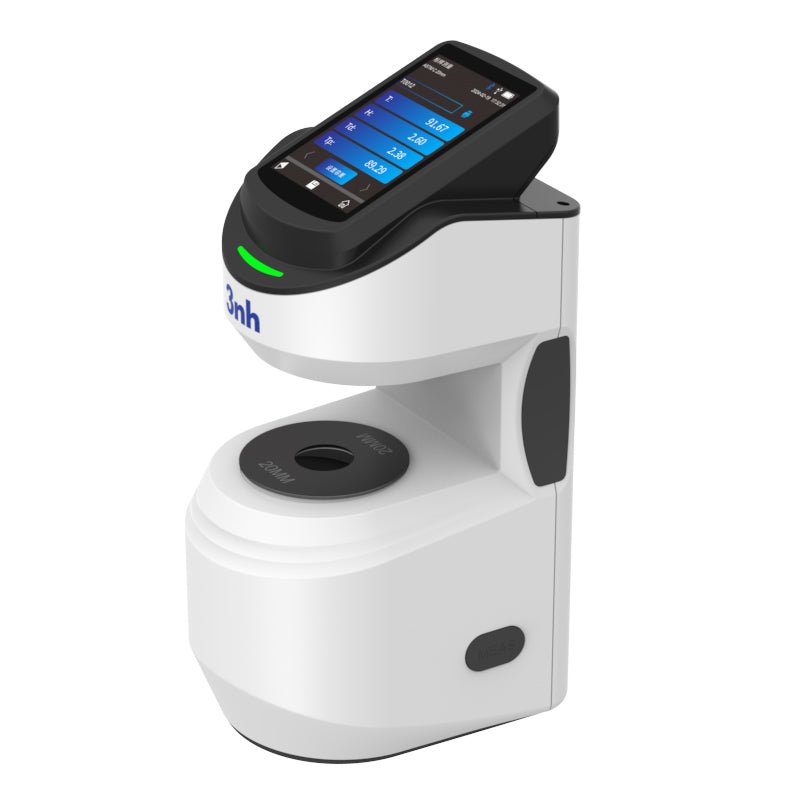

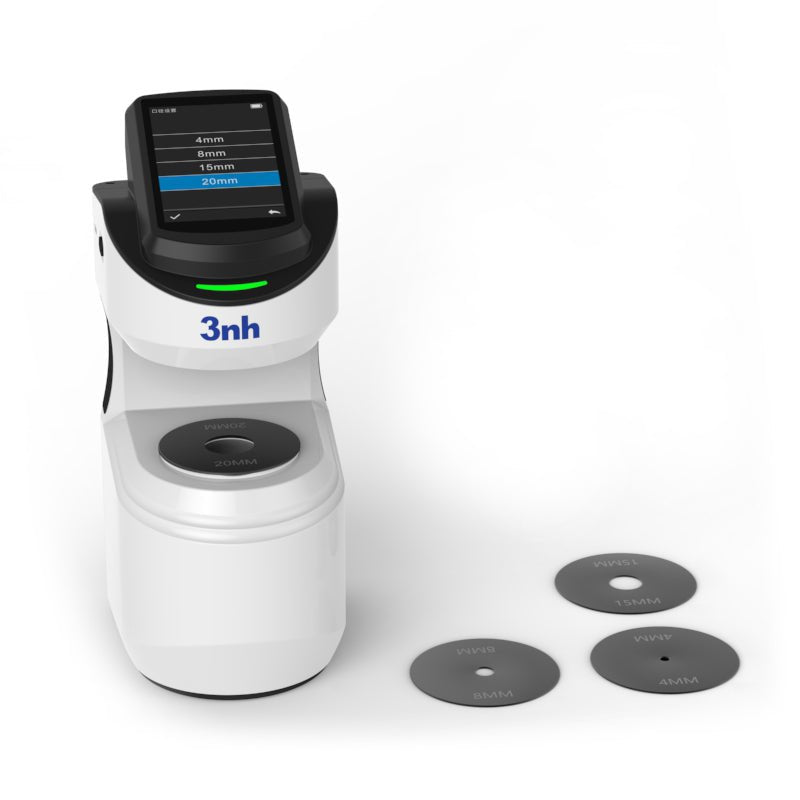

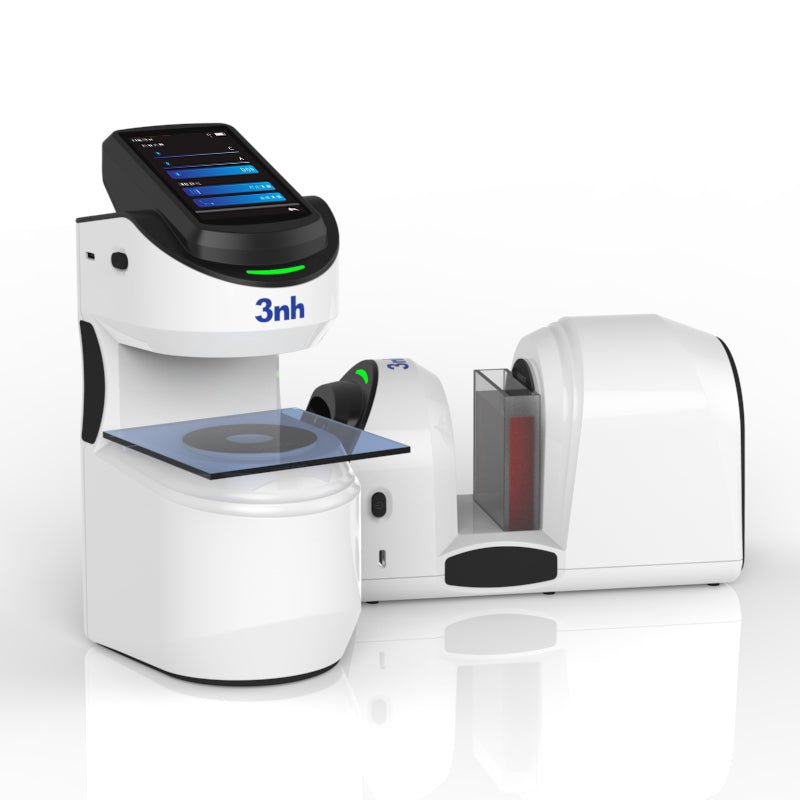

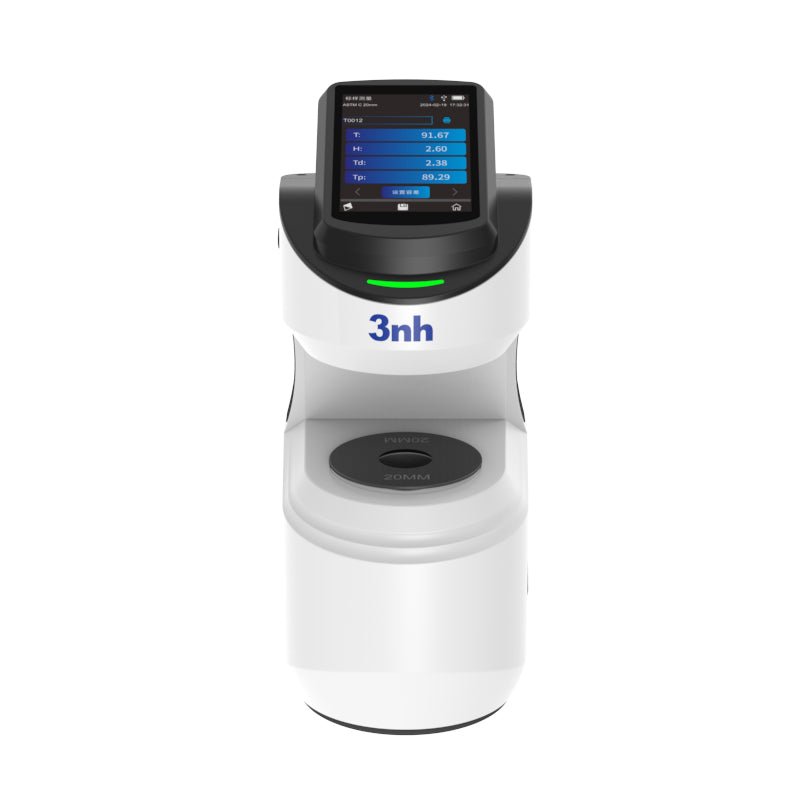

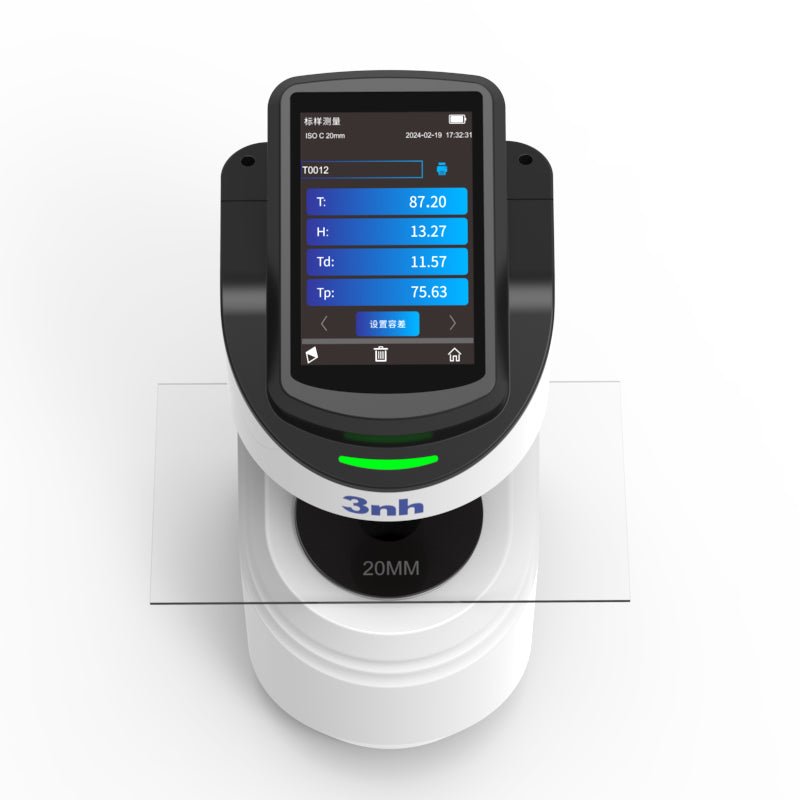

The 3nh Series 20/30/40 Handheld Haze Meter: Fast, Flexible and Accurate.

The YH Series is a high-precision handheld haze meter designed for fast, accurate measurement of haze and light transmittance in transparent or semi-transparent materials. It's ideal for applications in glass, plastic, film, display screens, packaging, and liquid pharmaceutical analysis.

Key Features:

1. Flexible Measurement
   Open measurement area supports both vertical and horizontal orientations, making it easy to test a wide range of sample types.

2. Simple Calibration
   Requires only 100% calibration, streamlining setup and improving efficiency.

3. High Accuracy
   Delivers precise results with 0.1 resolution, ±0.1 repeatability, and ±0.5 inter-station variation.

4. Ergonomic Design
   Compact, attractive form with a non-slip silicone grip for comfortable handheld use in labs or on production lines.

5. Intuitive Display
   The 3.5-inch tilted screen reduces fatigue and automatically rotates with the device’s orientation for optimal viewing during extended use.

6. Multiple Measurement Modes
   Switch freely between single and average measurement modes to suit different testing needs.

7. Advanced Sensor Technology
   Uses a high-speed, low-noise PD array detector conforming to CIE V(λ) 2° visual response standards for repeatable, high-precision measurements.

8. Full-Spectrum Lighting
   Equipped with a 400–700 nm full-spectrum LED light source supporting CIE-D65, CIE-A, and CIE-C standard illumination for accurate haze and transmittance testing.

9. Comprehensive Analysis Software
   Bundled software enables robust haze/transmittance analysis, quality monitoring, tabular data management, and customizable test reports.

Industry Applications:
The YH Series haze meter is used across industries including glass and plastic processing, film and screen manufacturing, packaging, and pharmaceutical liquids analysis.

Note: This item ships direct from the manufacturer. Please allow an additional 3-5 business days for order processing and shipment on all 3nh instruments.
