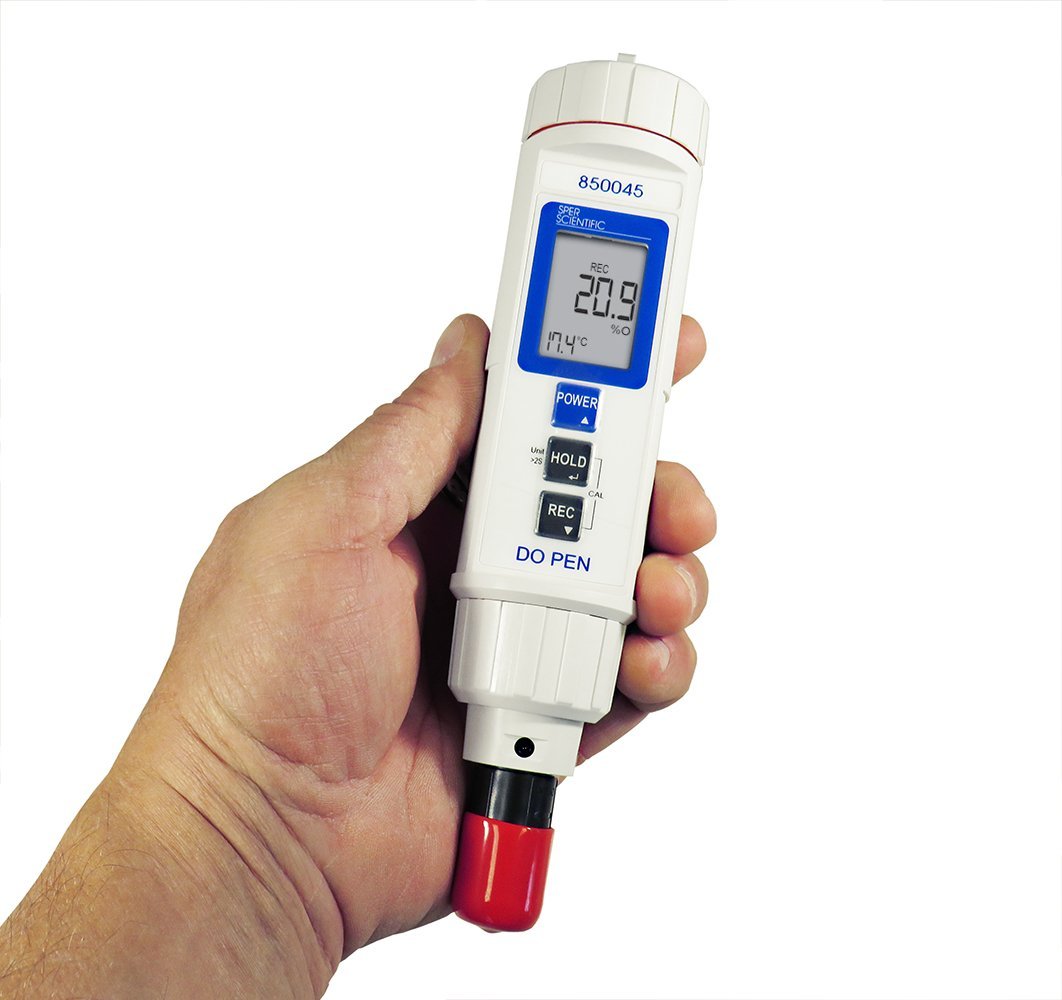

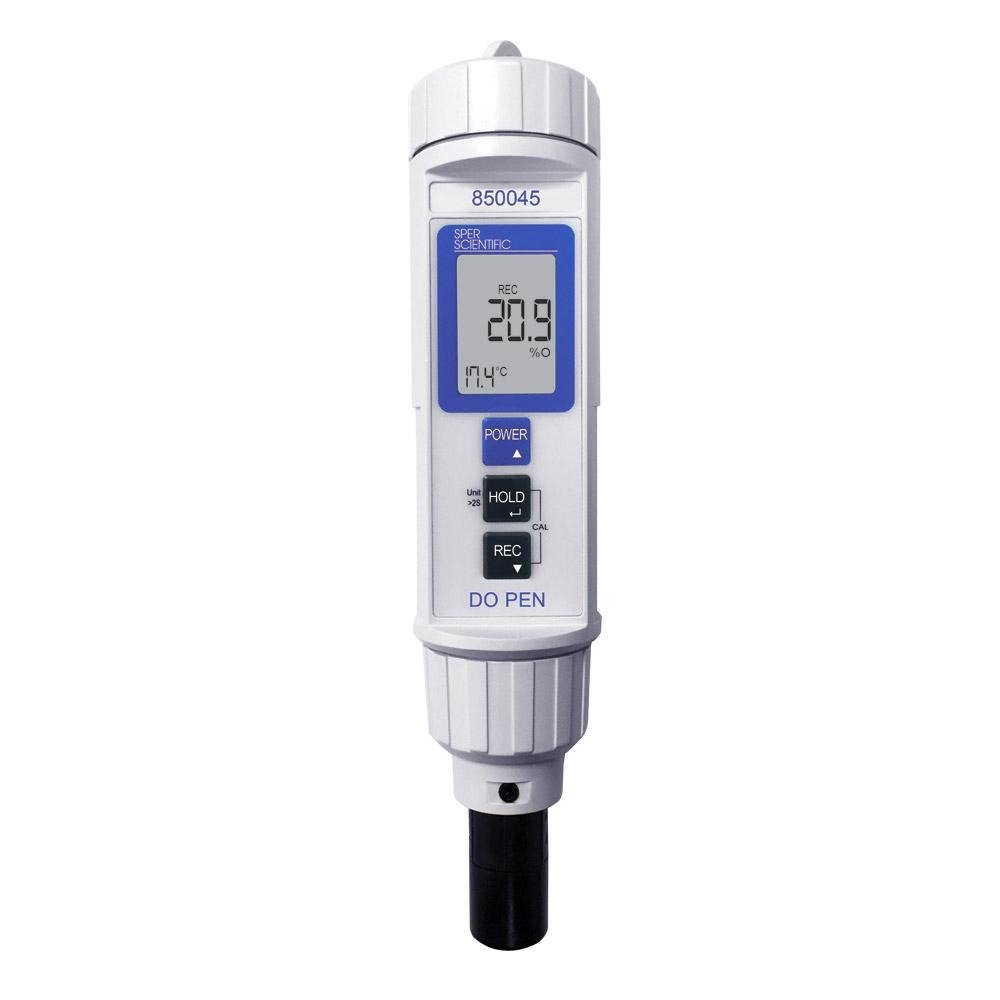

Waterproof Dissolved Oxygen Meter Pen
Regular price
$354.00 USD
Sale price
Regular price
Shipping calculated at checkout.
Download
Download
Measures dissolved oxygen to determine water quality in environmental testing, labs, industrial and municipal wastewater, aquariums and fish hatcheries.
Designed for simple one-hand operation with automatic temperature compensation and calibration to air. The polarographic probe has a built in temperature sensor and easy-to-replace pop-off probe heads.

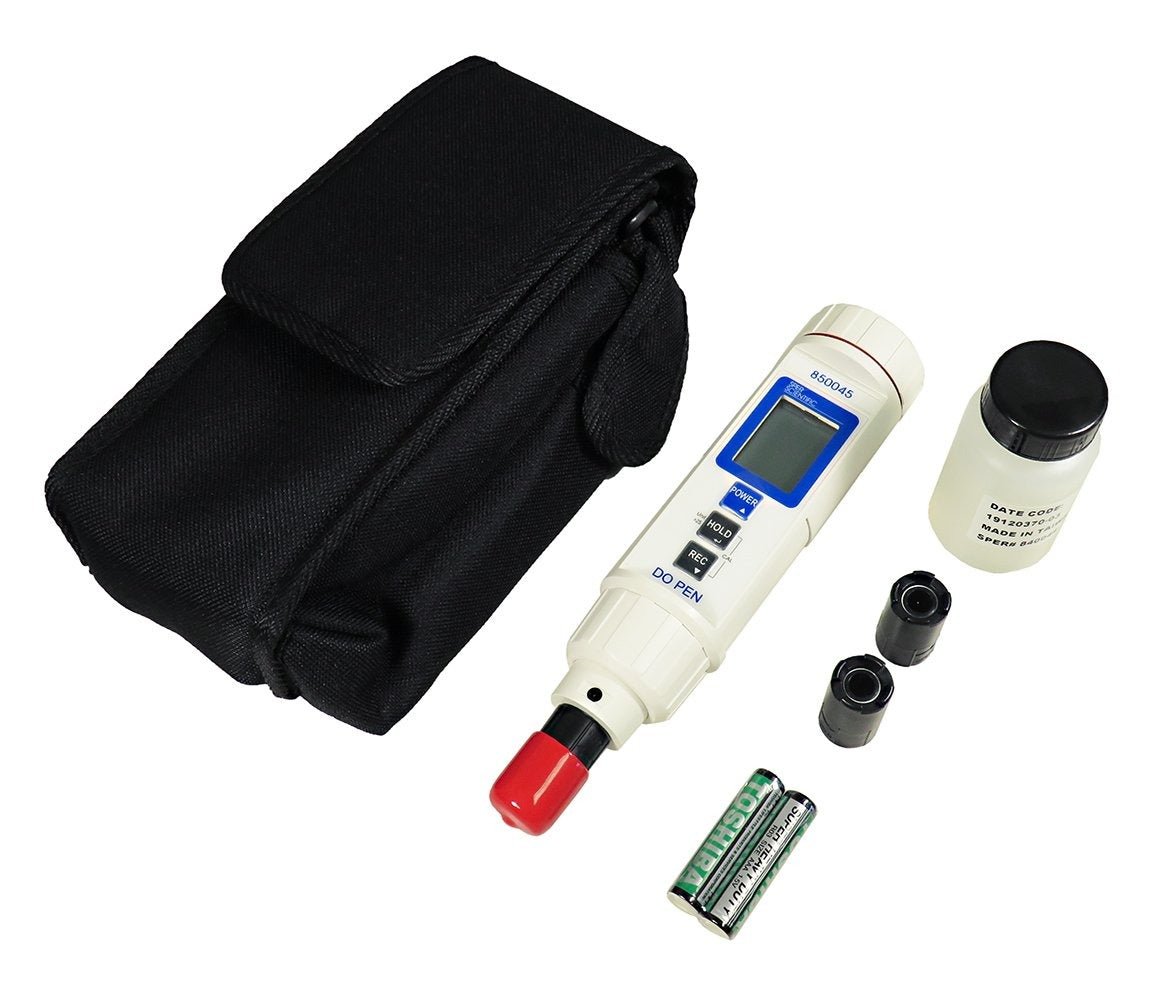

Simultaneously displays dissolved oxygen and temperature readings. Also holds readings and recalls minimum and maximum. IP65 waterproof. Comes ready to use in a soft carrying case with belt loop, two spare probe heads, electrolyte and 4 AAA batteries. EPA Equivalency Method: 360.1
Dimensions: 7¾" × 1½" × 1½" (197 × 38 × 38 mm)
Weight: 4.1 oz (116 g)
Specifications
| Unit of Measure: | Range: | Resolution: | Accuracy: |
| DO: | 0 to 20.0 mg/L | 0.1 mg/L | ±0.4 mg/L |
| Oxygen % in Air: | 0 to 100% O2 | 0.1% O2 | ±0.7% O2 |
| Temperature ºF: | 32 to 122ºF | 0.1ºF | ±1.5ºF |
| Temperature ºC: | 0 to 50ºC | 0.1ºC | ±0.8ºC |
Downloads
Comparison Chart
Compare Sper Scientific Dissolved Oxygen (DO) Meters
 |
 |
|
|
 |
 |
|
| Model Number | 850045 | 850048DOK | 850081DOK | 860055 | 860067 | 860073 |
|---|---|---|---|---|---|---|
| Product Name | Waterproof DO Meter Pen | Combination Water Meter Kit w/ DO Probe | Dissolved Oxygen Meter Kit | Rechargeable DO Pen w/ 5 Meter Cable | Optical Dissolved Oxygen Meter | Portable Optical Dissolved Oxygen Meter |
| DO Range (% Saturation) | 0–100% O₂ in air | 0–200% | 0–100.0% | 0.0–199.9% | 0.0–200.0% | 0-200% |
| DO Range (mg/L) | 0–20.0 mg/L | 0–20.0 mg/L | 0–20 mg/L | 0.00–20.00 mg/L | 0.0–20.0 mg/L | 0 -20 mg/L |
| DO Accuracy (mg/L) | ±0.4 mg/L | ±0.4 mg/L | ±0.4 mg/L | ±0.4 mg/L | <5: ±0.3 mg/L≥5: ±0.4 mg/L | ±0.3mg/L |
| DO Resolution (mg/L) | 0.1 mg/L | 0.1 mg/L | 0.1 mg/L | 0.01 mg/L | 0.1 mg/L | 0.01mg/L |
| DO Accuracy (%) | ±0.7% O₂ | ±2% F.S. | ±0.7% O₂ | ±3% F.S. | ±3% of Full Scale | ±3% |
| DO Resolution (%) | 0.10% | 0.10% | 0.10% | 0.10% | 0.10% | 0.10% |
| Temp. Range | 0–50°C / 32–122°F | 0–50°C / 32–122°F | 0–50°C / 32–122°F | 0–50.0°C / 32–122°F | 0–40.0°C / 32–104°F | 0°–45°C / 32°–113°F |
| Temp. Accuracy | ±0.8°C / 1.5°F | ±0.5°C / 0.9°F | ±0.8°C / ±1.5°F | ±0.5°C / 0.9°F | ±0.5°C (0.9°F) | ±0.5°C / 0.9°F |
| Temp. Resolution | 0.1°C | 0.1°C | 0.1°C | 0.1°C | 0.1°C | 0.1°C |
| Auto Temp. Comp. (ATC) | √ | √ | √ | 10–40°C | 0–40°C | √ |
| Salinity Resolution | 0.1 ppt | 0.1 ppt | ||||
| Barometric Pressure Comp. | Manual (altitude) | Manual (altitude) | 500–760 mmHg(66.7–101.3 kPa) | Manual, 50–115 kPa | Manual (altitude) | |
| DO Calibration | 1-Point (air) | 1-Point (air) | 1-Button (air) | 1-Point (100% air) | 2-Point (0% & 100%) | 2-Point (0% & 100%) |
| Probe Technology | Polarographic DO probe | Polarographic DO probe | Polarographic DO probe | Polarographic DO probe | Optical (fluorescent) DO probe | Optical (fluorescent) DO probe |
| Sensor Warmup Time | ~30 min (cal.) | ~30 min (cal.) | <60 seconds | None | ~10 min (cal.) | |
| Sensor Response Time | <30 seconds | Fast | ||||
| Sensor/Probe Lifetime | >6 months | >1 year | >1 year | |||
| Measures pH | (optional probe) | (optional probe) | ||||
| Measures ORP / mV | (optional probe) | |||||
| Measures Conductivity/TDS | (optional probe) | (optional probe) | ||||
| Measures Salinity | Via compensation | (optional probe) | (optional probe) | Via compensation | Via compensation | Via compensation |
| Memory / Data Storage | Max/Min record | 99 memory points | 99 memory points | +100,000 memory points | ||
| RS232 / Data Output | RS232 | USB | ||||
| Display Type | Dual LCD | Large backlit LCD | Backlit LCD | Backlit LCD | Large LCD | Large LCD |
| Simultaneous DO & Temp. | √ | √ | √ | √ | √ | √ |
| Backlight | √ | √ | √ | √ | ||
| Battery Type | (4) AAA | (4) AAA | 9V | 3.7V 500mAh Rechargeable Li-ion | (6) AAA | Rechargeable Li-ion |
| Charging | USB Type-C(~1.5 hr) | USB | ||||
| IP Rating | IP-67 | IP-67 | IP-67 Housing / IP-68 Sensor | |||
| Spare Probe Heads | 2 spare probe heads | 2 spare probe heads | 2 spare probe heads | 2 spare probe heads | ||
| Electrolyte Solution | √ | √ | √ | √ |
Videos
Couldn't load pickup availability
Product Information
Product Information
Measures dissolved oxygen to determine water quality in environmental testing, labs, industrial and municipal wastewater, aquariums and fish hatcheries.
Designed for simple one-hand operation with automatic temperature compensation and calibration to air. The polarographic probe has a built in temperature sensor and easy-to-replace pop-off probe heads.
Simultaneously displays dissolved oxygen and temperature readings. Also holds readings and recalls minimum and maximum. IP65 waterproof. Comes ready to use in a soft carrying case with belt loop, two spare probe heads, electrolyte and 4 AAA batteries. EPA Equivalency Method: 360.1
Dimensions: 7¾" × 1½" × 1½" (197 × 38 × 38 mm)
Weight: 4.1 oz (116 g)
Specifications
| Unit of Measure: | Range: | Resolution: | Accuracy: |
| DO: | 0 to 20.0 mg/L | 0.1 mg/L | ±0.4 mg/L |
| Oxygen % in Air: | 0 to 100% O2 | 0.1% O2 | ±0.7% O2 |
| Temperature ºF: | 32 to 122ºF | 0.1ºF | ±1.5ºF |
| Temperature ºC: | 0 to 50ºC | 0.1ºC | ±0.8ºC |
Downloads
Comparison Chart
Compare Sper Scientific Dissolved Oxygen (DO) Meters
|
|
|
|
|
|
|
| Model Number | 850045 | 850048DOK | 850081DOK | 860055 | 860067 | 860073 |
|---|---|---|---|---|---|---|
| Product Name | Waterproof DO Meter Pen | Combination Water Meter Kit w/ DO Probe | Dissolved Oxygen Meter Kit | Rechargeable DO Pen w/ 5 Meter Cable | Optical Dissolved Oxygen Meter | Portable Optical Dissolved Oxygen Meter |
| DO Range (% Saturation) | 0–100% O₂ in air | 0–200% | 0–100.0% | 0.0–199.9% | 0.0–200.0% | 0-200% |
| DO Range (mg/L) | 0–20.0 mg/L | 0–20.0 mg/L | 0–20 mg/L | 0.00–20.00 mg/L | 0.0–20.0 mg/L | 0 -20 mg/L |
| DO Accuracy (mg/L) | ±0.4 mg/L | ±0.4 mg/L | ±0.4 mg/L | ±0.4 mg/L | <5: ±0.3 mg/L≥5: ±0.4 mg/L | ±0.3mg/L |
| DO Resolution (mg/L) | 0.1 mg/L | 0.1 mg/L | 0.1 mg/L | 0.01 mg/L | 0.1 mg/L | 0.01mg/L |
| DO Accuracy (%) | ±0.7% O₂ | ±2% F.S. | ±0.7% O₂ | ±3% F.S. | ±3% of Full Scale | ±3% |
| DO Resolution (%) | 0.10% | 0.10% | 0.10% | 0.10% | 0.10% | 0.10% |
| Temp. Range | 0–50°C / 32–122°F | 0–50°C / 32–122°F | 0–50°C / 32–122°F | 0–50.0°C / 32–122°F | 0–40.0°C / 32–104°F | 0°–45°C / 32°–113°F |
| Temp. Accuracy | ±0.8°C / 1.5°F | ±0.5°C / 0.9°F | ±0.8°C / ±1.5°F | ±0.5°C / 0.9°F | ±0.5°C (0.9°F) | ±0.5°C / 0.9°F |
| Temp. Resolution | 0.1°C | 0.1°C | 0.1°C | 0.1°C | 0.1°C | 0.1°C |
| Auto Temp. Comp. (ATC) | √ | √ | √ | 10–40°C | 0–40°C | √ |
| Salinity Resolution | 0.1 ppt | 0.1 ppt | ||||
| Barometric Pressure Comp. | Manual (altitude) | Manual (altitude) | 500–760 mmHg(66.7–101.3 kPa) | Manual, 50–115 kPa | Manual (altitude) | |
| DO Calibration | 1-Point (air) | 1-Point (air) | 1-Button (air) | 1-Point (100% air) | 2-Point (0% & 100%) | 2-Point (0% & 100%) |
| Probe Technology | Polarographic DO probe | Polarographic DO probe | Polarographic DO probe | Polarographic DO probe | Optical (fluorescent) DO probe | Optical (fluorescent) DO probe |
| Sensor Warmup Time | ~30 min (cal.) | ~30 min (cal.) | <60 seconds | None | ~10 min (cal.) | |
| Sensor Response Time | <30 seconds | Fast | ||||
| Sensor/Probe Lifetime | >6 months | >1 year | >1 year | |||
| Measures pH | (optional probe) | (optional probe) | ||||
| Measures ORP / mV | (optional probe) | |||||
| Measures Conductivity/TDS | (optional probe) | (optional probe) | ||||
| Measures Salinity | Via compensation | (optional probe) | (optional probe) | Via compensation | Via compensation | Via compensation |
| Memory / Data Storage | Max/Min record | 99 memory points | 99 memory points | +100,000 memory points | ||
| RS232 / Data Output | RS232 | USB | ||||
| Display Type | Dual LCD | Large backlit LCD | Backlit LCD | Backlit LCD | Large LCD | Large LCD |
| Simultaneous DO & Temp. | √ | √ | √ | √ | √ | √ |
| Backlight | √ | √ | √ | √ | ||
| Battery Type | (4) AAA | (4) AAA | 9V | 3.7V 500mAh Rechargeable Li-ion | (6) AAA | Rechargeable Li-ion |
| Charging | USB Type-C(~1.5 hr) | USB | ||||
| IP Rating | IP-67 | IP-67 | IP-67 Housing / IP-68 Sensor | |||
| Spare Probe Heads | 2 spare probe heads | 2 spare probe heads | 2 spare probe heads | 2 spare probe heads | ||
| Electrolyte Solution | √ | √ | √ | √ |
