Wall Mounted Fume Extractors provide a compact and highly modular solution for removing airborne fumes, smoke, dust and particulates directly at the source.

Designed for environments where floor space and workstation efficiency are critical, these self-contained air filtration systems combine powerful airflow performance with high-efficiency filtration to help improve workplace air quality and operator safety.

Engineered for flexibility and ease of installation, wall mounted fume extractors can be mounted directly to a wall, welding booth or optional stand, allowing the filtration unit to remain off the work surface and out of the operator’s immediate workspace. This space-saving configuration makes them ideal for smaller production areas, laboratories, repair stations and industrial work environments where traditional floor-mounted extraction systems may not be practical.

What Is a Wall Mounted Fume Extractor?

A wall mounted fume extractor is a source-capture air filtration system specifically designed for small or limited workspace environments where localized air purification is required. These systems are typically self-contained and equipped with a flexible extraction arm that captures airborne contaminants near the source before they disperse into the surrounding environment.

By mounting the system directly to a wall or workstation structure, operators gain improved mobility and valuable floor and benchtop space while still maintaining effective contaminant capture and filtration.

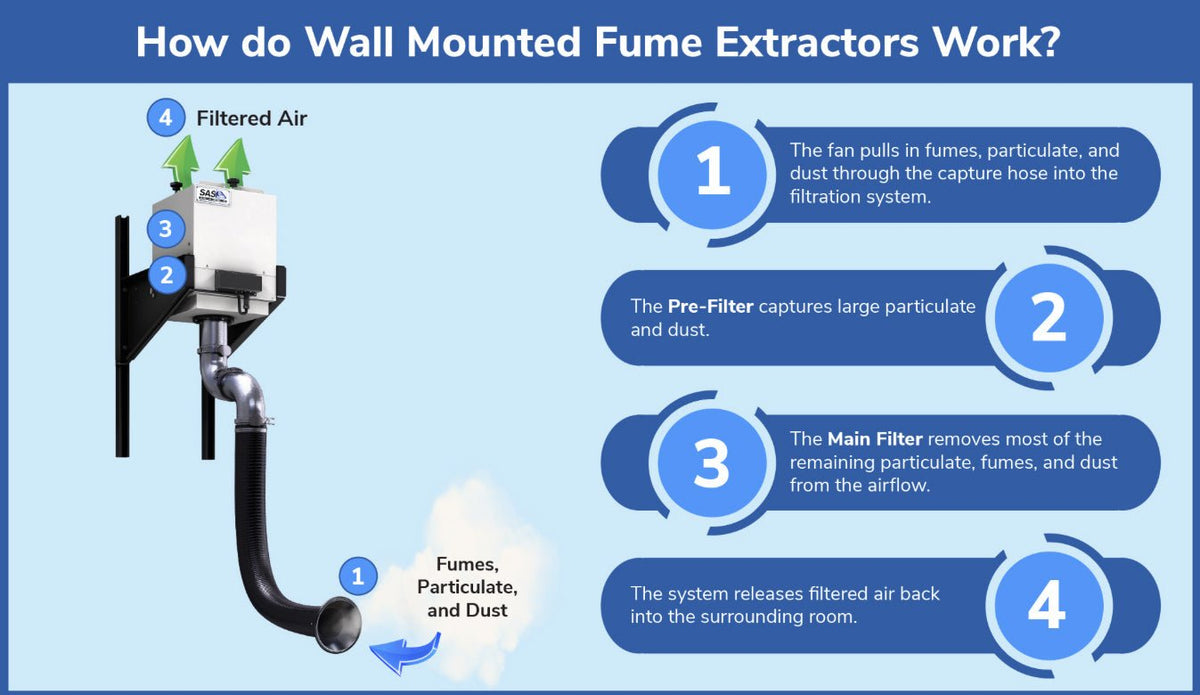

How Does a Wall Mounted Fume Extractor Work?

Wall mounted fume extractors operate by drawing contaminated air through an adjustable source-capture arm and into an internal filtration chamber. The system’s high-powered motor pulls airborne contaminants away from the operator’s breathing zone where specialized filter media capture fumes, vapors, smoke and particulates before cleaned air is recirculated back into the workspace.

The system utilizes a dual-stage filtration process consisting of:

• A MERV 8 Pre-Filter for capturing larger particulates and extending HEPA filter life.

• A HEPA Filter rated up to 99.97% efficient on particles 0.3 micrometers and larger.

Depending on the application, other filtration configurations may include:

• HEPA filtration for fine particulate removal
• Activated carbon for chemical fumes and odors
• Specialty-blended media for targeted contaminant control
• Multi-stage filtration for combined particulate and vapor removal

Applications

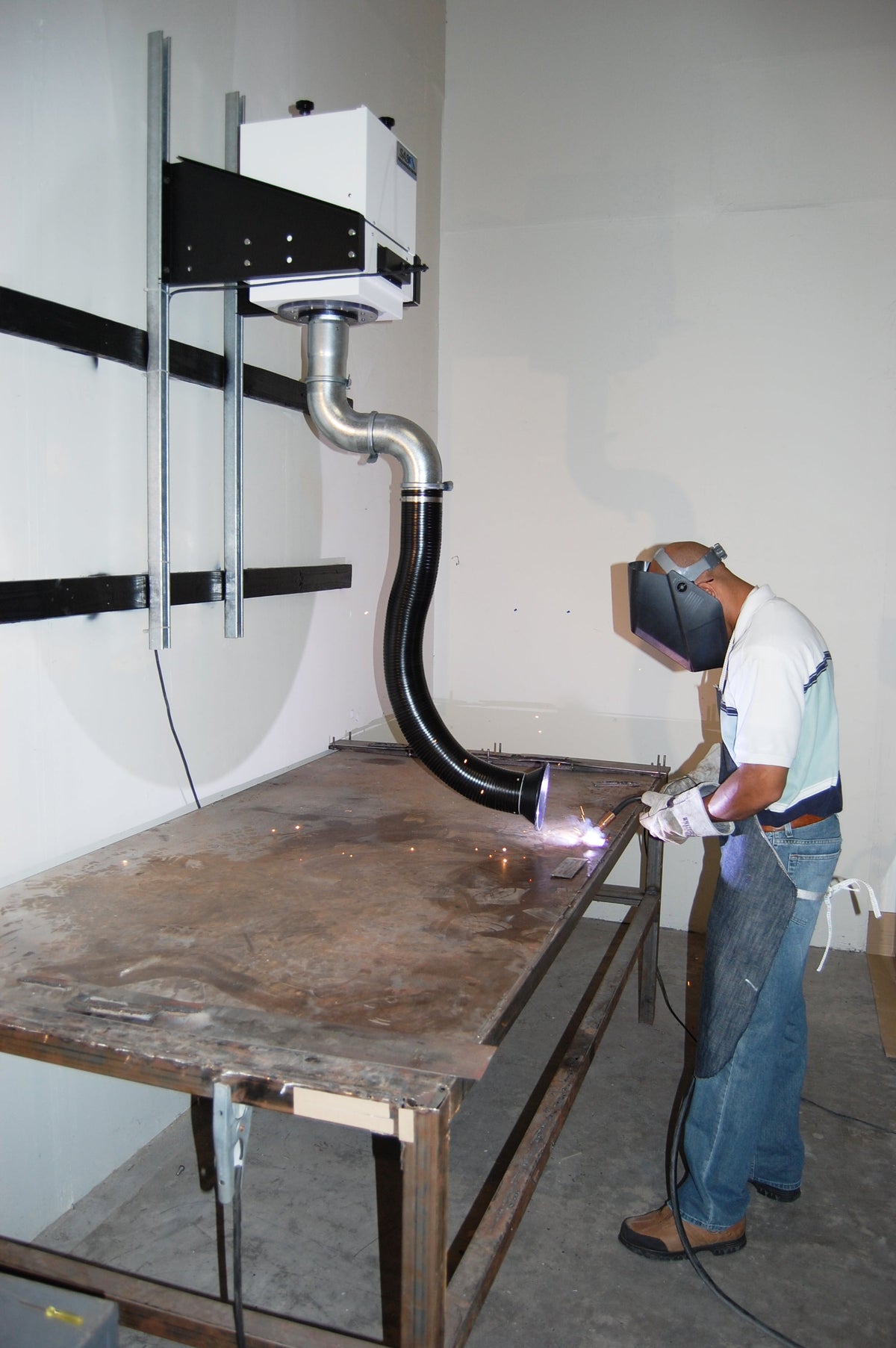

Wall mounted fume extractors are commonly used in welding and soldering environments but are suitable for many industrial, laboratory and commercial applications requiring localized air filtration.

Common Applications Include:

• Soldering
• Welding
• Chemical handling
• Light grinding
• Solvent and epoxy fumes
• Dust collection
• Pharmaceutical applications
• Buffing
• Refinishing
• Brazing
• Commercial manufacturing environments

Key Features

• Space-Saving Design
  Wall mounting frees up valuable benchtop and floor space in compact work environments.
• Flexible Source Capture
  The adjustable extraction arm provides targeted contaminant capture directly at the source.
• Quiet Operation
  Energy-efficient motors and low-noise operation support comfortable day-to-day use.
• Easy Installation
  Units include a wall-mounting kit for fast and straightforward installation.
• Extended Reach
  When wall mounted, the extraction arm provides an approximate 62.5” swivel radius for excellent workstation coverage.
• Modular Filtration
  Multiple filter configurations are available to match a broad range of contaminants and applications.
• Low Maintenance Operation
  Designed for reliable long-term use with simple filter replacement and minimal maintenance requirements.

Ideal Work Environments

• Electronics manufacturing
• Welding stations
• Industrial production lines
• Laboratories
• Maintenance facilities
• Educational training environments
• Pharmaceutical workstations
• Repair and refinishing shops

Why Choose a Wall Mounted Fume Extractor?

Sentry Air Systems wall mounted fume extractors combine compact engineering, efficient filtration and flexible installation to provide an economical and effective source-capture air purification solution. Their modular design allows users to maintain clean air in environments where workspace efficiency, operator safety and mobility are essential.

Specifications

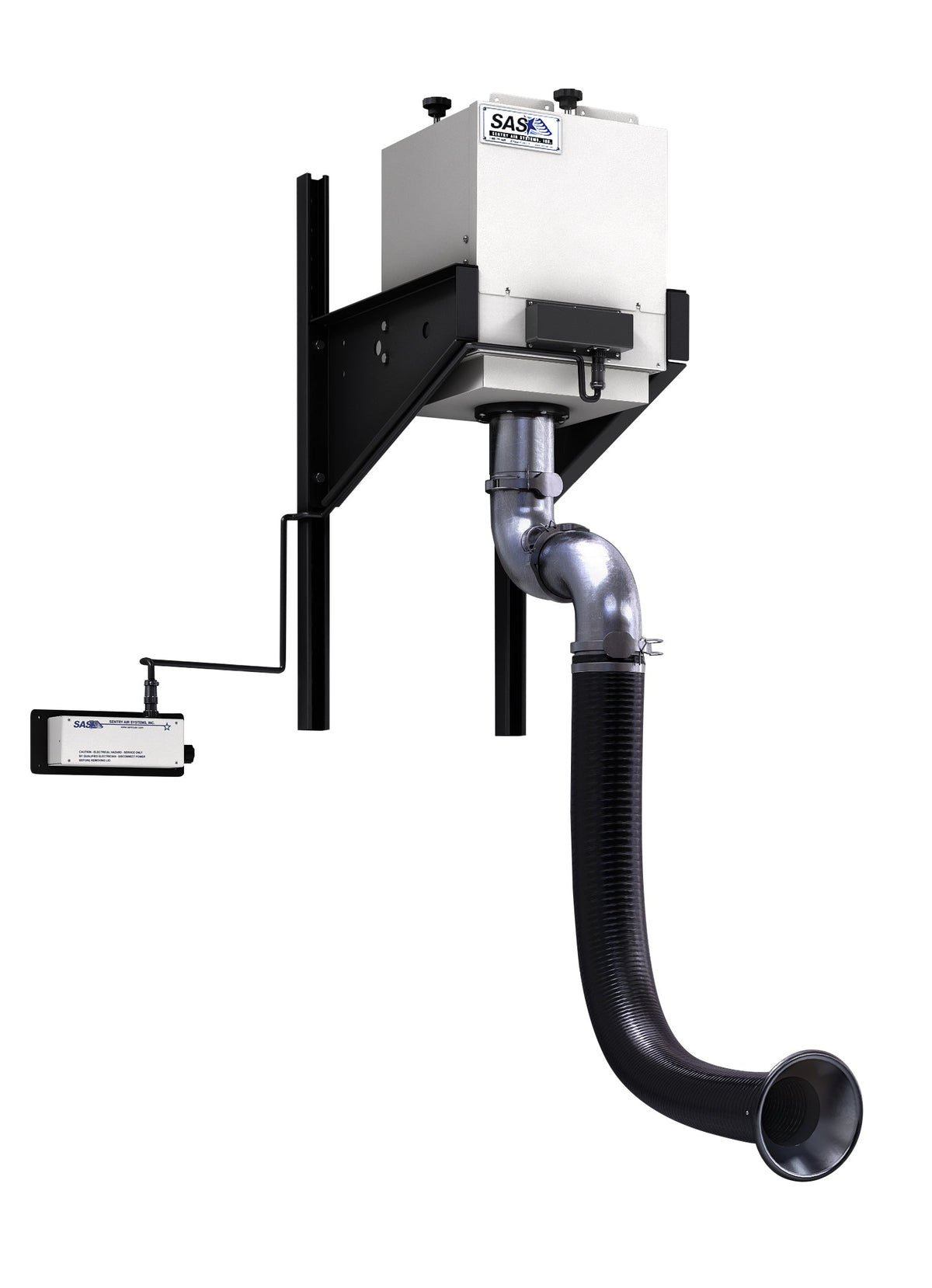

300 Series Wall Mounted Fume Extractor

Filtration Options

The Wall Mounted Fume Extractor supports multiple filter media configurations depending on the application:

• HEPA filtration
  Up to 99.97% efficiency on particles down to 0.3 microns
• ASHRAE filtration
  Up to 95% efficiency on particles down to 0.5 microns
• Activated carbon filtration
  Absorption of chemical fumes, odors and volatile organic compounds (VOCs)
• Specialty blended media
  For acid gas, aldehyde and ammonia applications

Filter Limitations/Warnings*

General Warnings: Not for use with chlorine gas (Cl₂), nitric oxides (NOx), hydrogen sulfide (H₂S), hydrogen fluoride/hydrofluoric acid (HF), or similar toxic gases. Units are not intrinsically safe or explosion-proof.
