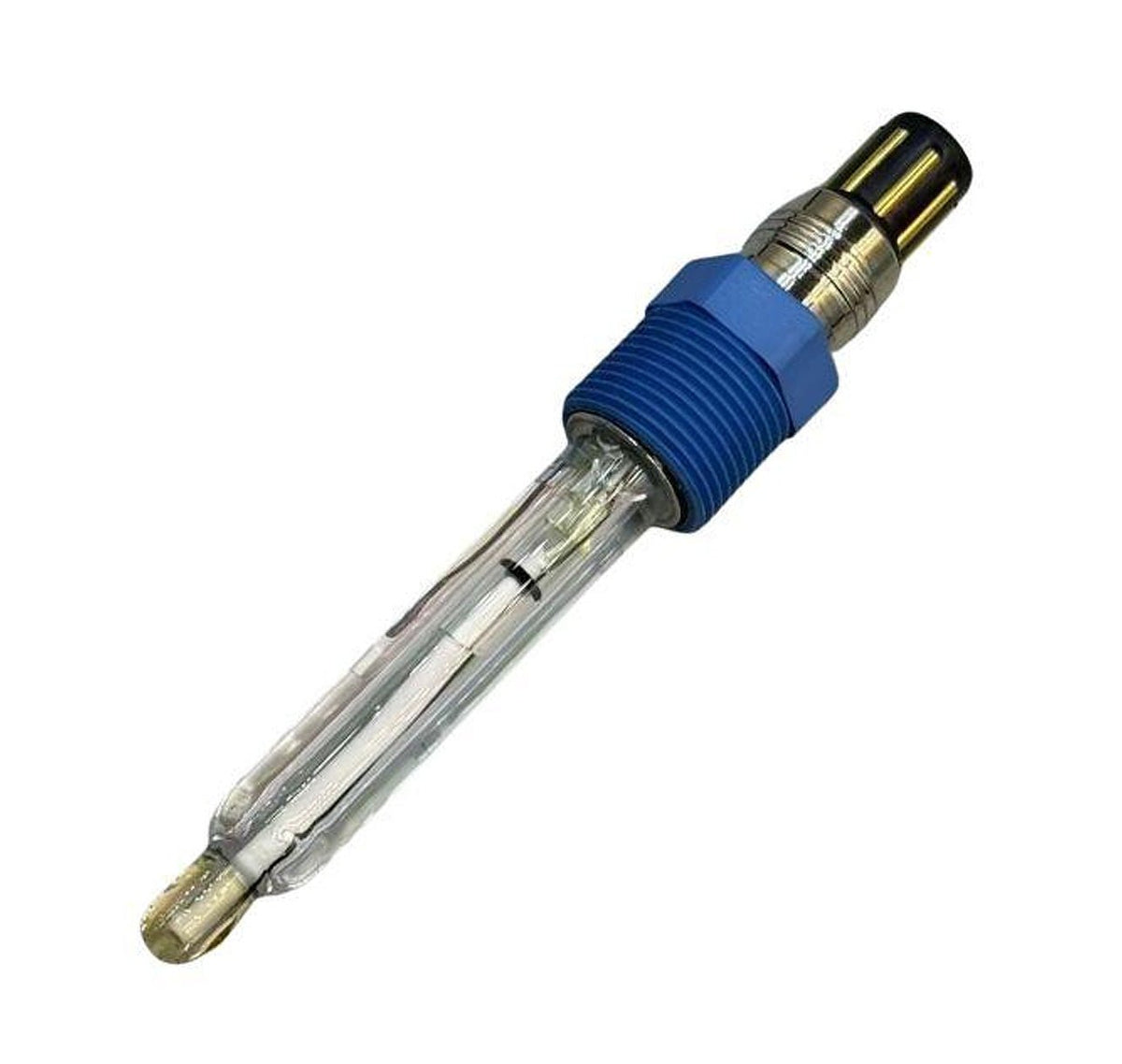

Single Use PH Sensor
Product Notes:
1. All Inline Bio-Process Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
2. Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download
The SSAPH705 Single-Use pH Sensor is designed for pH monitoring in single-use biopharmaceutical processes, including bioreactor bags and media preparation bags.
Its gamma-irradiation resistant pH-sensitive membrane and GR polymer gel reference electrolyte support use in consumable assemblies requiring gamma sterilization.
The sensor measures 3–10 pH at temperatures from 4–50°C and features a double liquid junction with a special porous ceramic salt bridge. A glass housing, PG13.5 mounting thread and 70 mm insertion depth provide a compact installation format. Optional temperature compensation elements and multiple cable connection options support integration with compatible measurement systems.
Specifications
| Measurement Range | 3–10 pH |
| Temperature Range | 4–50°C |
| Maximum Pressure | 6 bar |
| Temperature Compensation Options | NTC10K, NTC22K, PT100 or PT1000 (optional) |
| Factory Slope | >95% |
| Membrane Resistance | <300 MΩ |
| Zero Potential | 7 ± 0.25 pH |
| Response Time | <30 seconds |
| Salt Bridge Type | Special porous ceramic core |
| Reference Electrolyte | GR polymer gel, gamma-irradiation resistant type |
| Number of Liquid Junctions | Two |
| Mounting Thread | PG13.5 |
| Housing Material | Glass |
| Insertion Depth | 70 mm |
| pH-Sensitive Membrane | Gamma-irradiation resistant type (RR) |
| Cable Connection Options | S8 / S8M / S7 / VP / K8S / K2 |
Couldn't load pickup availability
Product Information
Product Information
The SSAPH705 Single-Use pH Sensor is designed for pH monitoring in single-use biopharmaceutical processes, including bioreactor bags and media preparation bags.
Its gamma-irradiation resistant pH-sensitive membrane and GR polymer gel reference electrolyte support use in consumable assemblies requiring gamma sterilization.
The sensor measures 3–10 pH at temperatures from 4–50°C and features a double liquid junction with a special porous ceramic salt bridge. A glass housing, PG13.5 mounting thread and 70 mm insertion depth provide a compact installation format. Optional temperature compensation elements and multiple cable connection options support integration with compatible measurement systems.
Specifications
| Measurement Range | 3–10 pH |
| Temperature Range | 4–50°C |
| Maximum Pressure | 6 bar |
| Temperature Compensation Options | NTC10K, NTC22K, PT100 or PT1000 (optional) |
| Factory Slope | >95% |
| Membrane Resistance | <300 MΩ |
| Zero Potential | 7 ± 0.25 pH |
| Response Time | <30 seconds |
| Salt Bridge Type | Special porous ceramic core |
| Reference Electrolyte | GR polymer gel, gamma-irradiation resistant type |
| Number of Liquid Junctions | Two |
| Mounting Thread | PG13.5 |
| Housing Material | Glass |
| Insertion Depth | 70 mm |
| pH-Sensitive Membrane | Gamma-irradiation resistant type (RR) |
| Cable Connection Options | S8 / S8M / S7 / VP / K8S / K2 |
