Outdoor Air Quality Monitor from Tongdy is a professional environmental monitoring system designed for real time, multi-parameter outdoor air quality measurement in urban environments, industrial areas and infrastructure projects.
Note: All Tongdy monitors and controls ship direct from the factory. Please allow 10-15 business days for shipping and handling.
The system integrates commercial grade sensing modules capable of measuring multiple environmental parameters simultaneously while providing reliable data communication for smart city monitoring networks environmental compliance and research applications.
Modular design allows monitoring of up to eight environmental parameters including particulate matter gases temperature humidity and atmospheric pressure. Multiple communication options including RS485 WiFi Ethernet and 4G enable seamless integration with environmental monitoring platforms and IoT systems.

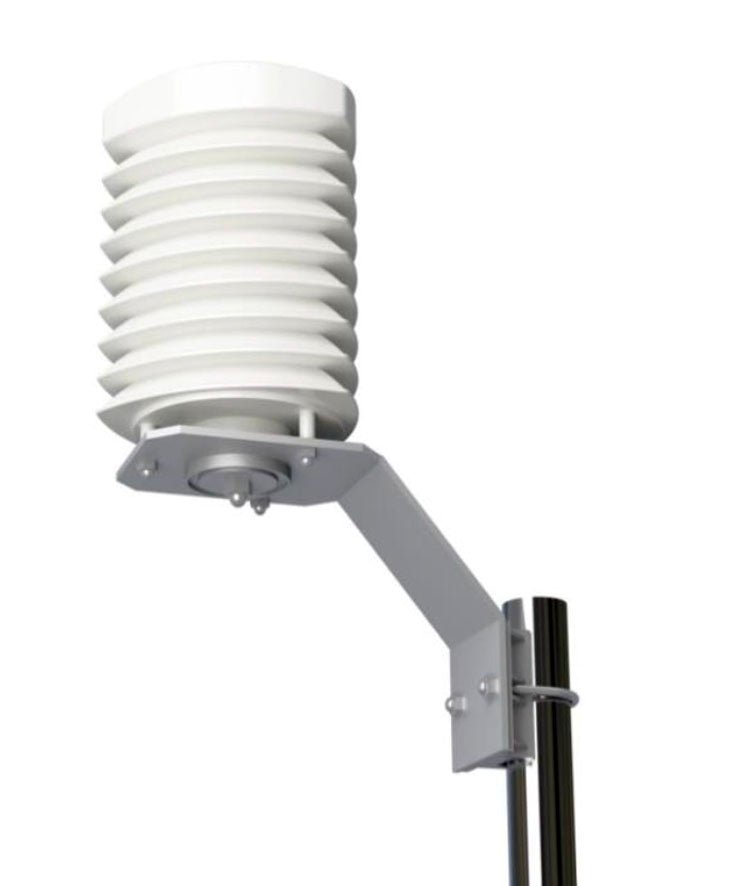

Engineered for continuous outdoor operation, the unit features a weather resistant enclosure with IP53 protection and integrated shielding against rain snow UV radiation and extreme temperatures. The monitor can be mounted on building walls rooftops poles or ground stations making it ideal for environmental monitoring networks and smart infrastructure deployments.
- Real time monitoring of outdoor air quality parameters
- Weather resistant design with rain and snow protection
- P53 environmental protection rating for outdoor installations
- Supports monitoring of u eight environmental parameters simultaneously
- High precision commercial grade sensing modules
- Flexible communications with standard RS485, and optional WiFi, Ethernet or 4G
- Supports Modbus RTU BACnet MS/TP and MQTT protocols
- Configurable data upload intervals from 1 minute to 24 hours
- Supports moving average data outputs for 1 minute 1 hour and 24 hours

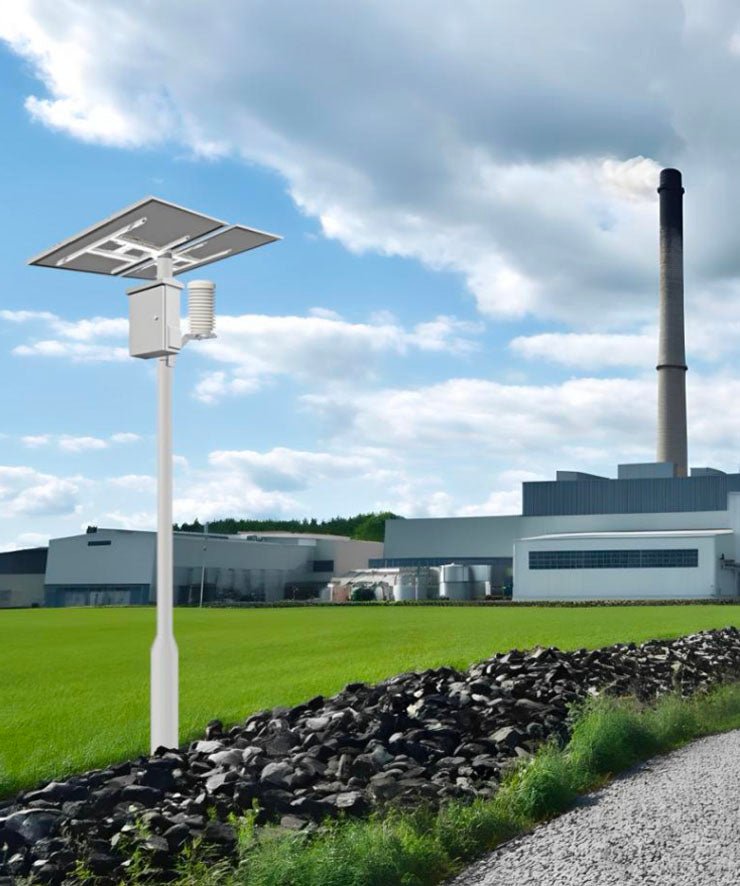

- Solar powered option for off grid installations
- Lithium battery backup enabling operation during low sunlight conditions

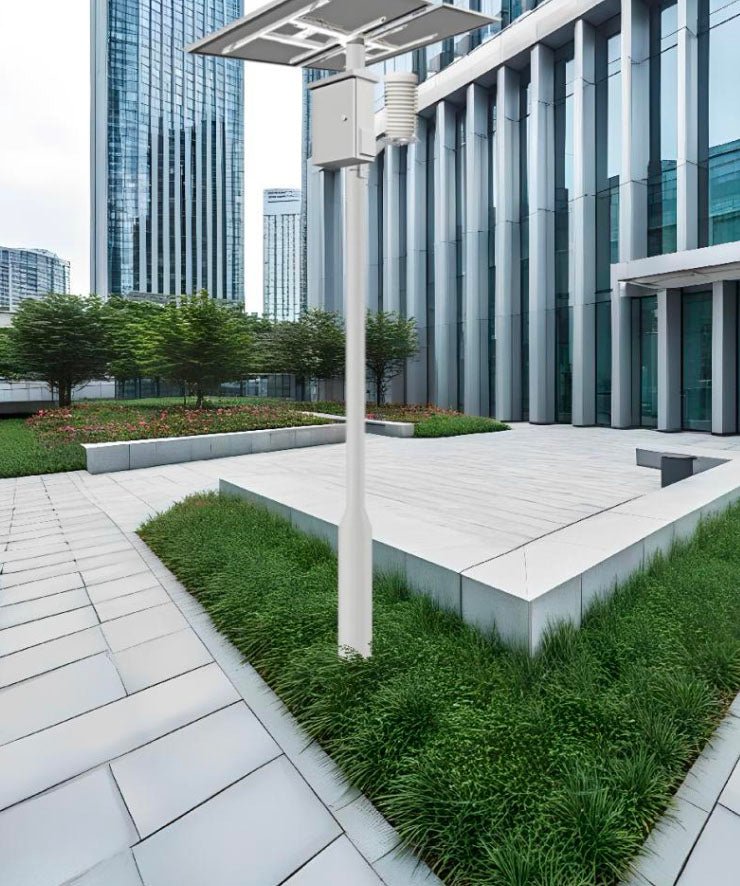

- Pole wall rooftop or ground mounting options available
Environmental Parameters Measured
- Temperature and Humidity
- Particles (PM2.5/ PM10 )
- Carbon Monoxide(CO)
- Ozone(O3)
- Nitrogen Dioxide(NO2)
- Sulfur Dioxide (SO2)
- Carbon Dioxide (CO2)
- TVOC
Typical Applications
- Smart city air quality monitoring networks
- Urban pollution monitoring
- Industrial site environmental monitoring
- Tunnel and underground air monitoring
- Construction site environmental compliance
- Environmental research projects
- Public health air quality monitoring
- Campus and infrastructure environmental monitoring
Specifications
General Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -20°C to 70°C |
| Operating Humidity | 0 to 99% RH |
| Storage Temperature | 0°C to 50°C |
| Storage Humidity | 10% to 60% RH |
| Housing Material | Industrial PC enclosure |
| Protection Rating | IP53 outdoor weather resistant housing |
| Monitor Width | 190 mm (272 mm including mounting bracket) |
| Height | 252 to 441 mm depending on sensor configuration |
| Height with Bracket | 362 to 574 mm |
| Weight | 2.35 kg to 3.05 kg depending on configuration |
Power and Communication
| Specification | Details |
|---|---|
| Power Supply | 12 to 24 VDC with 100 to 240 VAC power adapter |
| Solar Power Option | 160 W monocrystalline solar panel with lithium battery system |
| Battery System | 18 to 24 lithium 18650 batteries (2600 to 3400 mAh each) |
| Solar Operation Time | Up to 96 hours during cloudy or rainy conditions |
| RS485 Interface | Modbus RTU or BACnet MS/TP, default 9600 bps |
| WiFi | Optional 2.4 GHz 802.11 b g n |
| Ethernet | Optional RJ45 Ethernet communication |
| Cellular Option | Optional 4G LTE connectivity |
| Data Upload Interval | Configurable from 1 minute to 24 hours |
| Data Output | Moving average values for 1 minute 1 hour and 24 hours |
Air Quality Sensor Specifications
| Particulate Matter | |||
| Parameter | Sensor Type | Range | Accuracy |
|---|---|---|---|
| PM2.5 | Laser particle sensor | 0 to 1000 µg/m³ | ±5 µg/m³ +10% reading |
| PM10 | Laser particle sensor | 0 to 1000 µg/m³ | ±10 µg/m³ +15% reading |
| Environmental Sensors | |||
| Temperature | Band gap semiconductor | -20°C to 80°C | ±0.3°C |
| Relative Humidity | Capacitive sensor | 0 to 99% RH | ±3% RH |
| Gas Sensors | |||
| Carbon Monoxide (CO) | Electrochemical | 0 to 200 mg/m³ | ±1 mg/m³ +5% reading |
| Ozone (O3) | Electrochemical | 0 to 2000 µg/m³ | ±15 µg/m³ +15% reading |
| Nitrogen Dioxide (NO2) | Electrochemical | 0 to 4000 µg/m³ | ±15 µg/m³ +15% reading |
| Sulfur Dioxide (SO2) | Electrochemical | 0 to 4000 µg/m³ | ±15 µg/m³ +15% reading |
| Carbon Dioxide (CO2) | NDIR sensor | 350 to 2000 ppm | ±30 ppm +5% reading |
| TVOC | Metal oxide sensor | 0.01 to 4.00 mg/m³ | ±0.05 mg/m³ +10% reading |
| Atmospheric Pressure | MEMS semiconductor | 0 to 103425 Pa | < ±48 Pa |
