NR60CP Colorimeter
Product Notes: Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download
The NR60CP Colorimeter offers precise and cost-effective color measurement with excellent accuracy and switchable apertures.
This instrument features switchable 8mm and 4mm measuring apertures make it easy to measure concave surfaces, while the double locating system ensures accuracy. With a variety of color spaces, indexes and a new integrating sphere optical path design, this colorimeter is a powerful and versatile tool for a wide array of color measurement tasks.

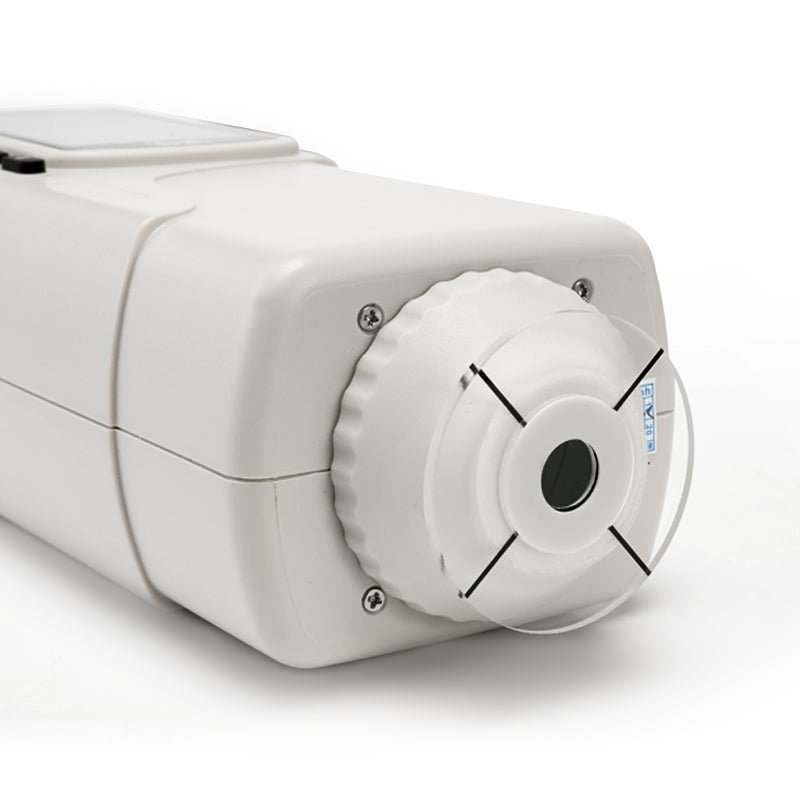

- Switchable 8mm and 4mm measuring apertures make it easy to measure concave surface.
- Higher measurement stability and accuracy: Delta E ab<0.03.
- More color spaces, color indexes, extensive applicability.
- Double locating: illuminating locating and cross locating
- High-capacity rechargeable Li-ion battery
- Easy operation with built-in white plate parameters and physical white calibration board.
- New integrating sphere optical path design for more stable measurement.
Note: This item ships direct from the manufacturer. Please allow an additional 3-5 business days for order processing and shipment on all 3nh instruments.
Specifications
| Illuminating/Viewing Geometry: | 8°/ d |
| Light Source: | LED Light |
| Sensor: | Silicon Photodiode Array |
| Measuring aperture: | Φ8mm flat aperture; Φ4mm tip aperture |
| Color Space： | CI E L AB，XYZ，LCh，CI E RGB，CI E LUV |
| Color Difference Formula: | ΔE* ab, ΔE( h), ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1), ΔE*cmc ( 1: 1), ΔE* 00 |
| Other Chromaticity Data: | WI ( E313，CI E, AATCC，Hunt er )，YI ( D1925，313)，Color Fastness, Staining Fastness, J PC79，BFD( 1. 5: 1)，FMCI I |
| Observer: | CI E 10° |
| Illuminant: | D65，A，C，D50，F2，F6，F7，F8，F10，F11，F12 |
| Display Data: | Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, |
| Measuring Time: | 1.5s |
| Repeatability: | ΔE* ab 0. 03 (Average of 30 measurements of standard white plate within 5s) |
| Errors between each instrument: | Within Delta E*ab 0.2 |
| Dimension: | 205*67*80mm |
| Weight: | 500g |
| Battery: | Rechargeable lithium-ion battery 3. 7V @ 3200mAh |
| Lamp Life: | 5 years, more than 1.6 million measurements |
| Screen: | TFT 2.4 inch（16:9） |
| Interface: | USB/ RS-232 |
| Storage: | 100 Standards, 20000 Samples |
| Operating Temperature: | 0~40℃（32~104°F） |
| Storage Temperature: | -20~50℃（-4~122°F） |
| PC Software: | CQCS3 software (included) |
| Optional Accessories: | Miniature thermal printer, powder test box |
