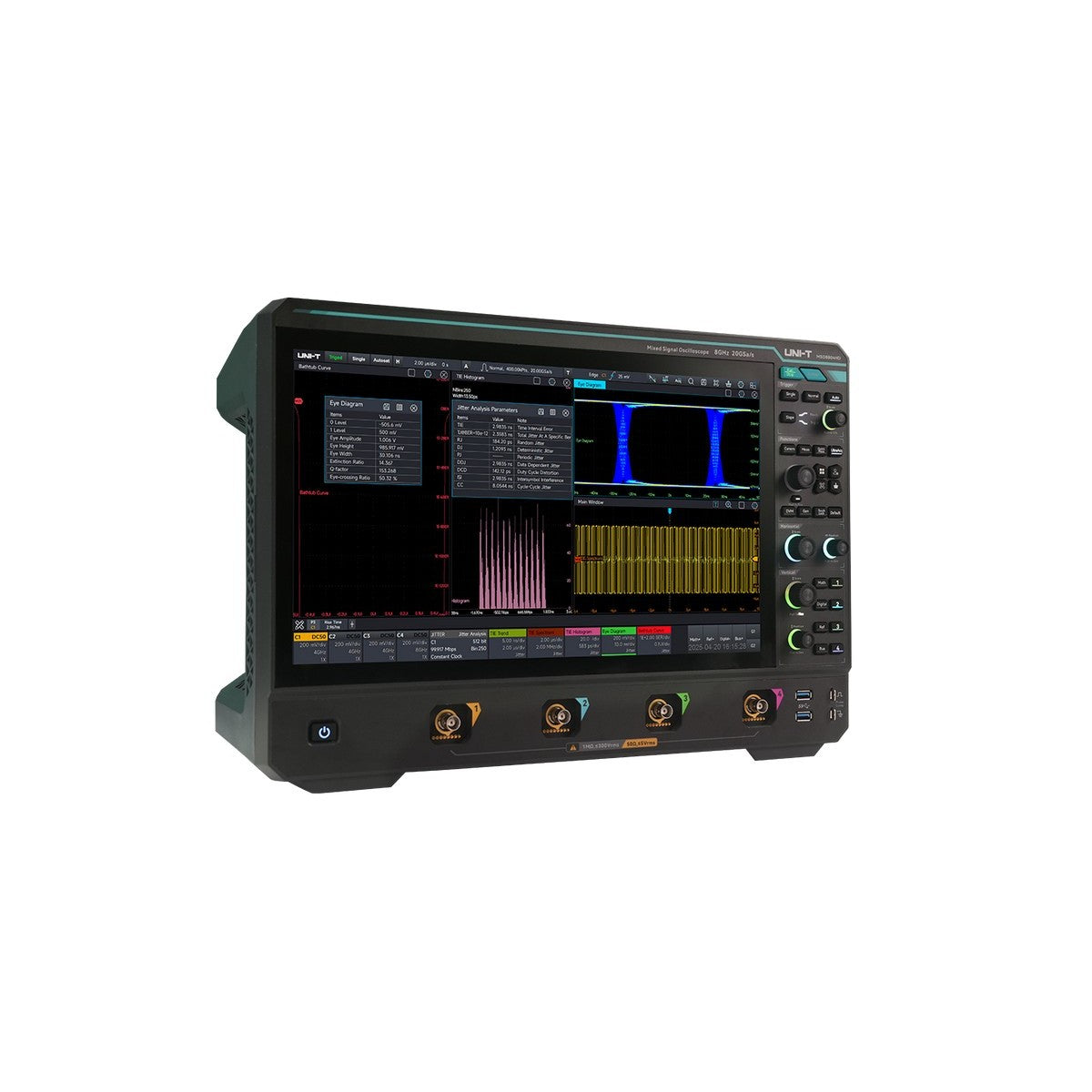

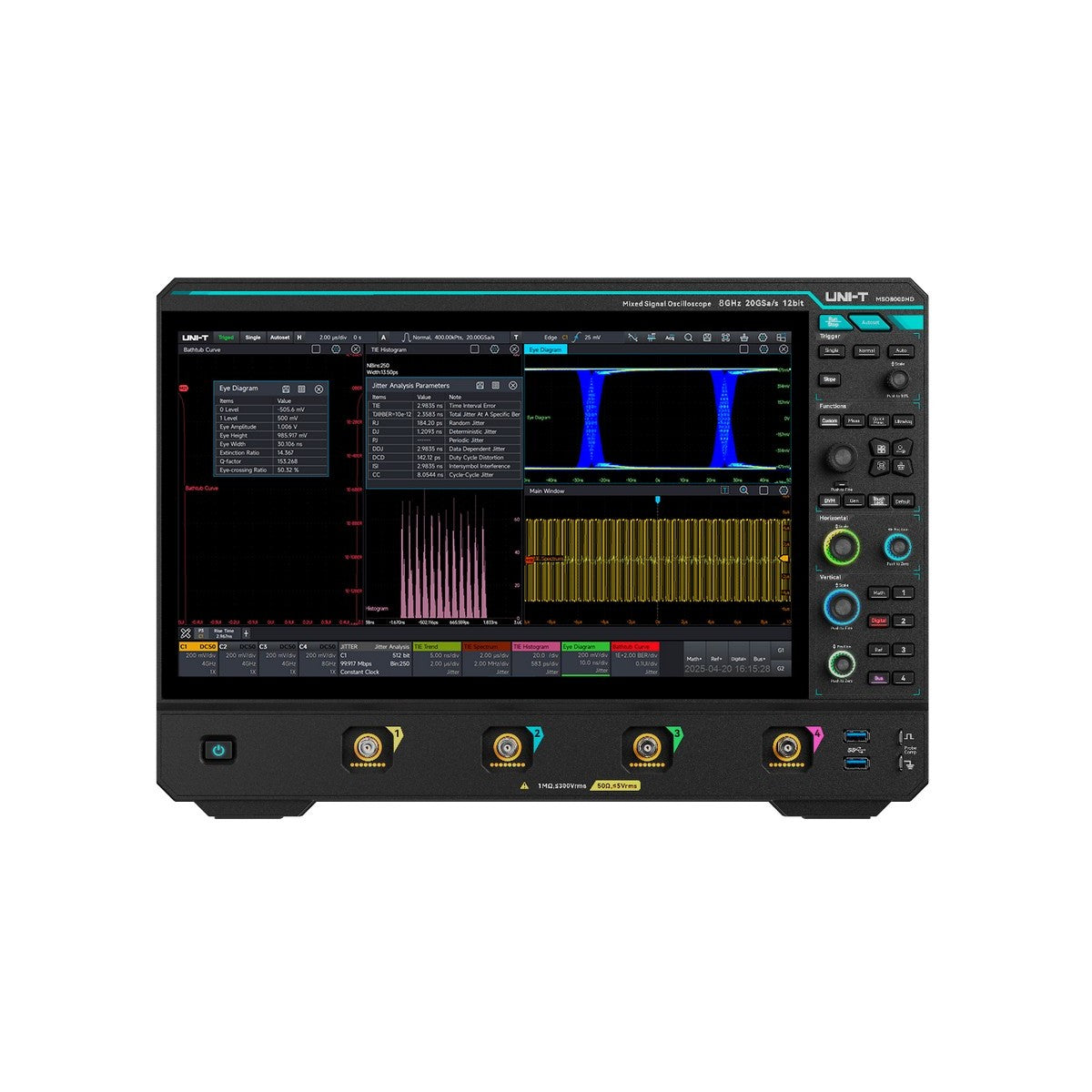

MSO8804HD Lab-Grade 8 GHz 4Ch 12-Bit Mixed Signal Oscilloscope
Download
Download
The UNI-T MSO8804HD 8 GHz 4-Channel Mixed Signal Oscilloscope is a high-performance laboratory instrument designed for signal integrity analysis, high-speed digital validation, compliance testing and advanced research applications.
Featuring an 8 GHz analog bandwidth, up to 20 GSa/s real-time sampling, and UNI-T's R12™ native 12-bit ADC architecture, the MSO8804HD delivers exceptional waveform accuracy for today's fastest electronic designs. Deep acquisition memory, ultra-fast waveform capture, and advanced software options make it an ideal solution for engineers working with PCIe, USB, Ethernet, DDR memory, and next-generation serial interfaces.
Designed for demanding development and test environments, the MSO8804HD combines high-performance hardware with powerful analysis tools in a single platform. A large 15.6-inch Full HD multi-touch display, hardware-accelerated protocol decoding, optional jitter and eye-diagram analysis, PAM-N measurements, and automated compliance testing provide the flexibility required for modern electronic design, validation, and production test.
- 8 GHz analog bandwidth with four input channels
- Up to 20 GSa/s real-time sampling (half-channel mode)
- Native 12-bit ADC architecture with up to 16-bit Enhanced Resolution (ERES)
- 500 Mpts standard memory, expandable to 2 Gpts
- UltraAcq® acquisition with up to 1,000,000 waveforms per second
- Sequential Mode with up to 520,000 waveform segments
- 21+ serial protocol decoders across embedded, automotive, communications, and aerospace applications
- Optional jitter analysis, eye diagrams, and PAM-N analysis
- Optional USB 2.0 and Ethernet compliance test software
- Embedded MATLAB compiler and full SCPI remote automation
- Optional 16-channel logic analyzer with UT-M15 logic probe
- 15.6-inch Full HD capacitive multi-touch display
Native 12-Bit Performance

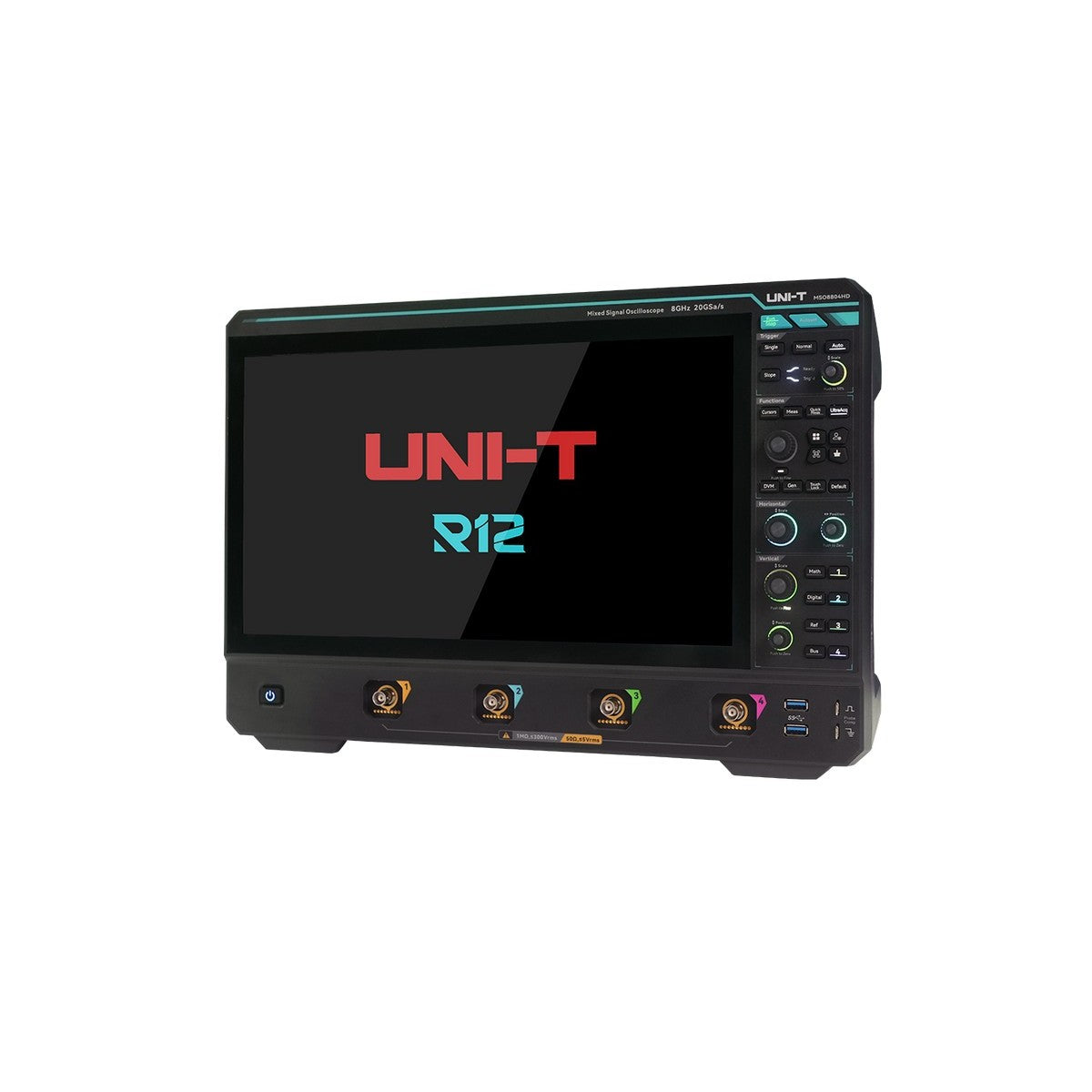

The MSO8804HD is built on UNI-T's R12™ native 12-bit ADC architecture, providing significantly higher vertical resolution than conventional 8-bit oscilloscopes while maintaining the full 8 GHz bandwidth. The result is cleaner waveform acquisition, lower measurement noise, and improved visibility of low-level signal details, making the instrument well suited for high-speed digital, RF, and precision signal integrity applications.
Ultra-Fast Acquisition and Deep Memory
With UltraAcq® technology and Sequential Mode, the MSO8804HD captures up to one million waveforms per second while storing as many as 520,000 waveform segments for post-acquisition analysis. Combined with standard 500 Mpts memory, expandable to 2 Gpts, engineers can capture long-duration events, isolate intermittent faults, and analyze complex digital systems with confidence.
Advanced Signal Integrity Analysis
Optional software packages expand the MSO8804HD beyond traditional oscilloscope measurements with comprehensive jitter analysis, real-time eye diagrams, clock recovery, and PAM-3 through PAM-7 signal analysis. These capabilities make the instrument an excellent platform for validating high-speed serial communications, optical networking, and advanced digital interfaces.
Protocol Decoding and Mixed Signal Debugging
The MSO8804HD supports more than 21 serial communication protocols covering embedded systems, automotive electronics, computer interfaces, and aerospace applications. Standard decoding includes UART, RS-232/422/485, I²C, SPI, CAN, and LIN, while additional protocols are available through optional software licenses. An optional UT-M15 logic probe adds 16 synchronized digital channels for comprehensive mixed-signal debugging.
Automation and Compliance Testing
Embedded MATLAB scripting and full SCPI remote control over LAN, USB, and the integrated WebServer simplify automated testing and custom analysis. Optional USB 2.0 and Ethernet compliance software guides engineers through standardized physical-layer testing with automated measurements, pass/fail reporting, and detailed test documentation.
Applications
The UNI-T MSO8804HD is ideal for high-speed digital design, signal integrity engineering, semiconductor development, communications research, embedded system validation, compliance testing, aerospace electronics, and advanced laboratory applications. Its combination of native 12-bit performance, high bandwidth, flexible analysis software, and integrated automation tools provides engineers with a powerful platform for developing and validating today's most demanding electronic systems.
Specifications
| Analog Bandwidth (50 Ω, −3 dB) | 8 GHz half-channel, 4 GHz full-channel |
| Rise Time (50 Ω, Typ.) | ≤55 ps |
| Analog Channels | 4 + 1 external trigger |
| Digital Channels | 16 (with optional UT-M15 logic probe pod) |
| Real-Time Sample Rate | 20 GSa/s (half-channel) / 10 GSa/s (full-channel) |
| Vertical Resolution | 12-bit native (up to 16-bit with ERES) |
| Memory Depth | 500 Mpts/CH std (full-channel), 1 Gpts/CH std (half-channel); 1 Gpts/CH or 2 Gpts/CH optional |
| Waveform Capture Rate | ≥1,000,000 wfms/s (Sequential Mode); UltraAcq® up to 300,000 wfms/s standard |
| ENOB (Typ.) | >7 bits at 50 Ω, 50 mV/div, −3 dBFS, full system bandwidth |
| Inherent Jitter | ≤150 fs RMS |
| SFDR (Typ.) | ≥50 dBc |
| Noise Floor (Typ.) | ≤800 µVrms at 50 mV/div, full bandwidth; as low as 390 µVrms at 1–10 mV/div |
| Channel-to-Channel Isolation | ≥600:1 (DC–4 GHz, all channel combinations); ≥500:1 (>4 GHz, C1+C3 simultaneous) |
| Trigger Types | 22+ types: edge, pulse width, video, runt, slope/ramp, timeout, setup & hold, Nth edge, code pattern, over-amplitude, delay, duration; advanced, protocol, and zone triggering |
| Protocol Decoding (Standard) | RS-232/422/485/UART, I²C, SPI, CAN, LIN |
| Protocol Decoding (Optional) | CAN-FD, FlexRay, SENT, AudioBus (I²S/LJ/RJ/TDM), MIL-STD-1553B, ARINC 429, SMBus, SPMI, I3C, PSI5, USB 2.0, PCIe 2.0, Ethernet, NRZ, Manchester, 8b/10b |
| Built-in AWG (Optional, MSO8000HD-AWG) | Dual-channel, 60 MHz max output, 625 MSa/s, sine/square/pulse/ramp/noise/DC + 200+ arbitrary; AM/FM/sweep modulation |
| Digital Voltmeter / Frequency Counter (Standard) | 4-digit DVM (DC, AC RMS, DC+AC RMS); 8-digit hardware frequency counter |
| Automated Measurements | 52 types; quick Meas, statistical analysis, histogram, trend chart, trace analysis |
| Advanced Analysis (Optional) | Jitter analysis and eye diagram (MSO8000HD-JITTER); PAM-N analysis (PAM-3 through PAM-7); limit template testing; USB 2.0 conformance (CTSUSB20); Ethernet conformance (CTS100) |
| Math Operations | Up to 8 math waveforms; enhanced FFT (1 Mpts); IIR/FIR filters; embedded MATLAB compiler (Optional); advanced filter designer (Optional) |
| Display | 15.6-inch FHD touch screen (1920×1080); capacitive multi-touch; gesture support; dynamic multi-window |

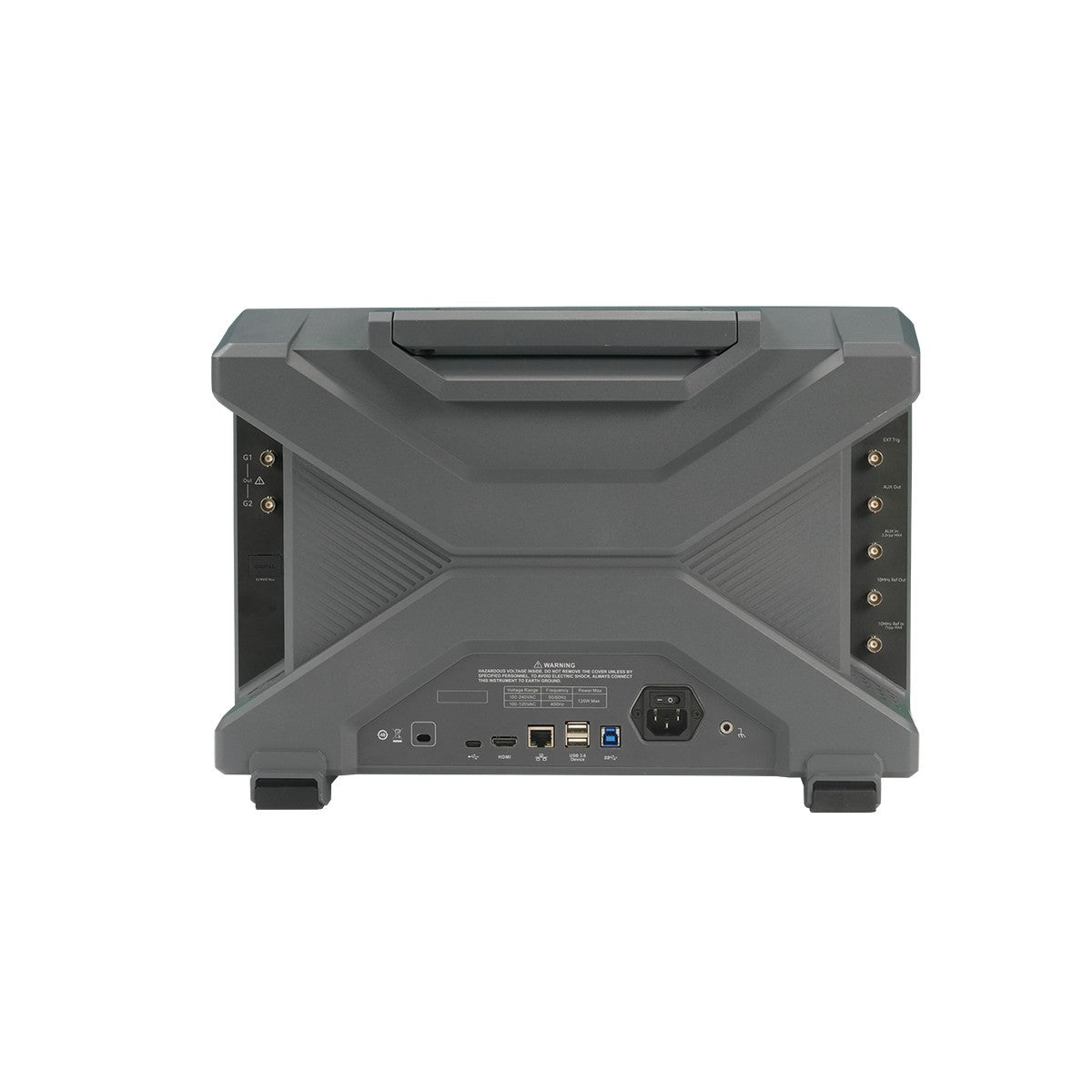

| Connectivity | USB Host 3.0 (4× Type-A, 1× Type-C); USB Device; LAN 10/100/1000 Mbps; HDMI; AUX In/Out (trigger sync, AWG trig, pass/fail); 10 MHz Ref In/Out |
| Remote Control | SCPI over LAN/USB; built-in WebServer for browser-based control (PC and mobile); UNI-T Instrument Manager (free, PC) |
| Architecture | AFE ASIC (UNI-T self-developed); seventh-generation oscilloscope platform; precision >10 GHz BNC connectors |
| Compliance | CE, cTUVus, RoHS |
Downloads
Options & Accessories
Included in Box
- 2x SMA cables, 2x BNC-SMA adapters, 2x BNC-BNC cables, USB 3.0 data cable
- Power cord (region-specific)
- English download guide, multi-language safety manual
- Calibration certificate (COC)
Recommended Add-Ons
- UT-M15 Logic Probe Pod — adds 16 digital channels; 1.25 GSa/s, 101 kΩ ±1% input impedance, 8×2 square-pin attachment.
- Active probes — UT-PA2000 (2 GHz single-ended) and UT-PD2500 (2.5 GHz differential) for high-bandwidth signal-integrity work.
- MSO8000HD-AWG — activates the dual-channel 60 MHz AWG (625 MSa/s, 200+ built-in waveforms).
- MSO8000HD-LA — logic analyzer license (paired with UT-M15).
- MSO8000HD-JITTER — jitter and eye-diagram measurement suite.
- MSO8000HD-CTSUSB20 / CTS100 — USB 2.0 and 100Base-Tx Ethernet conformance test packages.
- Protocol decoder licenses — CAN-FD, FlexRay, SENT, AudioBus, MIL-STD-1553B, ARINC 429, I3C, PSI5, USB 2.0, PCIe 2.0, Ethernet, NRZ, Manchester, 8b/10b, SMBus, SPMI — individually or bundled in the MSO8000HD-BND upgrade kit.
- UT-ISOT, UT-PR2060, UT-M13X — isolation transformer, probe rack, demo board.
FAQ's
What protocols are included with the MSO8804HD as standard?
RS-232/422/485, UART, I²C, SPI, CAN, and LIN are decoded standard with no additional license required. The remaining 16 protocols — CAN-FD, FlexRay, SENT, AudioBus (I²S/LJ/RJ/TDM), MIL-STD-1553B, ARINC 429, SMBus, SPMI, I3C, PSI5, USB 2.0, PCIe 2.0, 10/100 Mbps Ethernet, NRZ, Manchester, and 8b/10b — are available as separately licensed options or bundled in the MSO8000HD-BND upgrade kit. Each option activates on the same instrument with no firmware reflash or hardware swap.
What is the practical advantage of native 12-bit resolution over 8-bit on a high-bandwidth oscilloscope?
A 12-bit ADC provides 4,096 vertical quantization levels versus 256 for an 8-bit scope — sixteen times the resolution. At 8 GHz of bandwidth, the measurements that matter most (eye diagrams, jitter, return-loss artifacts) typically involve amplitudes much smaller than the channel’s full-scale range. On an 8-bit scope, low-amplitude artifacts get buried in quantization steps; on the MSO8804HD, 12-bit resolution combined with >7 bits of ENOB at full bandwidth keeps those artifacts above the noise floor and below the quantization grid.
Does the MSO8804HD include built-in power analysis?
No. The advanced power analysis package on the MSO8000HD series is available only on the MSO8504HD model (5 GHz). The MSO8804HD focuses on high-speed signal-integrity work at 8 GHz — jitter analysis, eye diagrams, PAM-N validation, and conformance testing. For power-electronics validation, UNI-T’s MSO5000HD and MSO3000HD series include the optional power-analysis suite at lower bandwidth tiers where switching frequencies match the bandwidth requirement more efficiently.
How do I add 16 digital channels for mixed-signal work?
The 16-digital-channel logic-analyzer front end is built into every MSO8804HD chassis as hardware-standard. Add the optional UT-M15 logic probe pod to use it — separate high/low 8-bit connectors, direct attachment to 2.54 mm 8×2 square-pin headers, 1.25 GSa/s digital sample rate, 3.2 ns minimum pulse width, 101 kΩ ±1% input impedance. The MSO8000HD-LA license activates the logic-analyzer feature.
Can I run my own MATLAB analysis scripts directly on the instrument?
Yes. The MSO8804HD includes an embedded MATLAB code compiler that executes scripts directly on the oscilloscope, with results rendered as mathematical waveforms in the display window. Scripts save, recall, and reuse across sessions, and combined with full SCPI automation over LAN, USB, and the WebServer, the instrument supports hybrid on-instrument and desktop-MATLAB analysis workflows.
Which channel-pair combinations support the full 8 GHz bandwidth?
The full 8 GHz / 20 GSa/s spec is available with only C1 enabled, only C3 enabled, or C1 and C3 enabled simultaneously. Any other combination — C1+C2, C2+C4, all four channels — runs in full-channel mode at 4 GHz / 10 GSa/s. Channel-to-channel isolation reflects this: ≥600:1 from DC–4 GHz applies to any combination, while ≥500:1 above 4 GHz is specified for the C1+C3 simultaneous case where high-frequency dual-channel work is most common.
