HN-200B Leeb Hardness Tester
Download
Download

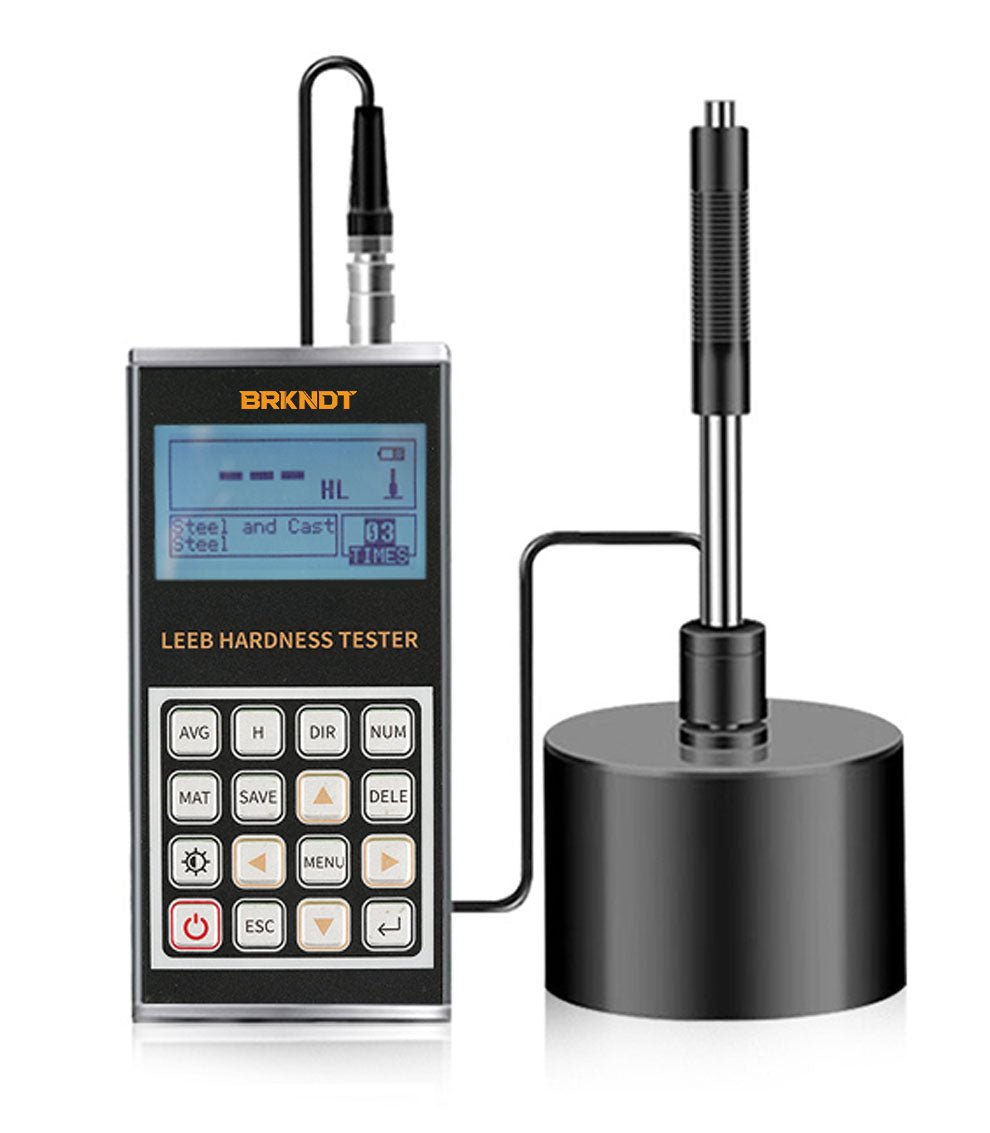

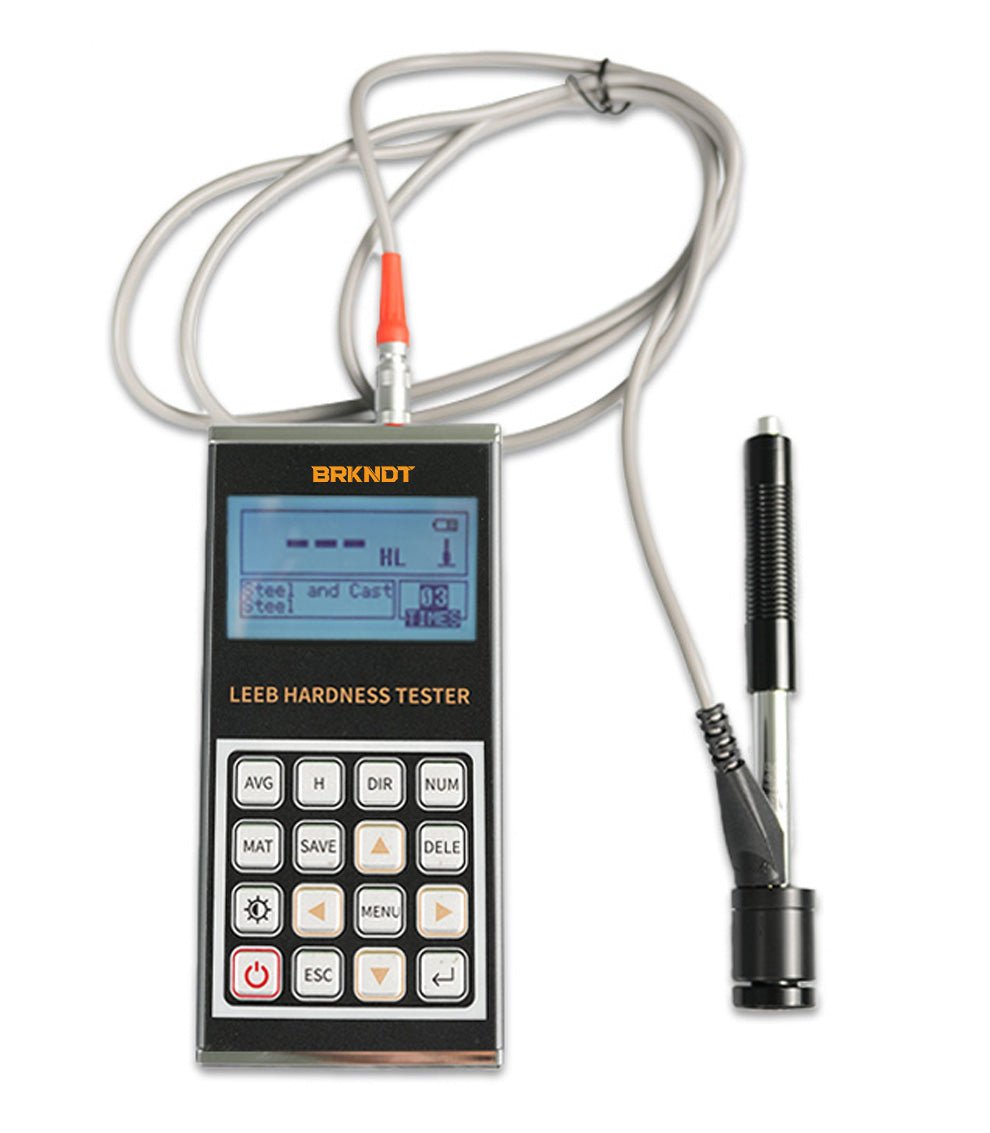

The HN-200B Leeb Hardness Tester from BRK NDT is a professional grade, portable solution for testing heavy components (5kg+/5mm+) in industrial applications.
The HN-200B Leeb Hardness Tester is a rugged, high-precision device designed for measuring the hardness of large and heavy workpieces (weighing over 2kg and thickness exceeding 5mm). It features a shockproof metal casing, 7 hardness scales, direct readout and multiple probes options. Ideal for molds, pressure vessels and turbines. It supports seven hardness unit conversions, provides direct readings without manual calculations and features seven interchangeable impact devices for a wide range of applications - all without requiring calibration. Built for harsh industrial environments, it offers 360Ā° measurement capability, a shock-resistant metal casing and immunity to electromagnetic interference.
- Wide CompatibilityĀ ā Measures steel, cast iron, alloy tool steel, stainless steel, gray iron, ductile iron, cast aluminum, brass, bronze, copper and forged steel.
- 7 Hardness UnitsĀ ā Instantly converts between HL, HB, HRC, HRB, HV, HS and HRA.
- No Calibration NeededĀ ā Ready to use with automatic impact device recognition.

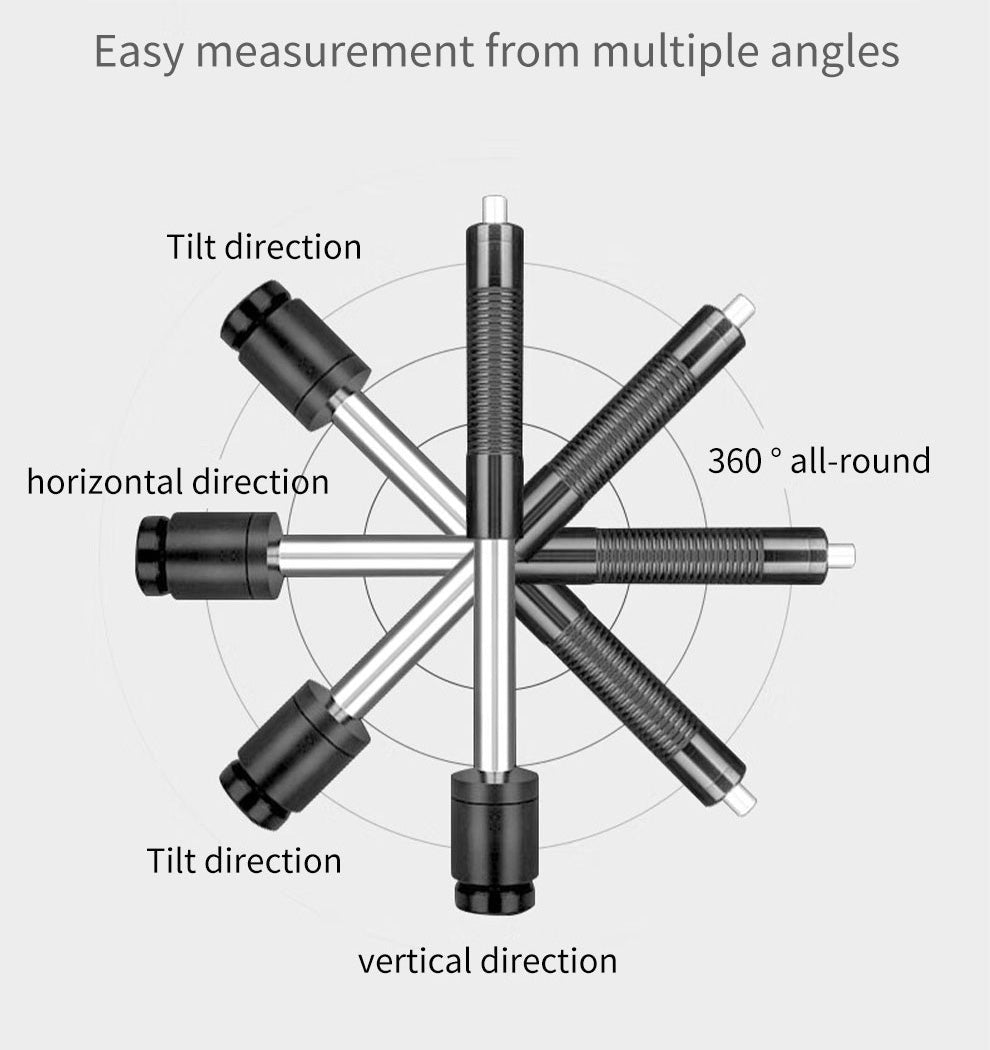

- 360Ā° MeasurementĀ ā Flexible testing from any angle for hard-to-reach areas.
- Durable ConstructionĀ ā Fully sealed metal housing, resistant to vibration, shock and dust.
- Long Battery LifeĀ ā Powered by rechargeable lithium batteries for extended field use.
- PC ConnectivityĀ ā RS232 interface enables fast data transfer and parameter adjustments.

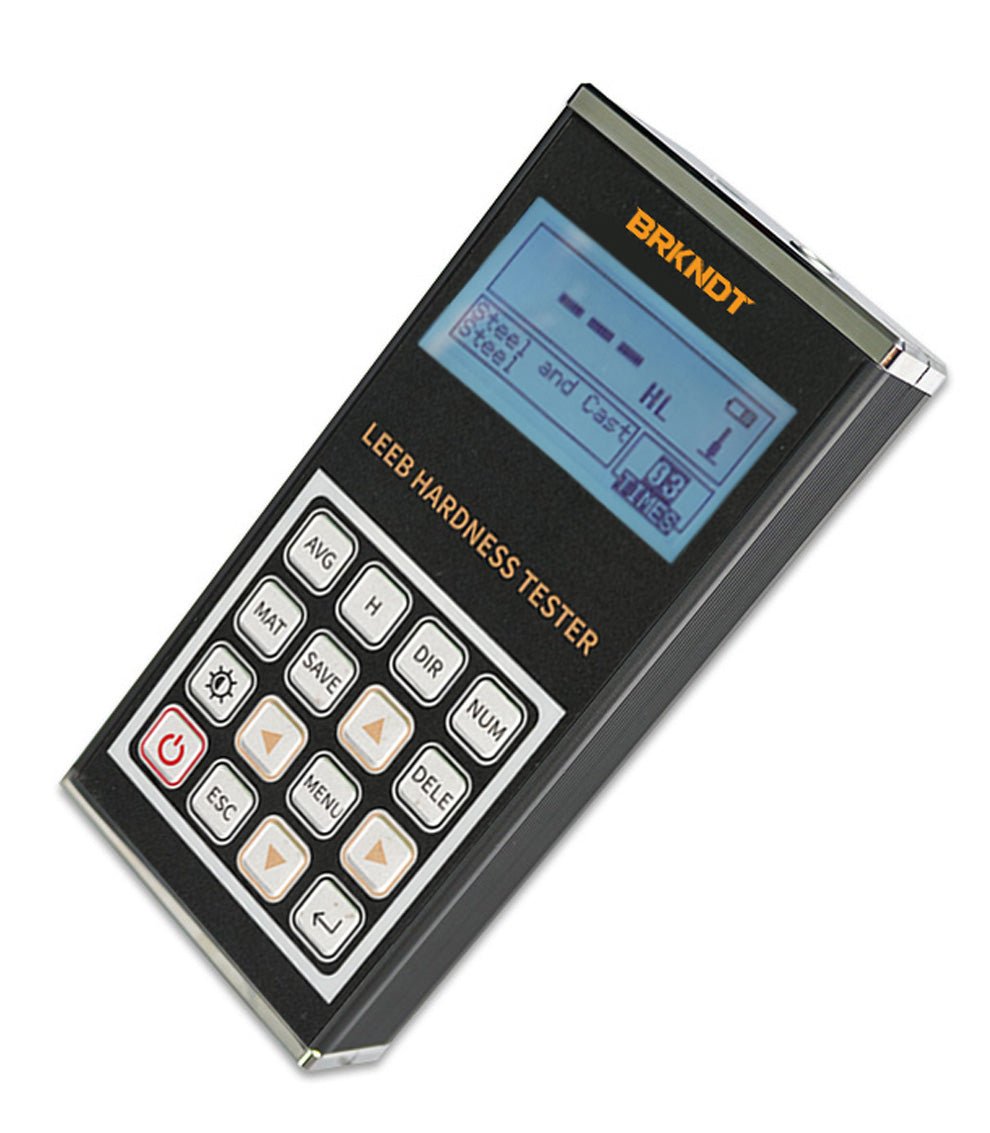

- Large LCD DisplayĀ ā Clear readings even in low-light conditions.
Applications
Ideal for quality control in metalworking, foundries, automotive, aerospace and heavy machinery industries.Ā
Why Choose the HN-200B?
- High Efficiency ā Direct hardness readings eliminate manual calculations, saving time and reducing errors.
- Versatile Testing ā Seven impact devices cover a wide range of materials and surface conditions.
- Industrial-Grade Durability ā Fully sealed metal housing withstands harsh environments, including dust, vibration and electromagnetic interference.
- User-Friendly Design ā Lightweight, portable and features an intuitive LCD display for easy operation.
- No Calibration Required ā Unlike traditional testers, HN-200B maintains accuracy without frequent recalibration.
- Seamless Data Management ā RS232 connectivity allows quick data export to PCs for reporting and analysis.
|

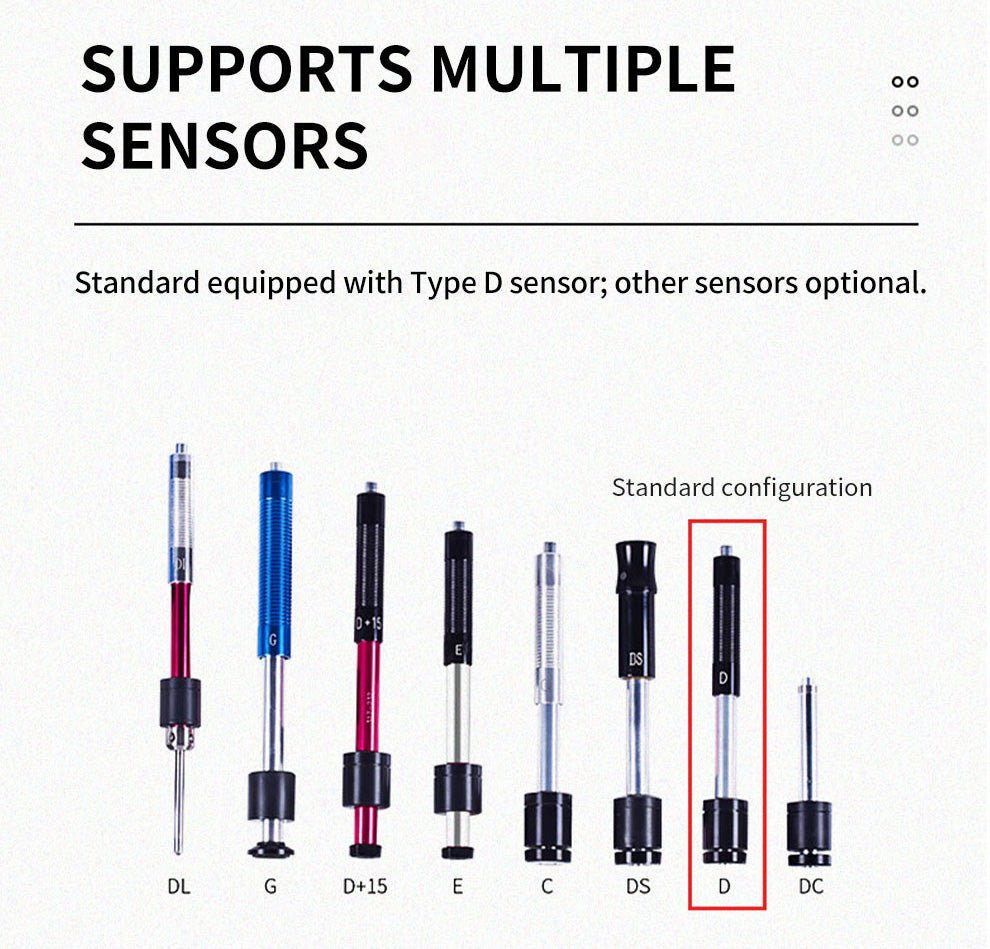

Probe Type |
Applicable Scenarios |
Indication Error and |
|
D |
Standard configuration for routine measurements |
760Ā±30HLD,Ā±6HLD 530Ā±40HLD,Ā±10HLD |
|
DC |
Suitable for measuring the inner side of the pipe wall |
760Ā±30HLDC,Ā±6HLDC 530Ā±40HLDC,Ā±10HLDC |
|
DL |
Suitable for measuring slender narrow slots or holes |
878Ā±30HLDL,Ā±12HLDL 736Ā±40HLDL,Ā±12HLDL |
|
D+15 |
Suitable for surfaces with grooves or indentations |
766Ā±30HLD+15,Ā±12HLD+15 544Ā±40HLD+15,Ā±12HLD+15 |
|
G |
Suitable for heavy and rough surface castings and forgings |
590Ā±40HLGļ¼Ā±12HLG 500Ā±40HLGļ¼Ā±12HLG |
|
C |
Suitable for small and lightweight components and surface hardening layers |
822Ā±30HLCļ¼Ā±12HLC 590Ā±40HLCļ¼Ā±12HLC |
Specifications
|
Measurement range |
HS (30.6-10.2.6), HLD (170-960), HB (19-651), HRB (13.5-101.7), HRC (17.9-69.5), HRA (59.1-88), HV (80-1042) |
|
Measurement direction |
360 Ā° omnidirectional |
|
Applicable materials |
steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper zinc alloy, |
|
Indicating error |
Ā± 1HRC |
|
Repeatability of indication |
1HRC |
|
Upper and lower limit setting range |
(170-960) HLD |
|
Display |
High brightness OLED128 * 64 dot matrix display |
|
Data storage |
up to 500 groups |
|
Charging voltage |
5V2A |
|
Working voltage |
3.7V |
|
Continuous working time |
approximately 100 hours |
|
Working temperature |
-10 ā~55 ā |
|
Relative humidity |
ā¤ 90% |
|
Package size |
30*25*15CM |
|
Net weight |
3KG |
|
Gross weight |
3.3 |
