Fermentation PH Sensor - PT1000
Product Notes:
1. All Inline Bio-Process Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
2. Custom options and configurations are also available. Please contact us if you need help with your specific application.
Download
Download

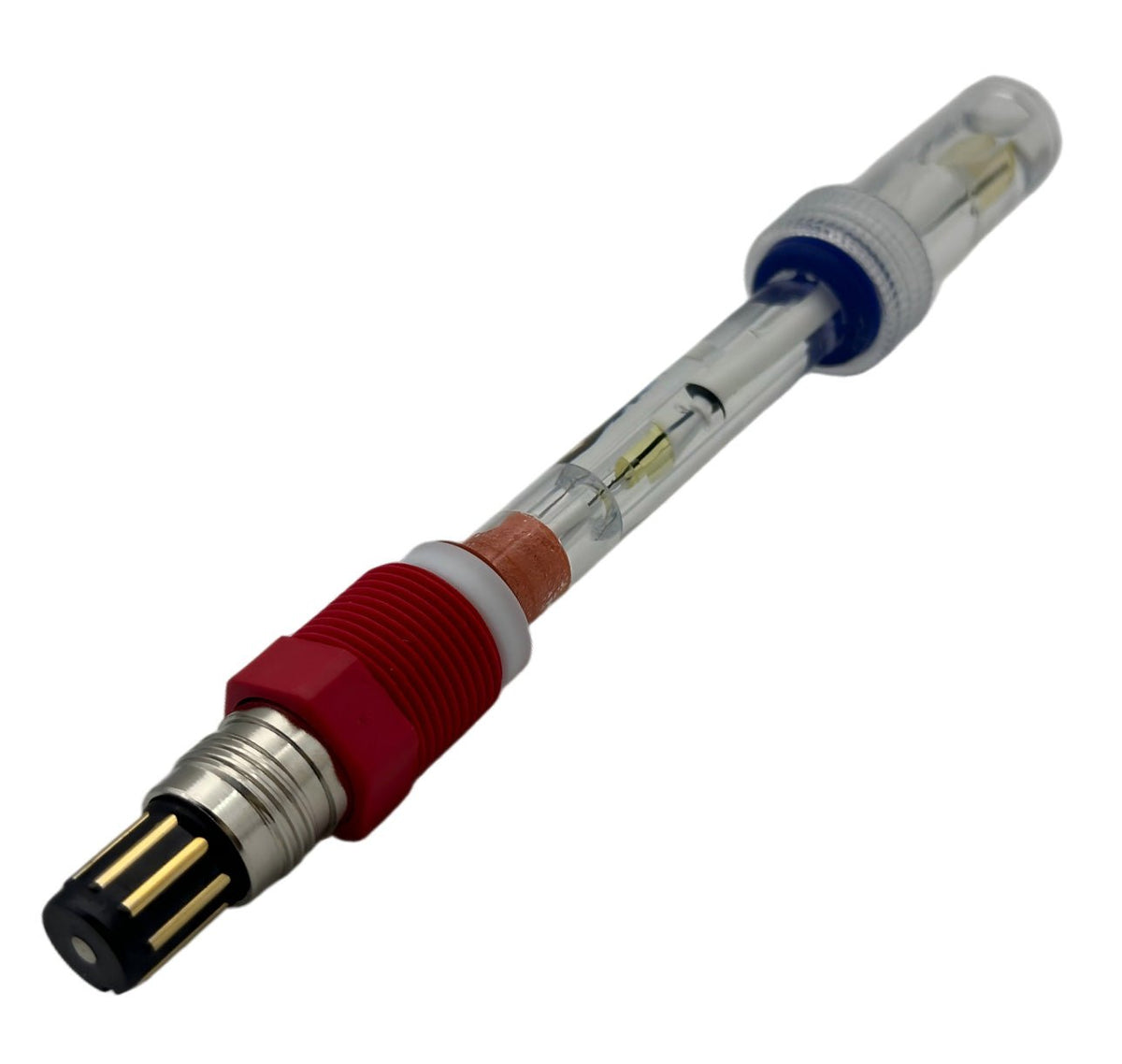

The SSHPH100 is engineered for demanding bioprocess and fermentation applications where temperature stability and chemical resilience are non-negotiable.
This sensor is built for precision in high-heat, high-pressure environments where standard sensors fail. Rated to 130°C, this sensor combines high-temperature resistant glass and polymer gel construction with proven durability through repeated autoclave sterilization and CIP/SIP protocols.
Key strengths include superior temperature drift performance, double liquid-junction design for contamination resistance, IP68 sealing, and mechanical durability under pressure. The electrode withstands strong acids, bases, and solvents without degradation, making it ideal for harsh sterile biotech processes. Expect reliable operation across 30+ consecutive fermentation batches with minimal calibration drift.
- Super high temperature resistance
- Double liquid junction structure design, strong anti-pollution ability IP68 water resistance
- Does not react chemically with solvents and strong acids and bases
- Long-term excellent time drift/temperature drift performance
- Sturdy sensitive membrane and resistant to mechanical impact
- Fully withstand high-pressure sterilization and in-situ disinfection, with more than 30 fermentation batches
Specifications
| Measuring Range | 0–14 pH |
| Temperature Range | 0–130°C |
| Maximum Pressure | 6 bar |
| Temperature Compensation | PT1000 |
| Thread | PG13.5 |
Couldn't load pickup availability
Product Information
Product Information
The SSHPH100 is engineered for demanding bioprocess and fermentation applications where temperature stability and chemical resilience are non-negotiable.
This sensor is built for precision in high-heat, high-pressure environments where standard sensors fail. Rated to 130°C, this sensor combines high-temperature resistant glass and polymer gel construction with proven durability through repeated autoclave sterilization and CIP/SIP protocols.
Key strengths include superior temperature drift performance, double liquid-junction design for contamination resistance, IP68 sealing, and mechanical durability under pressure. The electrode withstands strong acids, bases, and solvents without degradation, making it ideal for harsh sterile biotech processes. Expect reliable operation across 30+ consecutive fermentation batches with minimal calibration drift.
- Super high temperature resistance
- Double liquid junction structure design, strong anti-pollution ability IP68 water resistance
- Does not react chemically with solvents and strong acids and bases
- Long-term excellent time drift/temperature drift performance
- Sturdy sensitive membrane and resistant to mechanical impact
- Fully withstand high-pressure sterilization and in-situ disinfection, with more than 30 fermentation batches
Specifications
| Measuring Range | 0–14 pH |
| Temperature Range | 0–130°C |
| Maximum Pressure | 6 bar |
| Temperature Compensation | PT1000 |
| Thread | PG13.5 |
