Carbon Monoxide Monitor and Controller
Download
Download

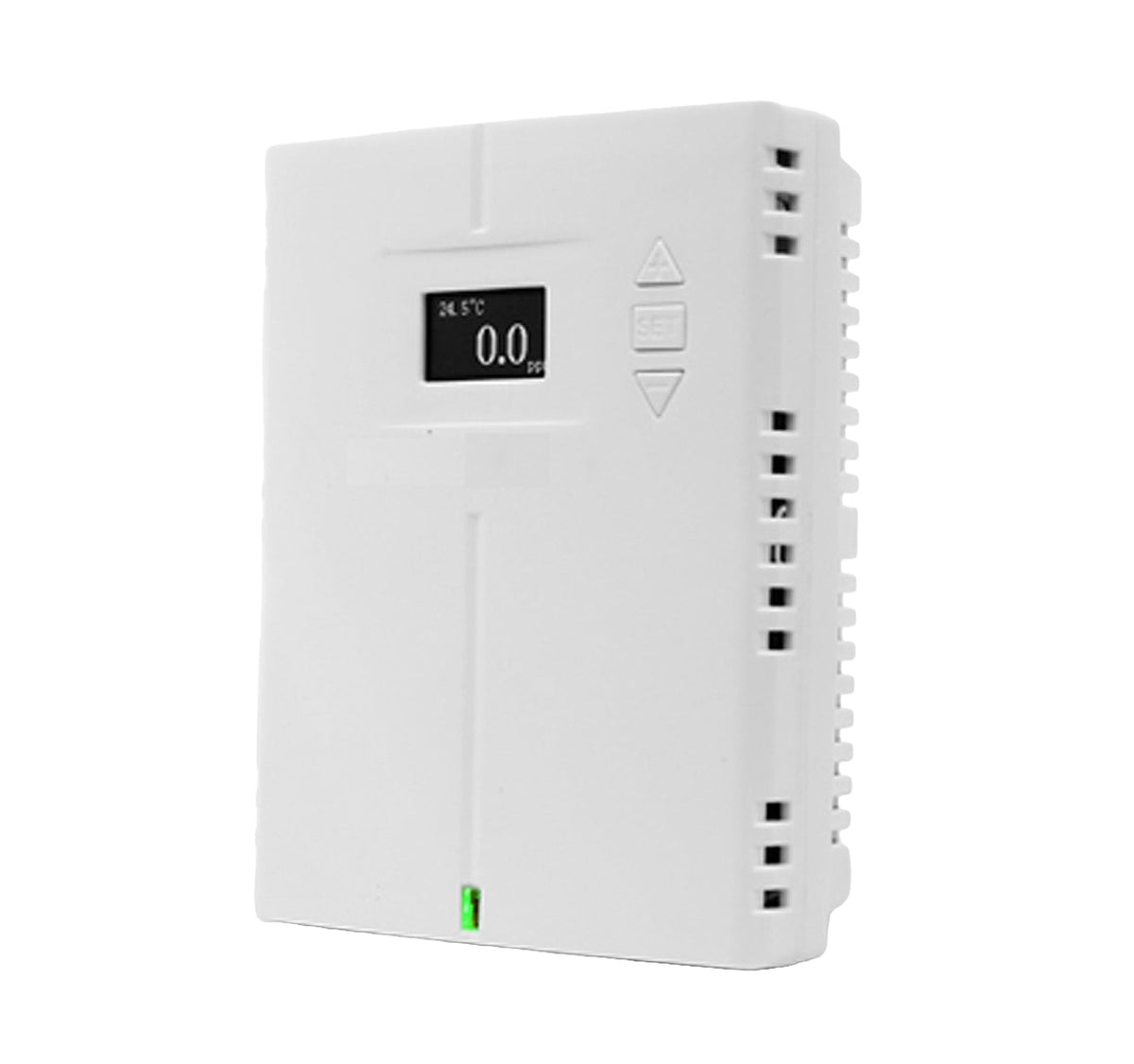

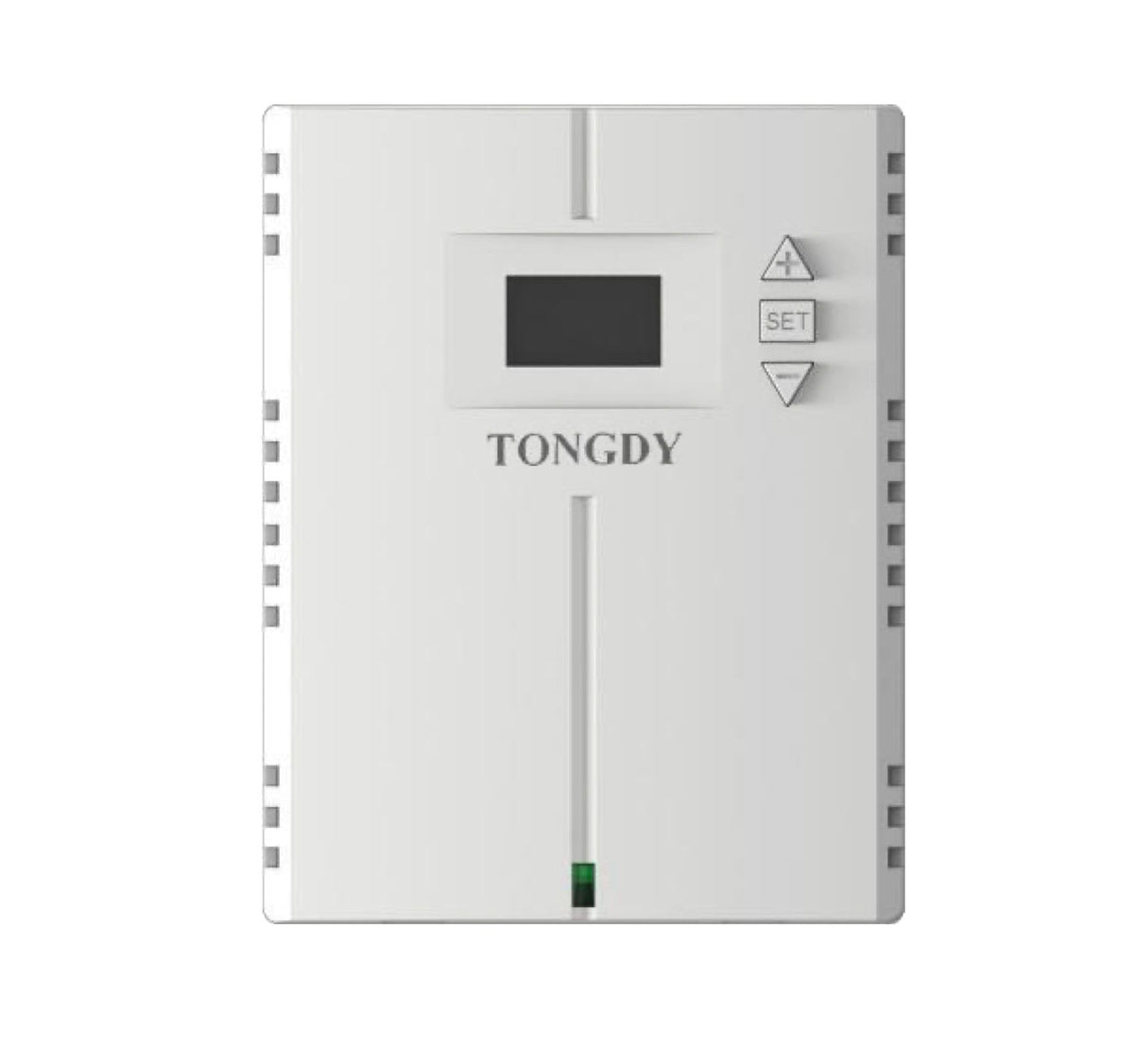

The TSP-CO Carbon Monoxide Monitor and Controller provides continuous monitoring of carbon monoxide levels in commercial and industrial environments where air quality and safety are critical.
Note: All Tongdy monitors and controls ship direct from the factory. Please allow 10-15 business days for shipping and handling.
Also see: Tongdy TSP-CO Carbon Dioxide Monitor
It measures CO concentration in real time and can also monitor ambient temperature, helping facility managers maintain safe air conditions while controlling ventilation systems efficiently.
The unit uses a high quality Figaro electrochemical CO sensor that delivers stable, accurate measurements with a service life of more than five years. The sensor module is replaceable, which helps reduce maintenance costs and extend the overall life of the instrument. Flexible outputs include a 0 to 10V or 4 to 20mA analog signal for integration with ventilation controls, environmental monitoring systems and building automation platforms.
RS485 communication with Modbus RTU protocol allows easy integration with modern building management systems. Relay outputs can be used to activate ventilation fans, alarms or other safety devices when carbon monoxide levels reach preset thresholds. A three color status indicator provides quick visual confirmation of operating conditions while an optional buzzer alerts personnel when CO levels exceed the alarm setpoint.
The transmitter is housed in a durable industrial grade PC and ABS enclosure designed for reliable operation in demanding environments such as parking garages, mechanical rooms and ventilation control systems. When properly installed the unit can monitor air quality across an area with a coverage radius of up to approximately 30 meters depending on airflow conditions.
- Real-time monitoring of carbon monoxide concentration and temperature
- Industrial-grade PC/ABS housing with durable fire-resistant construction
- High-quality Figaro electrochemical CO sensor with 5+ year service life
- Replaceable CO sensor module
- Optional OLED display showing CO and temperature readings
- Analog output 0-10V or 4-20mA for CO measurement
- RS485 Modbus RTU communication option
- One or two relay outputs for ventilation fan or alarm control
- Three-color status indicator for CO concentration levels
- Optional buzzer alarm when setpoint is exceeded
- Zero-point calibration capability
- Coverage up to approximately 30 meter radius depending on air movement
Typical Applications
- Underground parking garages
- Ventilation control systems
- Building management systems (BMS)
- Carbon monoxide safety monitoring
- Smoking detection systems
- Industrial ventilation monitoring
Models
Specifications
| General Specifications | |
|---|---|
| Power Supply | 24 VAC / VDC |
| Power Consumption | 2.8 W |
| Operating Environment | -5°C to 50°C, 0–95% RH non-condensing |
| Storage Environment | -5°C to 60°C, 0–95% RH non-condensing |
| Housing Material | Fire-resistant PC/ABS |
| Protection Class | IP30 |
| Dimensions | 95 × 117 × 36 mm |
| Weight | 280 g |
| Carbon Monoxide Measurement | |
| Sensor Type | Figaro electrochemical CO sensor |
| Measurement Ranges | 0–100 ppm (default), 0–200 ppm, 0–300 ppm, 0–500 ppm |
| Accuracy | ±1 ppm + 5% of reading |
| Response Time (T90) | <130 seconds |
| Signal Refresh | 1 second |
| Sensor Lifetime | Approx. 5 years, replaceable module |
| Temperature Measurement | |
| Sensor Type | Capacitive temperature sensor |
| Measurement Range | -5°C to 50°C |
| Accuracy | ±0.5°C (20–40°C) |
| Resolution | 0.1°C |
| Outputs and Communication | |
| Analog Output | 1 × 0–10 VDC or 4–20 mA linear output |
| Relay Outputs | 1 or 2 dry contact relays (max 5A @ 230VAC / 30VDC) |
| Communication | RS485 Modbus RTU (optional), 9600 baud |
| Status Indicator | Three-color LED status indicator |
| Optional Alarm | Buzzer alarm when CO exceeds setpoint |
Models
| Model | Type | Analog Output | Relay Outputs | RS485 Modbus | Temperature Measurement |
|---|---|---|---|---|---|
| TSP-CO-B100 | CO Transmitter | 0–10V or 4–20mA | — | — | Optional |
| TSP-CO-B101 | CO Transmitter | 0–10V or 4–20mA | — | Yes | Optional |
| TSP-CO-B001 | CO Transmitter | — | — | Yes | Optional |
| TSP-CO-D010 | CO Controller | — | 1 Relay | — | Optional |
| TSP-CO-D020-T | CO Controller | — | 2 Relays | — | Yes |
| TSP-CO-D110 | CO Controller | 0–10V or 4–20mA | 1 Relay | — | Optional |
| TSP-CO-D101 | CO Controller | 0–10V or 4–20mA | — | Yes | Optional |
