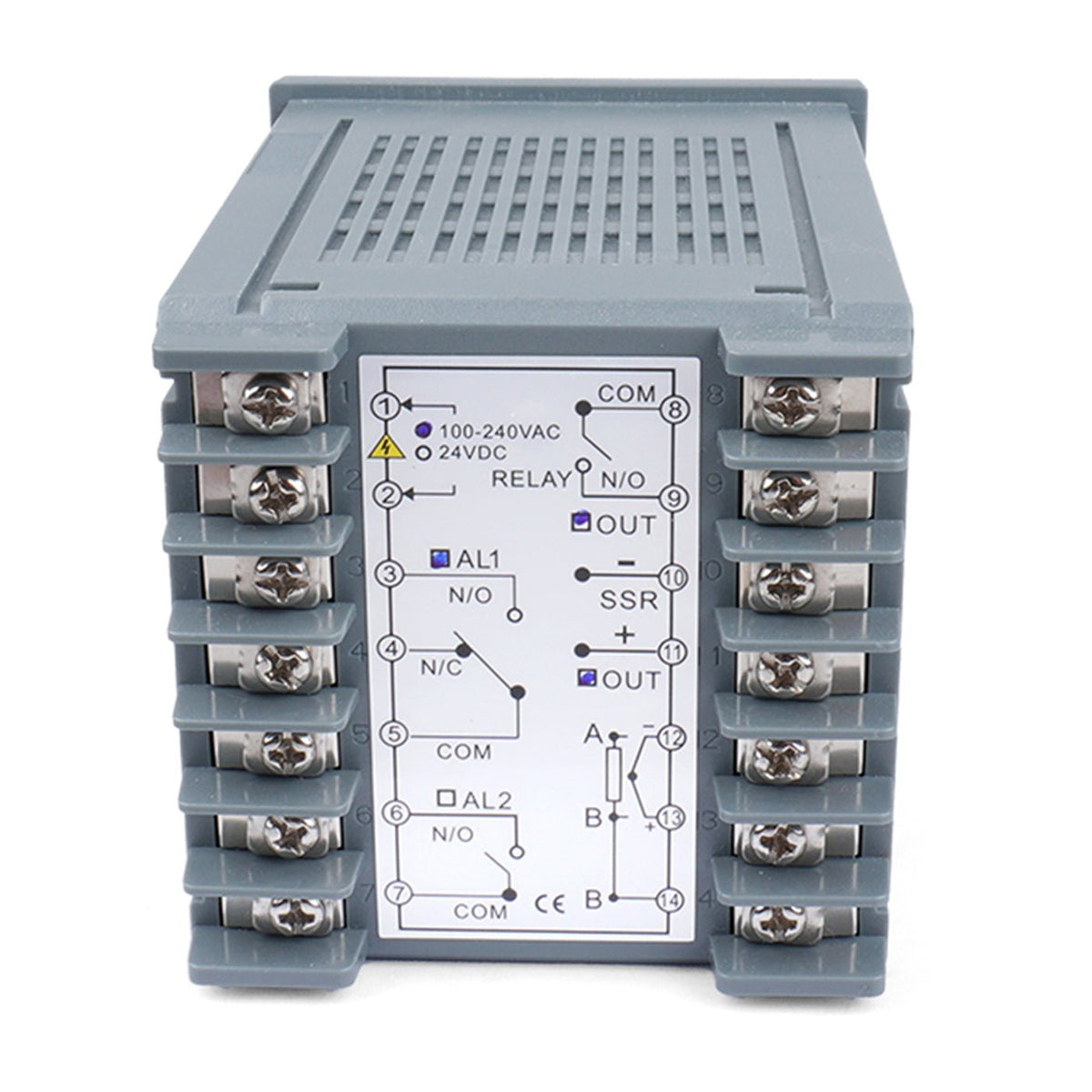

Advanced PID Temperature Controller (72x72mm)
Download
Download
This robust and versatile temperature controller is engineered for reliable performance across a wide range of industrial applications.
Designed with a modular architecture, it allows users to configure and install modules based on specific requirements, offering exceptional flexibility and scalability in the field.
The controller features a durable touch key interface for long-lasting operation and ease of use. It supports true universal input, accommodating thermocouples, RTDs, and analog signals, making it adaptable to diverse measurement needs. With a fast 250 ms sampling rate, low power consumption, and minimal temperature drift, it ensures precise and efficient control.
Multiple output options are available, including relay, SSR drive, 4–20 mA, and 0–10 V, enabling seamless integration into various control systems. The unit can achieve an IP67 rating when used with a watertight gasket, making it suitable for demanding environments. A high-visibility LED display, available in white/green or red/yellow color combinations, ensures clear readability in all conditions.
- Modular design for customizable configuration
- Touch key interface for durability and ease of use
- True universal input (TC, RTD, analog)
- Multiple output options: relay, SSR drive, 4–20 mA, 0–10 V
- Fast 250 ms sampling rate for responsive control
- Low power consumption with minimal temperature drift
- Bright LED display with selectable color options (white/green or red/yellow)
Specifications

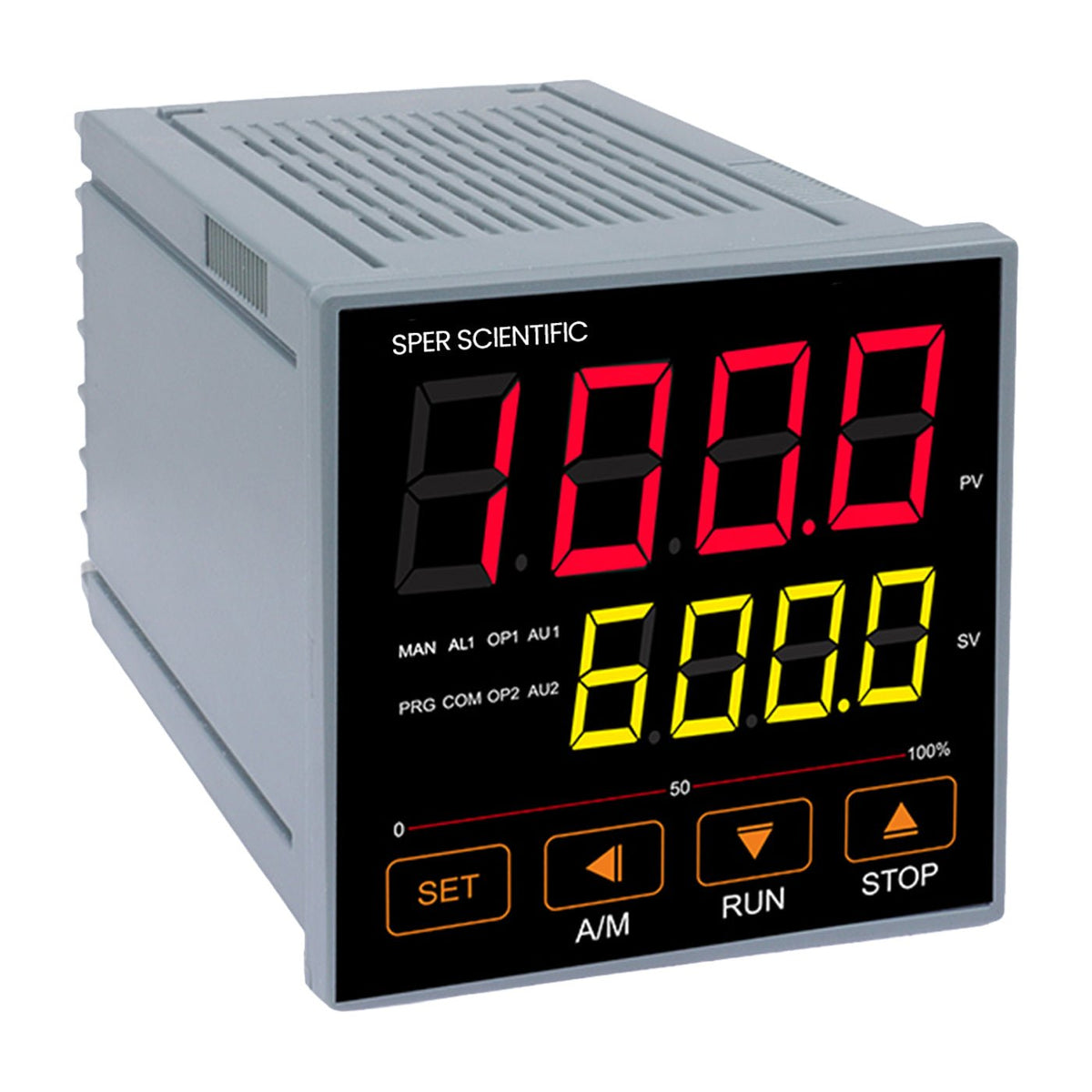

| Display | Dual-line, 4-digit, 7-segment LED |
| Display Colors | White/Green or Red/Yellow selectable |
| Input Type | Universal (Thermocouple, RTD, Analog) |
| Control Modes | NPID, APID, ON/OFF selectable |
| Accuracy | ±0.25% F.S (no temperature drift) |
| Resolution | 0.1 (TC/RTD), 0.001 (Analog) |
| Sampling Rate | 250 ms |
| Output Types | Relay, SSR Drive, 4–20 mA, 0–10 VDC |
| Thyristor Output Options | Single-phase zero-crossing, single-phase phase-angle, three-phase zero-crossing |
| Bar Graph Display | Optional (not available for 48 × 48 mm) |
| Temperature Units | Selectable °C / °F |
| Power Supply | 100–240 VAC or 24 V AC/DC |
| Power Consumption | < 2 W |
| Control Function | RUN/STOP via local controller |
| User Interface | Touch buttons with audible feedback |
| Communication | Optional Modbus RS-485 |
| Alarm Capacity | Up to 4 alarms |
| Operating Temperature | -30°C to 75°C |
| Environmental Protection | Dustproof, splash-proof, corrosion-resistant |
| Housing | Fully sealed construction |
| Mounting | |
| Ingress Protection | |
| Certifications | CE, RoHS compliant |
| Warranty | 3 Years |
FAQ's
Supports TC, RTD and analog inputs.
- Thermocouples: K, S, R, T, E, J, B, N, WRe3-WRe25, WRe5-WRe26
- RTDs: PT100, Cu50 (PT1000, Ni120 and other types available on request)
- Voltage: 0–5V, 1–5V, 0–1V, 0–100mV, 0–60mV, 0–20mV, 0–10V
- Current: 0–20mA, 4–20mA
- Resistance: 0–80Ω, 0–400Ω
Custom inputs available upon request.
- Relay
- SSR drive
- 4–20mA
- Single-phase thyristor zero-crossing
- Single-phase thyristor phase-angle
- Three-phase thyristor zero-crossing
Up to 4 alarms.
3-year warranty against manufacturing defects.
IP54 standard (dust and splash resistant).
Optional water-tight gasket upgrades units (48 × 96 mm, 96 × 48 mm, 96 × 96 mm) to IP68.
CE and RoHS certified.
±0.25% FS ±0.1°C.
0.1 for TC and RTD
0.001 for analog (configurable)
250 ms.
≤0.03% FS per °C.
NPID, APID, ON/OFF.
IEC61000-4-4: ±4 kV / 5 kHz
IEC61000-4-5: 4 kV
≥2300 VDC between power, relay and signal terminals
≥600 VDC between isolated signal terminals
-30°C to 75°C
