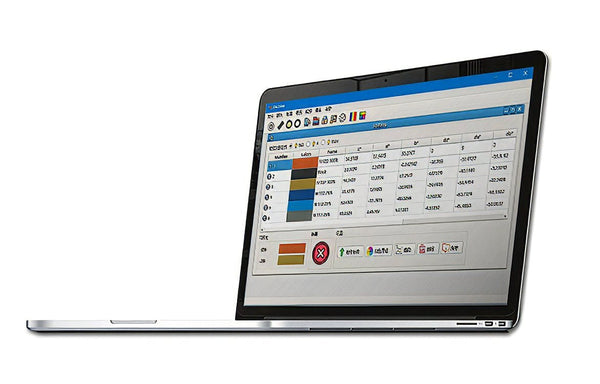

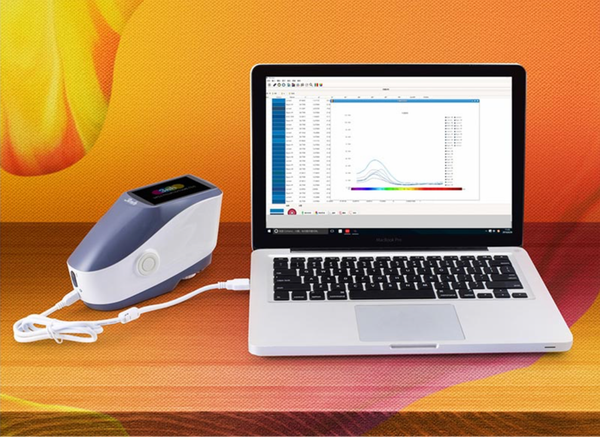

PeColor is a professional color matching software designed for 3nh colorimeters and spectrophotometers.
PeColor is a modular, high-speed color matching and quality control platform engineered to dramatically improve formulation accuracy, production efficiency and color consistency across a wide range of industrial applications. Designed for laboratories, manufacturing environments and production facilities, PeColor helps users increase color matching efficiency by more than 600% while reducing material waste and operational costs.
Built with an intuitive graphical interface, PeColor simplifies the entire color development process from formulation and correction to quality control and colorant characterization. Tasks that once required an entire day of manual color matching can often be completed in as little as one hour, helping operators accelerate production timelines and improve workflow productivity.
Key Functions
PeColor Quality Control
Monitor and manage color consistency with advanced quality control capabilities. PeColor predicts color variation under different light sources, allowing users to evaluate formula performance before production begins and minimize color interference issues.
PeColor Automatic Color Matching
Generate accurate color formulas quickly using intelligent automatic matching technology. The system identifies efficient formulations with minimal color deviation to improve repeatability and reduce trial-and-error adjustments.
PeColor Formulation by Combination
Optimize formulation development by testing and combining multiple pigment and colorant configurations to achieve the desired target color with maximum efficiency.
PeColor Colorant Characterization
Analyze and characterize colorants to build accurate color databases and improve formula precision across different materials, batches and production conditions.
PeColor Formula Correction
Quickly calculate correction formulas and compensate for color variation between laboratory samples and production batches. PeColor can also calculate difference coefficients between production machines to improve on-site formulation accuracy and production consistency.
Benefits of PeColor
Increase Color Matching Speed
PeColor dramatically shortens the color matching process with a user-friendly graphical menu interface and intelligent formulation tools. Projects that previously required extensive manual testing can now be completed significantly faster while maintaining high accuracy.
Reduce Material and Production Costs
By identifying economical and highly accurate formulations in less time, PeColor helps reduce unnecessary waste in pigments, raw materials and labor. Pigment costs can typically be reduced by 10% to 30% while improving proofing efficiency.
Predict Color Variations Before Production
The system evaluates formula performance under multiple light sources, allowing operators to identify potential metamerism and color variation issues early in the process.
Easy to Learn and Operate
PeColor is designed for fast onboarding and ease of use. Most users can begin operating the software effectively after just two days of standard training, with additional practical training available for advanced applications.
Archive and Reuse Formulas
All formulations can be stored and instantly recalled for repeat orders, improving consistency, reducing setup time and streamlining repeat production runs.
Applications
PeColor is ideal for industries requiring precise and repeatable color matching including plastics, coatings, paints, textiles, inks, rubber and other manufacturing environments where color accuracy is critical.
Comprehensive Color Management
It delivers comprehensive color management across printing, painting, coatings, inks, textiles, ceramics, and automotive applications. Key capabilities include automated and manual color matching with 1–6 colorant selection, formula correction for process variations and material changes, and quality control with pass/fail assessment based on configurable color difference tolerances. The software builds a colorant characterization database by analyzing 5–8 concentration points per colorant, enabling rapid formula optimization that balances color accuracy, cost, and metamerism resistance.Whether matching new standards or correcting existing formulations, PeColor streamlines the color development workflow with precision and flexibility.
PeColor Features
Quality Control, Accuracy and Flexibility
The absolute values of two colors (L*, a*, b*), color difference data (dL*, da*, db*, dE*) are given by standard measurement and sample measurement. According to the range of chromatic aberration set by the software, the conclusion of "pass/fail" is automatically drawn.
Automatic/Manual Color Matching
According to different dyeing processes, choose different color matching files or use limited dyes; select 1-6 colorants for automatic color matching and quantitative calculation formula; provide optimal formula under existing process conditions according to standard.
Formulation by Combinations
According to the samples provided by customers, it is possible to provide all the prescriptions under the existing technological conditions. And the technician can quickly and accurately select an optimized formula that takes into consideration factors such as color matching quality, cost, and metamerism.
Colorant Characterization
By reading the optical characteristics of 5-8 concentration points of each colorant, set up a color matching basic database to automatically store the relevant data of colorant and substrate.
Formula Correction
If the first formulation does not meet the requirements, or because of changes in raw materials, process conditions and other factors, as well as differences in compatibility between colorants, the formulation can be automatically and quickly corrected by the formula correction function in the color matching software.
Spectral Curve Analysis
Spectral curve analysis and formulation-by-combinations functionality allow technicians to evaluate all viable prescriptions under existing process conditions and select the optimal formula.
