Benchtop pH-mV Meter - 0 to 14 pH Range
Download
Download

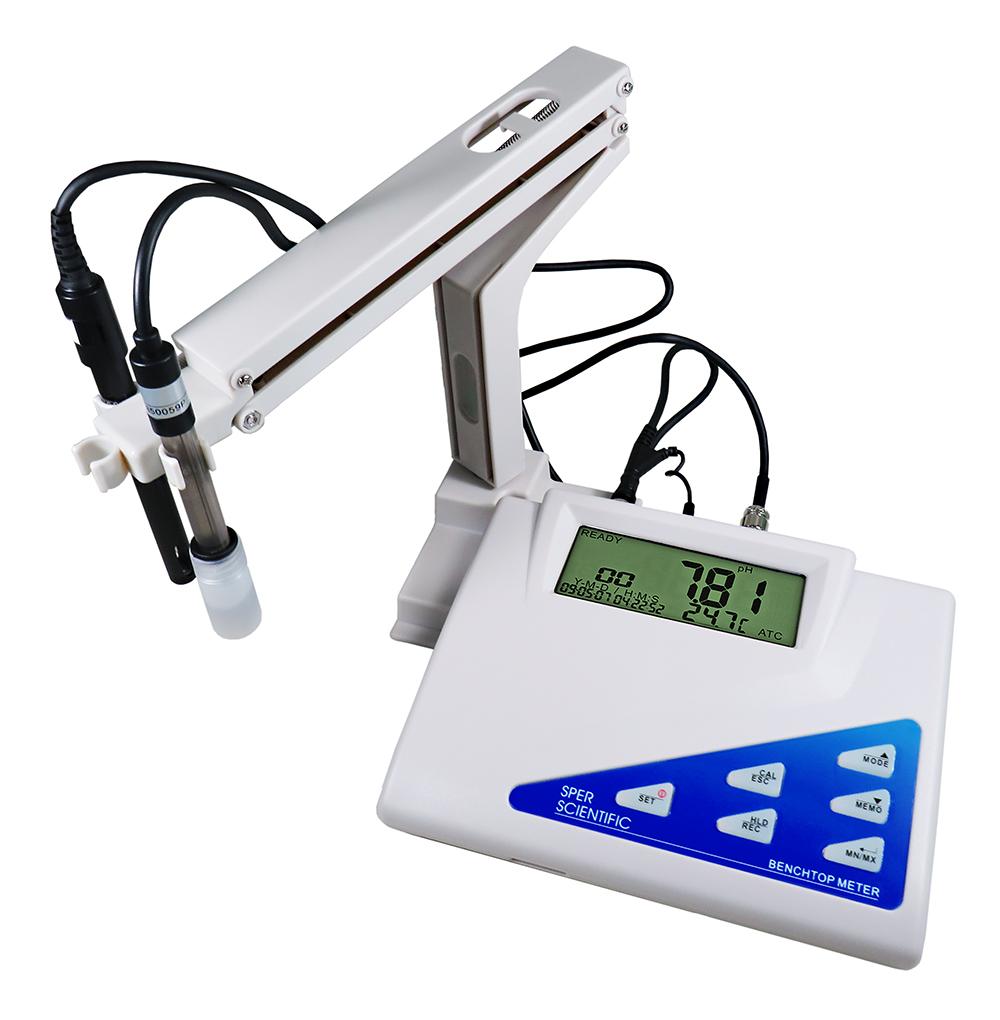

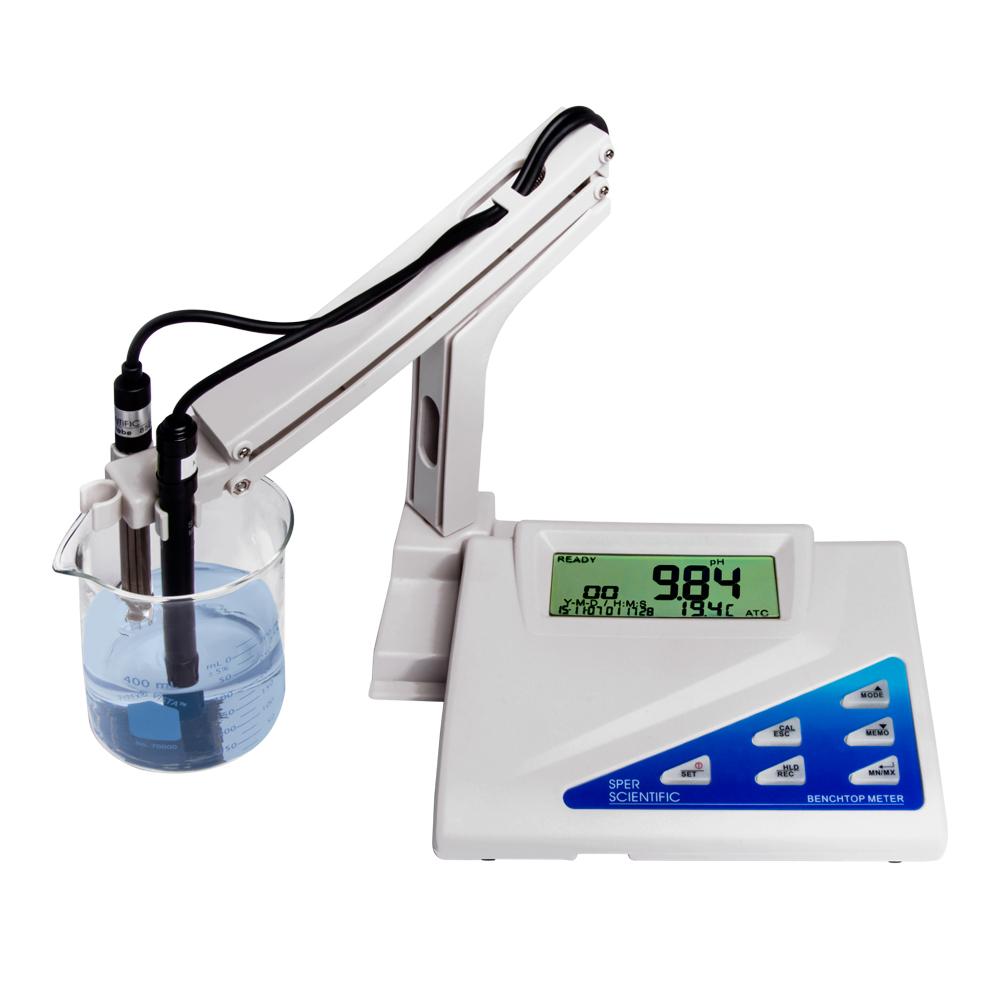

Rugged housing with large LCD displaying the parameter being measured together with time, date and temperature.

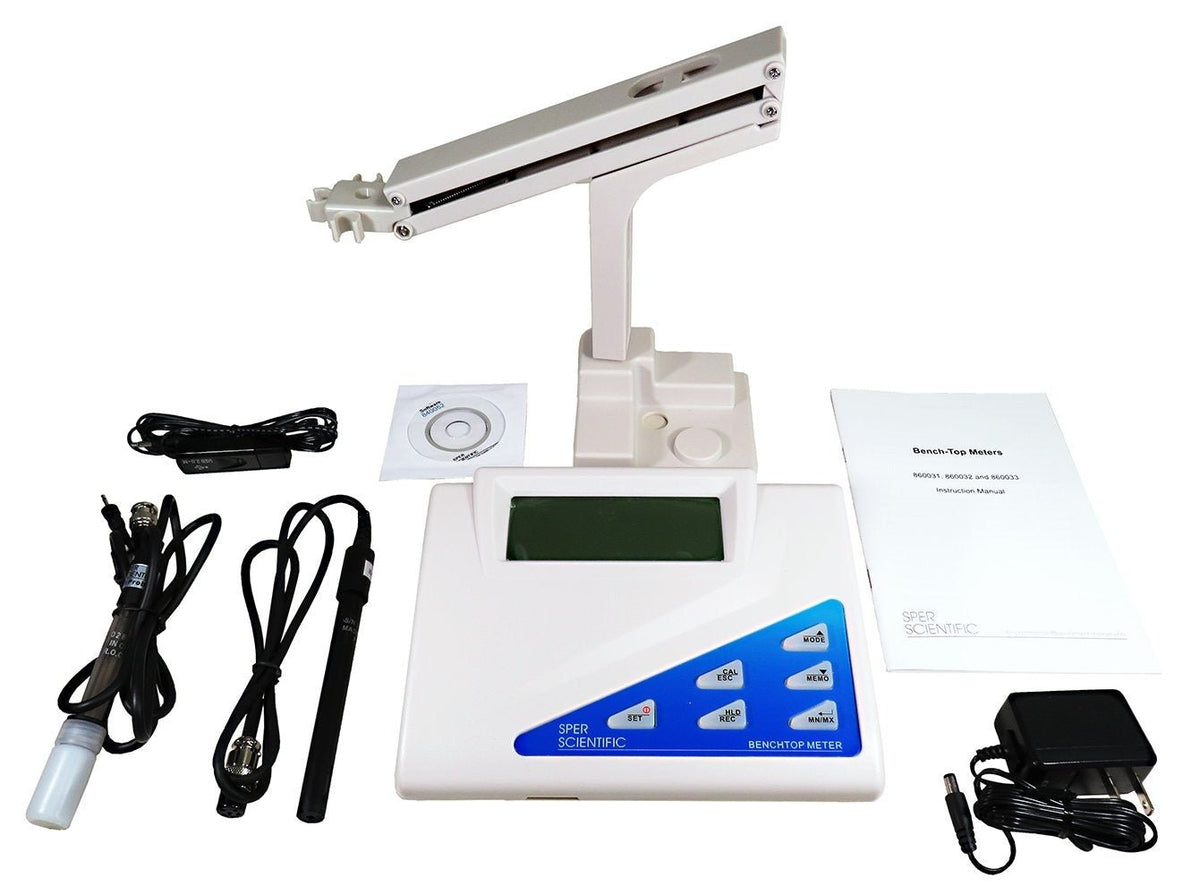

Operates on AC voltage (no batteries). Comes ready to use with ATC pH electrode, electrode holder arm, AC adaptor, computer cable and software. Also accepts any pH or ORP probe with a standard BNC connector.
- Automatic or manual temperature compensation
- Automatic or manual ranging
- N.I.S.T. buffer recognition

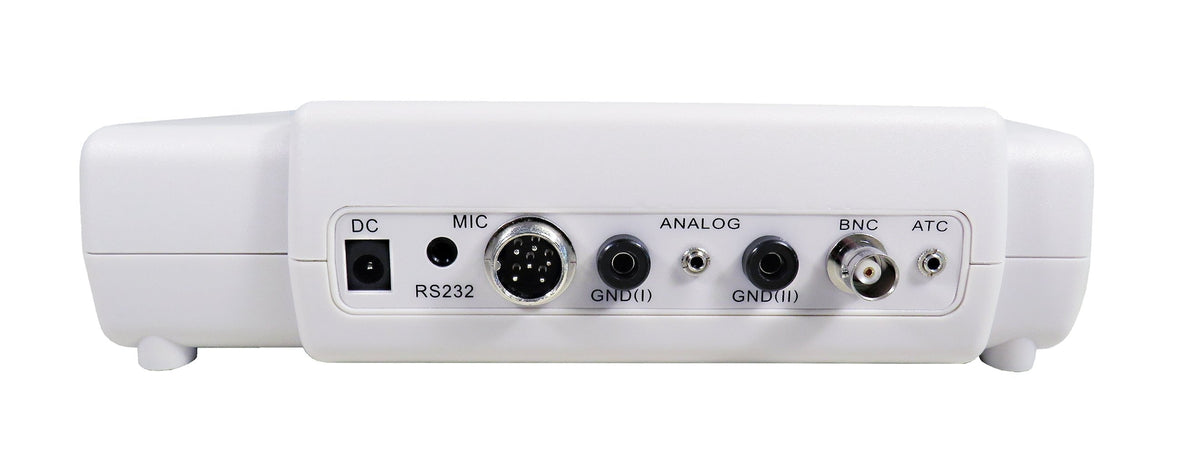

- Digital and analog outputs
- Min/Max and 99 data points
- Data Hold
- 5 calibration points
- Electrode status indication
Dimensions: 8½" × 7" × 2¼" (216 × 178 × 57 mm)
Dimensions with Holder Arm: 10" × 8" × 9" (254 × 203 × 229 mm)
Weight: 18.7 oz (530 g)
Specifications
| Mode: | Range: | Resolution: | Accuracy: |
| pH: | 0 to 14 pH | 0.01 pH | ±0.02 pH |
| mV/ORP: | -999 to 999 mV | 0.1 mV (-199.9 to 199.9) otherwise 1 mV |
±0.2 mV (-199.9 to 199.9) otherwise ±2 mV |
| Temperature ºF: | -23 to 176ºF | 0.1ºF | ±0.9ºF |
| Temperature ºC: | -5 to 80ºC | 0.1ºC | ±0.5ºC |
Downloads
Comparison Chart
Videos
Couldn't load pickup availability
Product Information
Product Information
Rugged housing with large LCD displaying the parameter being measured together with time, date and temperature.
Operates on AC voltage (no batteries). Comes ready to use with ATC pH electrode, electrode holder arm, AC adaptor, computer cable and software. Also accepts any pH or ORP probe with a standard BNC connector.
- Automatic or manual temperature compensation
- Automatic or manual ranging
- N.I.S.T. buffer recognition
- Digital and analog outputs
- Min/Max and 99 data points
- Data Hold
- 5 calibration points
- Electrode status indication
Dimensions: 8½" × 7" × 2¼" (216 × 178 × 57 mm)
Dimensions with Holder Arm: 10" × 8" × 9" (254 × 203 × 229 mm)
Weight: 18.7 oz (530 g)
Specifications
| Mode: | Range: | Resolution: | Accuracy: |
| pH: | 0 to 14 pH | 0.01 pH | ±0.02 pH |
| mV/ORP: | -999 to 999 mV | 0.1 mV (-199.9 to 199.9) otherwise 1 mV |
±0.2 mV (-199.9 to 199.9) otherwise ±2 mV |
| Temperature ºF: | -23 to 176ºF | 0.1ºF | ±0.9ºF |
| Temperature ºC: | -5 to 80ºC | 0.1ºC | ±0.5ºC |
