VS-100 | Analog Multimeter - Current-Limiting Fuse with 100kA of Breaking Current
Download
Download
Designed for use with lower voltage circuits with large capacitance.

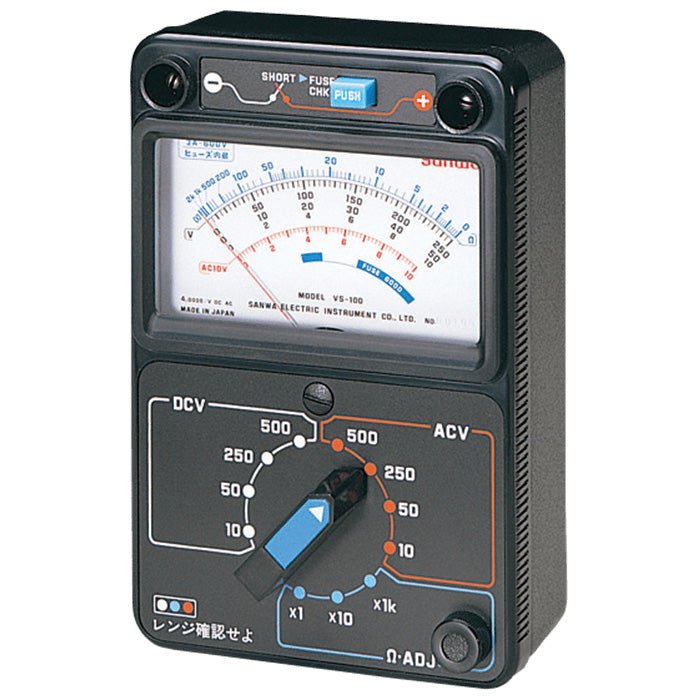

The VS-100 multimeter is designed to handle higher voltages (500 Volts Max), and is primarily designed for testing circuits or line voltages with high current and low voltage levels. The device features a pivot-type meter with an accuracy of 3% of full scale when measuring ACV, DCV and resistances. This is used for large-current, low-voltage circuits, and is manufactured with first priority given to safety. All ranges are protected from input voltage up to 500V.
This device has two fuses, the current limiting fuse with a rating of 600V/3A with a breaking capacity of 100kA, and a glass-tube fuse with a rating of 250V/0.25A, the breaking capacity of 100A.
The VS-100 comes with one set of (TL-100-0M) test leads, instruction manual and a (C-VS) carrying case.
- For lower voltage circuit (500V and below) with large capacitance
- Current-limiting fuse that can interrupt 100kA, is installed
- All ranges are protected from input voltage up to 500V
Specifications
| Function | Measuring Range | Tolerance |
|---|---|---|
| DCV | 10/50/250/500V（4kΩ/V) | ±3% of full scale |
| ACV | 10/50/250/500V（4kΩ/V) | ±3% of full scale |
| Resistance | 2k/20k/2MΩ | ±3% of arc |
| Frequency characteristic | AC50V range or lower 40Hz to 10kHz: frequency response within ±3% |
| Battery | R6P(AA battery)1.5Vx2 |
| Built-in fuse | F0304 Φ13x50mm 3A/600V 100kA D-type fuse F0314 Φ6.3x30mm 0.25A/250V 100A Ceramic fuse |
| Size/Mass | H144×W96×D56mm / Approx. 395g |
| *The value in ( ) at DCV and ACV is input resistance |
