SP20 | Analog Multimeter with High Voltage DC and Battery Check
Download
Download
This shock resistant analog multimeter provides 20 measurement functions including high voltage DC, battery check and (optional) temperature measurement.

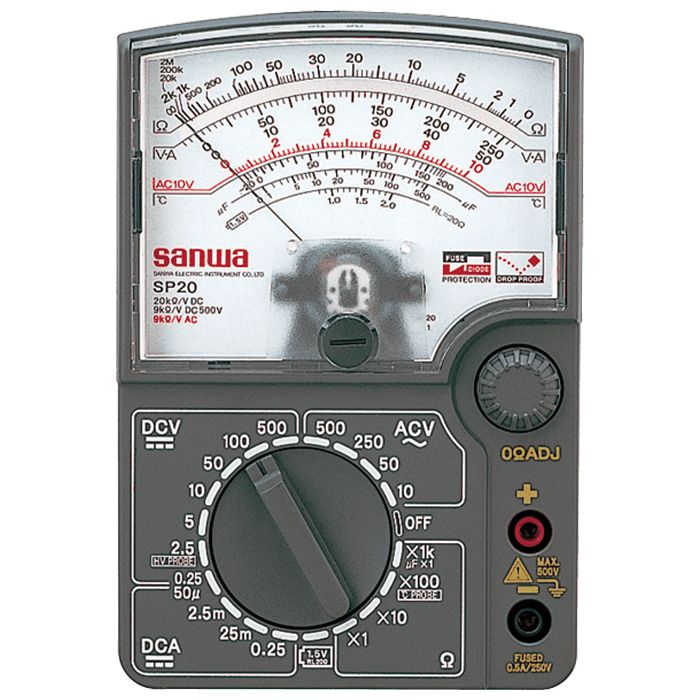

The Sanwa SP20 is a portable analog multi-tester with 20 measurement functions.
This meter is specially designed for low power circuits and home electric appliance testing. This meter is an Internal magnet type, taut band meter with a full-scale accuracy of 3%. The device is capable of measuring ACV and DCV along with high voltage DC of up to 25kV (using optional HV-10 probe). The device is also capable of measuring resistances of up to 2MΩ and capacitance with a full-scale value of 500uF.
The SP20 has protective covering which provides protection against drop shocks. The circuit is protected by a fuse rated at (250V/0.5A) with a blowout capacity of 500 Amperes.
Includes meter, one set of test leads and instruction manual.
- Drop shock proof taut-band meter
- 20ch measurement ranges
- Capacitance measurement 500μF
- Tilt stand
- DC high voltage and temperature measurement (with optional accessories)
Specifications
| Function | Measuring Range | Tolerance |
|---|---|---|
| DCV | 0.25/2.5/5/10/50/100（20kΩ/V）/500V（9kΩ/V) | ±3% of full scale |
| ACV | 10/50/250/500V（9kΩ/V) | ±3% of full scale |
| DCA | 50μ/2.5m/25m/0.25A | ±3% of full scale |
| Resistance | 2k/20k/200k/2MΩ | ±3% of arc |
| Capacitance | 500μF | Approximate value |
| DC high voltage | DC25kV (Using separately available probe HV-10) | ±20% with probe |
| Temperature | -20 to + 200℃ (Using separately available probe T-THP) | ±3% (Using T-THP) |
| Battery check | 1.5V (1.0～2.0V) | Approximate value |
| Frequency characteristic | AC10V range 40Hz to 100kHz: frequency response within ±3% |
| Battery | R6P(AA battery)1.5Vx2 |
| Built-in fuse | F0305 Φ6.3x30mm 0.5A/250V 300A Glass fuse |
| Size/Mass | H144×W99×D41mm/Approx. 270g |
