6 Channel Multi-Parameter Data Logger | Temperature RTD Pressure 4-20mA 0-5V Voltage with RS485
Download
Download

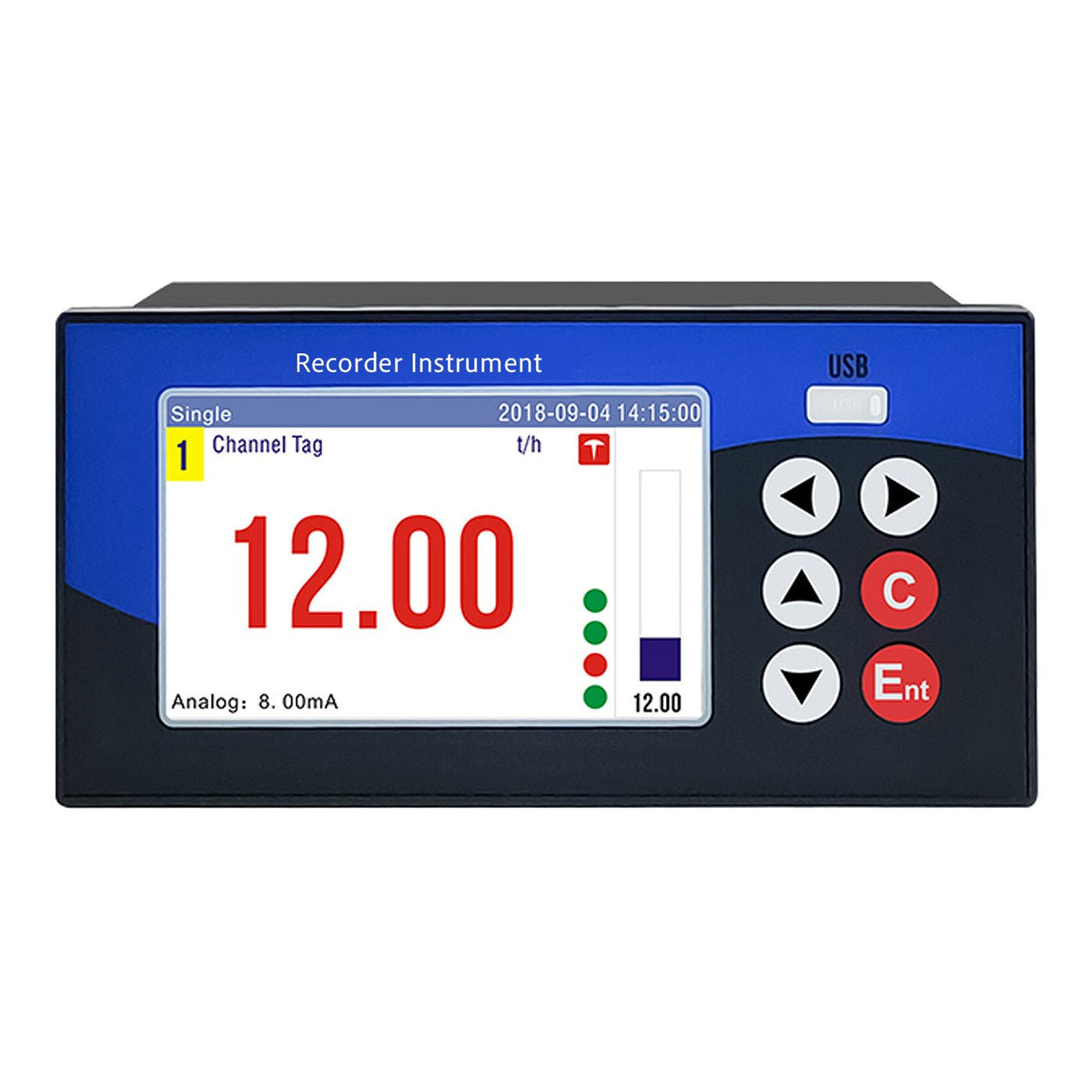

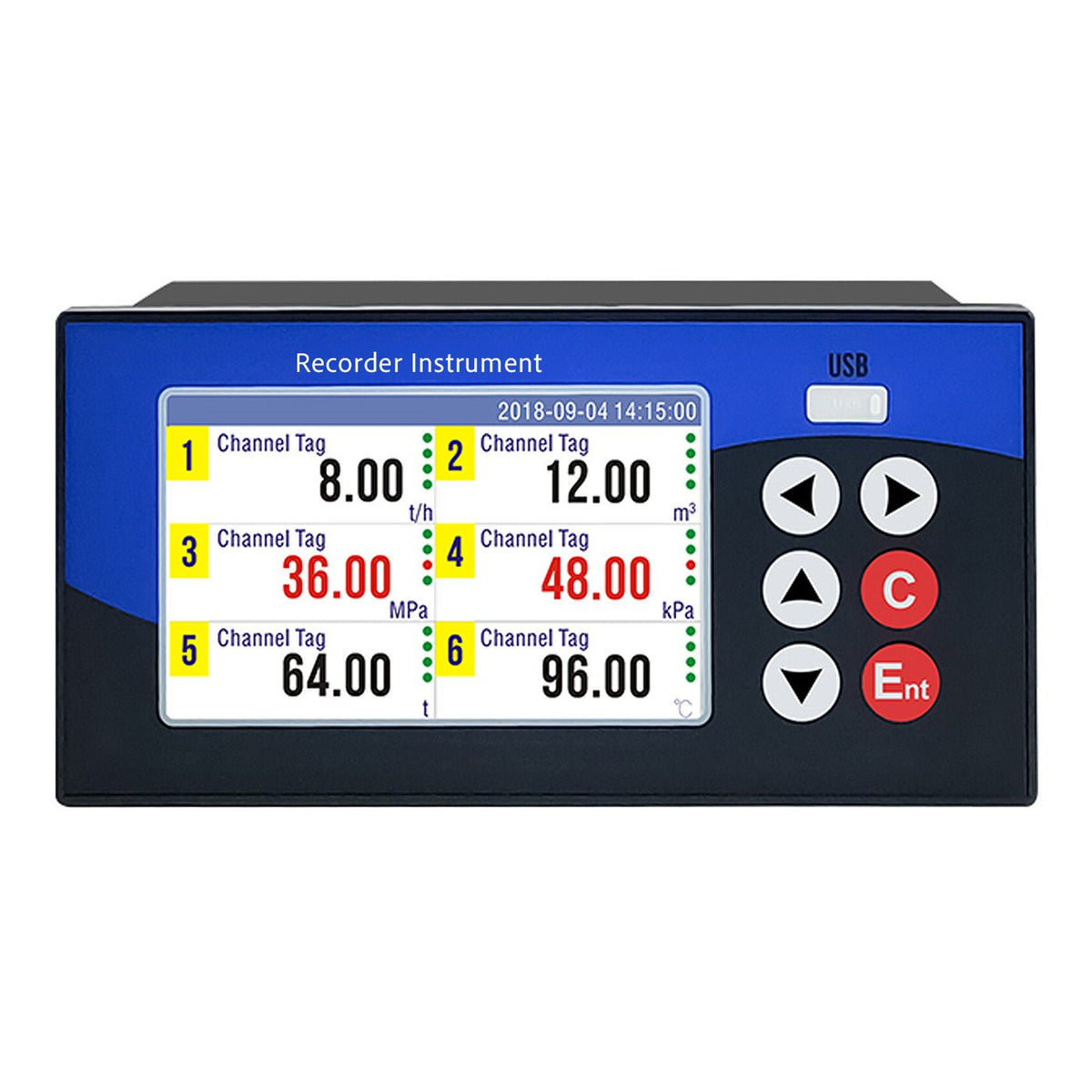

The SPSGT68R is a compact, high-performance data logger featuring a 4-inch color display with intuitive button navigation, designed for reliable monitoring and control in industrial environments.
This item ships direct from the manufacturer. Please allow 10-15 business days for order processing and shipment.

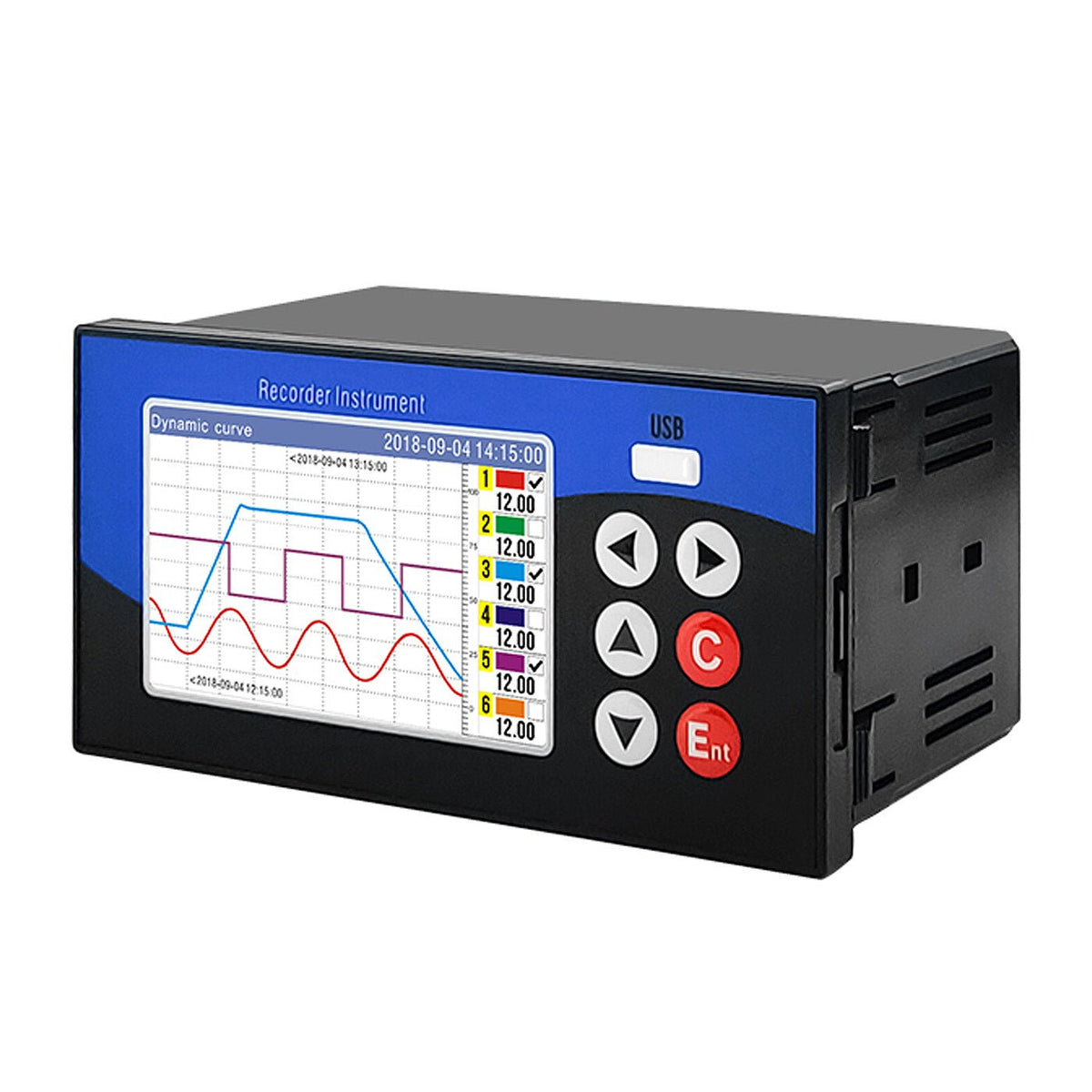

Its user-friendly interface enables one-click switching between real-time and historical trend curves, providing clear visibility into process performance.
Built for versatility, the SPSGT68R supports 1 to 6 channels of analog input and 1 to 6 relay outputs, making it suitable for a wide range of monitoring and control applications. It is fully compatible with common industrial sensors, including pressure, flow, and liquid level sensors, allowing seamless integration into existing systems.
With a 1-second sampling rate and ±0.2% measurement accuracy, the SPSGT68R delivers precise and responsive data acquisition. The system also features a USB 2.0 high-speed interface for efficient data backup and transfer.
Applications
Ideal for applications such as pipeline pressure monitoring and alarm-based data tracking, the SPSGT68R provides dependable process control and supports quality traceability across industrial operations.
- 4-inch color display with button-based navigation for simple operation
- One-click switching between real-time and historical trend curves
- Supports 1 to 6 channels of analog input
- 1 to 6 relay outputs for alarm and control functions
- Compatible with pressure, flow, and liquid level sensors
- Fast 1-second sampling rate for responsive data capture
- High accuracy of ±0.2% for reliable measurements
- USB 2.0 interface for high-speed data backup and transfer
- Clear multi-interface display for improved monitoring visibility
- Designed for pipeline monitoring, alarm systems and industrial process control
- Supports quality traceability and consistent process management
Specifications
| Instrument Dimensions | Panel: 160 + 80 mm; Opening: 152 × 76 mm |
| Instrument Weight | 450g |
| Installation Mode | Panel-mounted, indoor use |
| Measuring Channels | 6-channel universal analog input (isolated) + 2-channel frequency input |
| Measurement Accuracy | ±0.2% FS |
| Sampling Period | 1 second |
| Signal Types | Current: 4–20 mA, 0–20 mA, 0–10 mA Voltage: 1–5 V, 0–5 V, 0–10 V, 0–100 mV, 0–20 mV Thermocouple: K, S, B, J, R, N, T, E, WRe3-25, WRe5-26, F1, F2 RTD: Pt100, Cu50, Cu53 |
| 24VDC Distribution | 2 outputs, 24 VDC (±10%), 30 mA per channel |
| Alarm Relay | 6 relays, 250 VAC 3A / 30 VDC 3A (resistive load) |
| Transmit Output | 2 × 4–20 mA output, load ≤ 750Ω, accuracy ±0.2% |
| Power Supply | AC 100–240V, 50 Hz or DC 24V (±10%) |
| Preheating Time | 30 minutes |
| Operating Environment | -10 to 60°C; 0–85% RH (non-condensing) |
| Display | 4" color LCD |
| Data Memory | 16 MB, up to 900,000 records |
| Event Records | 256 alarm records, 256 power-down records, 256 operation logs |
| Communication | RS485 (Modbus RTU), USB 2.0 |
| Record Interval | 1sec, 2sec, 5sec, 10sec, 15sec, 30sec, 1 min, 2 min, 5 min, 10 min, 30 min, 1 hour |
