Portable Optical Dissolved Oxygen Meter
Download
Download

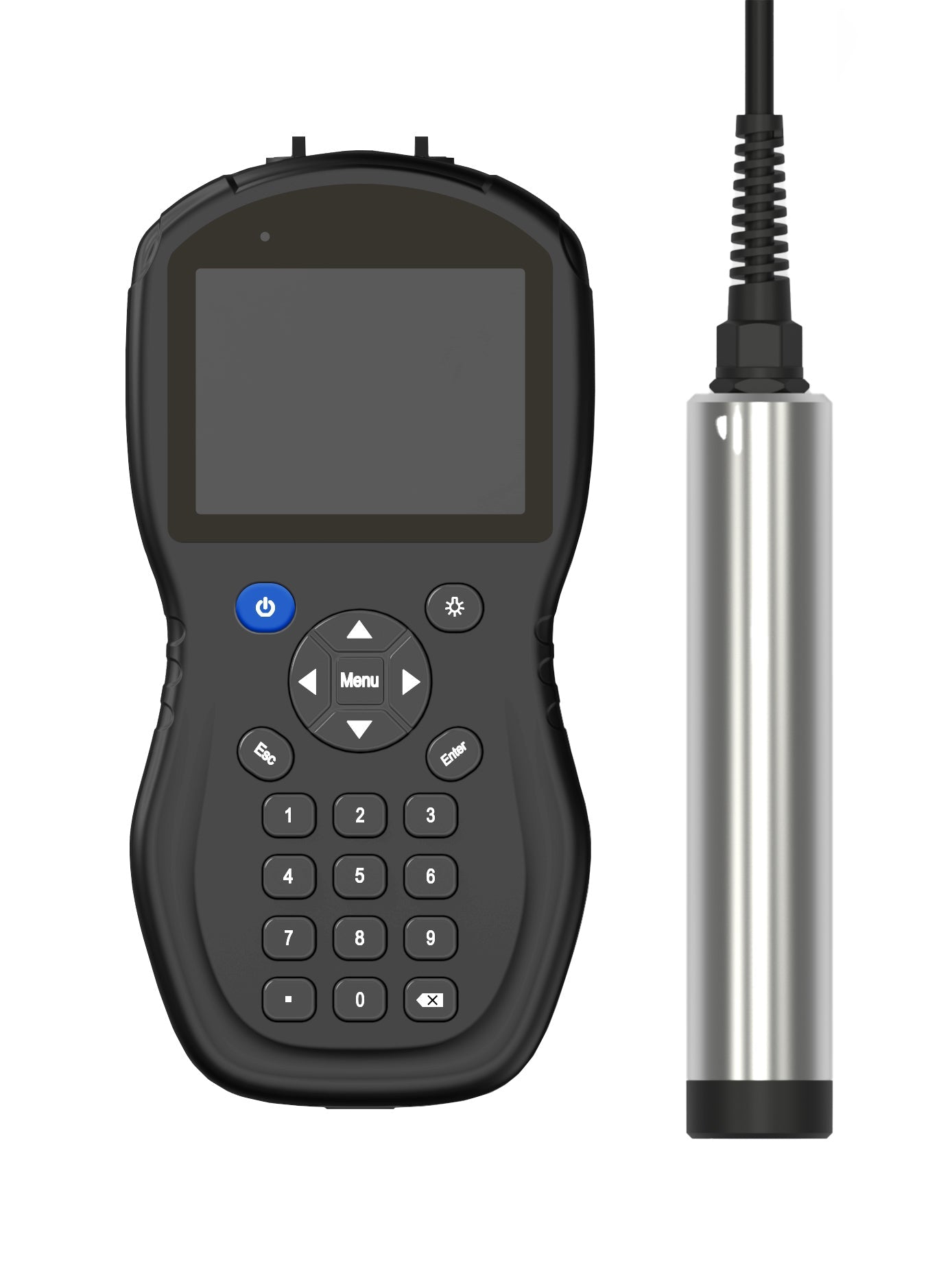

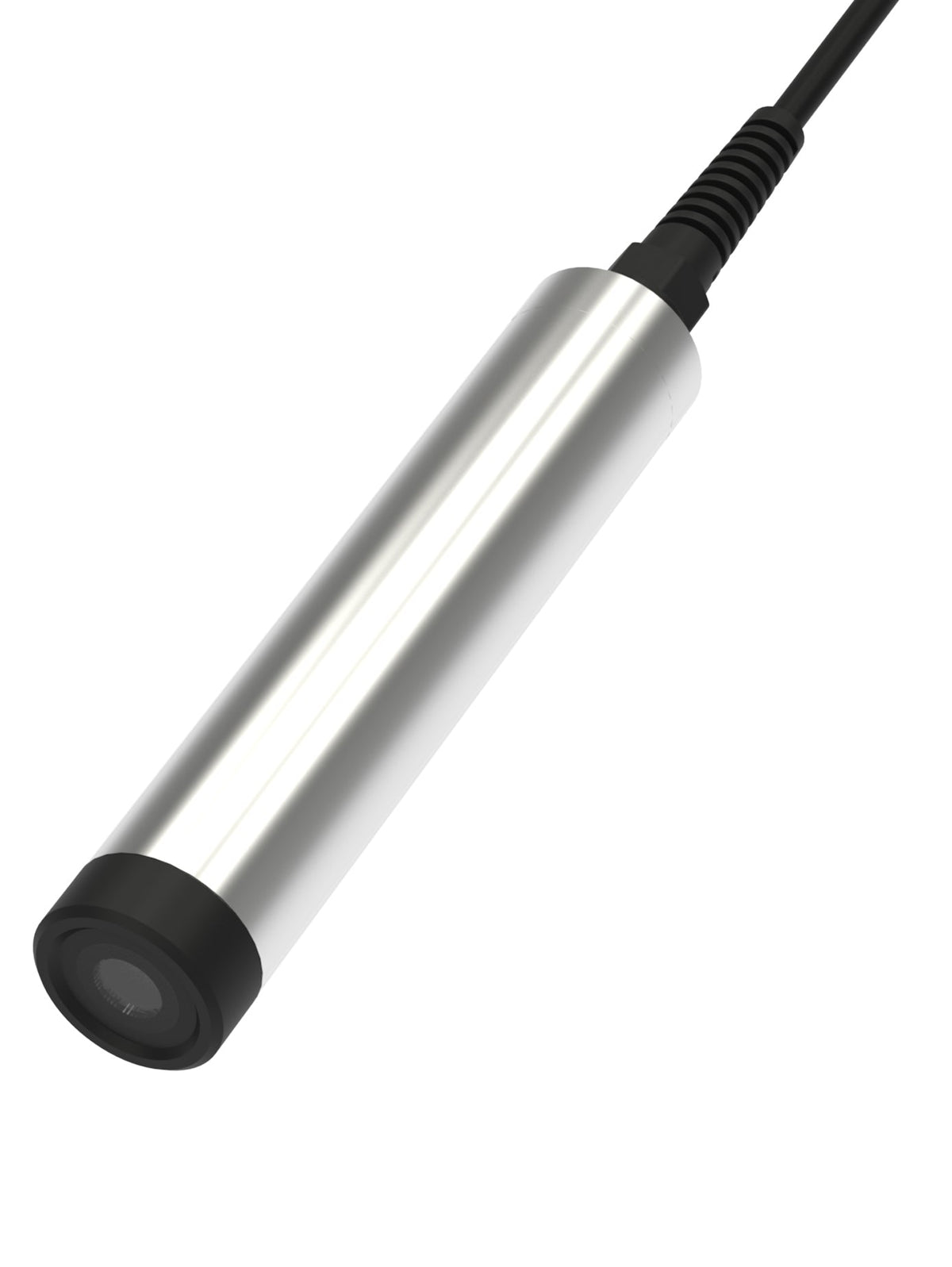

The Portable Optical Dissolved Oxygen Meter features a handheld unit paired with a fluorescent sensor that eliminates the need for membranes and electrolytes.
Utilizing advanced fluorescence technology, it measures dissolved oxygen without consuming oxygen or requiring water flow or agitation. Its built-in NTC temperature compensation ensures precise and stable readings with excellent repeatability. Designed for minimal maintenance, this optical sensor provides reliable performance ideal for professional environmental and laboratory applications.
Applications
- The device features an IP67-rated housing for robust protection against dust and water ingress.
- Equipped with a 3.5-inch color display, it offers an intuitive interface for straightforward and efficient operation.
- Ergonomically contoured for comfortable handheld use, it includes a rubberized, non-slip strap to ensure secure grip even in wet conditions.
- Supports data storage with easy export capabilities via a USB connection.
- Contains a built-in rechargeable battery that charges conveniently through USB without battery removal.
- Automatically detects the connected sensor type and adjusts the display interface accordingly.
- Allows full sensor parameterization and calibration for precise measurement customization.
Specifications
|
Measuring Range |
DO：0 -20 mg/L；0-20 ppm；0-200% |
|
Measurement Accuracy |
DO：3% or ±0.3mg/l(take max) Temperature：±0.5℃ |
|
Resolution |
0.01mg/L |
|
Calibration |
Air automatic calibration, sample calibration |
|
Housing Material |
Sensor：SUS316L Host housing：ABS+PC |
|
Storage Temp. |
-15-60℃ |
|
Operating Temp. |
0-45℃ |
|
Size & Weight |
Sensor Size: 25mm * 127mm weight: <0.3KG Host size: 203*100*43mm, weight: 0.5KG |
|
Protection Level |
Sensor IP68 Host housing：IP67 |
|
Cable Length |
Standard 3 meter cable (can be extended) |
|
Display |
3.5-inch color display screen with adjustable backlight |
|
Data Storage |
more than 100,000 data points |
Downloads
Comparison Chart
Compare Sper Scientific Dissolved Oxygen (DO) Meters
 |
 |
|
|
 |
 |
|
| Model Number | 850045 | 850048DOK | 850081DOK | 860055 | 860067 | 860073 |
|---|---|---|---|---|---|---|
| Product Name | Waterproof DO Meter Pen | Combination Water Meter Kit w/ DO Probe | Dissolved Oxygen Meter Kit | Rechargeable DO Pen w/ 5 Meter Cable | Optical Dissolved Oxygen Meter | Portable Optical Dissolved Oxygen Meter |
| DO Range (% Saturation) | 0–100% O₂ in air | 0–200% | 0–100.0% | 0.0–199.9% | 0.0–200.0% | 0-200% |
| DO Range (mg/L) | 0–20.0 mg/L | 0–20.0 mg/L | 0–20 mg/L | 0.00–20.00 mg/L | 0.0–20.0 mg/L | 0 -20 mg/L |
| DO Accuracy (mg/L) | ±0.4 mg/L | ±0.4 mg/L | ±0.4 mg/L | ±0.4 mg/L | <5: ±0.3 mg/L≥5: ±0.4 mg/L | ±0.3mg/L |
| DO Resolution (mg/L) | 0.1 mg/L | 0.1 mg/L | 0.1 mg/L | 0.01 mg/L | 0.1 mg/L | 0.01mg/L |
| DO Accuracy (%) | ±0.7% O₂ | ±2% F.S. | ±0.7% O₂ | ±3% F.S. | ±3% of Full Scale | ±3% |
| DO Resolution (%) | 0.10% | 0.10% | 0.10% | 0.10% | 0.10% | 0.10% |
| Temp. Range | 0–50°C / 32–122°F | 0–50°C / 32–122°F | 0–50°C / 32–122°F | 0–50.0°C / 32–122°F | 0–40.0°C / 32–104°F | 0°–45°C / 32°–113°F |
| Temp. Accuracy | ±0.8°C / 1.5°F | ±0.5°C / 0.9°F | ±0.8°C / ±1.5°F | ±0.5°C / 0.9°F | ±0.5°C (0.9°F) | ±0.5°C / 0.9°F |
| Temp. Resolution | 0.1°C | 0.1°C | 0.1°C | 0.1°C | 0.1°C | 0.1°C |
| Auto Temp. Comp. (ATC) | √ | √ | √ | 10–40°C | 0–40°C | √ |
| Salinity Resolution | 0.1 ppt | 0.1 ppt | ||||
| Barometric Pressure Comp. | Manual (altitude) | Manual (altitude) | 500–760 mmHg(66.7–101.3 kPa) | Manual, 50–115 kPa | Manual (altitude) | |
| DO Calibration | 1-Point (air) | 1-Point (air) | 1-Button (air) | 1-Point (100% air) | 2-Point (0% & 100%) | 2-Point (0% & 100%) |
| Probe Technology | Polarographic DO probe | Polarographic DO probe | Polarographic DO probe | Polarographic DO probe | Optical (fluorescent) DO probe | Optical (fluorescent) DO probe |
| Sensor Warmup Time | ~30 min (cal.) | ~30 min (cal.) | <60 seconds | None | ~10 min (cal.) | |
| Sensor Response Time | <30 seconds | Fast | ||||
| Sensor/Probe Lifetime | >6 months | >1 year | >1 year | |||
| Measures pH | (optional probe) | (optional probe) | ||||
| Measures ORP / mV | (optional probe) | |||||
| Measures Conductivity/TDS | (optional probe) | (optional probe) | ||||
| Measures Salinity | Via compensation | (optional probe) | (optional probe) | Via compensation | Via compensation | Via compensation |
| Memory / Data Storage | Max/Min record | 99 memory points | 99 memory points | +100,000 memory points | ||
| RS232 / Data Output | RS232 | USB | ||||
| Display Type | Dual LCD | Large backlit LCD | Backlit LCD | Backlit LCD | Large LCD | Large LCD |
| Simultaneous DO & Temp. | √ | √ | √ | √ | √ | √ |
| Backlight | √ | √ | √ | √ | ||
| Battery Type | (4) AAA | (4) AAA | 9V | 3.7V 500mAh Rechargeable Li-ion | (6) AAA | Rechargeable Li-ion |
| Charging | USB Type-C(~1.5 hr) | USB | ||||
| IP Rating | IP-67 | IP-67 | IP-67 Housing / IP-68 Sensor | |||
| Spare Probe Heads | 2 spare probe heads | 2 spare probe heads | 2 spare probe heads | 2 spare probe heads | ||
| Electrolyte Solution | √ | √ | √ | √ |
Couldn't load pickup availability
Product Information
Product Information
The Portable Optical Dissolved Oxygen Meter features a handheld unit paired with a fluorescent sensor that eliminates the need for membranes and electrolytes.
Utilizing advanced fluorescence technology, it measures dissolved oxygen without consuming oxygen or requiring water flow or agitation. Its built-in NTC temperature compensation ensures precise and stable readings with excellent repeatability. Designed for minimal maintenance, this optical sensor provides reliable performance ideal for professional environmental and laboratory applications.
Applications
- The device features an IP67-rated housing for robust protection against dust and water ingress.
- Equipped with a 3.5-inch color display, it offers an intuitive interface for straightforward and efficient operation.
- Ergonomically contoured for comfortable handheld use, it includes a rubberized, non-slip strap to ensure secure grip even in wet conditions.
- Supports data storage with easy export capabilities via a USB connection.
- Contains a built-in rechargeable battery that charges conveniently through USB without battery removal.
- Automatically detects the connected sensor type and adjusts the display interface accordingly.
- Allows full sensor parameterization and calibration for precise measurement customization.
Specifications
|
Measuring Range |
DO：0 -20 mg/L；0-20 ppm；0-200% |
|
Measurement Accuracy |
DO：3% or ±0.3mg/l(take max) Temperature：±0.5℃ |
|
Resolution |
0.01mg/L |
|
Calibration |
Air automatic calibration, sample calibration |
|
Housing Material |
Sensor：SUS316L Host housing：ABS+PC |
|
Storage Temp. |
-15-60℃ |
|
Operating Temp. |
0-45℃ |
|
Size & Weight |
Sensor Size: 25mm * 127mm weight: <0.3KG Host size: 203*100*43mm, weight: 0.5KG |
|
Protection Level |
Sensor IP68 Host housing：IP67 |
|
Cable Length |
Standard 3 meter cable (can be extended) |
|
Display |
3.5-inch color display screen with adjustable backlight |
|
Data Storage |
more than 100,000 data points |
Downloads
Comparison Chart
Compare Sper Scientific Dissolved Oxygen (DO) Meters
|
|
|
|
|
|
|
| Model Number | 850045 | 850048DOK | 850081DOK | 860055 | 860067 | 860073 |
|---|---|---|---|---|---|---|
| Product Name | Waterproof DO Meter Pen | Combination Water Meter Kit w/ DO Probe | Dissolved Oxygen Meter Kit | Rechargeable DO Pen w/ 5 Meter Cable | Optical Dissolved Oxygen Meter | Portable Optical Dissolved Oxygen Meter |
| DO Range (% Saturation) | 0–100% O₂ in air | 0–200% | 0–100.0% | 0.0–199.9% | 0.0–200.0% | 0-200% |
| DO Range (mg/L) | 0–20.0 mg/L | 0–20.0 mg/L | 0–20 mg/L | 0.00–20.00 mg/L | 0.0–20.0 mg/L | 0 -20 mg/L |
| DO Accuracy (mg/L) | ±0.4 mg/L | ±0.4 mg/L | ±0.4 mg/L | ±0.4 mg/L | <5: ±0.3 mg/L≥5: ±0.4 mg/L | ±0.3mg/L |
| DO Resolution (mg/L) | 0.1 mg/L | 0.1 mg/L | 0.1 mg/L | 0.01 mg/L | 0.1 mg/L | 0.01mg/L |
| DO Accuracy (%) | ±0.7% O₂ | ±2% F.S. | ±0.7% O₂ | ±3% F.S. | ±3% of Full Scale | ±3% |
| DO Resolution (%) | 0.10% | 0.10% | 0.10% | 0.10% | 0.10% | 0.10% |
| Temp. Range | 0–50°C / 32–122°F | 0–50°C / 32–122°F | 0–50°C / 32–122°F | 0–50.0°C / 32–122°F | 0–40.0°C / 32–104°F | 0°–45°C / 32°–113°F |
| Temp. Accuracy | ±0.8°C / 1.5°F | ±0.5°C / 0.9°F | ±0.8°C / ±1.5°F | ±0.5°C / 0.9°F | ±0.5°C (0.9°F) | ±0.5°C / 0.9°F |
| Temp. Resolution | 0.1°C | 0.1°C | 0.1°C | 0.1°C | 0.1°C | 0.1°C |
| Auto Temp. Comp. (ATC) | √ | √ | √ | 10–40°C | 0–40°C | √ |
| Salinity Resolution | 0.1 ppt | 0.1 ppt | ||||
| Barometric Pressure Comp. | Manual (altitude) | Manual (altitude) | 500–760 mmHg(66.7–101.3 kPa) | Manual, 50–115 kPa | Manual (altitude) | |
| DO Calibration | 1-Point (air) | 1-Point (air) | 1-Button (air) | 1-Point (100% air) | 2-Point (0% & 100%) | 2-Point (0% & 100%) |
| Probe Technology | Polarographic DO probe | Polarographic DO probe | Polarographic DO probe | Polarographic DO probe | Optical (fluorescent) DO probe | Optical (fluorescent) DO probe |
| Sensor Warmup Time | ~30 min (cal.) | ~30 min (cal.) | <60 seconds | None | ~10 min (cal.) | |
| Sensor Response Time | <30 seconds | Fast | ||||
| Sensor/Probe Lifetime | >6 months | >1 year | >1 year | |||
| Measures pH | (optional probe) | (optional probe) | ||||
| Measures ORP / mV | (optional probe) | |||||
| Measures Conductivity/TDS | (optional probe) | (optional probe) | ||||
| Measures Salinity | Via compensation | (optional probe) | (optional probe) | Via compensation | Via compensation | Via compensation |
| Memory / Data Storage | Max/Min record | 99 memory points | 99 memory points | +100,000 memory points | ||
| RS232 / Data Output | RS232 | USB | ||||
| Display Type | Dual LCD | Large backlit LCD | Backlit LCD | Backlit LCD | Large LCD | Large LCD |
| Simultaneous DO & Temp. | √ | √ | √ | √ | √ | √ |
| Backlight | √ | √ | √ | √ | ||
| Battery Type | (4) AAA | (4) AAA | 9V | 3.7V 500mAh Rechargeable Li-ion | (6) AAA | Rechargeable Li-ion |
| Charging | USB Type-C(~1.5 hr) | USB | ||||
| IP Rating | IP-67 | IP-67 | IP-67 Housing / IP-68 Sensor | |||
| Spare Probe Heads | 2 spare probe heads | 2 spare probe heads | 2 spare probe heads | 2 spare probe heads | ||
| Electrolyte Solution | √ | √ | √ | √ |
