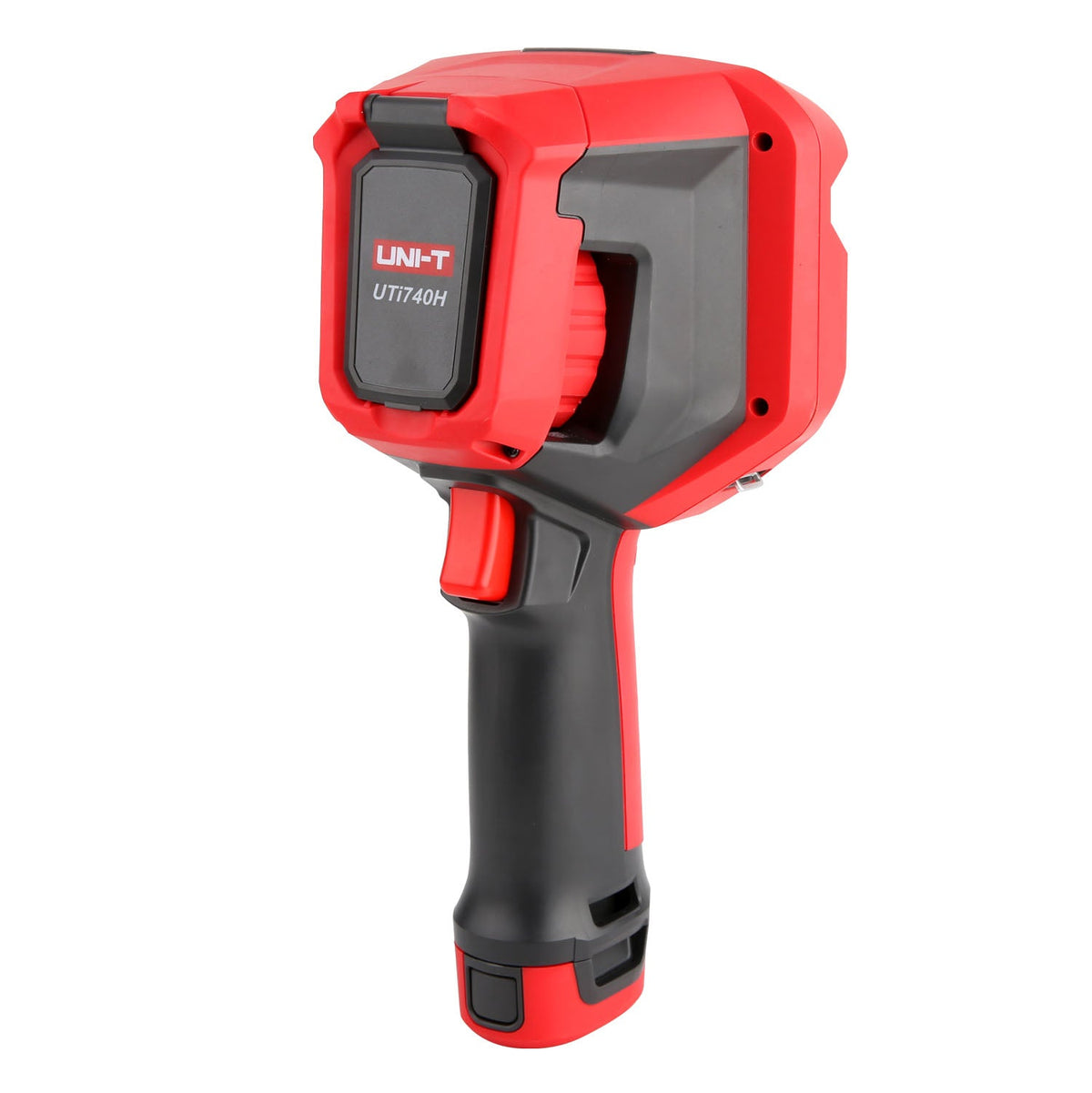

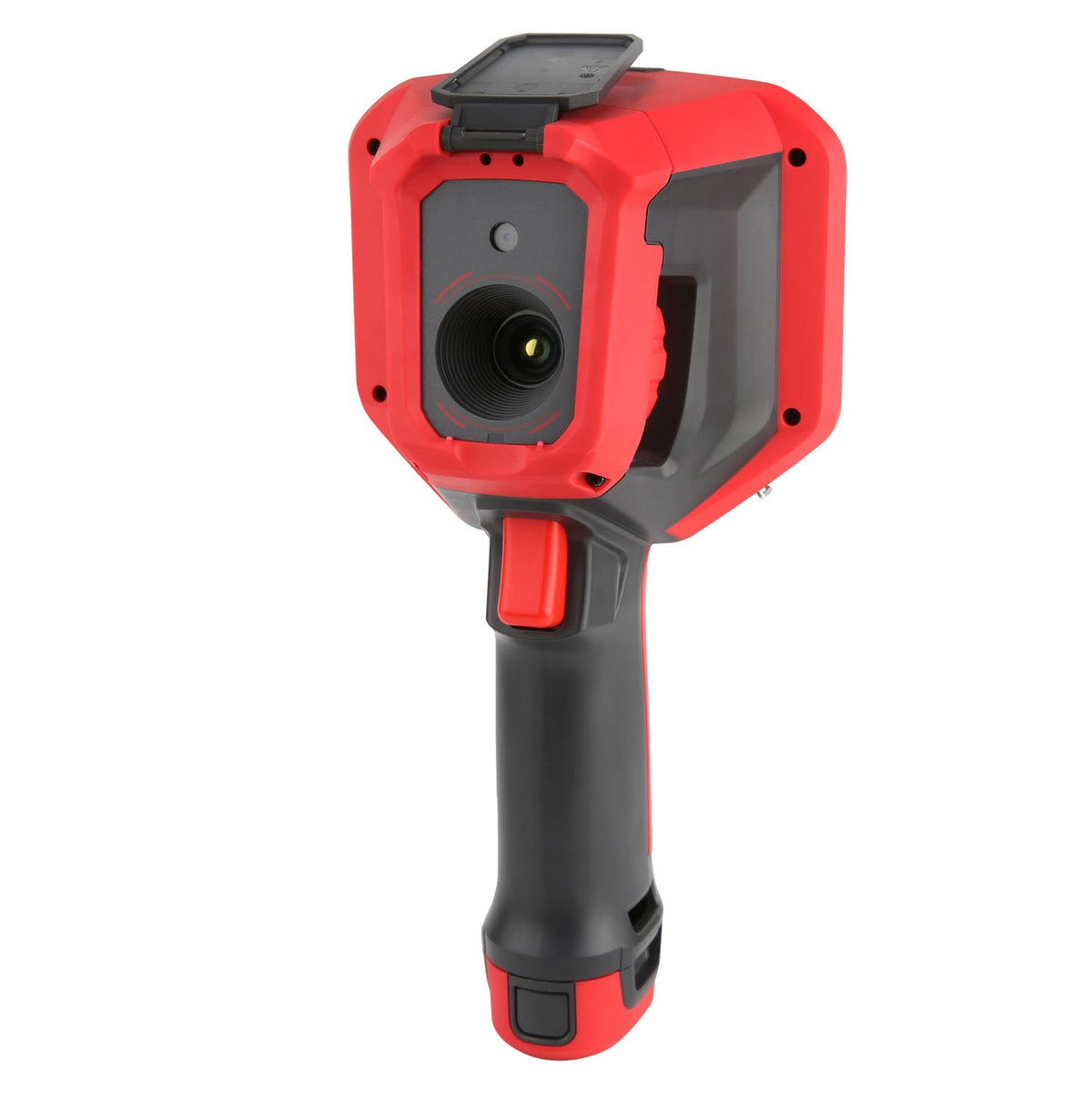

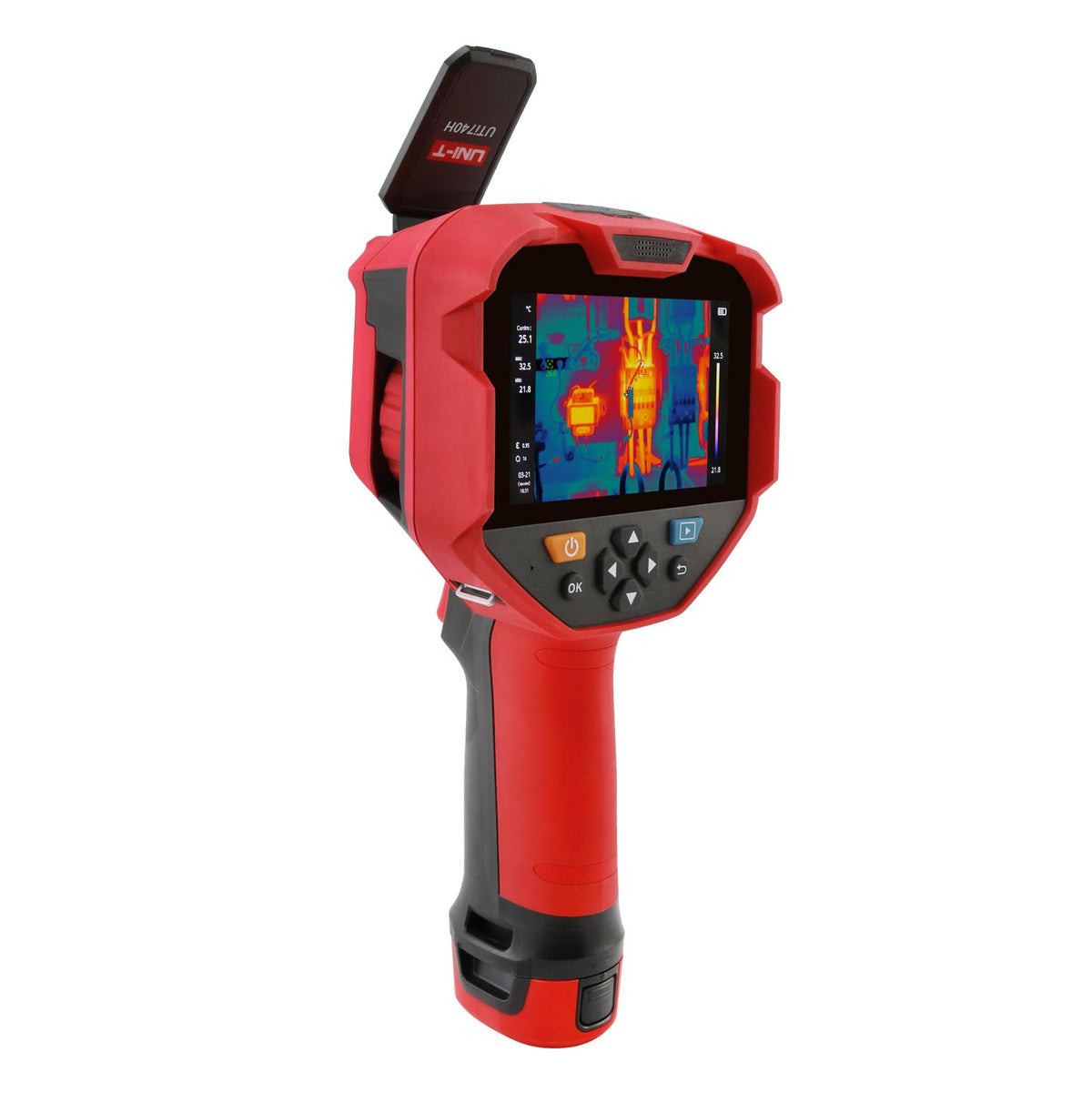

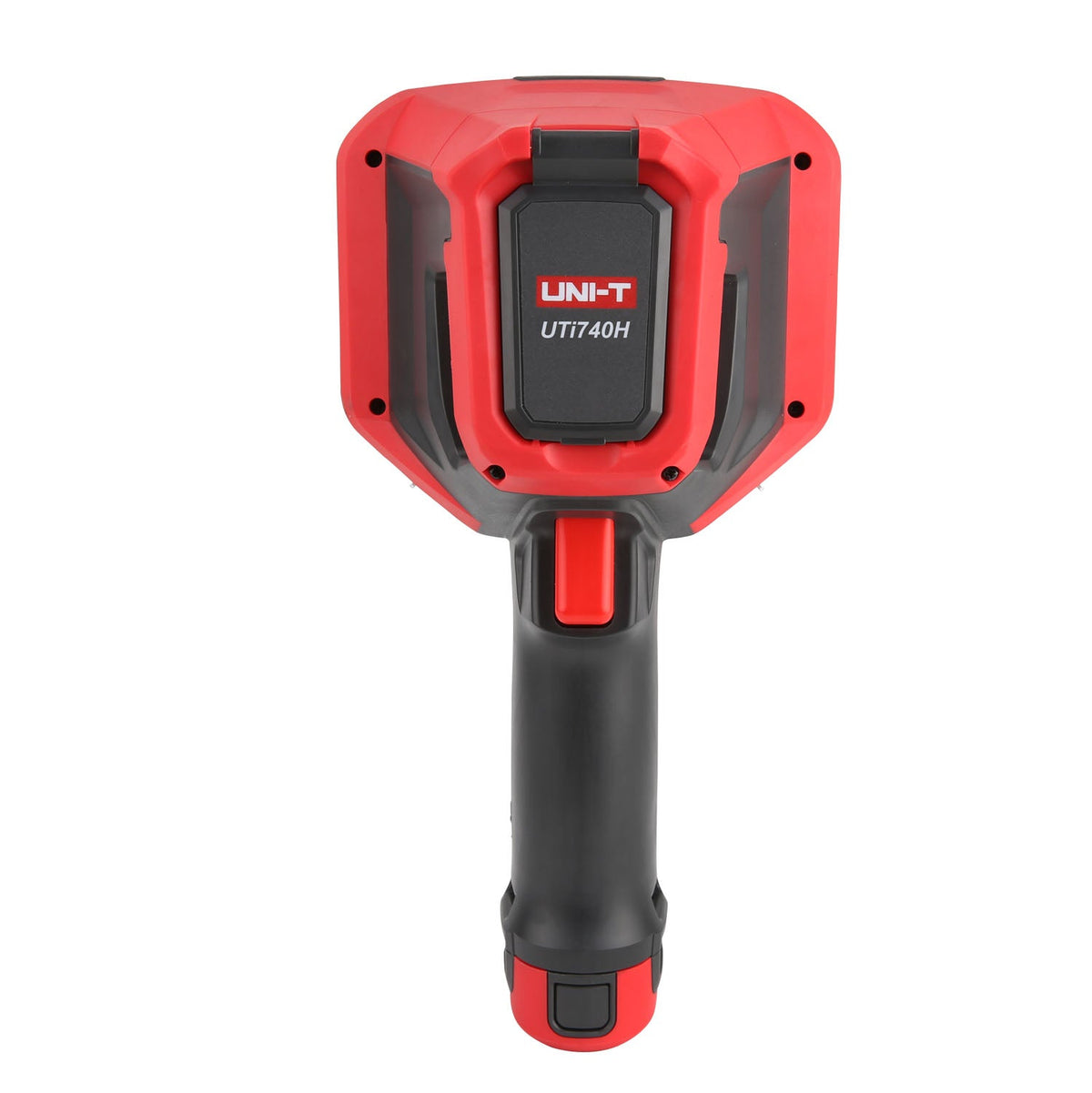

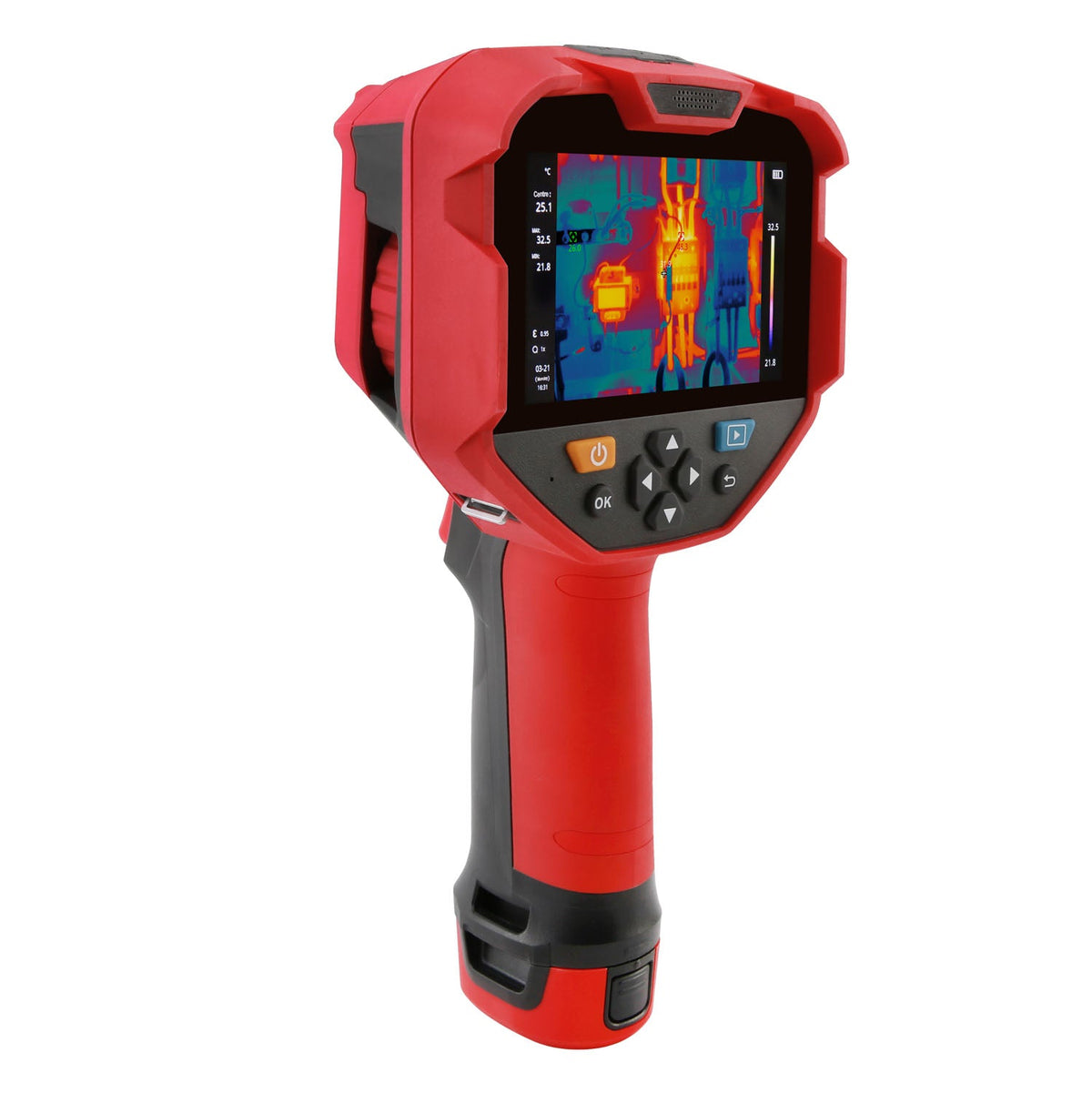

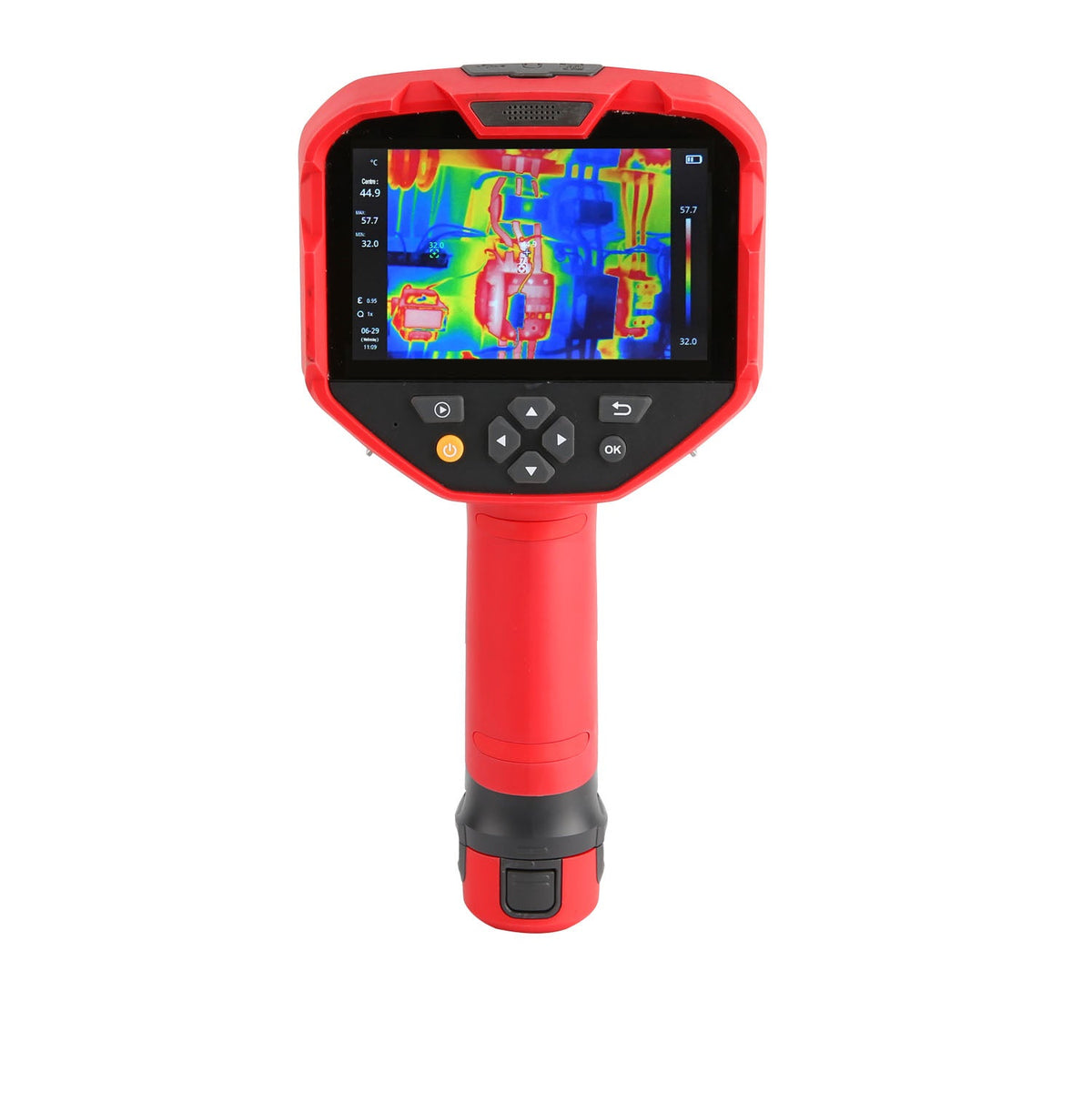

UTi740H 384 H-Series Professional Thermal Imager
Download
Download
The UNI-T UTi740H is a cutting-edge thermal imager designed for professionals requiring high-definition infrared imaging and comprehensive temperature measurement capabilities.
With its advanced features and robust design, this thermal camera delivers exceptional performance across a wide range of industrial, research, and diagnostic applications.
Professional-Grade Thermal Imaging Technology
Engineered to meet the most demanding thermal analysis requirements, the UTi740H combines high-resolution imaging, manual focusing, and a comprehensive suite of diagnostic tools. Its expanded temperature measurement range and advanced features make it an indispensable tool for professionals across various industries.
- High-Definition 384x288 Pixel Infrared Resolution
- 5MP Digital Camera
- 4.3" IPS Display with 800x480 Resolution
- Manual Focus Technology
- Wide Temperature Measurement Range: -22°F to 1202°F
- Detachable 5200mAh Battery
- Multiple Image Modes: Thermal, Visual, Fusion, PIP
- Advanced On-Screen Analyzer
- Digital Zoom (1x, 2x, 4x)
- QR Code Scanning Capability
- PC and Mobile App Analysis Software
- Image Format: Radiometric JPEG
Advanced Thermal Imaging Technology
The UTi740H features a sophisticated infrared detector with 384x288 pixel resolution, providing exceptional thermal visualization for professional diagnostics. Its manual focus technology ensures precise imaging for both near and distant targets, addressing the diverse requirements of different inspection scenarios.
The advanced imaging modes, including Picture-in-Picture (PIP) and visual fusion, allow professionals to overlay thermal and visual images, providing comprehensive context for temperature anomalies. The camera's unique features like digital zoom and isotherm functionality enhance its diagnostic capabilities.
Professional Applications
Electrical Systems Diagnostics
For electrical maintenance professionals, the UTi740H offers comprehensive thermal imaging capabilities. Its high resolution and wide temperature range enable detection of subtle electrical system anomalies, from loose connections to potential overheating issues.
Mechanical Equipment Monitoring
Mechanical engineers can leverage the UTi740H's advanced imaging to perform detailed equipment health assessments. The manual focus and high-resolution imaging reveal intricate heat distribution patterns that can indicate potential mechanical issues before they become critical.
HVAC and Building Diagnostics
Building inspectors and HVAC professionals benefit from the camera's ability to provide precise non-invasive thermal performance assessment. The UTi740H can identify insulation gaps, detect moisture intrusion, and visualize heat transfer anomalies with exceptional accuracy.
Research and Industrial Applications
Researchers and industrial professionals will appreciate the UTi740H's versatility. Its wide temperature measurement range from -22°F to 1202°F, combined with advanced features like QR code scanning and comprehensive analysis software, makes it an invaluable tool for detailed thermal analysis.
Specifications
| IR Resolution | 384×288 |
| NETD | ≤ 60mK |
| Temperature Range | -30 °C (-22 °F) to 650 °C (1202 °F) |
| Accuracy | ±2 °C or ±2% (whichever greater) |
| Field of View | 28° × 21° |
| Spectral Response | 8 - 14µm |
| Pixel Pitch | 17µm |
| Refresh Rate | 25 Hz |
| Spatial Resolution | 1.3mrad |
| Focus | Manual Focus |
| Digital Zoom | 2x, 4x |
| Image Blending | Yes |
| Isotherm | Yes |
| Image Modes | Thermal, Visual image, T-Mix fusion, PIP |
| Image Format | Radiometric JPEG |
| On Screen Analyzer | 5 Points/1 Line/5 Rectangles/5 Circles |
| Digital Camera | 5MP |
| WiFi | Yes |
| Interface | USB-Type-C |
| Data Storage | 32GB SD card |
| Display Type | IPS LCD |
| Display Size | 4.3in |
| Display Resolution | 800×480 |
| Languages | English, French, German, Italian, Spanish, Swedish |
| Battery | 5200 mAh detachable Li-ion battery pack (UT-M17) |
| Battery Life | Approx. 5h (with Wi-Fi off) |
| Weight | 806 g |
| Dimensions | 266.02 × 126.66 × 136 mm |
| IP Rating | IP54 |
| Drop Rating | 2m |
FAQ's
What is Super Resolution / Super IR technology?
Super Resolution (or Super IR) is UNI-T's image enhancement technology that uses algorithmic processing to increase the effective resolution of thermal images beyond the native IR detector resolution. For example, a 256×192 native detector can produce enhanced 512×384 images. This provides more detail for identifying small thermal anomalies without increasing hardware cost.
Can I generate reports from the UTi740H?
Yes. UNI-T provides free PC analysis software for generating professional thermal inspection reports. Images can be transferred via USB, Wi-Fi (on supported models), or SD card. The software supports temperature analysis, annotation, and PDF report generation.
What's included with the UTi740H?
The UTi740H ships with the thermal imager, lithium battery, USB charging cable, carrying case, and user manual.
