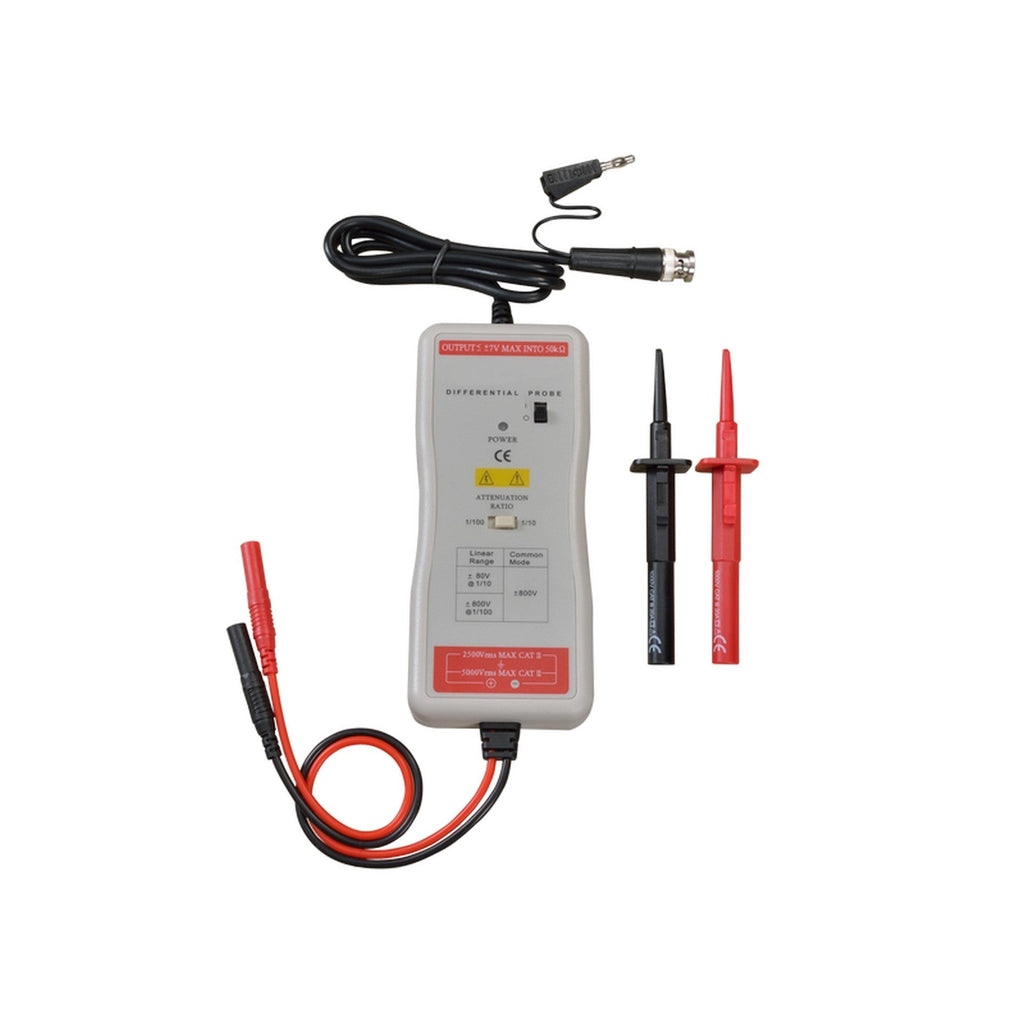

UT-P31 100 MHz 10:1/100:1 Differential Oscilloscope Probe
Regulärer Preis
$699.00 USD
Angebotspreis
Regulärer Preis
Versandkosten werden beim Checkout berechnet.
Download
Download
100 MHz differential oscilloscope probe (10:1/100:1 attenuation) for safely measuring floating voltages across motor drives, power converters and bridge circuits.
Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
- 100MHz Bandwidth — Captures signal content up to 100MHz for accurate waveform measurement.
- 10:1/100:1 Attenuation — Divides the input signal for measuring higher-voltage circuits.
- 1500Vpp Maximum Input Voltage — Rated input voltage for safe operation.
- Standard BNC Connection — Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Specifications
| CAT Rating | CAT III |
| Dimensions | 69 × 26 × 165 mm |
| Bandwidth | 100 MHz |
| Probe Attenuation | 100:1, 1000:1 |
| Probe Max Voltage | 1500Vpp |
| Rise Time | 3.5ns |
| Input Capacitance | 1 pF |
| Input Impedance | 8 MΩ / 1 pF |
| Operating Temperature | 0 °C - 50 °C |
| Differential Input Voltage | 1500Vpp |
| Common Mode Voltage | 5kVrms |
| CMRR | > 80 dB @ 60 Hz, > 60 dB @ 100 Hz, > 50 dB @ 1 MHz |
Abholverfügbarkeit konnte nicht geladen werden.
Product Information
Product Information
100 MHz differential oscilloscope probe (10:1/100:1 attenuation) for safely measuring floating voltages across motor drives, power converters and bridge circuits.
Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
- 100MHz Bandwidth — Captures signal content up to 100MHz for accurate waveform measurement.
- 10:1/100:1 Attenuation — Divides the input signal for measuring higher-voltage circuits.
- 1500Vpp Maximum Input Voltage — Rated input voltage for safe operation.
- Standard BNC Connection — Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Specifications
| CAT Rating | CAT III |
| Dimensions | 69 × 26 × 165 mm |
| Bandwidth | 100 MHz |
| Probe Attenuation | 100:1, 1000:1 |
| Probe Max Voltage | 1500Vpp |
| Rise Time | 3.5ns |
| Input Capacitance | 1 pF |
| Input Impedance | 8 MΩ / 1 pF |
| Operating Temperature | 0 °C - 50 °C |
| Differential Input Voltage | 1500Vpp |
| Common Mode Voltage | 5kVrms |
| CMRR | > 80 dB @ 60 Hz, > 60 dB @ 100 Hz, > 50 dB @ 1 MHz |
