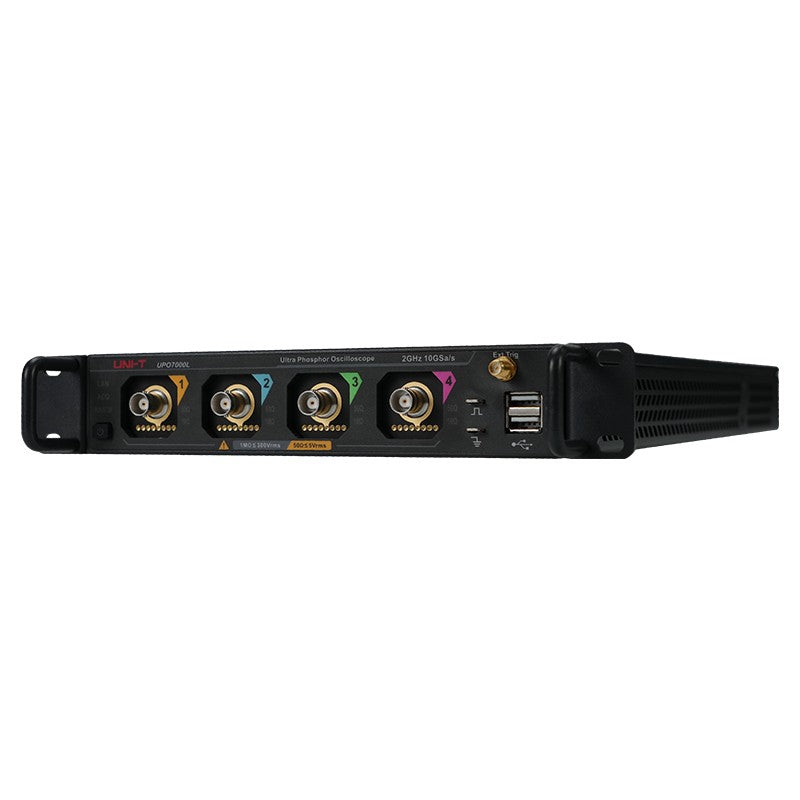

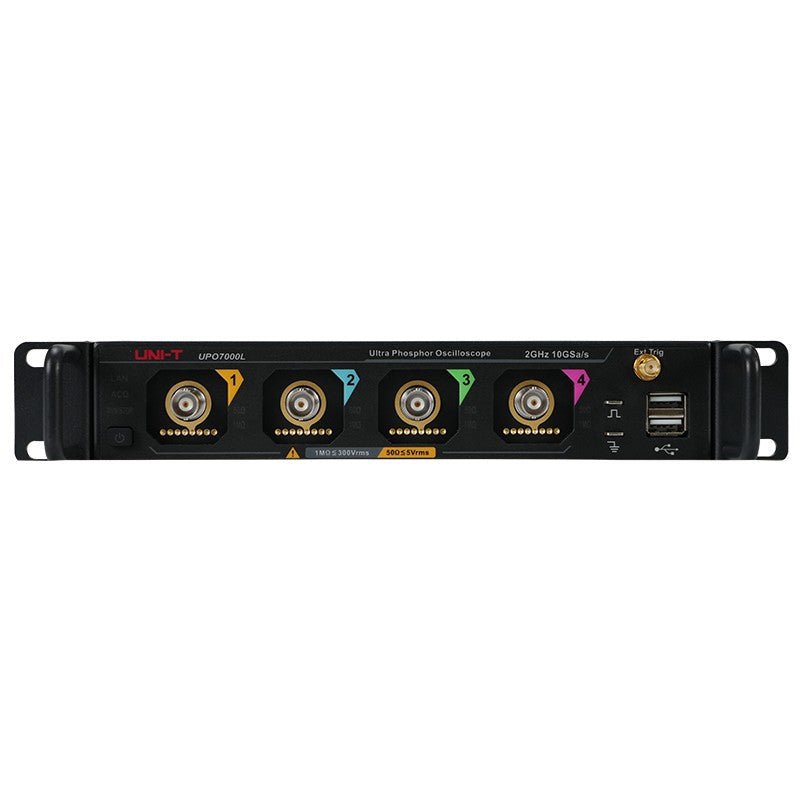

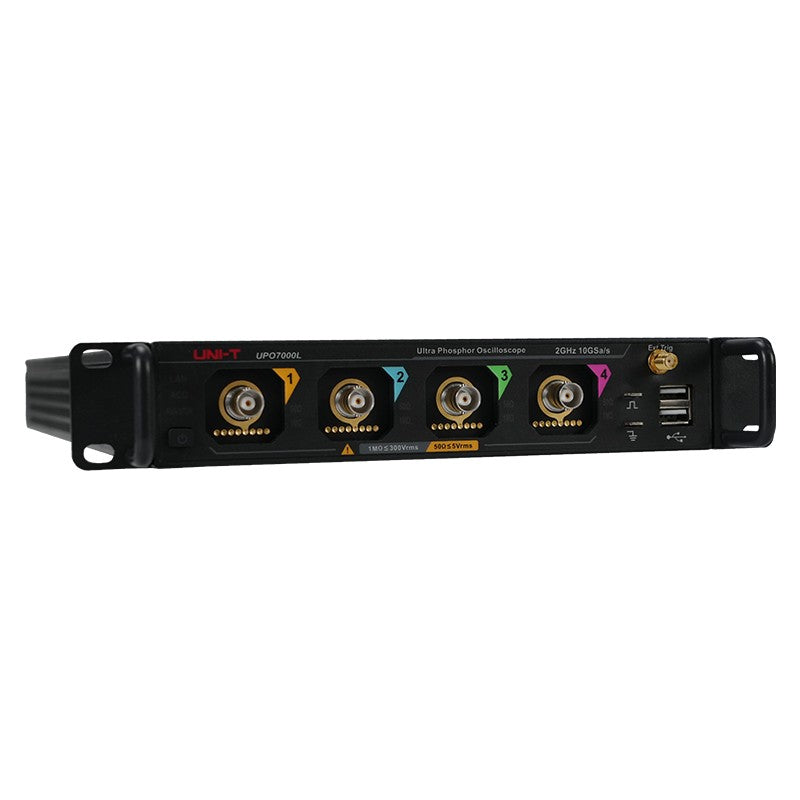

UPO7104L 1 GHz 4Ch Eight-in-One Rack-Mount Oscilloscope
Download
Download
The UNI-T UPO7104L 1 GHz Rack-Mount Digital Storage Oscilloscope is a high-performance 1U, four-channel oscilloscope engineered for automated test equipment (ATE), production test, validation laboratories, and high-density rack installations.
Combining up to 1 GHz bandwidth, 10 GSa/s real-time sampling, and 1 Gpts of acquisition memory in a compact half-width 1U chassis, the UPO7104L delivers laboratory-grade performance while maximizing valuable rack space. Designed for remote operation, the instrument supports HDMI video output, browser-based WebServer control, and comprehensive SCPI automation for seamless integration into modern test environments.
More than a traditional oscilloscope, the UPO7104L integrates multiple analysis tools into a single platform, including a spectrum analyzer, digital voltmeter, hardware frequency counter, serial protocol decoding, and optional arbitrary waveform generation, power analysis, and jitter analysis with eye diagrams. Multi-instrument synchronization supports systems of up to 128 instruments and 512 channels, making the UPO7104L an ideal solution for scalable automated test systems, semiconductor validation, aerospace electronics, communications, and advanced research applications.
- 1 GHz bandwidth with four analog input channels
- Up to 10 GSa/s real-time sampling (single channel)
- 1 Gpts maximum acquisition memory
- UltraAcq® acquisition with up to 600,000 waveforms per second and 2,000,000 waveforms per second in Sequence Mode
- Compact half-width 1U rack-mount chassis
- HDMI display output with browser-based WebServer remote control
- Integrated spectrum analyzer, digital voltmeter, and hardware frequency counter
- Standard serial protocol decoding with optional protocol expansion
- Optional 60 MHz arbitrary waveform generator
- Optional power analysis, jitter analysis, and eye diagram software
- Windows 10 IoT platform with embedded MATLAB and Python support
- Multi-instrument synchronization for up to 128 instruments and 512 channels

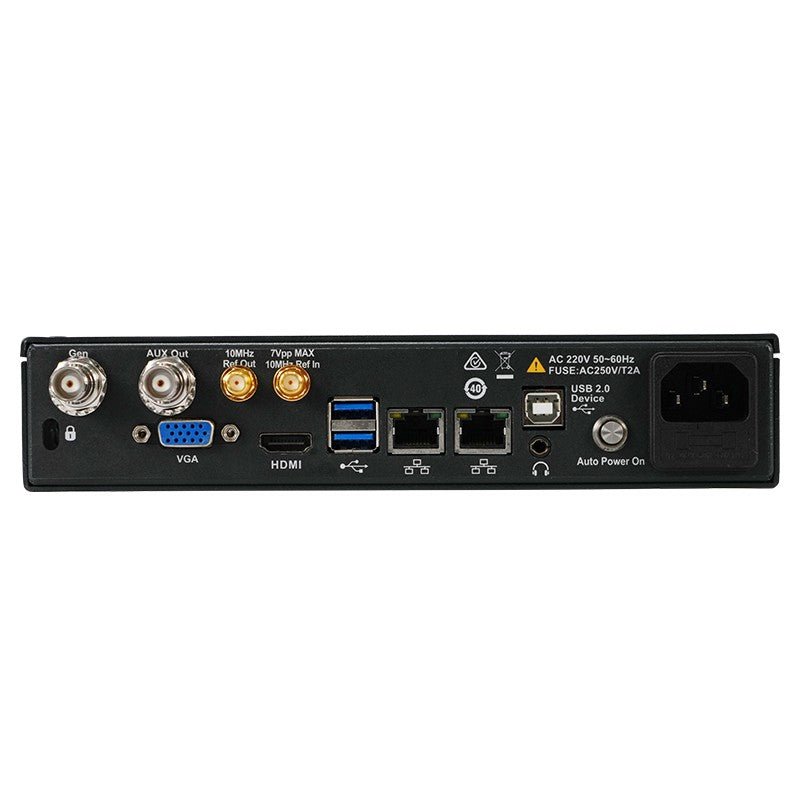

- Dual Gigabit LAN, USB, HDMI, 10 MHz reference, and SCPI remote control
Optimized for Rack-Mount Test Systems
Unlike traditional benchtop oscilloscopes, the UPO7104L is purpose-built for rack integration and automated testing. Its compact half-width 1U design allows two instruments to occupy a single rack space, significantly increasing measurement density while reducing equipment footprint. Browser-based WebServer control, HDMI display output, and full SCPI command support allow engineers to configure, monitor, and automate measurements without direct access to the instrument, making it well suited for production lines, environmental chambers, and centralized test systems.
High-Speed Acquisition Performance
The UPO7104L combines a 1 GHz analog bandwidth with up to 10 GSa/s real-time sampling and acquisition memory of up to 1 Gpts, enabling long-duration captures without sacrificing sample resolution. UNI-T's UltraAcq® acquisition technology captures up to 600,000 waveforms per second during standard operation and up to 2,000,000 waveforms per second in Sequence Mode, helping engineers detect intermittent faults, timing violations, and rare signal anomalies that slower acquisition systems may overlook.
Integrated Analysis Tools
The UPO7104L consolidates multiple laboratory instruments into a single platform to simplify test setups and reduce equipment costs. Standard functionality includes an enhanced FFT spectrum analyzer, digital voltmeter, hardware frequency counter, and serial protocol decoding for UART, RS-232/422/485, I²C, SPI, CAN, and LIN. Optional software packages expand the instrument with a 60 MHz arbitrary waveform generator, advanced power analysis, jitter analysis, eye diagrams, and additional protocol support for automotive, audio, and aerospace applications.
Scalable Multi-Instrument Synchronization
For applications requiring synchronized measurements across large channel counts, the UPO7104L supports multi-instrument synchronization of up to 128 oscilloscopes, providing as many as 512 synchronized analog channels with low inter-instrument trigger jitter. This architecture makes the UPO7104L well suited for semiconductor testing, aerospace systems, communications equipment, battery testing, and other high-channel-count validation environments where conventional benchtop oscilloscopes cannot efficiently scale.
Automation and Remote Operation
Built on a Windows 10 IoT platform with embedded MATLAB and Python support, the UPO7104L integrates easily into automated test environments. Dual Gigabit LAN ports, USB connectivity, browser-based remote operation, and comprehensive SCPI programming simplify instrument control, waveform acquisition, report generation, and custom analysis. Engineers can remotely manage measurements, capture screenshots, export waveform data, and execute automated test sequences from virtually any network-connected workstation.
Applications
The UNI-T UPO7104L is ideal for automated test equipment (ATE), production testing, semiconductor validation, aerospace and defense electronics, communications systems, industrial automation, university research laboratories, and multi-channel engineering test environments. Its combination of rack-mount efficiency, high-speed acquisition, advanced analysis software, and scalable synchronization makes it a powerful solution for organizations requiring reliable, high-performance measurements in space-constrained installations.
Specifications
| Model Number | UPO7104L |
| Analog Bandwidth (-3dB) | 1 GHz @ 50 Ω (single-channel mode); 500 MHz @ 1 MΩ |
| Calculated Rise Time (typical) | 350 ps |
| Analog Channels | 4 (plus 1 EXT trigger channel) |
| Maximum Real-Time Sample Rate | 10 GSa/s (single-ch); 5 GSa/s (dual: C1+C2 or C3+C4); 2.5 GSa/s (full four-ch) |
| Maximum Memory Depth | 1 Gpts single-ch; 500 Mpts dual-ch; 250 Mpts full four-ch |
| Vertical Resolution (Native) | 8-bit ADC |
| High Resolution Mode | Up to 12 effective bits via single-acquisition averaging (acquisition menu) |
| Enhanced Resolution (ERes) | Up to +3 bits via FPGA-resident FIR filter (acquisition menu, not Math); 0.5–3 bit enhancement, per-channel |
| Standard Capture Rate | ≥600,000 wfms/s (UltraAcq®) |
| Sequence Mode Capture Rate | 2,000,000 wfms/s |
| Trigger Types | Edge, pulse width, slope, video, pattern, timeout, runt, setup & hold, delay, duration, Nth edge |
| Protocol Decoding (Standard) | RS-232/422/485/UART, I²C, SPI, CAN, LIN |
| Protocol Decoding (Optional) | CAN-FD, FlexRay, SENT, AudioBus (I²S/LJ/RJ/TDM), MIL-STD-1553/ARINC 429 |
| Optional Analysis Packages | UPO7000L-AWG (60 MHz, 1-ch, 16-bit, 625 MSa/s); UPO7000L-JITTER (TIE/TJ/RJ/DJ/PJ/DDJ/DCD + eye diagram); UPO7000L-PWR (6 measurements: PQ, harmonic, switching loss, ripple, loop, SOA) |
| Multi-Machine Synchronization | Up to 128 instruments / 512 channels; 200 ps RMS inter-instrument trigger jitter |
| Automated Measurements | 48 (10 displayed simultaneously; 35 in Quick Meas) |
| Display | External via HDMI (1U headless) |
| Computing Platform | Intel Core i5-7200U 2.5 GHz, 8 GB RAM, 128 GB SSD, Windows 10 IoT Ent LTSC 64-bit |
| Interfaces | USB Host (4: USB 2.0 ×2, USB 3.0 ×2) / USB Device / LAN (10/100/1000) ×2 / HDMI / AUX / EXT / 10 MHz Ref In/Out / Audio |
| Remote Control | SCPI (USBTMC); built-in WebServer (PC and smartphone) |
| Form Factor | 1U half-width rack-mount; 214 mm × 43 mm × 500 mm; <3.5 kg |
| Certifications | CE, cETLus |
Downloads
FAQ's
Should I size up to the UPO7204L instead?
If your fastest signal edges are below ~700 MHz and you don’t need the additional 1 GHz of single-channel-mode analog bandwidth, the UPO7104L has the same 10 GSa/s peak sample rate, the same 1 Gpts memory at single-channel mode, the same UltraAcq® acquisition engine, the same multi-machine sync architecture, and the same 11-protocol decode set as the UPO7204L — the 1 GHz vs 2 GHz analog bandwidth ceiling is the only meaningful difference on the spec sheet. The UPO7204L is worth the step-up when you’re working at the rise-time edge of 2 GHz analog signal-integrity, characterizing high-speed serial-link compliance (USB 3.0, PCIe Gen 1/2 region, MIPI), running jitter analysis on data rates above ~1 Gbps, or running ATE racks where headroom matters for measurement accuracy on customer designs.
What's the difference between standard capture rate and Sequence mode?
Standard capture rate (≥600,000 wfms/s via UltraAcq®) is the UPO7104L’s continuous real-time waveform acquisition rate. Sequence mode (2,000,000 wfms/s) uses segmented memory to capture multiple trigger-conditioned frames for post-capture replay — for rare-event hunting where the trigger is well-defined.
Options & Accessories
Options & Accessories
Included
- UT-P07A passive high-impedance probes (1X DC–8 MHz; 10X DC–500 MHz) × 4
- UT-D30 USB 3.0 data cable
- UT-L45 BNC-to-BNC straight-through cable × 2
- National-standard power cable
- Calibration certificate
- Quick start guide
Available Options
- UPO7000L-AWG — Single-channel 60 MHz function/arbitrary waveform generator
- UPO7000L-JITTER — Advanced jitter analysis and eye diagram
- UPO7000L-PWR — Advanced power analysis (6 measurement types)
- UPO7000L-BND — Upgrade suite (JITTER, PWR, CANFD, FLEX, SENT, AUDIO, AERO)
- Individual protocol licenses: CAN-FD, FlexRay, SENT, AUDIO, AERO (MIL-STD-1553/ARINC 429)
Recommended Accessories
- UT-PA2000 — 2 GHz active single-ended probe (10X, ≤1 pF input capacitance, ±7 V dynamic range) — engineered for the 7000-series
- UT-P20 — 100 MHz, 100:1 high-voltage passive probe (1.5 kVrms)
- UT-P21 — 50 MHz, 1000:1 high-voltage passive probe (DC 15 kVrms)
- UT-P30 / UT-P31 / UT-P32 / UT-P33 — High-voltage differential probes (100/100/50/120 MHz)
- UT-P40 / UT-P41 / UT-P42 / UT-P43 / UT-P44 — Current probes (100 kHz to 50 MHz)
- UT-ISOT — Isolation transformer
Software Options:
- UPO7000L-AERO — MIL-STD-1553 and ARINC 429 Serial Bus Trigger and Analysis Option
- UPO7000L-AUDIO — Audio Serial Bus Trigger and Analysis Option (I2S, LJ, RJ, TDM)
- UPO7000L-AWG — Single-Channel 60MHz Arbitrary Waveform Generator Option
- UPO7000L-BND — Complete Options Bundle (AERO, AUDIO, CANFD, FLEX, JITTER, PWR, SENT)
- UPO7000L-BW-10T20 — UPO7104L Bandwidth Upgrade from 1GHz to 2GHz Option
- UPO7000L-CANFD — CAN-FD Serial Bus Trigger and Analysis Option
- UPO7000L-FLEX — FlexRay Serial Bus Trigger and Analysis Option
- UPO7000L-JITTER — Jitter Analysis and Eye Diagram Option
- UPO7000L-PWR — Advanced Power Analysis Option
- UPO7000L-SENT — Automotive SENT Sensor Bus Trigger and Analysis Option
Family Members
- UPO7204L (2 GHz, 4-channel)
