Ordering Notes:
1. All Sper Inline Water Quality Meters and Sensors are sold separately - please be sure to add the appropriate sensor (listed above) when purchasing your meter - one of each is required for a complete system.
2. All Inline Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
Multi-Parameter Inline Water Quality Analyzer

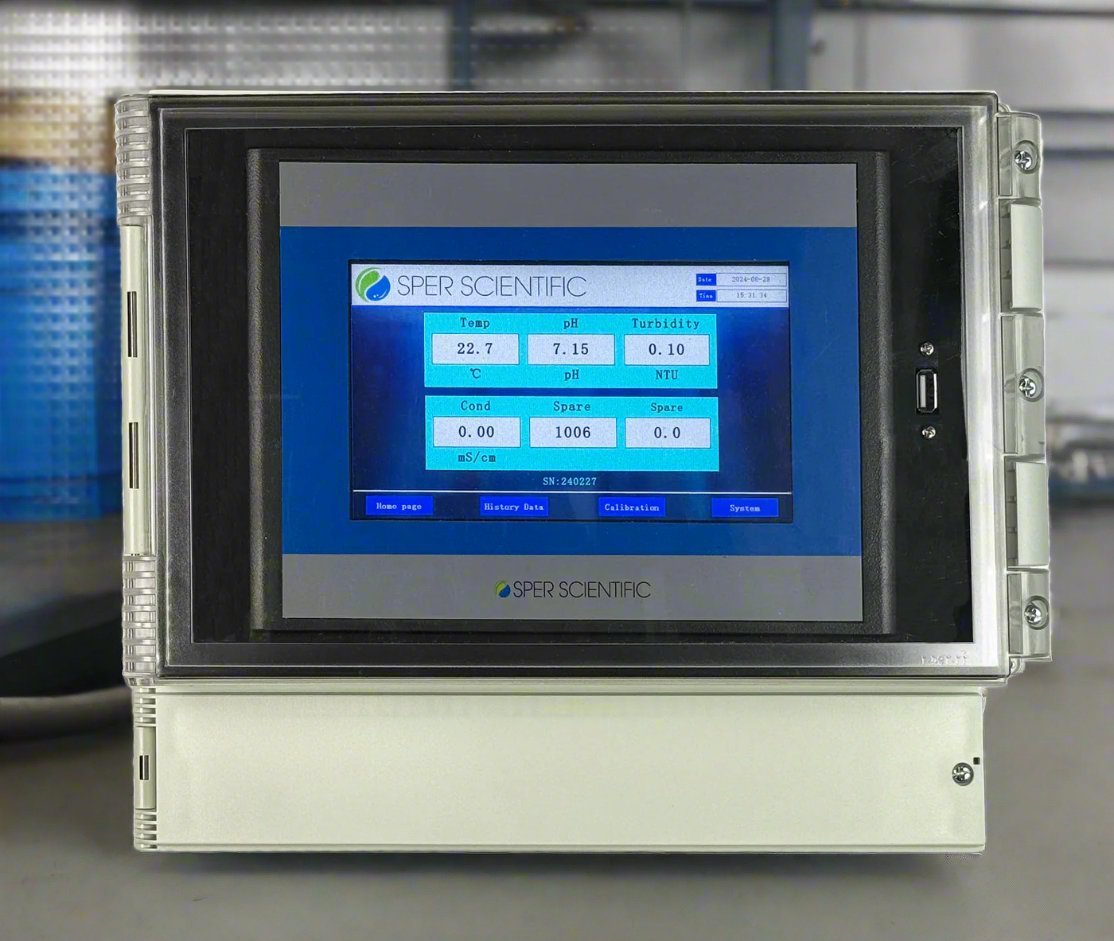

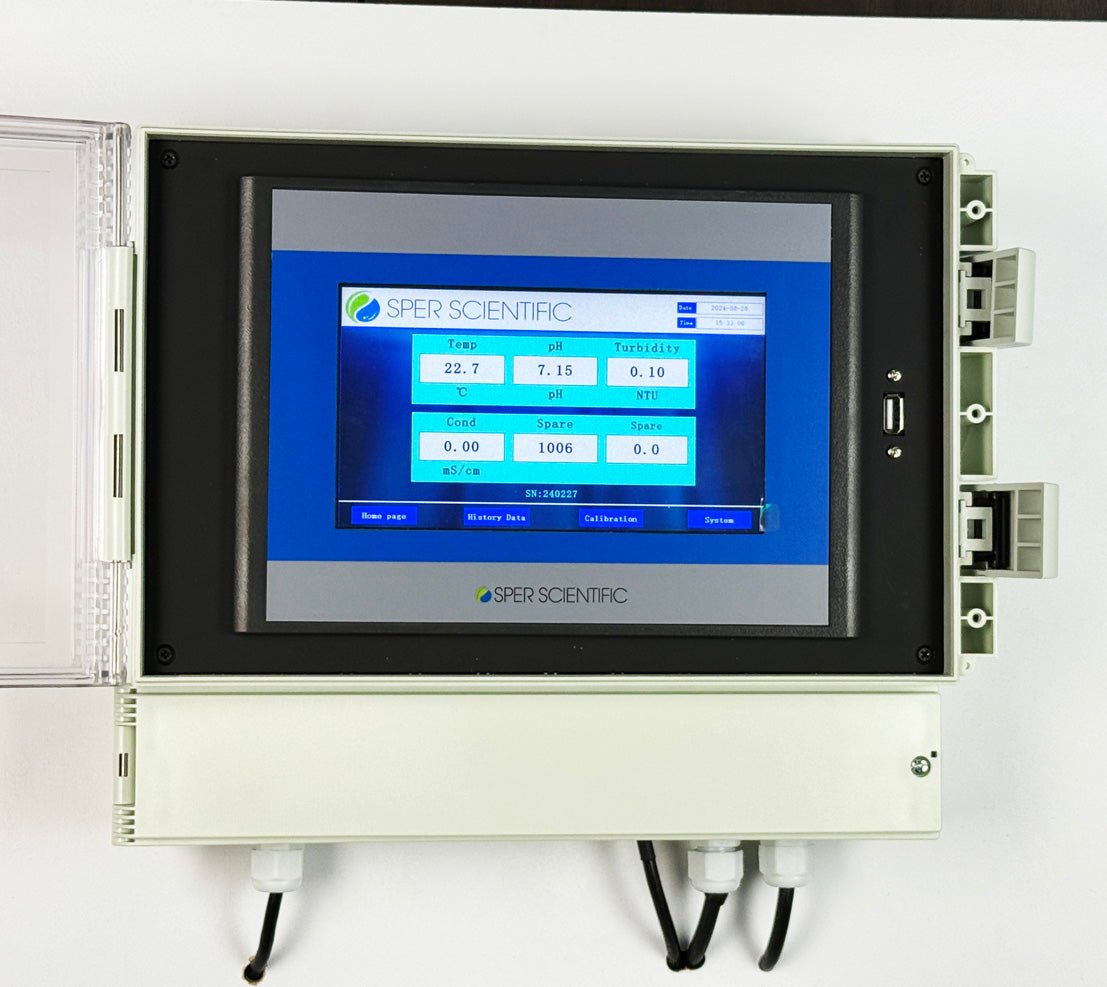

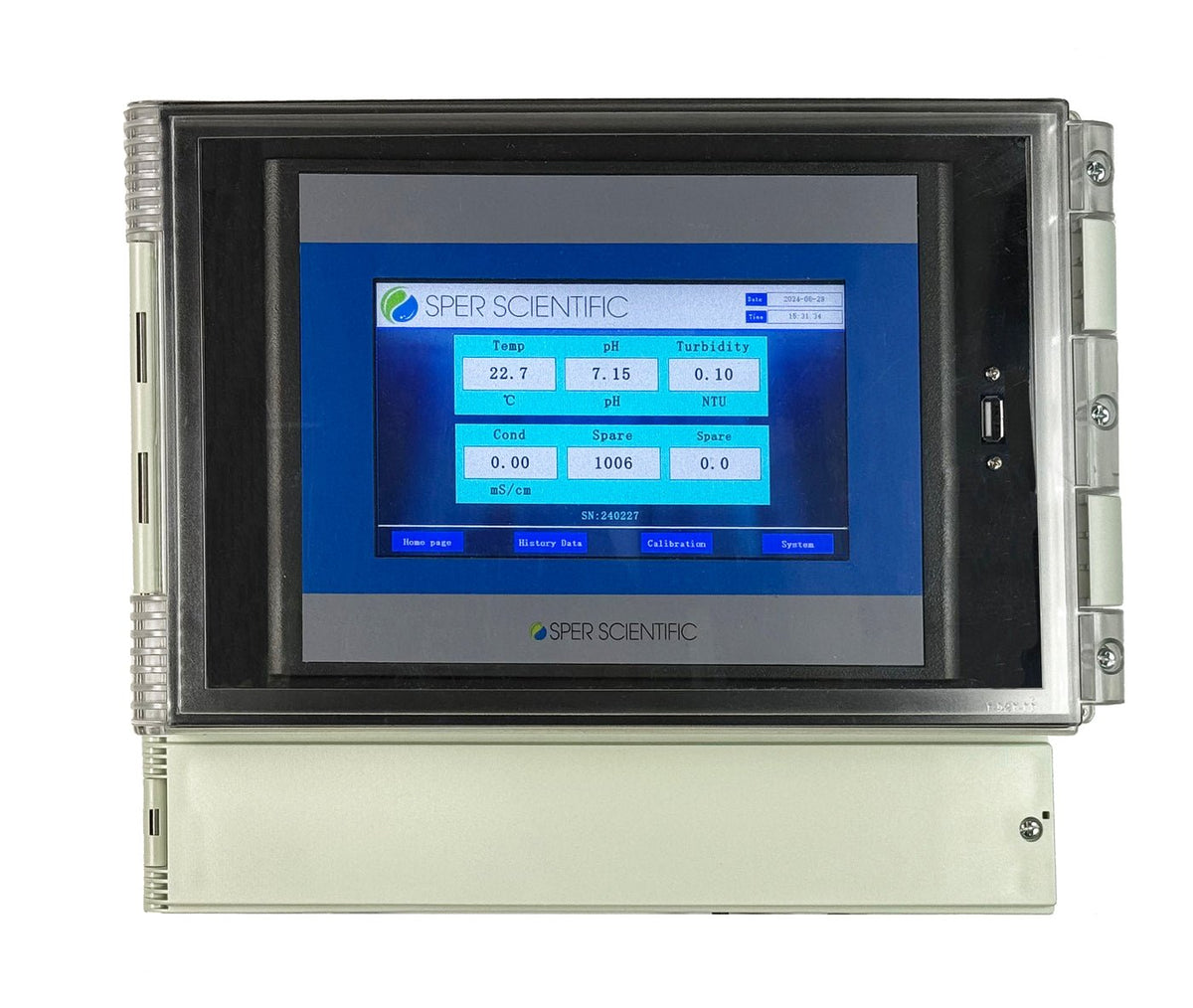

The Multi-Parameter Water Quality Analyzer is an advanced online analysis system designed for comprehensive water quality monitoring. It integrates up to eight (8) different water quality parameters into a single unit, which is displayed and managed on a touch screen panel. This system combines real-time water quality analysis, remote data transmission, database management, analysis software, and system calibration functions into one convenient platform, streamlining water quality data collection and analysis.

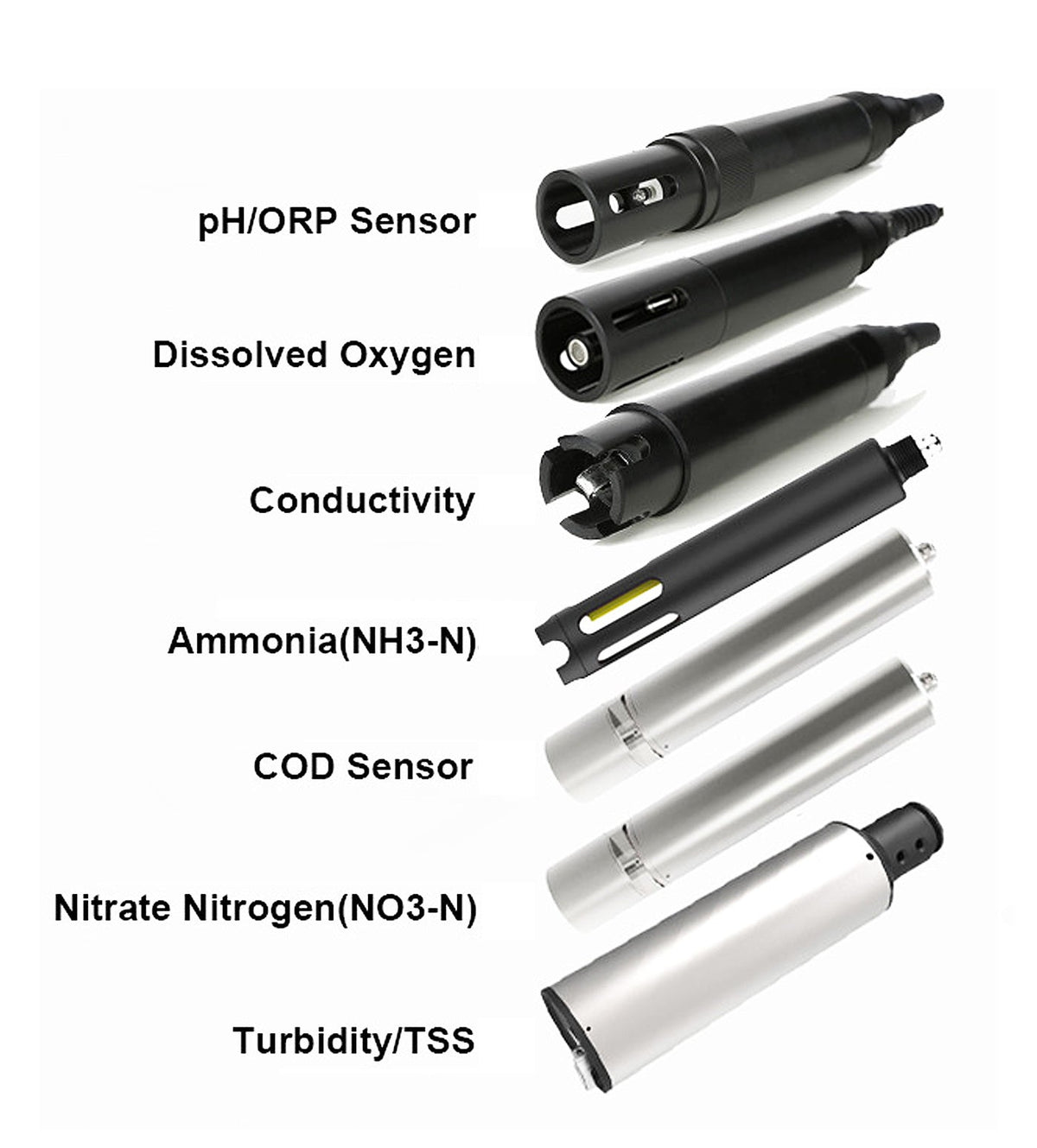

The meter offers flexible configuration options, allowing you to customize the setup based on your specific needs. It supports a range of parameters including pH, ORP, dissolved oxygen, conductivity, temperature, ammonia (NH4+), COD, turbidity, and more. The system is equipped with a state-of-the-art tandem flow analysis device that requires minimal water and provides real-time results. Water samples pass through various sensors, capturing all parameters in real time and enabling easy expansion for larger-scale continuous monitoring.
-
Customizable Parameters: Tailor monitoring parameters to your specific needs with flexible combinations and custom setups - connect up to eight digital sensors for simultaneous monitoring.
-
Smart Monitoring: Achieve intelligent online monitoring through configurable software and parameter analysis modules.
-
Efficient Water Use: The integrated tandem flow device requires minimal water to perform diverse real-time analyses.
-
Low Maintenance: Automatic sensor and pipeline maintenance reduces manual intervention, simplifies complex field issues, and enhances measurement accuracy.
-
Stable Flow Technology: Patented decompression and constant flow technology ensure stable data analysis by maintaining consistent flow rates despite pipeline pressure changes.
- Remote Data Options: Optional remote data links and database integration allow you to strategize and manage data from afar.
Specifications
| Model | Sper #870001 Multi-Parameter Inline Water Quality Meter | |
| Measurement Configuration |
pH,Conductivity, dissolved oxygen, COD, Turbidity, Suspended Solids, Ammonia, etc. (Note: the specific parameters to the actual ordering parameters prevail) |
|
| Measuring Ranges | pH | 0-14.00pH |
| DO | 0-20.00mg/L | |
| ORP |
-1999—1999mV |
|
| Conductivity | 0~2000us/cm (max to 2000ms/cm) | |
| Turbidity | 0-4000NTU | |
| Suspended Solids (TSS) | 0~120 000mg/L | |
| Ammonia | NH4+:0~5000mg/L, NH3-N:0~1000mg/L | |
| COD | 0~1000mg/L | |
| Temperature | 0 ~ 50C | |
| Nitrate Nitrogen | 0~100mg/L | |
| (Note: Meter can be extended with other parameters, please confirm before ordering) | ||
|
Communication Protocol |
RS485 Modbus RTU | |
| Wireless | Local SIM card and mobile app (optional) | |
| Data Logger | Yes |
|
| USB | Yes | |
| Power supply |
AC 220V±10% |
|
| Working Condition |
Temperature: 0-122ºF (0-50℃) |
|
| Storage Condition |
Relative Humidity: ≤85% RH（without condensation） |
|
| Notes |
Other parameters can be customized based on requirements. |
|
Downloads
