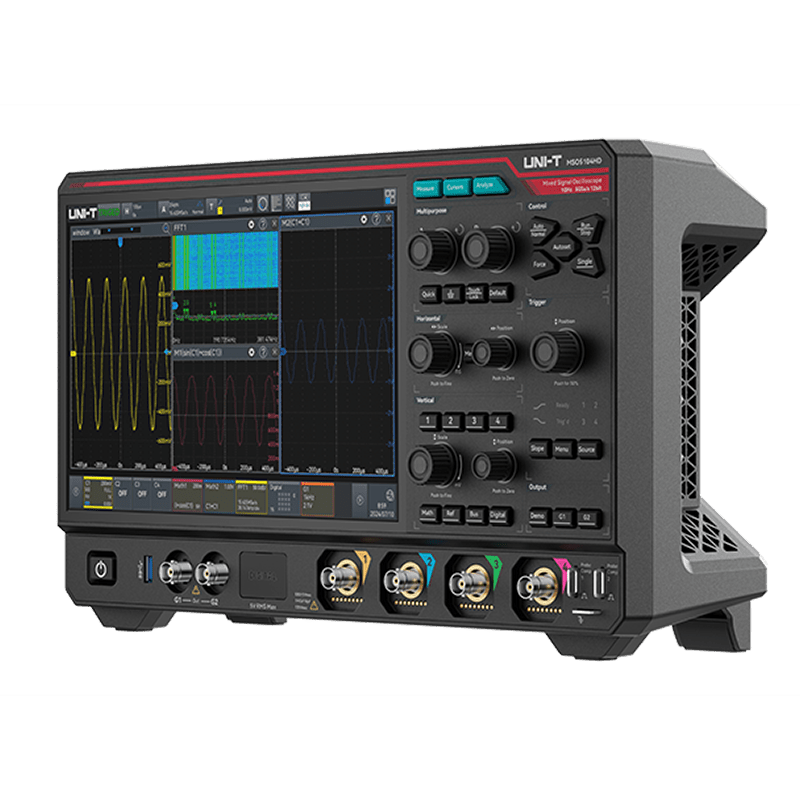

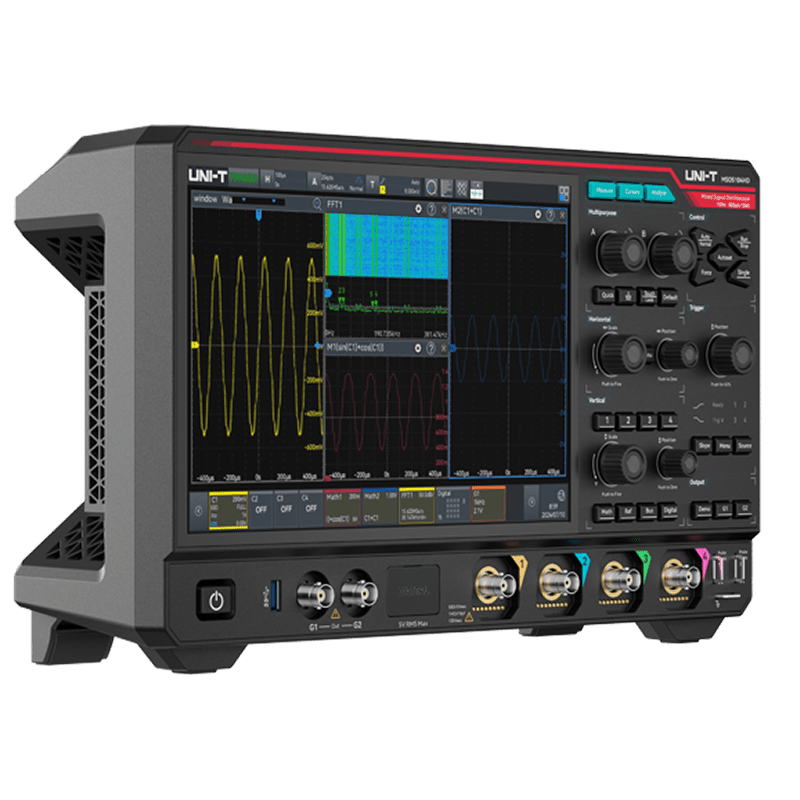

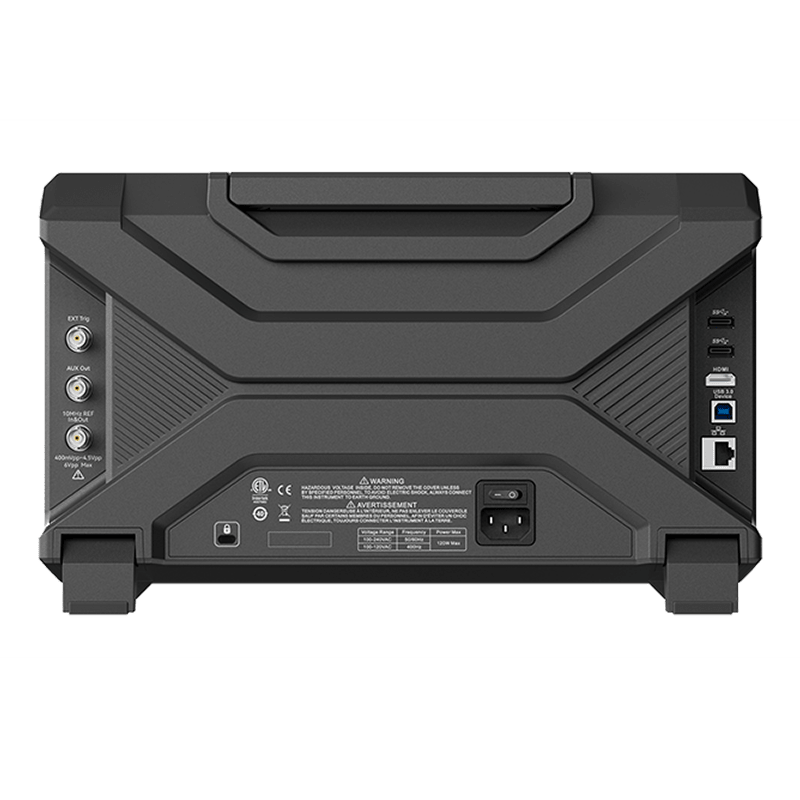

The MSO5054HD is a 500 MHz, 4-channel mixed signal oscilloscope built on UNI-T’s R12™ native 12-bit ADC architecture, with a 5 GSa/s real-time sample rate (interleave mode), 500 Mpts standard memory depth, and a calculated rise time of ≤0.70 ns.

The 12-bit resolution holds at the full 500 MHz bandwidth with no ERES averaging step or sample-rate trade-off, and Ultra Phosphor 3.0 acquisition delivers up to 800,000 wfms/s standard — 1,500,000 wfms/s in Sequential Mode. Sixteen digital channels are available with the UT-M15 logic probe pod, on a 10.1-inch capacitive multi-touch display.

For wide-bandgap power-electronics validation at higher switching frequencies, multi-channel power-supply characterization, and four-channel mixed-signal work on faster MCU and FPGA silicon, the MSO5054HD adds 150 MHz of bandwidth headroom over the family entry while preserving the same native 12-bit ADC, 5 GSa/s sample rate, and 500 Mpts memory. Calculated rise time falls to ≤0.70 ns — fast enough to capture GaN gate-edge transitions at scale — and the nine-instrument platform stays intact across the upgrade.

• 500 MHz Bandwidth, 4 Channels — 4-channel analog capture with 5 GSa/s sample rate and 12-bit native vertical resolution, scaling to 16-bit with ERES.
• 500 Mpts Memory Depth — Deep memory for extended captures without sample-rate trade-off; navigation and search across the full memory window.
• 800,000 wfms/s Standard, 1.5 M in Sequential Mode — Ultra Phosphor 3.0 intensity-graded display with 256 grayscale levels for rare-event hunting.
• R12™ Native 12-Bit ADC — 4,096 vertical levels at full bandwidth, sixteen times the resolution of a conventional 8-bit oscilloscope.
• Six Protocols Standard, Nine Optional — RS-232/UART, I²C, SPI, CAN, LIN included; CAN-FD, CAN-XL, FlexRay, SENT, Audio, MIL-STD-1553B, ARINC 429, Manchester, 1-Wire, and I3C optional.
• Built-in 2.5 GHz Spectrum Analyzer — Enhanced FFT up to 4 Mpts, four traces and four detections, waterfall display.
• Optional 50 MHz Dual-Channel AWG — Built-in arbitrary waveform generator pairs with the optional Bode plot analyzer for closed-loop frequency-response measurement.
• Optional Power Analysis Suite — Switching loss, harmonic analysis, SOA, R_DS(on), modulation, slew rate, ripple analysis, and more.
• 16 Digital Channels with UT-M15 — Add the UT-M15 logic probe pod for time-correlated mixed-signal debug.
• 56 Automated Measurements with Histogram and Trend — 27 measurements simultaneously displayed; 39-item single-channel parameter snapshot.
• 10.1-Inch Capacitive Touchscreen — 1280×800 HD multi-touch with gesture support; full-SCPI WebServer for browser-based remote control.

Detailed Features

R12™ — Native 12-Bit at Full Bandwidth

R12™ is UNI-T’s native 12-bit ADC architecture: 4,096 vertical quantization levels — sixteen times the resolution of a conventional 8-bit oscilloscope — held at the full 500 MHz bandwidth and 5 GSa/s sample rate, with no ERES averaging step and no sample-rate trade-off to get there. ERES (enhanced resolution) extends effective vertical resolution up to 16-bit when bandwidth headroom is available, but the baseline 12-bit performance is the front-end’s native characteristic, not a software boost. For low-amplitude signal work — switching ripple riding on a busy DC rail, sensor-bridge outputs into a noisy ADC, jitter analysis on a clock line — the difference between 8-bit quantization steps showing through the measurement and 12-bit fidelity disappearing them is the difference between a usable capture and a noisy one.

Ultra Phosphor 3.0 — 800,000 wfms/s, 1.5 M in Sequential Mode

Ultra Phosphor 3.0 is UNI-T’s third-generation waveform-mapping architecture, combining parallel FPGA acquisition with 256-level grayscale intensity grading. Standard waveform capture rate is up to 800,000 wfms/s — high enough to surface intermittent timing anomalies on a long capture window without missing them between screen redraws. In Sequential Mode — the segmented-memory acquisition mode that conditions captures on a trigger event — capture rate climbs to 1,500,000 wfms/s, and the scope holds up to 400,000 frames of uninterrupted hardware real-time recording for post-capture replay and analysis. Rare-event hunting on a live system stops being a watch-and-wait exercise and starts being an analysis-after-capture exercise.

Nine Instruments in One — The HD Workhorse Platform

The MSO5000HD platform integrates nine instrument functions into one bench unit: digital storage oscilloscope, 16-channel logic analyzer (with the optional UT-M15 probe pod), 50 MHz dual-channel function and arbitrary waveform generator (optional), 2.5 GHz spectrum analyzer, 4-digit digital voltmeter, 7-digit hardware frequency counter, multi-protocol serial-bus analyzer, Bode plot analyzer (optional, paired with the AWG for closed-loop sweep), and power-electronics analyzer (optional). For small-lab consolidation and education-track lab benches, the integration replaces three to five separate instruments with one instrument footprint, one calibration chain, and one operator-training surface

16 Digital Channels with the UT-M15 Probe Pod (Optional)

Mixed-signal capability is hardware-standard in the MSO5000HD chassis — the 16-digital-channel logic-analyzer front end is built in. Adding the digital channels requires the optional UT-M15 logic probe pod, which provides separate high 8-bit and low 8-bit connections and connects directly to 8×2 square pins (2.54 mm) for fast attachment to development boards. Maximum digital sample rate is 1.25 GSa/s with a minimum detectable pulse width of 800 ps, and threshold selection covers TTL, 5.0 V/3.3 V/2.5 V/1.8 V CMOS, ECL, PECL, LVDS, and a custom level — covering essentially every common digital interface voltage on modern hardware. Digital and analog channels share the same time base, the same trigger system, and the same display, so a falling SPI clock edge and the analog-domain crosstalk it causes show up in the same frame.

15 Protocol Decoders — 6 Standard, 9 Optional

Six protocols decode standard with the MSO5000HD: RS-232/422/485/UART, I²C, SPI, CAN, and LIN. Nine additional protocols are available as separately licensed options: CAN-FD, CAN-XL, FlexRay, SENT, Audio (I²S/LJ/RJ/TDM), MIL-STD-1553B, ARINC 429, Manchester, 1-Wire, and I3C. The decoder runs on dedicated decode hardware, not a software post-processing path, so decode results display in real time during acquisition rather than after-the-fact on saved data — the difference between “debug a protocol stack interactively” and “capture, save, transfer, open in a separate tool, decode.” Trigger-and-decode operates pause-and-record modes for both interactive bring-up and unattended logging, and the event list plus search function lets you jump to a specific framed event across a 500 Mpt capture.

Built-In Spectrum Analyzer — 4 Mpts FFT to 2.5 GHz

The MSO5000HD’s built-in spectrum analyzer leverages the 5 GSa/s sample rate for a 0–2.5 GHz frequency range — useful for characterizing wideband signals, identifying spurious emissions, and verifying clock harmonics at frequencies beyond what 2.5 GSa/s instruments can analyze. Enhanced FFT supports up to 4 Mpts with 4-channel parallel signal analysis, four traces and four detections, auto/manual/threshold marker types, marker point lists, and a waterfall-curve display mode for time-evolving spectra. For pre-compliance EMI screening, switching-supply noise hunting, and clock-quality verification, the integrated spectrum analyzer means one instrument covers both time-domain and frequency-domain measurement needs.

Power Analysis — Optional Multi-Class Suite

56 Automated Measurements with Histogram and Trend Statistics

56 automated measurement types cover voltage, time, frequency-domain, and area-under-curve calculations — with up to 27 measurements displayed simultaneously on screen and a 39-item single-channel parameter snapshot for production-style documentation. Histogram and trend-line displays show measurement statistics over time, useful for signal-integrity work where the parameter distribution matters as much as a single instantaneous value. The new top-and-bottom amplitude calculation strategy and the burst-region measurement function add capability for non-stationary signals where the measurement window has to be localized to a specific event rather than averaged across the full capture

Timing Analyzer — Bus Timing Conformance Testing

The timing analyzer function performs conformance-grade timing measurements on serial bus signals: pulse width, amplitude, edge characteristics, setup time, and hold time on I²C, SPI, CAN, and I²S buses. For consumer-electronics manufacturing — mobile phones, smart wearables, home appliances, multimedia audio-video equipment, and automotive electronics — bus-timing consistency is the difference between a board that passes audit and one that fails customer qualification. The MSO5000HD generates exportable conformance test reports, turning the scope into a documentation tool for design verification and test-lab compliance work.

10.1-Inch Touch UI, WebServer, and SCPI Automation

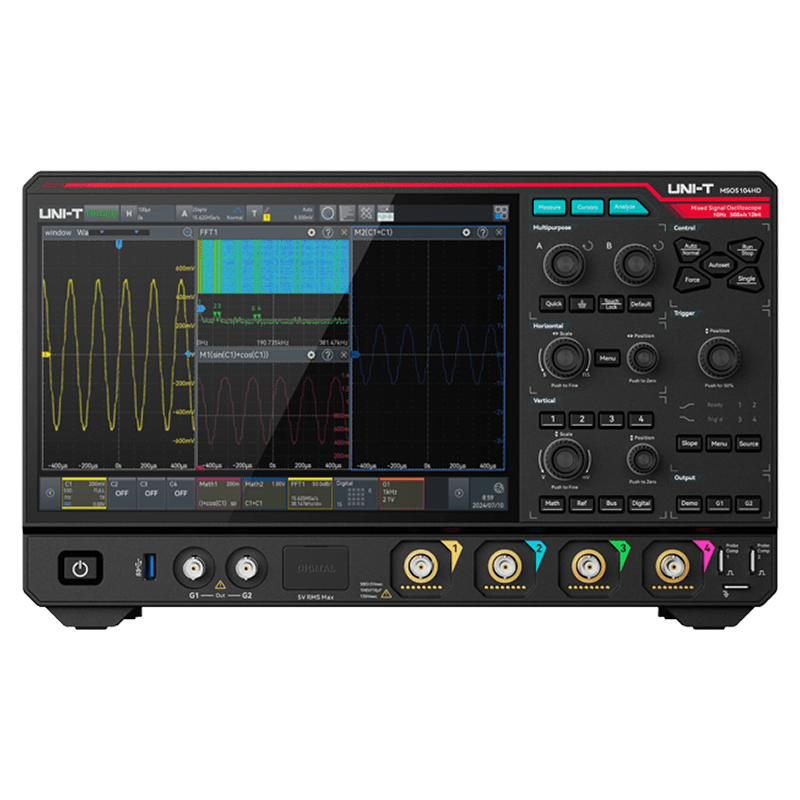

A 10.1-inch 1280×800 capacitive multi-touch display anchors the front-panel experience — touch, drag, pinch-to-zoom, and rectangle-drawing gestures for common waveform operations — while preserving the traditional knob-and-key controls that bench engineers want for fine adjustment. Mouse and keyboard are supported as additional input methods. For automation, the built-in WebServer provides browser-based instrument control over the network — SCPI commands, waveform export, and online user-manual access — from PC or mobile devices, and full SCPI compliance over LAN or USB Device enables programmatic control from LabVIEW, Python, or any SCPI-aware test framework. UNI-T’s free instrument manager runs on the PC side for graphical control without writing custom automation code.

Applications

R&D and Embedded Validation

For R&D validation at the 500 MHz bandwidth tier, the MSO5054HD delivers fast-edge capture and four-channel timing-correlated analog plus digital views (with the UT-M15 logic probe pod) on faster ARM and RISC-V silicon, PCIe Gen2 reference clocks, and high-speed serial peripherals where 350 MHz starts to limit visibility into rise-time and overshoot detail.

Power Electronics Design and Validation

For GaN/SiC power-stage validation, the 500 MHz bandwidth and ≤0.70 ns rise time capture switching-edge detail at frequencies where slower scopes start to round corners — useful for switching-loss measurement, EMI root-cause work, and gate-driver characterization on dense converter boards.

Test Laboratory and Consultancy Work

For external test-lab work characterizing customer-supplied DUTs across mixed power and signal-integrity scopes, the MSO5054HD’s 12-bit acquisition plus 2.5 GHz spectrum analyzer plus optional Bode plot bring three classes of measurement under one instrument cover for compact bench setups.

Specifications

Downloads

UNI-T MSO5000 Series Datasheet

UNI-T MSO5000 Series Users Manual

FAQ's

What protocols are included with the MSO5000HD as standard?

RS-232/422/485, UART, I²C, SPI, CAN, and LIN are decoded standard with no additional license required. CAN-FD, CAN-XL, FlexRay, SENT, Audio (I²S/LJ/RJ/TDM), MIL-STD-1553B, ARINC 429, Manchester, 1-Wire, and I3C are available as separately licensed options — activated on the same instrument with no firmware upgrade or reflash required.

What is the practical advantage of 12-bit native resolution over 8-bit?

A 12-bit ADC provides 4,096 vertical quantization levels compared to 256 for an 8-bit scope — sixteen times the resolution. In low-amplitude work (switching ripple riding on a DC rail, sensor outputs from a strain gauge, jitter on a clock line, or any signal where the amplitude of interest is much smaller than the channel’s full-scale range), 8-bit quantization steps show up as visible stair-stepping in the captured waveform. 12-bit acquisition keeps those steps below the front-end’s noise floor, so what you’re looking at on screen is the signal, not the digitization grid.

How do I add 16 digital channels for mixed-signal work?

The 16-digital-channel logic-analyzer front end is built into every MSO5000HD chassis as hardware-standard. To use it, add the optional UT-M15 logic probe pod, which provides separate high 8-bit and low 8-bit pin connections and attaches directly to standard 2.54 mm 8×2 square-pin headers on development boards. Maximum digital sample rate is 1.25 GSa/s with an 800 ps minimum detectable pulse width.

What is the difference between Ultra Phosphor 3.0’s 800,000 wfms/s standard rate and the 1,500,000 wfms/s sequential-mode rate?

The 800,000 wfms/s rate is the continuous waveform-capture rate during normal acquisition — the rate at which the scope acquires, processes, and displays new waveforms back-to-back during live operation. The 1,500,000 wfms/s sequential-mode rate applies in segmented-memory acquisition where the scope captures only a short window around each trigger event, then re-arms quickly for the next trigger; this maximizes capture density when chasing intermittent events at the cost of dead time between captures. In practical terms: continuous 800K for general-purpose acquisition, sequential 1.5M for rare-event hunting on a triggered signal.

Is the AWG (arbitrary waveform generator) included or optional?

The AWG hardware is built into every MSO5000HD chassis as hardware-standard, but activation requires the AWG software license. Once activated, it provides dual-channel 50 MHz output with sine, square, pulse, ramp, arbitrary, noise, and DC waveforms; AM, FM, ASK, FSK, and sweep modulation; and the ability to load on-screen captured waveforms back to the Gen output for replay-style stimulus testing. The optional Bode plot analyzer pairs with the AWG for closed-loop frequency-response measurement.

Can I control the MSO5000HD remotely without installing local software?

Yes. The built-in WebServer provides full instrument control through any standard web browser on a PC, tablet, or mobile device on the same network — no client install, no driver download. Common operations (waveform capture, screenshot, parameter readback, settings changes, file export) work directly through the browser. For programmatic control, the same interface accepts SCPI commands over LAN or USB, compatible with LabVIEW, Python, MATLAB, and any SCPI-aware automation framework. UNI-T also provides a free instrument-manager application for users who prefer a graphical desktop client.

Options & Accessories

Included

• Power cord
• USB3.0 printing cable
• English download guide
• multi-language safety manual
• calibration report (COC)

Recommended Add-Ons

• UT-M15 Logic Probe Pod — adds 16 digital channels with high/low 8-bit connectors and direct 8×2 square-pin attachment.
• Active probes — for 50 Ω high-bandwidth signal-integrity work where a passive 10x probe limits visibility.
• Current probe(s) — for power-electronics work paired with the optional power-analysis suite; voltage and current probe simultaneously for switching-loss measurement.
• AWG license — activates the dual-channel 50 MHz arbitrary waveform generator hardware in the chassis.
• Bode plot license — pairs with the AWG for closed-loop frequency-response sweep on amplifiers, filters, and power-supply control loops.
• Power analysis license — activates the multi-class power-electronics measurement suite.
• Protocol decoder licenses — CAN-FD, CAN-XL, FlexRay, SENT, Audio, MIL-STD-1553B, ARINC 429, Manchester, 1-Wire, I3C, available individually.

Software Options

• MSO5000HD-1WIRE — 1-Wire Serial Bus Trigger and Analysis Option
• MSO5000HD-ARINC429 — Aerospace ARINC429 Serial Bus Trigger and Analysis
• MSO5000HD-AUDIO — Audio Serial Bus Trigger and Analysis
• MSO5000HD-AUTO — Automotive Serial Bus Trigger and Analysis Option
• MSO5000HD-AWG — 50 MHz 2Ch Arbitrary Waveform Generator with Bode Plot
• MSO5000HD-BND — Complete Serial Analysis Bundle
• MSO5000HD-BW3M5T1G — 1GHz bandwidth upgrade
• MSO5000HD-BW5MT1G — 1GHz bandwidth upgrade
• MSO5000HD-CANFD — Automotive CAN-FD Serial Bus Trigger and Analysis
• MSO5000HD-CANXL — Automotive CAN-XL Serial Bus Trigger and Analysis
• MSO5000HD-FLEX — Automotive FlexRay Serial Bus Trigger and Analysis
• MSO5000HD-I3C — Embedded Systems I3C Serial Bus Trigger and Analysis
• MSO5000HD-MANCH — Manchester Serial Bus Trigger and Analysis Option
• MSO5000HD-MIL1553 — MIL-STD-1553 Serial Bus Trigger and Analysis Option
• MSO5000HD-PWR — Advanced Power Analysis
• MSO5000HD-SENT — Automotive SENT Serial Bus Trigger and Analysis
• MSO5000HD-TIMING — Advanced Timing Analysis
