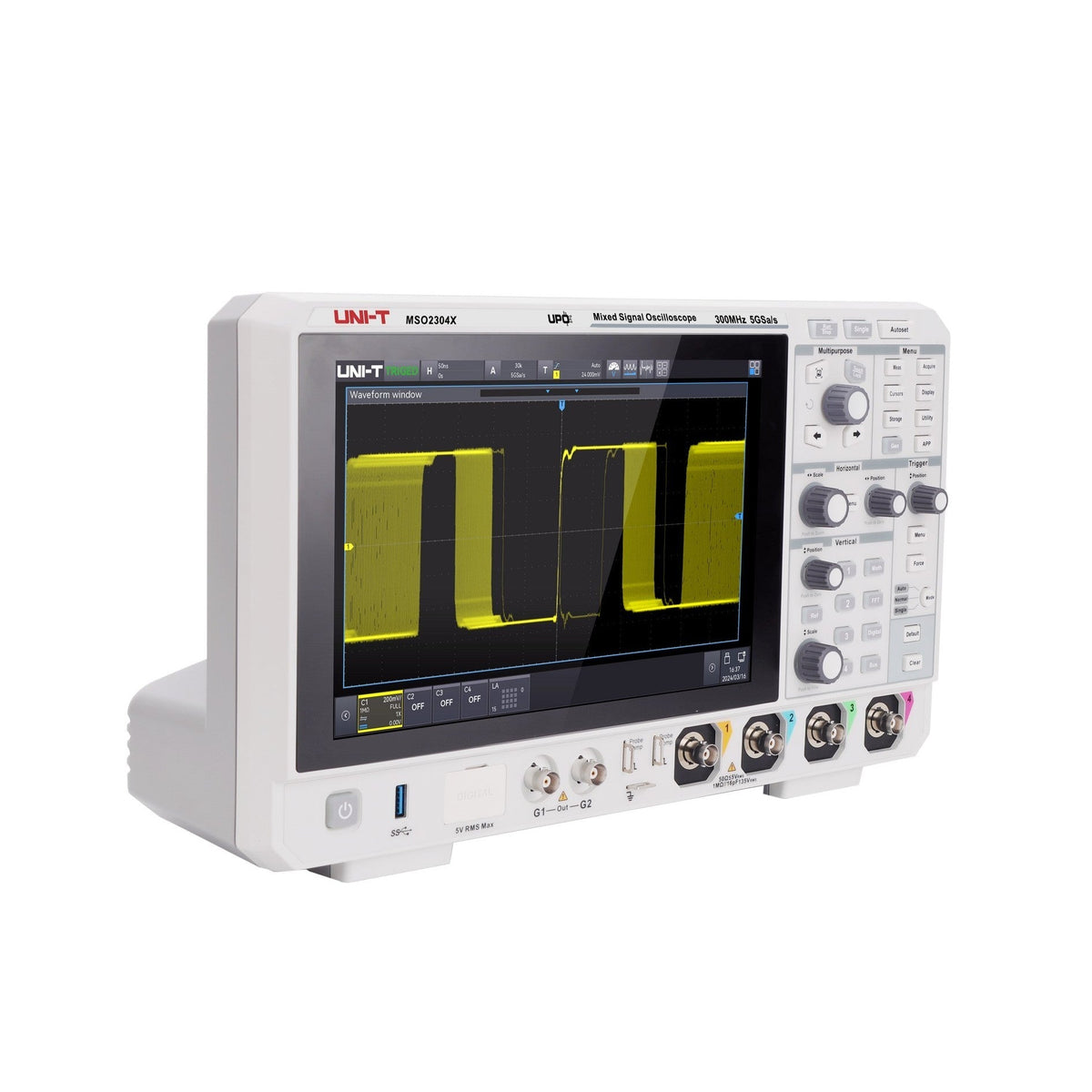

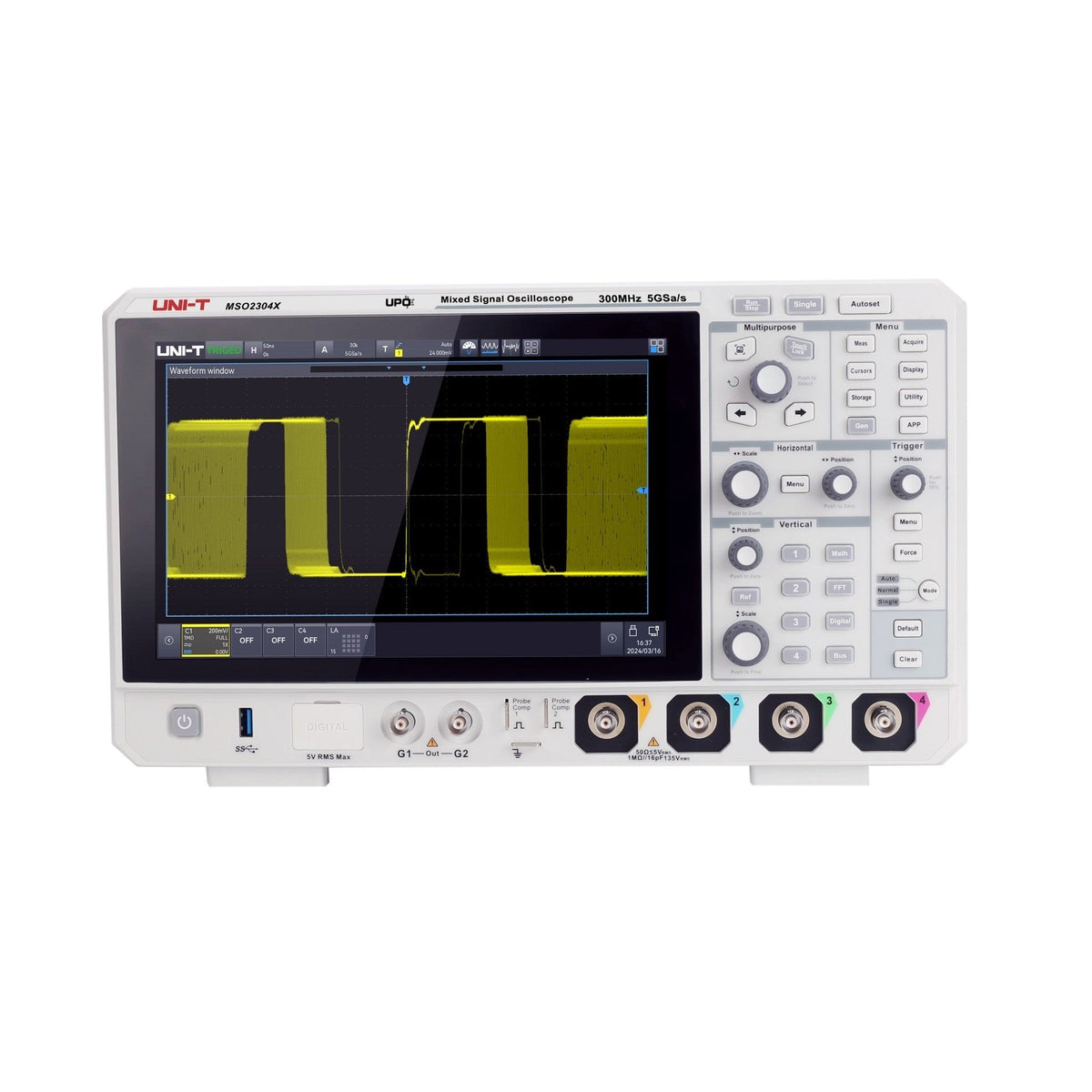

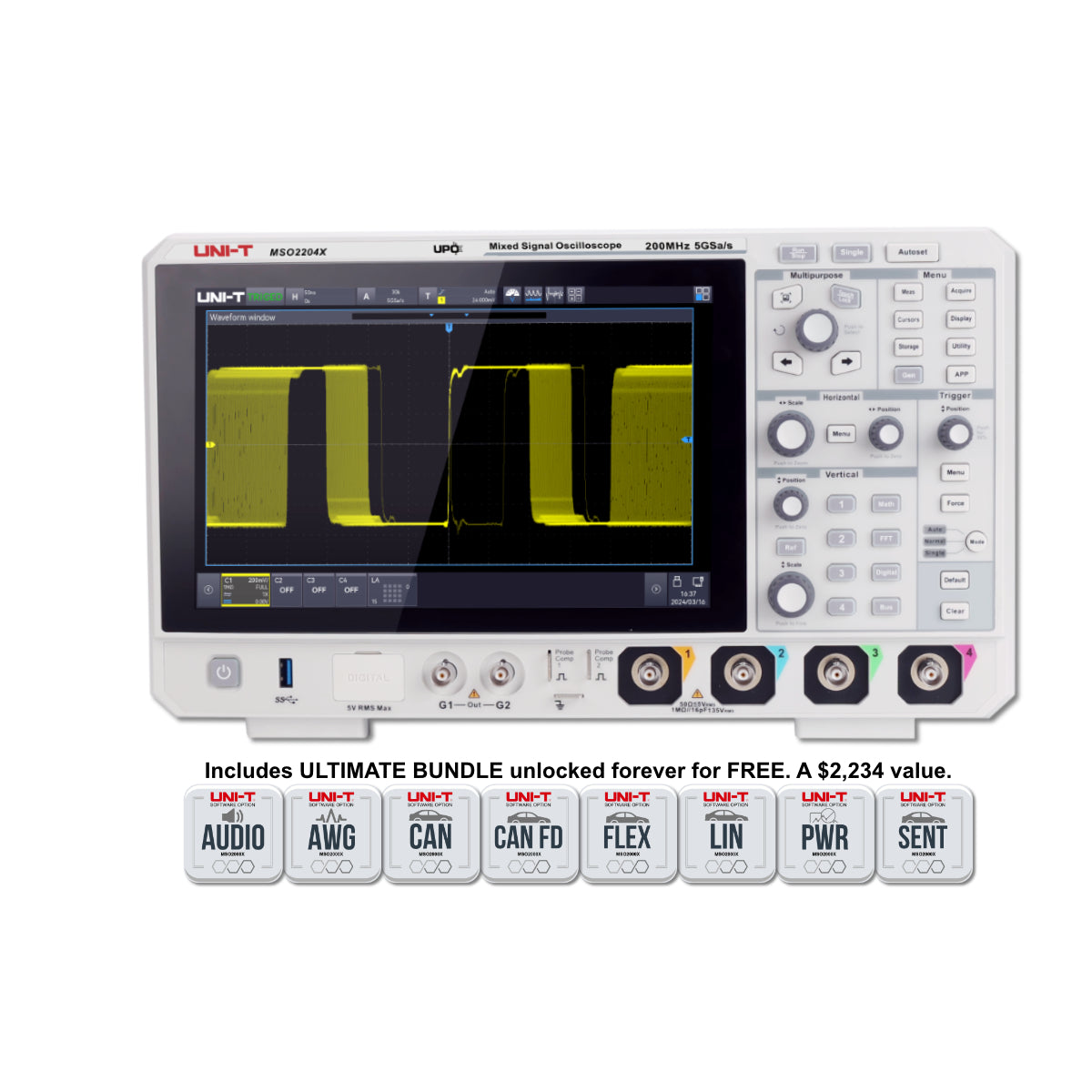

The MSO2204X is a 200 MHz, four-channel mixed-signal oscilloscope.

With 5 GSa/s real-time sample rate, 100 Mpts of memory depth, 16 logic-analyzer channels (with the optional UT-M15 probe pod), and Ultra Phosphor 3.0 waveform mapping at up to 2,000,000 wfms/s in Sequential Mode, the MSO2204X integrates nine bench instruments into one 10.1-inch capacitive multi-touch footprint — oscilloscope, logic analyzer, AWG, spectrum analyzer, DVM, frequency counter, protocol analyzer, Bode plot, and power analyzer.

For mainstream R&D validation at 200 MHz, four-channel mixed-signal debug across faster MCU and FPGA silicon, and consolidation-tier lab benches that need spectrum, AWG, and protocol decode alongside scope acquisition, the MSO2204X is the mid SKU in the MSO2000X line — bridging bandwidth between the 100 MHz entry and the 300 MHz top. Same 5 GSa/s sample rate and 100 Mpts memory as the rest of the family; same nine-instrument integration; 200 MHz of analog headroom fits the rise-time measurements that 100 MHz starts to round.

• 200 MHz Bandwidth, 4 Analog Channels — Four-channel acquisition at up to 200 MHz with 5 GSa/s sample rate (interleave) and calculated rise time of ≤1.80 ns.
• 100 Mpts Memory Depth — Standard deep memory across all four channels for long capture windows without sample-rate trade.
• Ultra Phosphor 3.0 Display Technology — 256-level grayscale persistence with parallel FPGA mapping; up to 500,000 wfms/s standard, 2,000,000 wfms/s in Sequential Mode.
• Nine Instruments in One — Oscilloscope, 16-channel logic analyzer (optional probe), AWG (optional), 2.5 GHz spectrum analyzer, 4-digit DVM, 7-digit hardware frequency counter, protocol analyzer, Bode plot (with AWG), and power analyzer (optional).
• Standard Protocol Decoding — RS-232/UART, I²C, and SPI included as standard.
• Optional Protocols — CAN, CAN-FD, LIN, FlexRay, SENT, and Audio (I²S/LJ/RJ/TDM) available as software licenses.
• 16 Digital Channels (Optional) — Add mixed-signal capability with the UT-M15 logic probe pod; 1.25 GSa/s digital sample rate, 800 ps minimum detectable pulse width.
• Optional 50 MHz Dual-Channel AWG — 16-bit, 250 MSa/s arbitrary waveform generator with 200 built-in waveforms; Bode plot analyzer included with the AWG package.
• Zone Triggering — Rectangle-drawn trigger conditions with Must Intersect / Must Not Intersect logic.
• 56 Automated Measurements — Voltage, time, frequency, and statistical measurements with histogram and trend statistics; up to 27 displayed simultaneously.
• 10.1-Inch Capacitive Multi-Touch — 1280×800 HD display with multi-window layout, gesture control, and HDMI output.
• SCPI and WebServer Remote Control — USB 3.0, LAN (VXI-11), and built-in browser-based control from PC or mobile.
• Free Firmware Updates and No-Expiration License Unlocks — Firmware updates are free over the product’s lifetime; license unlocks for optional packages have no expiration.

Detailed Features

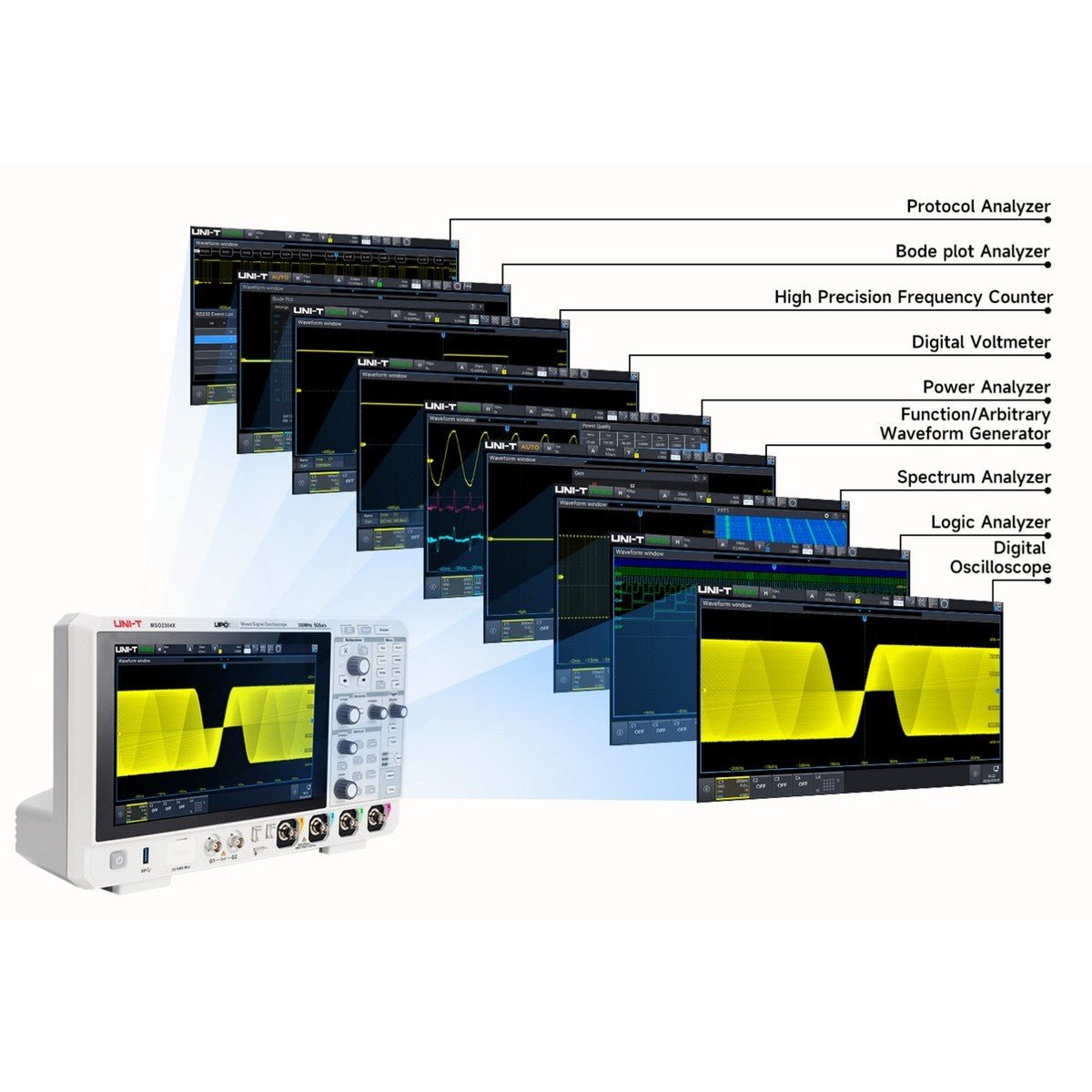

Nine Instruments in One

The MSO2000X platform integrates nine instrument functions into one bench unit: digital storage oscilloscope, 16-channel logic analyzer (with the optional UT-M15 probe pod), 50 MHz dual-channel function and arbitrary waveform generator (optional), 2.5 GHz spectrum analyzer (FFT up to 4 Mpts), 4-digit digital voltmeter, 7-digit hardware frequency counter, multi-protocol serial-bus analyzer, Bode plot analyzer (optional, paired with the AWG for closed-loop sweep), and power-electronics analyzer (optional).

For lab benches consolidating across protocol decode, RF spectral analysis, and four-channel scope work in the same session, the integration eliminates the cable-swap-and-instrument-handoff cycle that breaks engineering flow on multi-instrument bench setups.

High-Speed Acquisition — 5 GSa/s, 100 Mpts

The 5 GSa/s real-time sample rate (interleave mode) and 100 Mpts of acquisition memory hold full waveform fidelity across the 200 MHz analog bandwidth. Standard capture rate runs up to 500,000 wfms/s; in Sequential Mode — the segmented-memory acquisition mode that conditions captures on a trigger event — capture rate climbs to 2,000,000 wfms/s, holding up to 125,000 frames of uninterrupted hardware real-time waveform recording for post-capture replay and analysis.

ERES (enhanced resolution) extends effective vertical resolution from the 8-bit native ADC up to 12-bit when bandwidth headroom is available — useful for low-amplitude work where quantization noise would otherwise obscure detail on switching ripple, sensor outputs or jitter analysis.

Ultra Phosphor 3.0 — 256-Level Grayscale Persistence

Ultra Phosphor 3.0 is UNI-T’s third-generation waveform-mapping architecture, combining parallel FPGA acquisition with 256-level grayscale intensity grading. Throughput is five to ten times higher than the previous-generation pipeline, and acquisition dead time drops below 1 µs — the scope captures 1.17 ns fast-edge signals at 2,000,000 events per second in Sequential Mode without missing the rare-event bracket between redraws. The 256-level intensity grading shows signal frequency-of-occurrence directly: frequent waveforms appear brighter, infrequent ones dimmer, making it intuitive to distinguish normal behavior from intermittent faults during long bench captures.

Built-In Spectrum Analyzer — FFT to 4 Mpts

The standard enhanced-FFT spectrum analyzer covers 0 Hz to 2.5 GHz with up to 4 Mpts of FFT length, four-channel signal analysis, four trace types (Normal, Average, Max Hold, Min Hold), and four detection modes. Marker functions cover Auto, Manual, and Threshold with a marker-point list, plus a waterfall display for tracking spectral activity over time. Use it to identify harmonics, characterize EMI signatures during pre-compliance sweeps, verify clock-signal purity on embedded designs, or analyze modulated signals — without paying for a separate spectrum analyzer.

Protocol Analysis — 9 Bus Types Across Four Domains

The MSO2000X covers nine protocol types across four bus domains: computer serial (RS-232/UART, I²C, SPI — standard), automotive serial (CAN, CAN-FD, LIN, FlexRay — optional), automotive sensor (SENT — optional), and audio (I²S, Left-Justified, Right-Justified, TDM — optional). Triggering and decoding are integrated: trigger on a frame error, an identifier match, a CRC failure, or a missing-ack condition, and the decode displays inline with the captured waveform. Up to four simultaneous decodes plus parallel-bus decoding (up to 18 bits, mixed analog and digital channels) cover most embedded-systems and automotive bus-validation workflows in one instrument.

50 MHz Dual-Channel AWG with Bode Plot (Optional)

The optional MSO2000X-AWG package adds a 50 MHz dual-channel function and arbitrary waveform generator with 16-bit vertical resolution and 250 MSa/s sample rate, plus the Bode plot analyzer for frequency-response, loop-stability, filter, and amplifier characterization. Built-in waveforms include sine, square, pulse, ramp, arbitrary, noise, and DC, with 200 standard arbitrary waveforms (Sinc, ExpRise, ExpFall, Cardiac, Gauss, Lorentz, HaverSine, and others). AM, FM, ASK, FSK, and sweep modulation are supported, and on-screen oscilloscope captures can be loaded directly into the AWG for stimulus-response replay.

Power Analysis (Optional) — Five Measurement Types

For switching-power-supply validation at moderate frequencies and load-step transient analysis on point-of-load converters, the optional power-analysis package adds power quality, harmonic analysis, surge-current characterization, ripple analysis, and loop analysis to the four-channel acquisition path. The same scope that captures the gate-drive waveform also computes the switching loss across the cycle, replacing a separate power analyzer for early-stage characterization on switching converters and point-of-load designs.

Zone Triggering — Rectangle-Drawn Trigger Conditions

Zone triggering isolates an occasional anomaly by trigger condition rather than waveform stability. Draw a rectangle on the display, set Must Intersect or Must Not Intersect, and the scope triggers when the waveform meets the spatial condition — two zones supported, sourced from any of CH1 through CH4. Combined with the eleven trigger types (edge, pulse width, ramp, runt pulse, over-amplitude pulse, delay, timeout, duration, setup & hold, Nth edge, code pattern), the zone trigger turns rare-event hunting into a defined acquisition condition rather than a wait-and-watch exercise.

56 Automated Measurements with Histogram and Trend Statistics

The MSO2000X provides 56 automated measurement parameters on the analog channels — voltage, time, frequency, statistical, and burst measurements — with up to 27 measurements displayed simultaneously and per-channel parameter snapshots showing 39 single-channel measurements at once. Measurement statistics include mean, maximum, minimum, standard deviation, count, tendency chart, and bar chart (histogram) views. The histogram surfaces parameter distribution visually; the tendency chart shows parameter drift over time — useful for jitter analysis, long-capture characterization, and pass/fail evidence reports.

Fast Fuzzy Autoset — Sub-Second All-Channel Setup

The MSO2000X uses a fuzzy-logic autoset algorithm built around the 7-digit hardware frequency counter and multi-channel parallel processing. All-channel autoset completes in under 1.5 seconds; single-channel autoset completes in under 1 second — useful on production-line spot-check work and education-track lab benches with frequent setup changes.

10.1-Inch Capacitive Multi-Touch UI

The 10.1-inch 1280×800 HD capacitive multi-touch display supports the standard touch gestures (click, slide, zoom, edit, drag) for direct waveform manipulation, plus rectangle-draw for zone triggering. Multi-window layout lets multiple display panels (waveform, FFT, decode list, measurement table) be dragged and resized independently. Traditional knob-and-key controls remain for engineers who prefer them, and external mouse and keyboard input is supported via USB. HDMI output mirrors the display to an external monitor or projector — useful for instructor-led demonstrations and engineering team reviews.

Connectivity, SCPI, and WebServer Remote Control

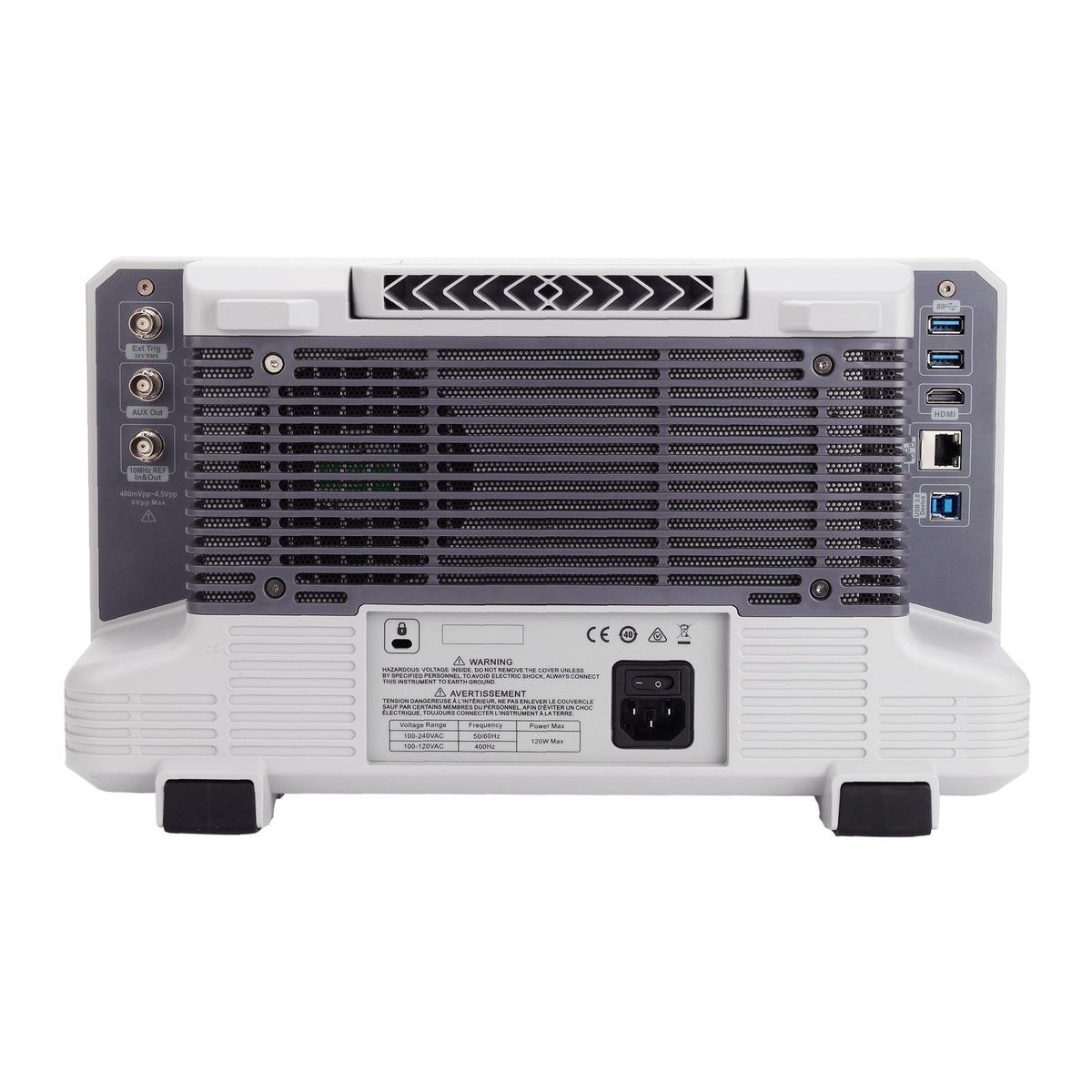

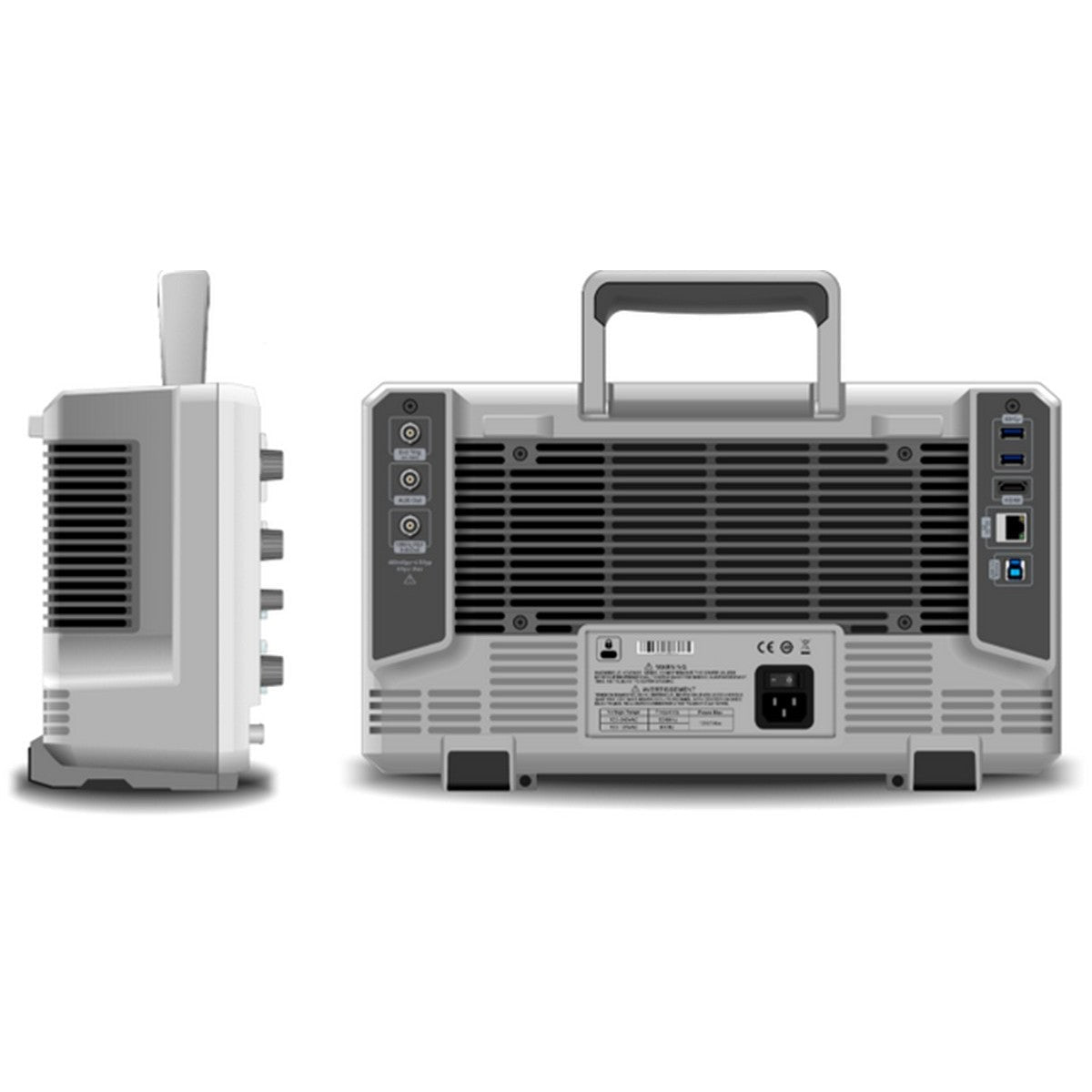

USB 3.0 Host (one front, two rear), USB 3.0 Device (rear), LAN (10/100/1000 BASE-T, VXI-11), HDMI display output, two front-panel Gen Out connectors (paired with the optional AWG), 10 MHz reference In/Out, and AUX Out (Trig Out / Pass-Fail / DVM). The instrument supports the full SCPI command set, and the built-in WebServer provides browser-based remote control from PC or mobile.

Applications

For R&D Engineers

• For R&D validation at 200 MHz, the MSO2204X covers ARM Cortex-M and faster ARM Cortex-A microcontroller debug, four-channel mixed-signal work on FPGA reference designs, and higher-bandwidth protocol decode where 100 MHz starts to limit visibility into rise-time and overshoot detail. With 16 digital channels via the UT-M15 logic probe pod, the same instrument captures analog-domain signal integrity and digital-domain protocol behavior in one time-correlated view.
• Time-correlated mixed-signal capture across analog channels and 16 digital lines (with the UT-M15 probe pod) on the same instrument and the same trigger event.
• Standard SPI, I²C, and RS-232/UART decoding inline with captured waveforms; up to four simultaneous decodes plus parallel-bus decoding for custom protocols.
• Zone triggering for rare-event hunting on intermittent timing anomalies, runts, and glitches.
• 56 automated measurements with histogram and trend statistics for jitter analysis and long-capture characterization.
• Free firmware updates over the product’s lifetime; license unlocks for optional packages have no expiration.

For Education and Teaching Labs

• For undergraduate and graduate-track engineering labs running advanced courses in embedded systems, communications, and signals-and-systems, the MSO2204X provides 200 MHz of analog bandwidth alongside the integrated nine-instrument suite — covering scope, FFT-based spectrum analysis, protocol decode, and AWG-driven stimulus work in one teaching-bench footprint, with HDMI projection for instructor-led demonstrations.
• Nine integrated instruments cover most of the bench-instrument curriculum on one operator-training surface, from analog-and-digital fundamentals through introductory power-electronics topics.
• HDMI output mirrors the display to a projector or external monitor for instructor-led demonstrations.
• WebServer remote access lets students view captures and run measurements from networked classroom devices without crowding the bench.
• Capacitive multi-touch UI plus traditional knob-and-key controls support a range of student comfort levels with bench-instrument operation.
• 10.1-inch display with multi-window layout makes simultaneous waveform, FFT, decode, and measurement views visible during course exercises.

Specifications

Downloads

UNI-T MSO2000X Series Datasheet

UNI-T MSO2000X Series Users Manual

Options & Accessories

Included

• UT-P05 (200 MHz, 10:1 / 1:1) × 4 passive probes (one per channel)
• UT-D30 USB 3.0 cable
• UT-L45 BNC-to-BNC direct-through cable
• UT-L02A BNC red and black alligator connecting wire
• National-standard power cable
• Quick start guide

Available Options

• MSO2000X-AWG — Dual-channel 50 MHz AWG with Bode plot analyzer
• MSO2000X-PWR — Power analysis package (5 measurement types)
• MSO2000X-BND — All serial-bus triggering and decoding (CAN, CAN-FD, LIN, FlexRay, SENT, Audio)
• MSO2000X-AUTO — Automotive serial bus bundle (CAN, CAN-FD, LIN, FlexRay, SENT)
• MSO2000X-CAN / MSO2000X-CAN-FD / MSO2000X-LIN / MSO2000X-FLEX / MSO2000X-SENT / MSO2000X-AUDIO — Individual protocol licenses
• Bandwidth upgrades: MSO2000X-BW1MT2M (100→200), MSO2000X-BW1MT3M (100→300), MSO2000X-BW2MT3M (200→300)

Recommended Accessories

• UT-M15 — 16-channel logic probe pod
• UT-P07A — 500 MHz high-resistance passive probe
• UT-P20 / UT-P21 — High-voltage probes
• UT-P30 / UT-P31 / UT-P32 / UT-P33 — High-voltage differential probes
• UT-P40 / UT-P41 / UT-P42 / UT-P43 / UT-P44 — Current probes
• UT-ISOT — Isolation transformer
• UT-M13X — Oscilloscope demo board

Software Options

• MSO2000X-AUDIO — Serial Bus Trigger and Analysis Option (I2S, LJ, RJ, TDM)
• MSO2000X-AUTO — Serial Bus Trigger and Decode Option (CAN, CAN-FD, LIN, FlexRay, SENT)
• MSO2000X-AWG — Arbitrary Waveform Generator Option
• MSO2000X-BND — Serial Bus Trigger and Decode Bundle (incl. AUTO, AUDIO)
• MSO2000X-CAN — Automotive CAN Serial Bus Trigger and Analysis
• MSO2000X-CANFD — Automotive CAN-FD Serial Bus Trigger and Analysis
• MSO2000X-FLEX — Automotive FlexRay Serial Bus Trigger and Analysis
• MSO2000X-LIN — Automotive LIN Serial Bus Trigger and Analysis
• MSO2000X-PWR — Power Analysis Option
• MSO2000X-SENT — Automotive SENT Sensor Bus Trigger and Analysis

Family Members

• MSO2104X (100 MHz, 4-channel)
• MSO2304X (300 MHz, 4-channel)

FAQ's

What’s the difference between standard capture rate and Sequential Mode capture rate?

Standard capture rate (500,000 wfms/s) is the rate at which the MSO2204X acquires waveforms during continuous real-time operation. Sequential Mode (2,000,000 wfms/s) uses segmented memory to condition captures on a trigger event, holding up to 125,000 frames of triggered acquisitions for post-capture replay. Use standard mode for general waveform observation; use Sequential Mode for rare-event hunting where the trigger condition is well-defined and the captures-per-second matter.

Is the MSO2204X a 12-bit oscilloscope?

No. The MSO2204X has an 8-bit native ADC with up to 12-bit effective resolution via ERES (enhanced resolution) when bandwidth headroom is available. For native 12-bit acquisition at full bandwidth and full sample rate, see UNI-T’s HD-series oscilloscopes (UPO1000HD, UPO2000HD, MSO1000HD, MSO3000HD, MSO5000HD, MSO8000HD), which use the R12™ native 12-bit ADC architecture.

Are the 16 digital channels included?

The 16-digital-channel logic-analyzer front end is built into the chassis, but using it requires the optional UT-M15 probe pod. Without the UT-M15, the MSO2204X operates as a 4-channel digital storage oscilloscope.

What’s included with the AWG option?

The MSO2000X-AWG package adds a 50 MHz dual-channel function and arbitrary waveform generator with 16-bit vertical resolution, 250 MSa/s sample rate, and 200 built-in arbitrary waveforms. The Bode plot analyzer is included with the AWG package. It uses the AWG for stimulus and the scope channels for response measurement.
