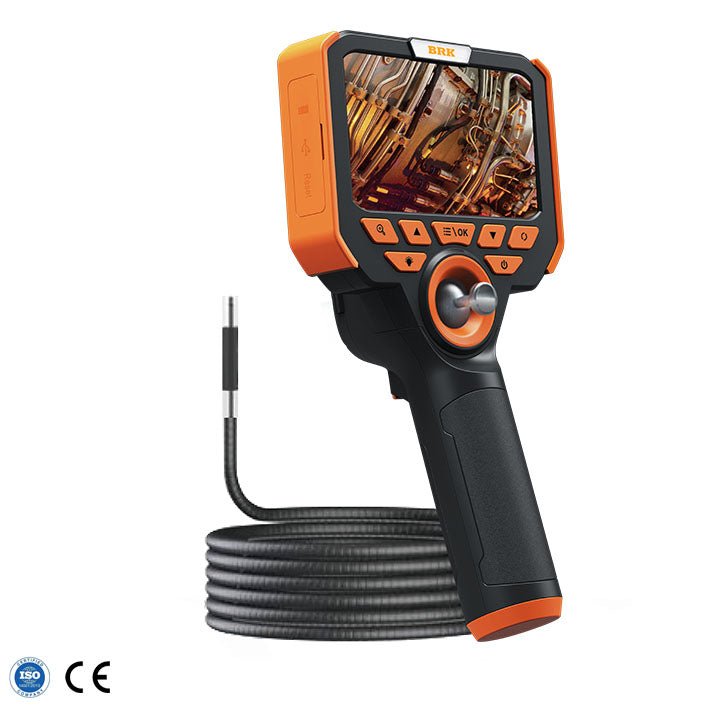

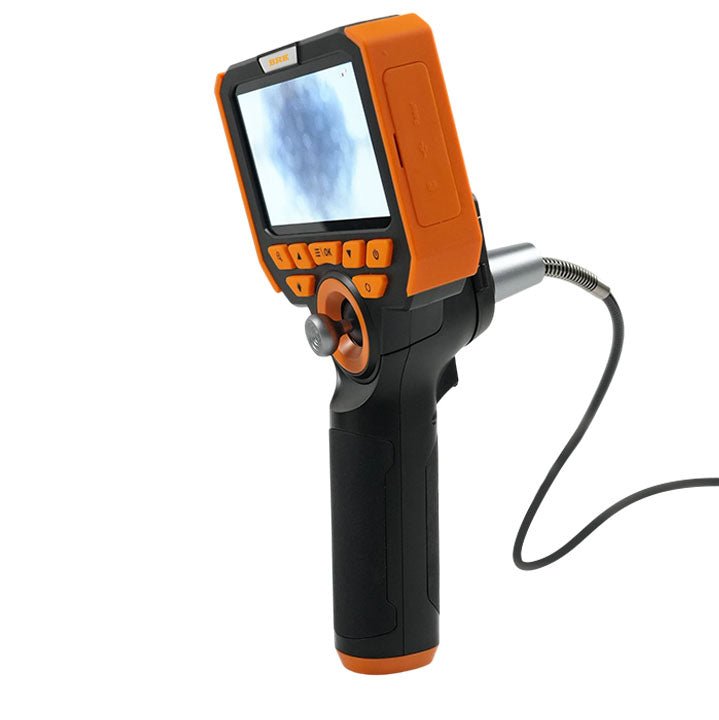

BRK-30 Pro Series Portable Industrial Borescope
The BRK-30 Pro Series is a portable industrial borescope designed for detailed visual inspections of hard-to-reach spaces. It features a 5-inch true-color LCD display and is powered by a high-capacity rechargeable lithium-ion battery, delivering extended operational time.
Compact, lightweight and user-friendly, the device incorporates a high-definition digital imaging sensor with support for multiple selectable resolutions and customizable probe lengths, providing clear images for identifying wear, corrosion, blockages and other visible defects. Full 360° probe articulation allows precise positioning within complex internal spaces. Over-temperature warning alerts users as the probe approaches its operating limit.
Its modular design also allows flexible interchangeability of different-sized articulating tips and displays to adapt to diverse inspection needs. It supports interchangeable probe diameters, lengths and compatible screen sizes, allowing users to configure the instrument for different inspection requirements. Ideal for a wide range of applications, the borescope is widely used in automotive maintenance, pipeline inspection, home appliance repair, sewer diagnostics and building structure examination.

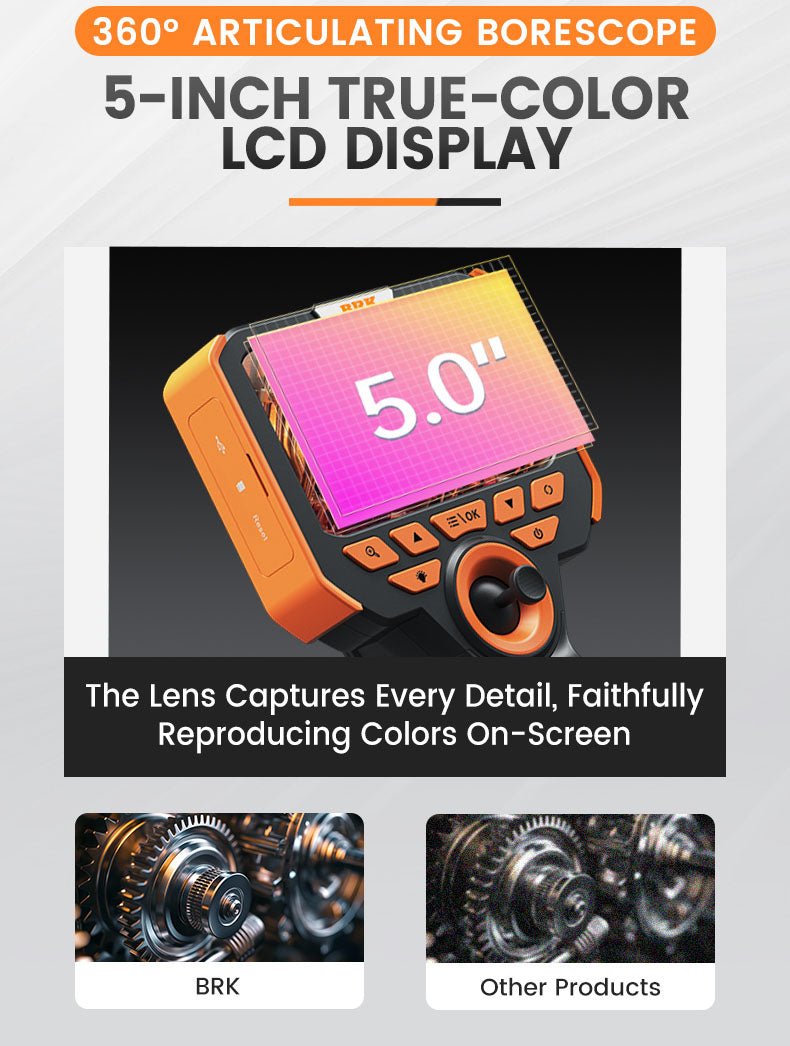

- 5-Inch Industrial LCD: Large, full-color display for viewing inspection images and video.
- High-Definition Imaging: Digital imaging sensor captures detailed photos and videos.

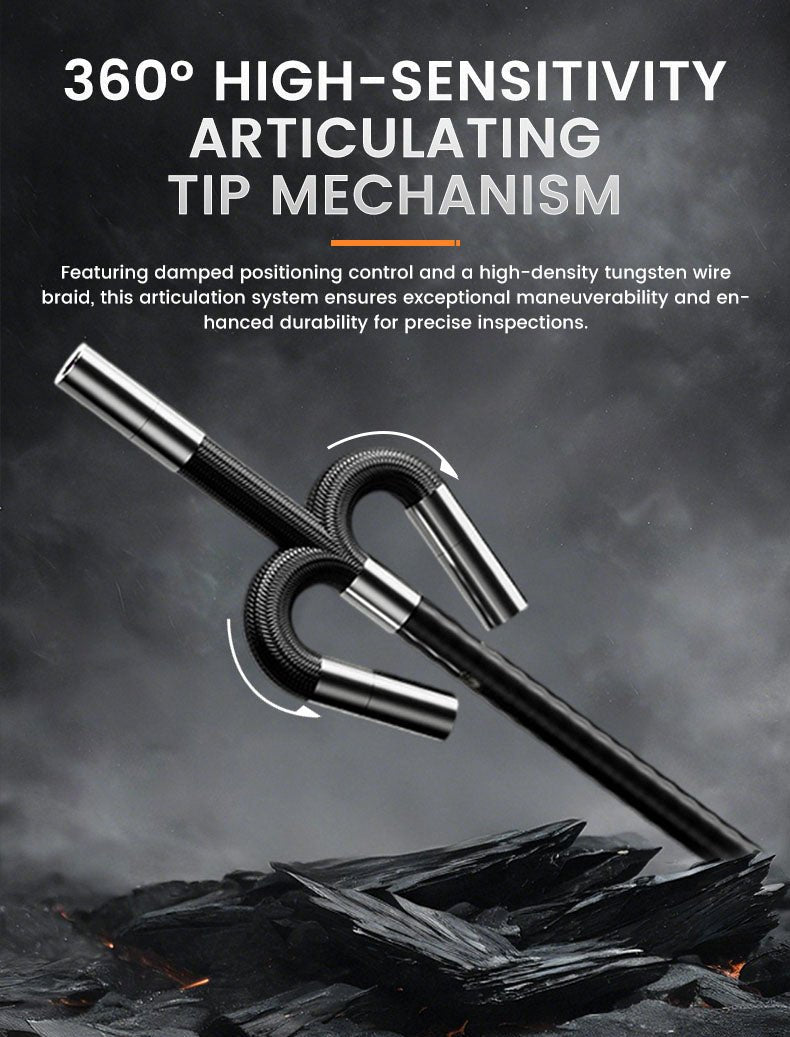

- 360° Probe Articulation: Precise tip control helps navigate confined spaces and inspect surfaces from multiple angles.

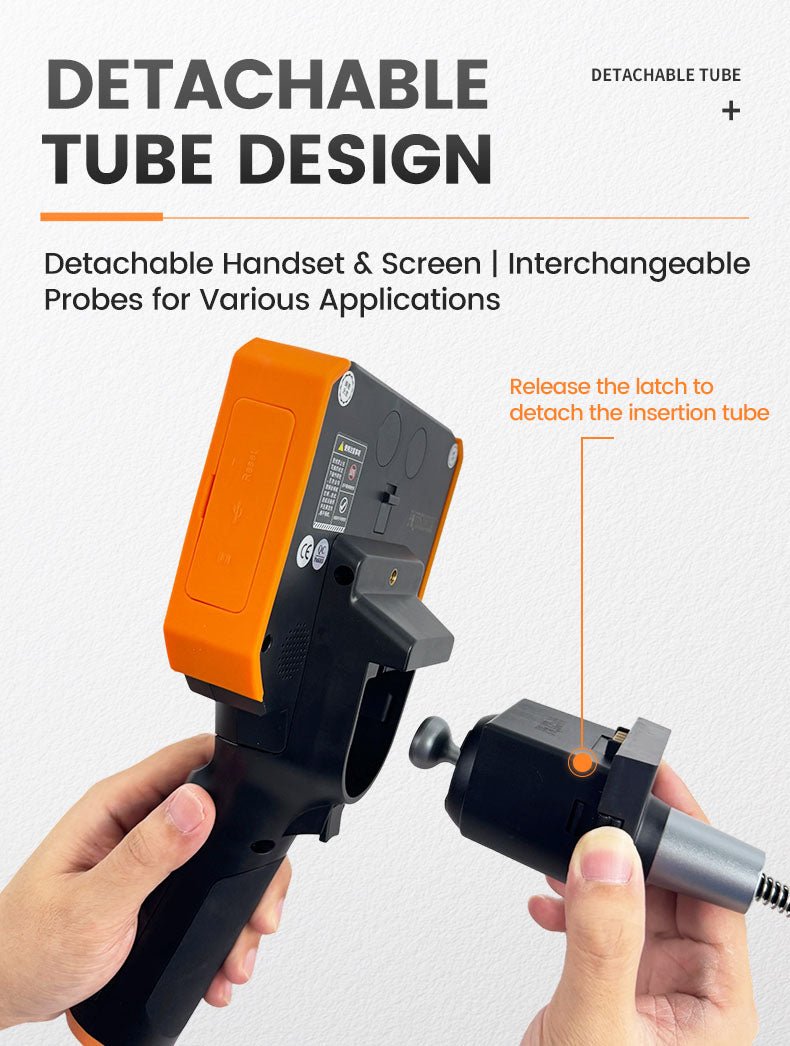

- Modular Design: Interchangeable probe diameters, lengths and compatible screens accommodate different applications.

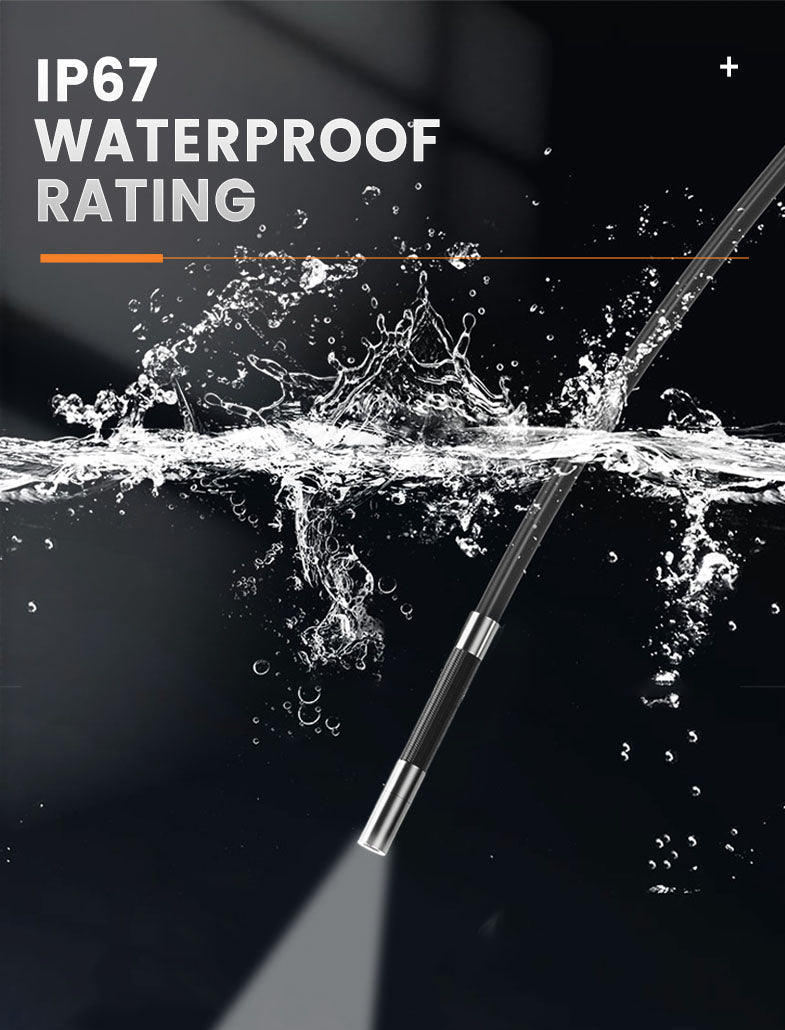

- IP67 Waterproof Rating: Supports inspections in demanding environments.
- Rechargeable Battery: Integrated lithium battery provides convenient portable power.
- Over-Temperature Warning: Alerts users when the probe approaches its maximum operating temperature.
Applications
- Automotive Maintenance: Inspect engine components, cylinders and other difficult-to-access areas.
- Industrial Pipes and Tubes: Identify visible corrosion, obstructions and weld defects.
- HVAC and Appliance Service: Examine ductwork, internal components and concealed mechanisms.
- Building Inspections: View wall cavities, conduits and concealed structural components.
- Drain and Plumbing Inspections: Locate visible clogs, cracks and internal damage where probe access permits.
Why Choose the BRK-30 Pro?
The BRK-30 Pro combines clear imaging, controlled probe articulation and flexible configuration in one portable inspection system. Its interchangeable components help users adapt to changing inspection needs, while photo and video capture support documentation, maintenance planning and quality control.
Specifications
| SCREEN | |||
| Display | 5-inch IPS, 480*854 | ||
| Language | Simplified Chinese, Traditional Chinese, Japanese, English, Korean, French, German, Italian, Spanish, Russian, Polish | ||
| Functions | Photo, Video, Zoom, Image Rotation, LED Adjustment | ||
| Temp. Alert | Alert >75°C: Red Warning, >85°C: Auto Power-off | ||
| TF Card | 32G | ||
| Battery Capacity | 3000mAh | ||
| Operation Time | >4 Hours | ||
| CAMERA | |||
| Probe Diameter | 6mm | 3.9mm | 2.8mm |
| Resolution | 1280*720 | 1280*720 | 400*400 |
| Depth of Field | 10-100mm | 10-100mm | 5-50mm |
| Field of View | 88° | 85° | 100° |

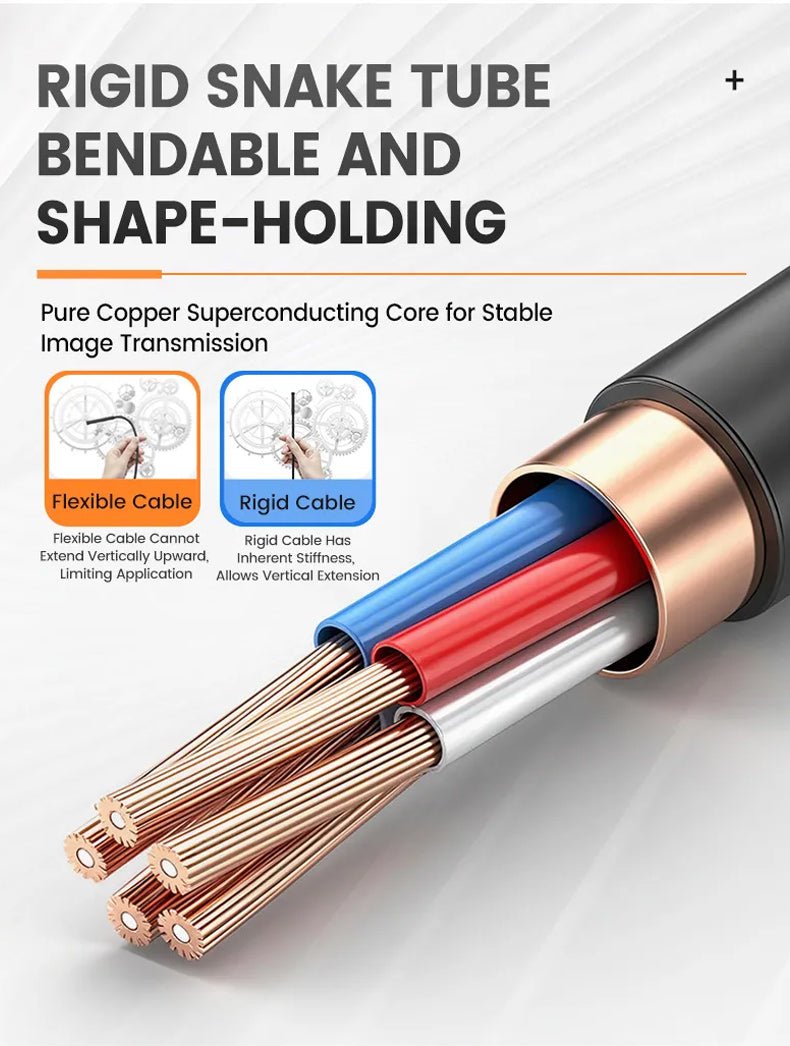

| Snake Tube Material | Dual-interlock PVC Hose | Tungsten Braided Tube | Tungsten Braided Tube |
| Tube Length | 1m/2m/3m | 1m/2m/3m | 1m/2m |
| Articulation Angle | 360° | 360° | 360° |
| Bending Radius | 35mm | 30mm | 25mm |
| Articulation Life | >30,000 cycles | >30,000 cycles | >30,000 cycles |
| Waterproof Rating | IP67 | IP67 | IP67 |
| LED Count | 8 LEDs | 6 LEDs | 4 LEDs |
| CERTIFICATIONS | |||
| PATENTS / CE / FCC / ROHS | |||
