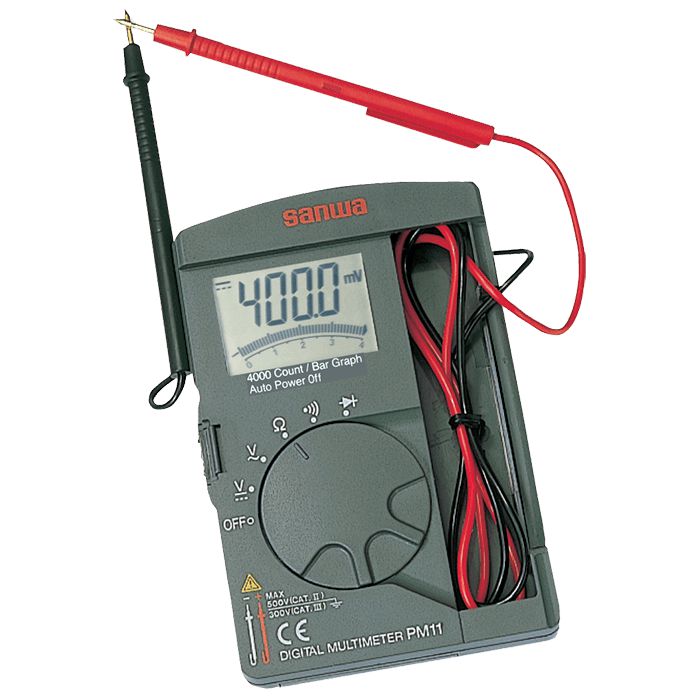

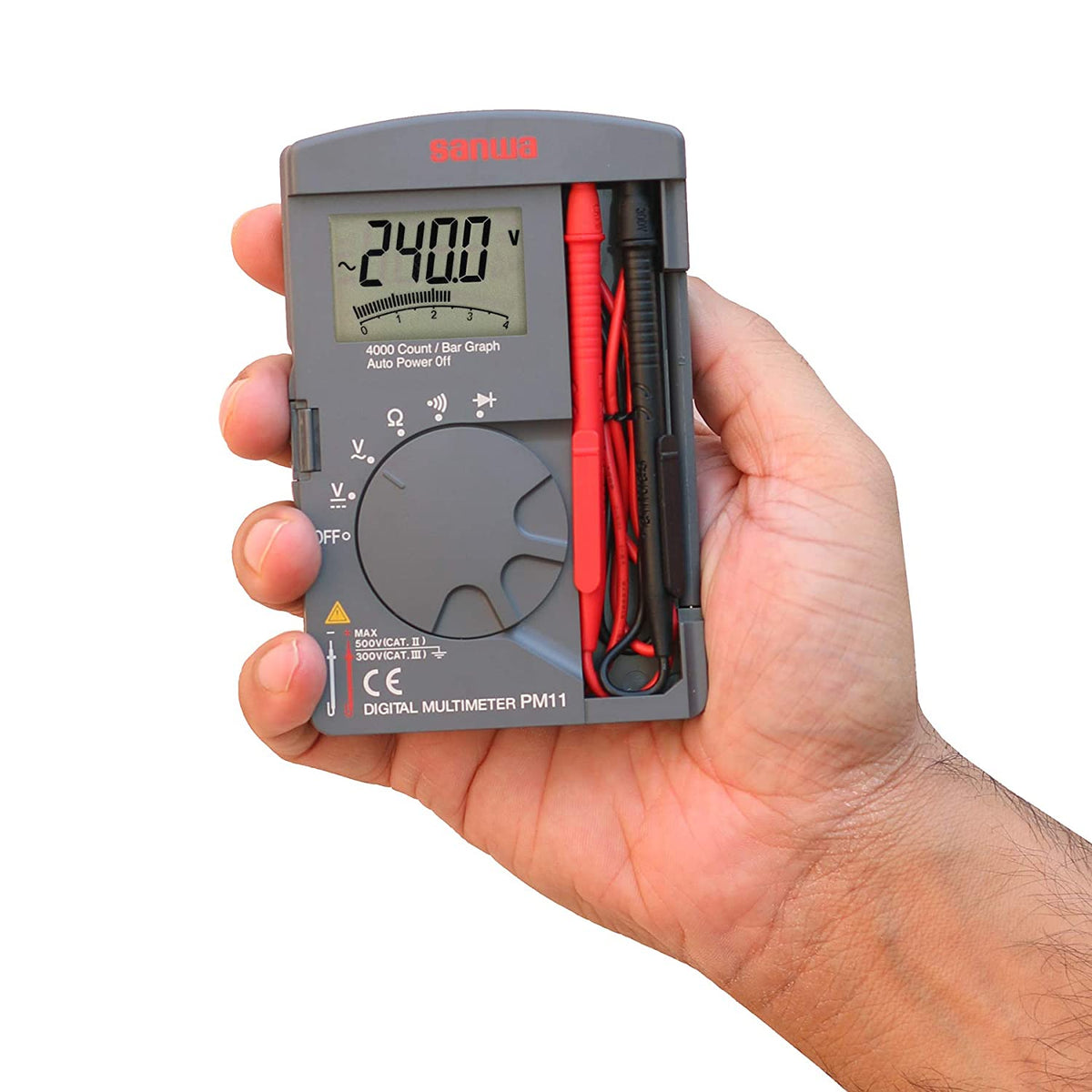

The Sanwa PM11 is a pocket-size digital multimeter with a 4000-count display and 0.8% accuracy.

The PM11 digital multimeter is designed to be portable and be used for low voltage circuit measurement. The device features a 4000-count display and has an accuracy of 0.8% in DC mode. The device has an analog bar-graph on the display with 40 segments and is meant to imitate the needle in an analog multimeter. The instrument has been designed in accordance with the safety standard IEC 61010-1 Measurement Category II.

The device offers features such as measuring voltages, resistance, and continuity test. The voltage and resistance functions have a full auto-range feature. It uses the “dual-integration” measuring method, which converts the voltage into time, as it provides stable measurements with high accuracy, resolution and noise rejection ratio. One particular advantage is the high noise rejection ratio at 50 or 60Hz power line frequency.

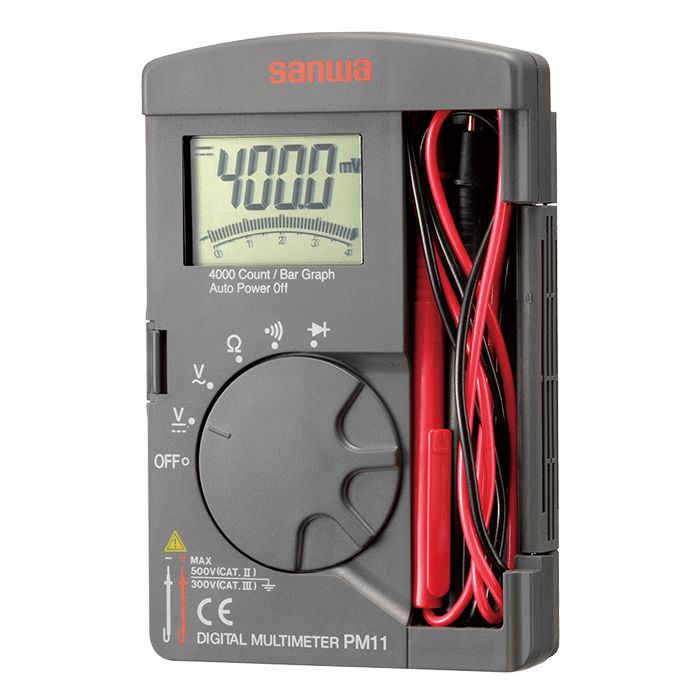

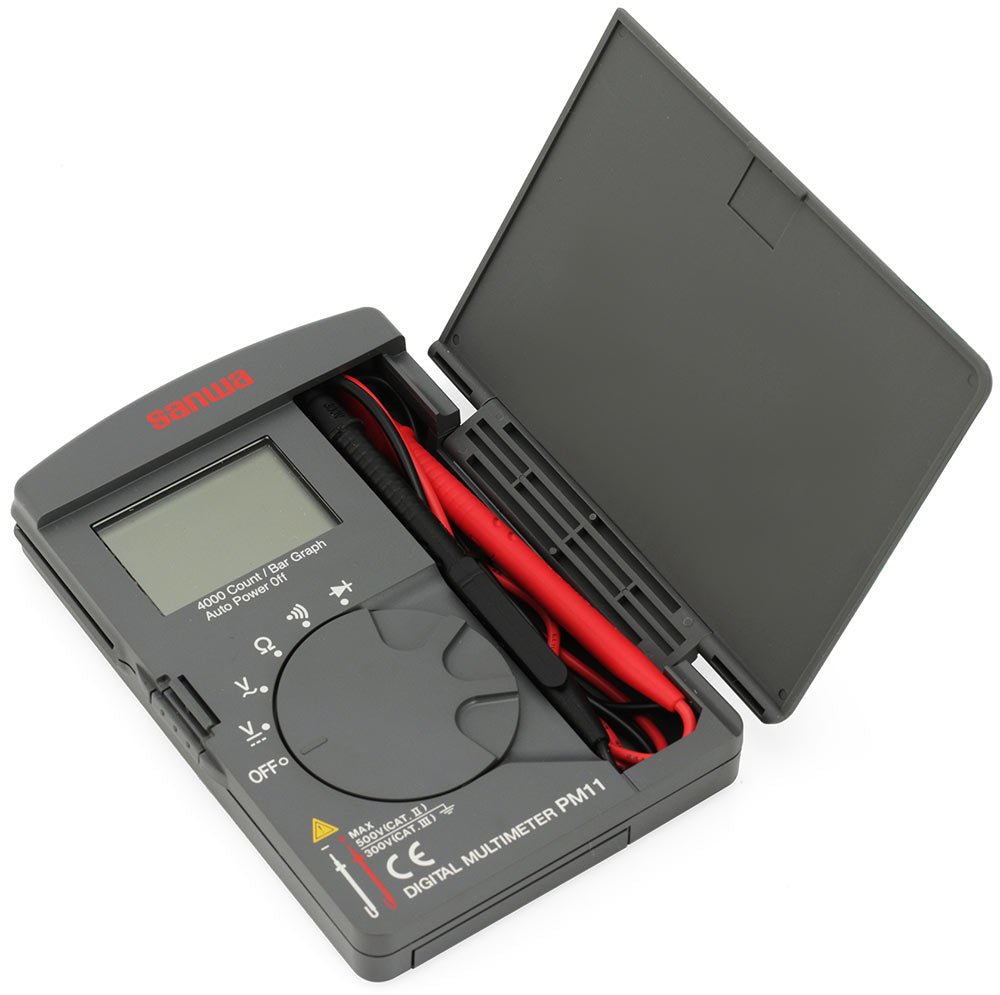

The device has an all-plastic build and has a compartment in the front for the testing leads. The cleverly designed cover folds flat in back of the unit when in use, and protects the unit when closed. It is compliant with the IEC 61010-1 CAT II standards and can be used to measure mains sockets and electrical appliances.

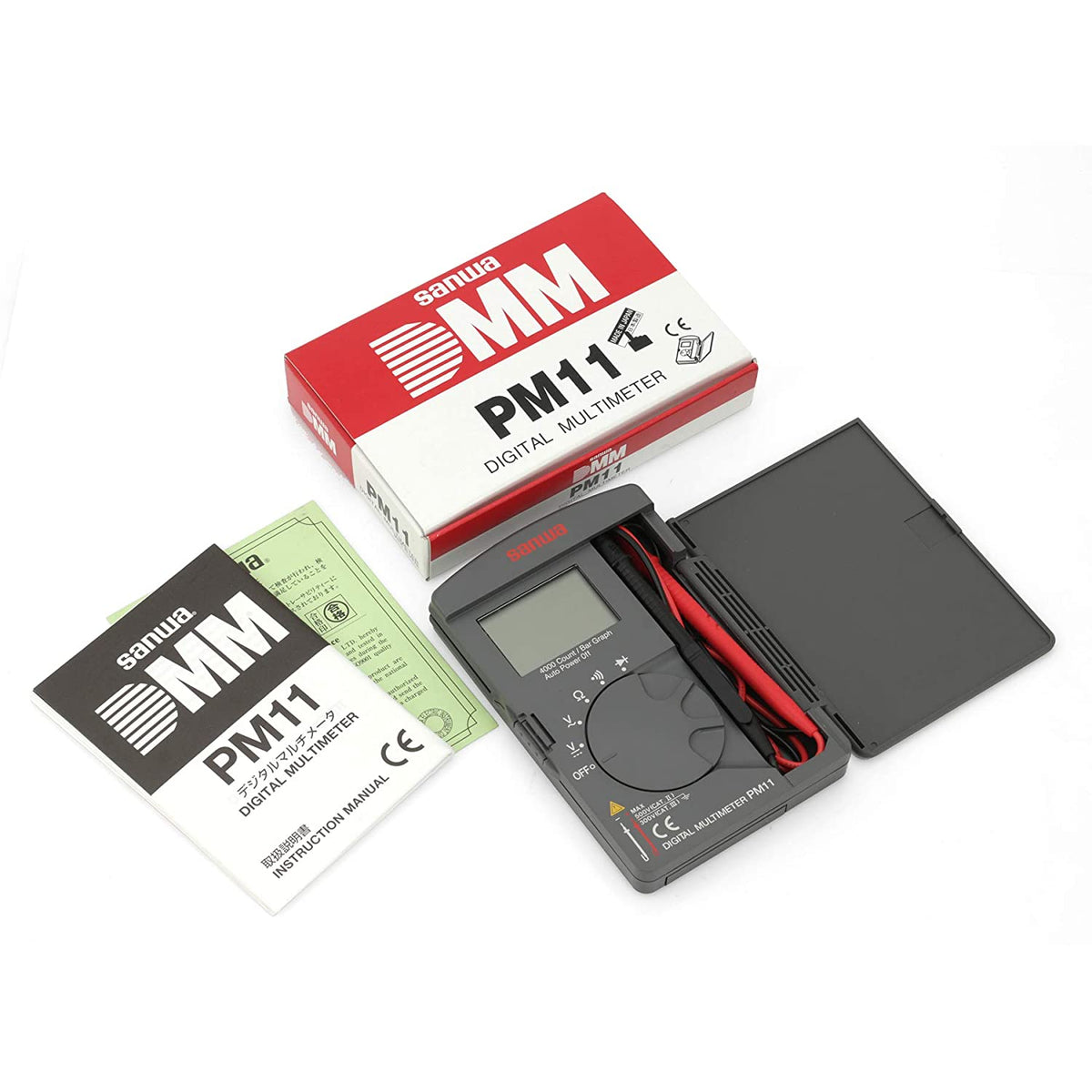

Meter includes one set of integrated test leads and instruction manual.

• 4000 Count display
• 0.8% Accuracy
• Analog bar graph
• Continuity test with buzzer
• Auto power save (30 min after the last operation) (cancelable)
• Compact storage of test leads
• Test lead can be snapped into a fixed position atop the case.
• EN61010-1 CAT.II 500V compliant
• Size/Weight: 117 x 76 x 18mm (H x W x D) / 117g
