PDM509S | Analog Insulation Tester 500V / 100MΩ Single Range
Download
Download

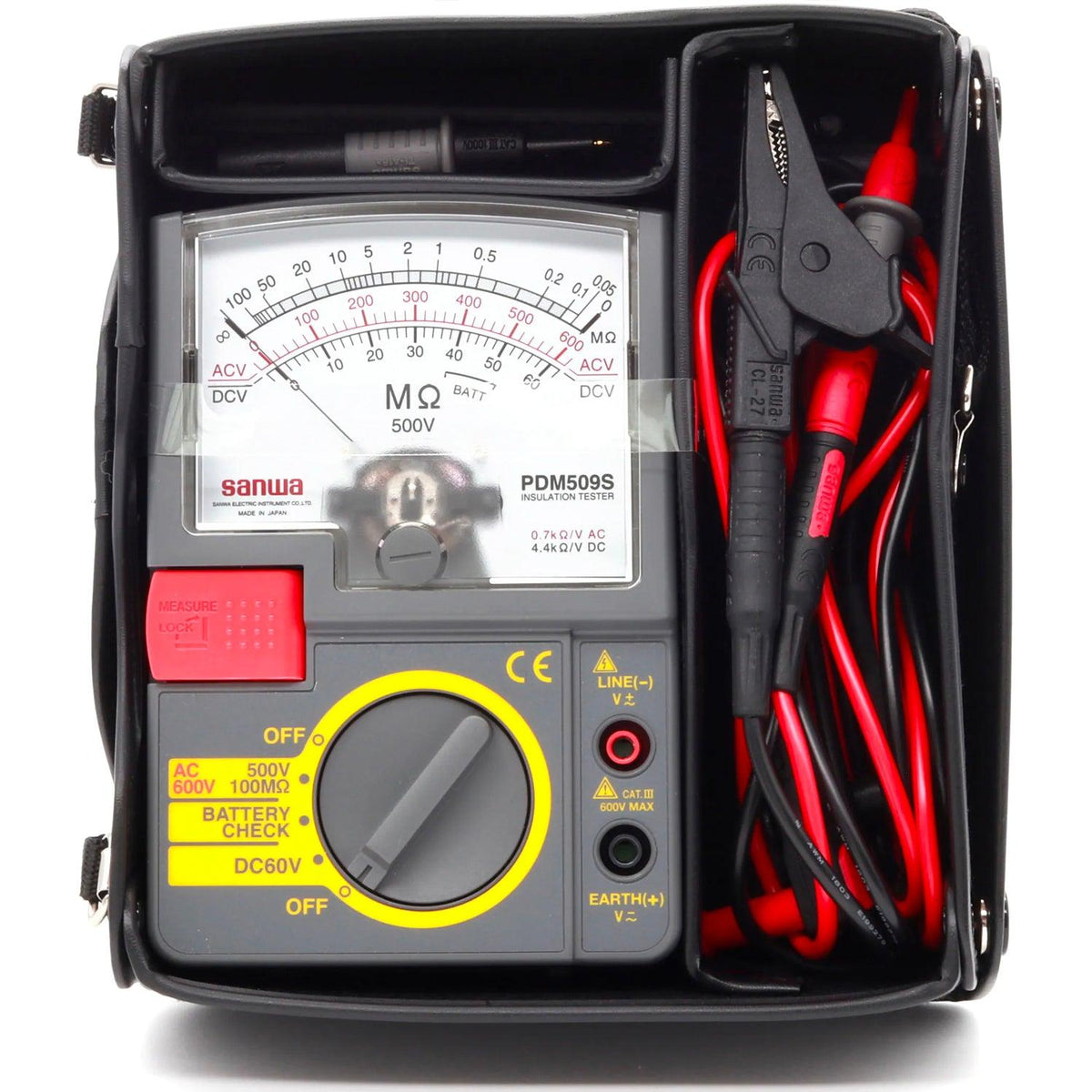

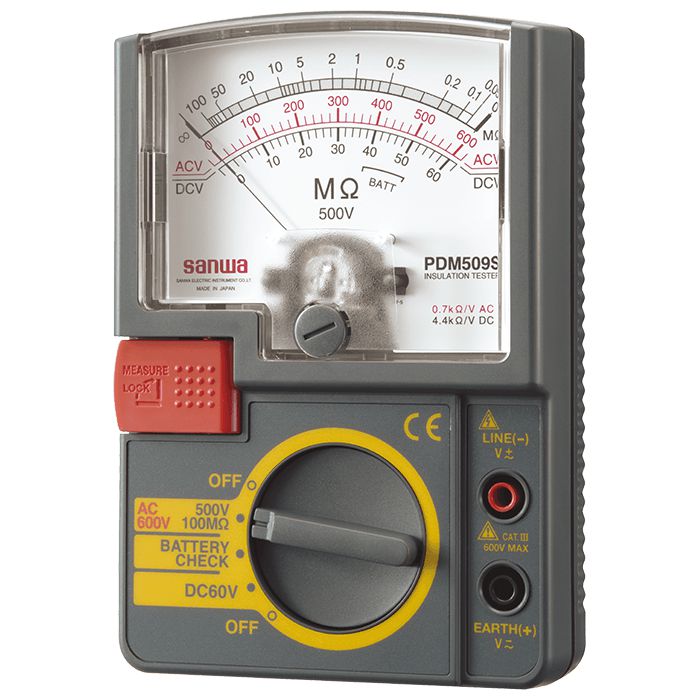

The Sanwa PDM509S is a single-range, lightweight, analog DC Insulation tester with an Auto discharge function.
The Sanwa PDM509S has an insulation resistance measuring range of 100MΩ/500 volts with an accuracy of ±5% of full scale. The instrument can also be used to measure AC (600V max) and DC (60V max) voltages as well.
The PDM509S comes with an Auto discharge function that discharges a test circuit once the user is done measuring the insulation resistance of the test circuit. This device lies in the EN61010-1 CAT.II (1000V) and EN61010-1 CAT.III (600V) measurement category.
- Test voltage DC500V
- One-shot or continuous measurement push switch
- DCV measurement range (DC60V)
- Auto discharge function
- Inner battery check range
- ACV measurement range

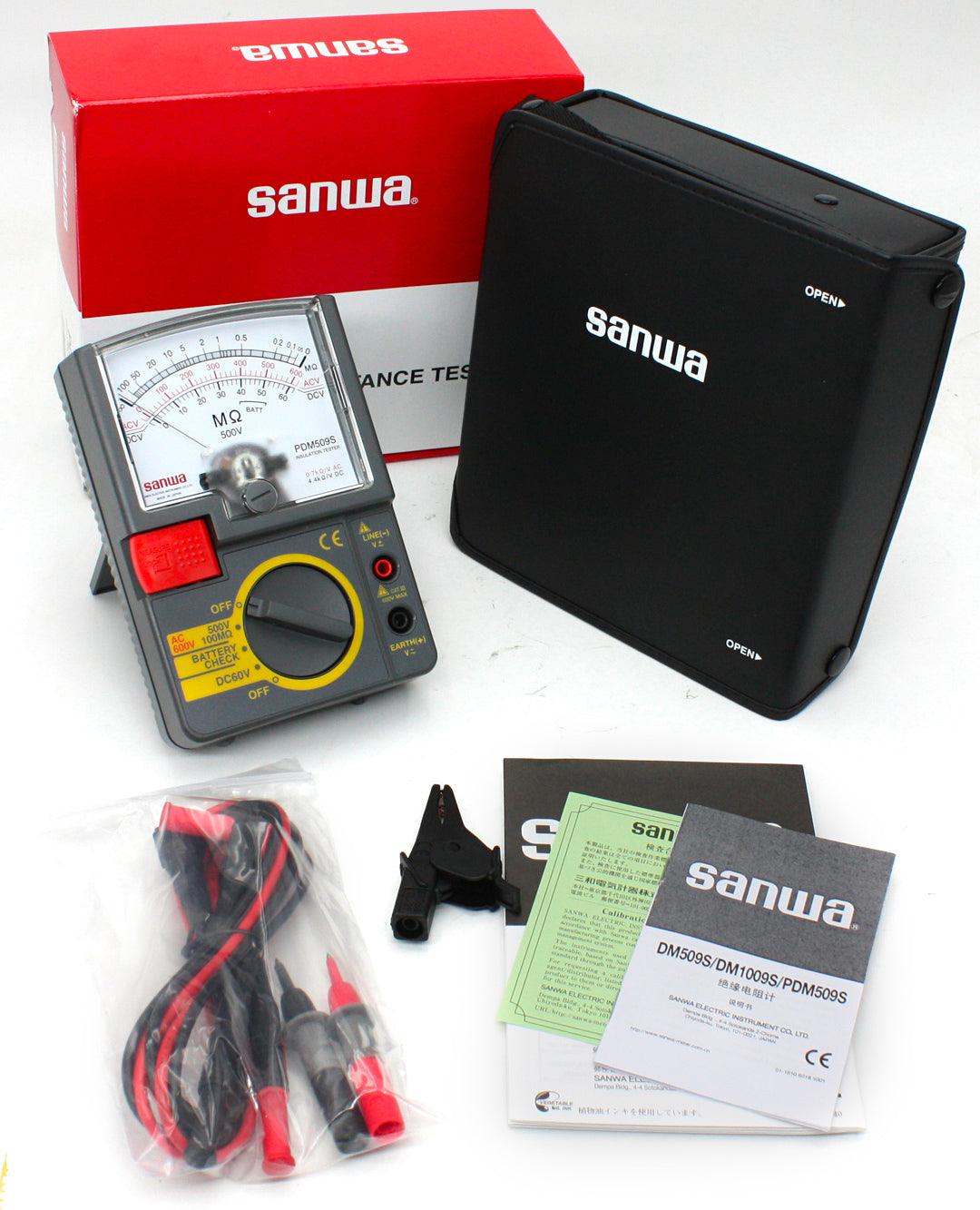

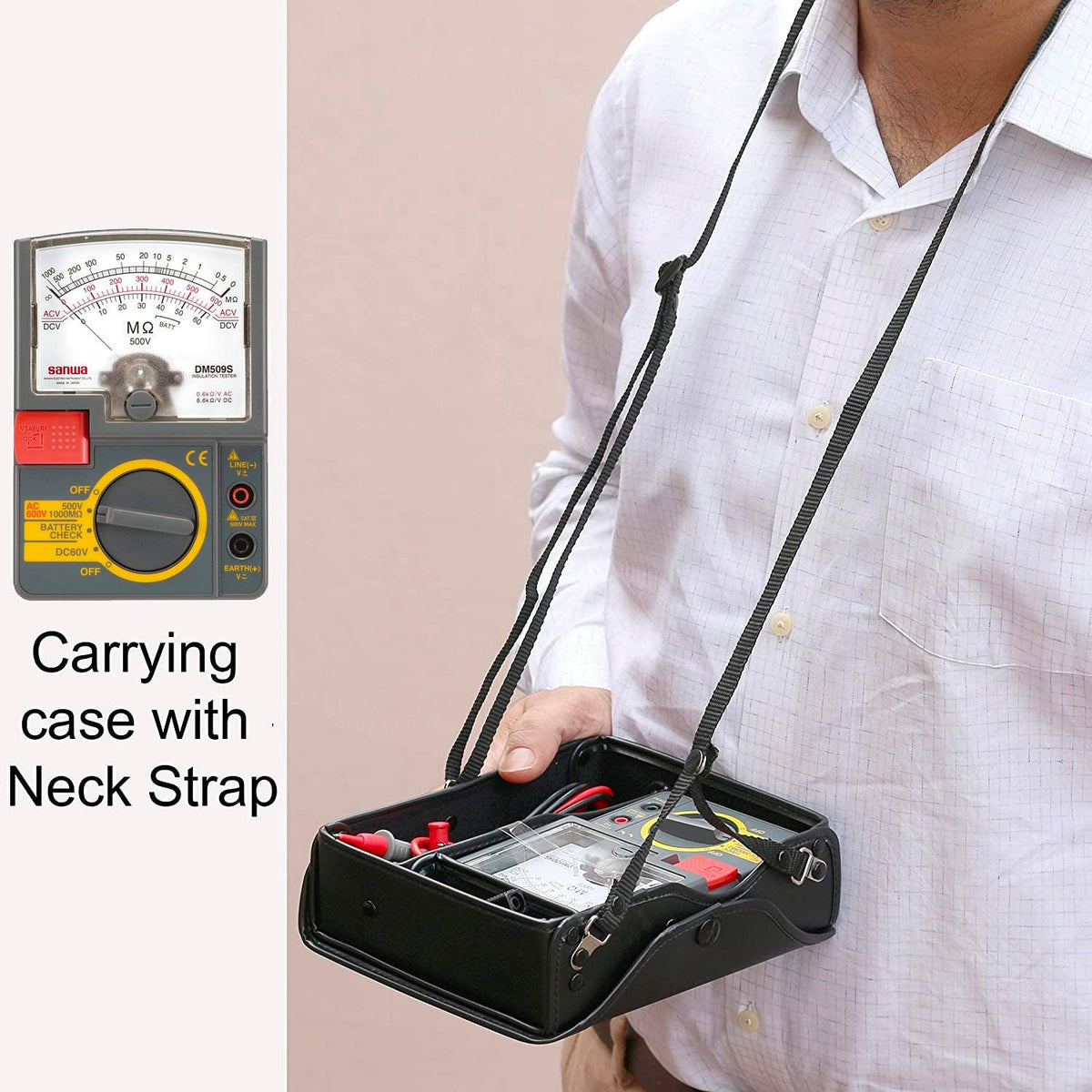

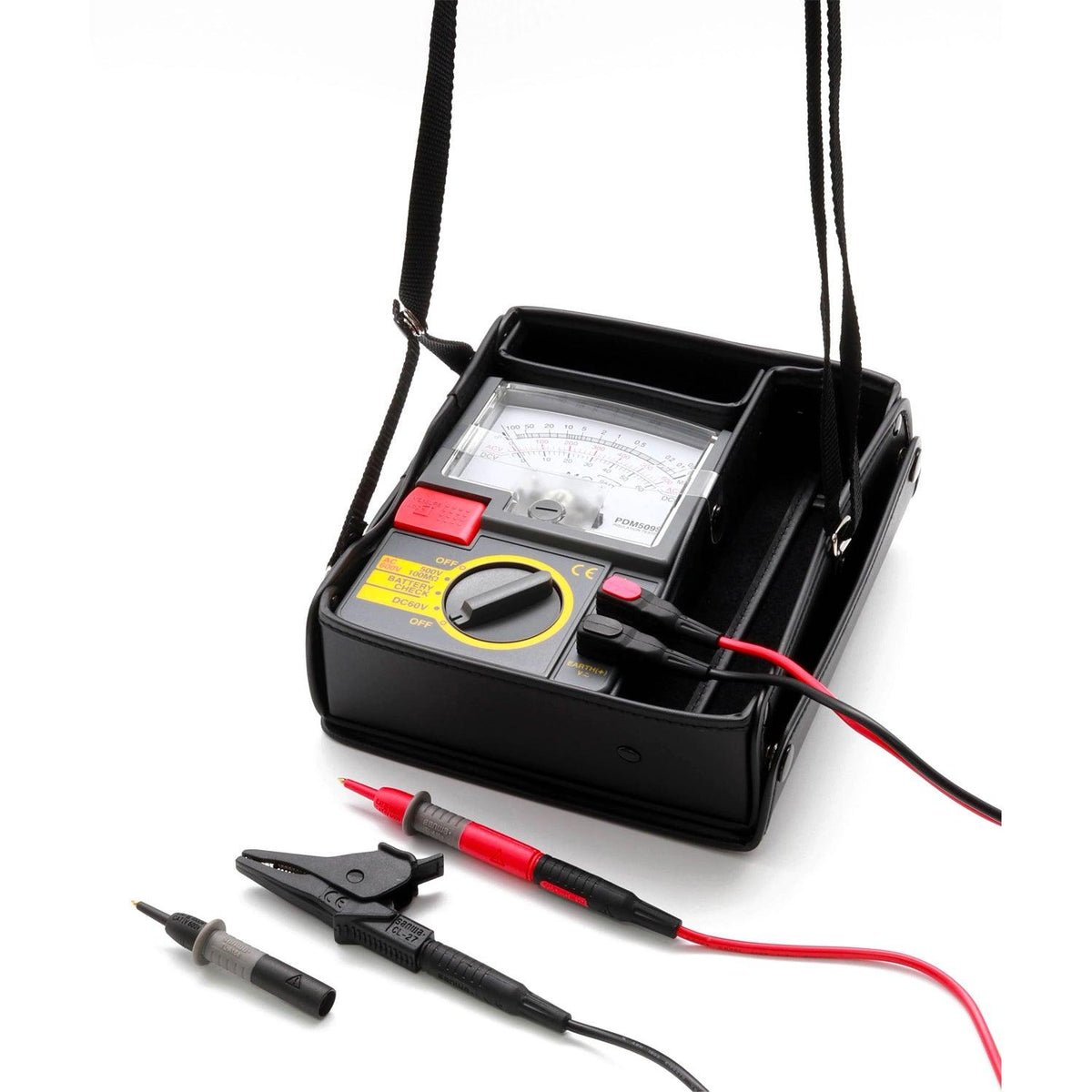

Includes meter, test leads, carrying case, strap and instruction manual.
Specifications
| Scale(MΩ) | 0.05～0.1～50～100MΩ | |
| Tolerance | ± 5% of reading（1st effective measurement range : written in thick print above） ±10% of reading（2nd effective measurement range : written in small type above) |
|
| ACV | 600V | |
| Tolerance | Within ±5% of the max. scale value(50～60Hz sine wave) | |
| DCV | 60V | |
| Tolerance | Within ±5% of the max. scale value | |
| Rated current | 1.0～1.2mA | |
| Battery | 6LF22/6LR61 (9V alkaline battery) x1 | |
| Size/Mass | H144×W99×D43mm / Approx. 310g | |
| Safety standard | IEC61010 CAT.Ⅲ 600V | |
