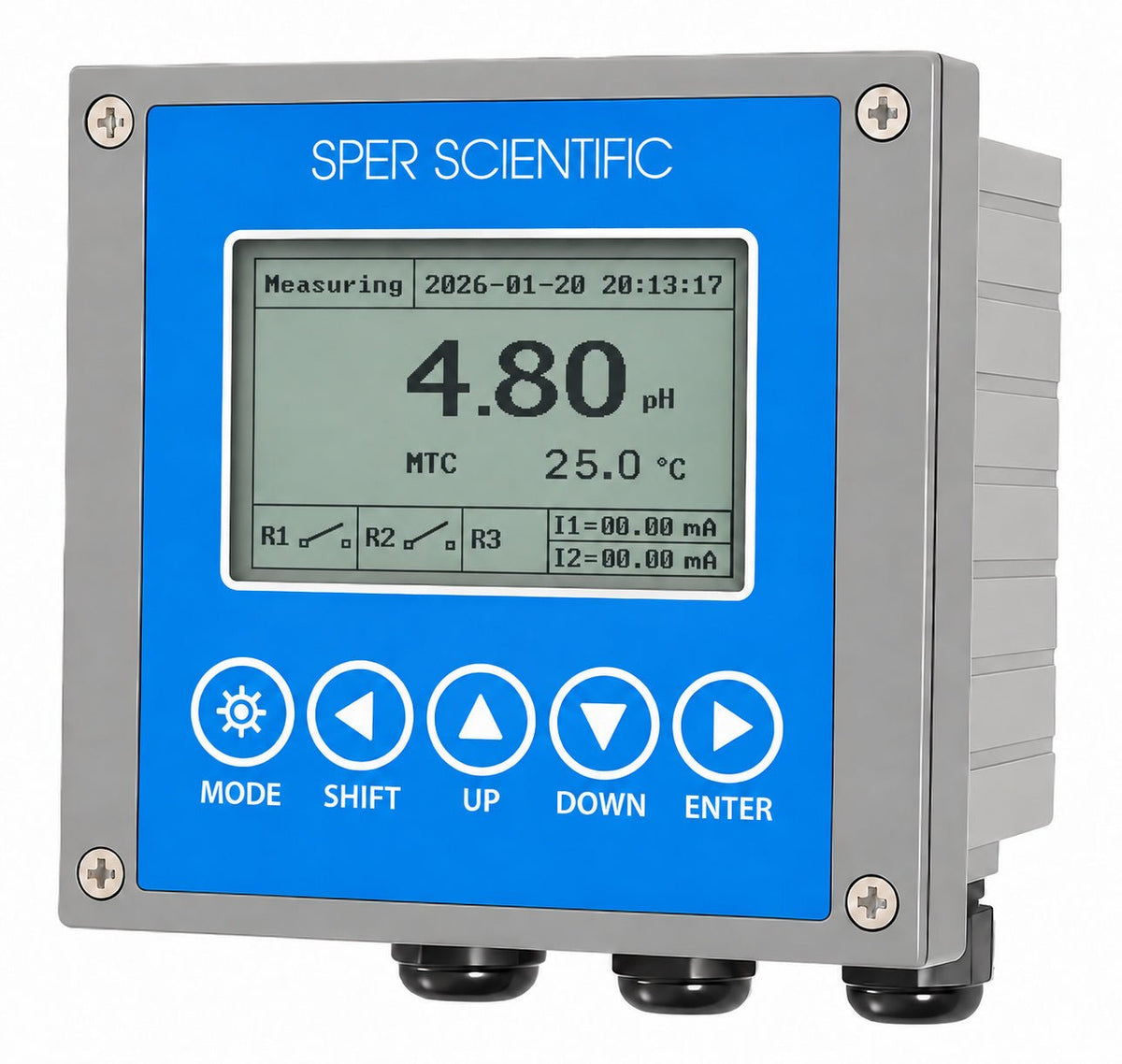

Industrial PH/ORP Bioprocess Monitor
Product Notes:
1. All Inline Bio-Process Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
2. Custom options and configurations are also available. Please contact us if you need help with your specific application.
Scarica
Scarica
Industrial pH/ORP Monitor is designed for precise temperature and pH/ORP measurement in wastewater treatment, environmental monitoring, fermentation, pharmaceuticals, food processing and agricultural applications.
Features a large LCD display with an intuitive interface for straightforward operation. Data storage and export functionality with configurable storage cycles enable comprehensive monitoring and record-keeping. RS485 network interface supports remote monitoring and system integration across multiple points.
Built-in surge protection safeguards equipment reliability in demanding industrial environments. Supports online software upgrades for convenient maintenance and feature updates without equipment downtime.
- Large screen dot matrix display, with friendly operation interface, clear interface, easy to operate
- With data storage, viewing, export and other functions, storage cycle can be set
- RS485 interface, can realize network monitoring
- Unique lightning protection design to ensure the reliability of equipment operation
- Support software online upgrade, convenient maintenance
- Instrument is designed to be panel, wall or pipe-mounted.
Specifications
| Functions | pH | ORP |
|---|---|---|
| Measuring Range | -2.00 to +16.00 pH | -2000 to +2000 mV |
| Resolution | 0.01 pH | 1 mV |
| Accuracy | ±0.01 pH | ±1 mV |
| Temperature Compensation | Pt 1000/NTC10K | |
| Temperature Range | -10.0 to +130.0°C | |
| Temperature Compensation Range | -10.0 to +130.0°C | |
| Temperature Resolution | 0.1°C | |
| Temperature Accuracy | ±0.2°C | |
| Ambient Temperature Range | 0 to +70°C | |
| Storage Temperature | -20 to +70°C | |
| Input Impedance | >1012 Ω | |
| Display | Backlit dot matrix | |
| pH/ORP Current Output 1 | Isolated 4–20 mA output; maximum load 500 Ω | |
| Temperature Current Output 2 | Isolated 4–20 mA output; maximum load 500 Ω | |
| Current Output Accuracy | ±0.05 mA | |
| RS485 | Modbus RTU protocol | |
| Baud Rate | 9600/19200/38400 | |
| Maximum Relay Contact Capacity | 5 A at 250 VAC; 5 A at 30 VDC | |
| Cleaning Setting | ON: 1–1000 seconds; OFF: 0.1–1000.0 hours | |
| One Multifunction Relay | Cleaning/period alarm/error alarm | |
| Relay Delay | 0–120 seconds | |
| Data Logging Capacity | 500,000 | |
| Language Selection | English, traditional Chinese and simplified Chinese | |
| Waterproof Grade | IP65 | |
| Power Supply | 90–260 VAC, 50/60 Hz; power consumption <5 W | |
| Installation | Panel, wall or pipe installation | |
| Weight | 0.85 kg | |
