Hot Wire Anemometer SD Card Logger
Download
Download

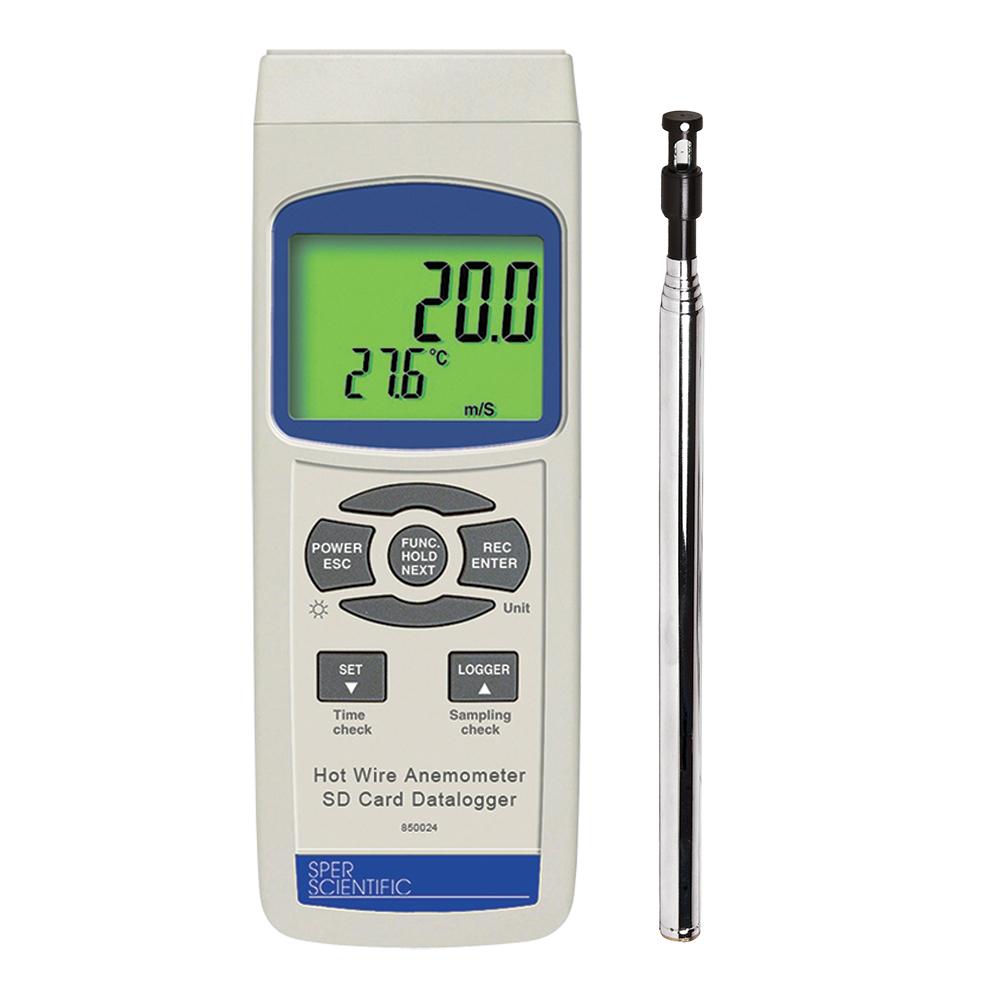

This handheld device reads air velocity and temperature, and also functions as a type K or J thermometer that records data onto removable SD Cards.
Records data to standard SD memory cards (like a digital camera). When full, simply exchange SD cards for unlimited data storage. The removable SD card is easy to transport and insert into a computer’s memory card slot or SD card reader. Uploads pre-formatted data to Excel, without the need for additional software and cables. Additional SD cards are readily available in a variety of memory sizes. Can also stream data directly to a computer using the optional software and cables. Also reads thermocouple temperature with optional probes.
Each data set includes airspeed, air temperature, time and date. Features min/max, auto power-off, low battery indicator and hold function. This well-made unit is extremely accurate with fast response times, and includes a fold-out tripod and large, easy-to-read backlit LCD. Comes ready to use in a soft carrying case complete with a detachable telescopic probe, 6 AA batteries, instruction manual and an SD card.
Read our article on Hot Wire versus Vane Anemometers here.
Dimensions: 7" × 2¾" × 1¾" (178 × 70 × 44 mm)
Weight: 1 lb. (0.45 kg).
Specifications
| Units of Measure: | Range: | Resolution: | Accuracy: |
| Ft/min: | 40 to 3940 | 1 | ±(1% FS + 20 FPM) |
| Knots: | 0.4 to 38.8 | 0.01 to 0.1 | ±(1% FS + 0.2 Knots) |
| m/s: | 0.2 to 25.0 | ±(1% FS + 0.1 m/s) | |
| Km/h: | 0.7 to 72.0 | ±(1% FS + 0.3 Km/h) | |
| mph: | 0.5 to 44.7 | ±(1% FS + 0.2 mph) | |
| Type K: | -58 to 2372ºF -50 to 1300ºC |
0.1 | ±(0.4% FS + 1.8ºF) ±(0.4% FS + 1ºC) |
| Type J: | -58 to 2012ºF -50 to 1100ºC |
||
| Air Temperature: | 32 to 122ºF 0 to 50ºC |
1.5ºF 0.8ºC |
Downloads
Comparison Chart
Videos
Impossibile caricare la disponibilità per il ritiro
Product Information
Product Information
This handheld device reads air velocity and temperature, and also functions as a type K or J thermometer that records data onto removable SD Cards.
Records data to standard SD memory cards (like a digital camera). When full, simply exchange SD cards for unlimited data storage. The removable SD card is easy to transport and insert into a computer’s memory card slot or SD card reader. Uploads pre-formatted data to Excel, without the need for additional software and cables. Additional SD cards are readily available in a variety of memory sizes. Can also stream data directly to a computer using the optional software and cables. Also reads thermocouple temperature with optional probes.
Each data set includes airspeed, air temperature, time and date. Features min/max, auto power-off, low battery indicator and hold function. This well-made unit is extremely accurate with fast response times, and includes a fold-out tripod and large, easy-to-read backlit LCD. Comes ready to use in a soft carrying case complete with a detachable telescopic probe, 6 AA batteries, instruction manual and an SD card.
Read our article on Hot Wire versus Vane Anemometers here.
Dimensions: 7" × 2¾" × 1¾" (178 × 70 × 44 mm)
Weight: 1 lb. (0.45 kg).
Specifications
| Units of Measure: | Range: | Resolution: | Accuracy: |
| Ft/min: | 40 to 3940 | 1 | ±(1% FS + 20 FPM) |
| Knots: | 0.4 to 38.8 | 0.01 to 0.1 | ±(1% FS + 0.2 Knots) |
| m/s: | 0.2 to 25.0 | ±(1% FS + 0.1 m/s) | |
| Km/h: | 0.7 to 72.0 | ±(1% FS + 0.3 Km/h) | |
| mph: | 0.5 to 44.7 | ±(1% FS + 0.2 mph) | |
| Type K: | -58 to 2372ºF -50 to 1300ºC |
0.1 | ±(0.4% FS + 1.8ºF) ±(0.4% FS + 1ºC) |
| Type J: | -58 to 2012ºF -50 to 1100ºC |
||
| Air Temperature: | 32 to 122ºF 0 to 50ºC |
1.5ºF 0.8ºC |
