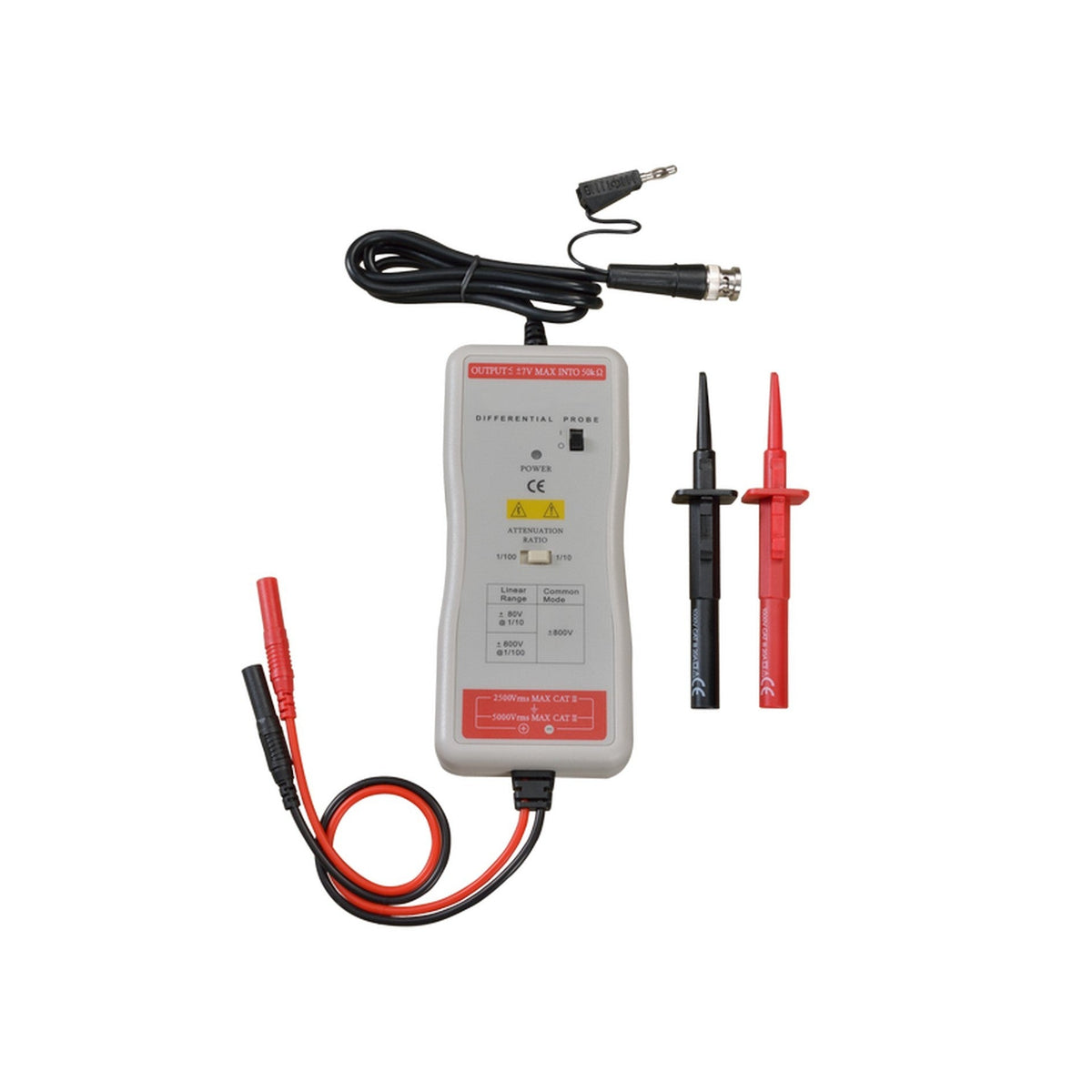

UT-P32 50 MHz 100:1/1000:1 Differential Oscilloscope Probe
Prezzo di listino
$860.00 USD
Prezzo scontato
Prezzo di listino
Spedizione calcolata al checkout.
Download
Download
50 MHz differential oscilloscope probe (100:1/1000:1 attenuation) for safely measuring floating voltages across motor drives, power converters and bridge circuits.
Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
- 50MHz Bandwidth — Captures signal content up to 50MHz for accurate waveform measurement.
- 100:1/1000:1 Attenuation — Attenuation ratio suited to the probe measurement range.
- 3000Vpp Maximum Input Voltage — Rated input voltage for safe operation.
- Standard BNC Connection — Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Specifications
| CAT Rating | CAT III |
| Dimensions | 69 × 26 × 165 mm |
| Bandwidth | 50 MHz |
| Probe Attenuation | 100:1, 1000:1 |
| Probe Max Voltage | 3000Vpp |
| Rise Time | ≤ 7ns |
| Input Capacitance | 1 pF |
| Input Impedance | 8 MΩ / 1 pF |
| Operating Temperature | 0 °C - 50 °C |
| Differential Input Voltage | 3000Vpp |
| Common Mode Voltage | 5kVrms |
| CMRR | > 80 dB @ 50 Hz, > 60 dB @ 100 kHz, > 50 dB @ 1 MHz |
Impossibile caricare la disponibilità per il ritiro
Product Information
Product Information
50 MHz differential oscilloscope probe (100:1/1000:1 attenuation) for safely measuring floating voltages across motor drives, power converters and bridge circuits.
Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
- 50MHz Bandwidth — Captures signal content up to 50MHz for accurate waveform measurement.
- 100:1/1000:1 Attenuation — Attenuation ratio suited to the probe measurement range.
- 3000Vpp Maximum Input Voltage — Rated input voltage for safe operation.
- Standard BNC Connection — Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Specifications
| CAT Rating | CAT III |
| Dimensions | 69 × 26 × 165 mm |
| Bandwidth | 50 MHz |
| Probe Attenuation | 100:1, 1000:1 |
| Probe Max Voltage | 3000Vpp |
| Rise Time | ≤ 7ns |
| Input Capacitance | 1 pF |
| Input Impedance | 8 MΩ / 1 pF |
| Operating Temperature | 0 °C - 50 °C |
| Differential Input Voltage | 3000Vpp |
| Common Mode Voltage | 5kVrms |
| CMRR | > 80 dB @ 50 Hz, > 60 dB @ 100 kHz, > 50 dB @ 1 MHz |
