Online Industrial Desulfurization pH Sensor
Product Notes:
1. All Online Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
2. Custom options and configurations are also available. Please contact us if you need help with your specific application.
Scarica
Scarica

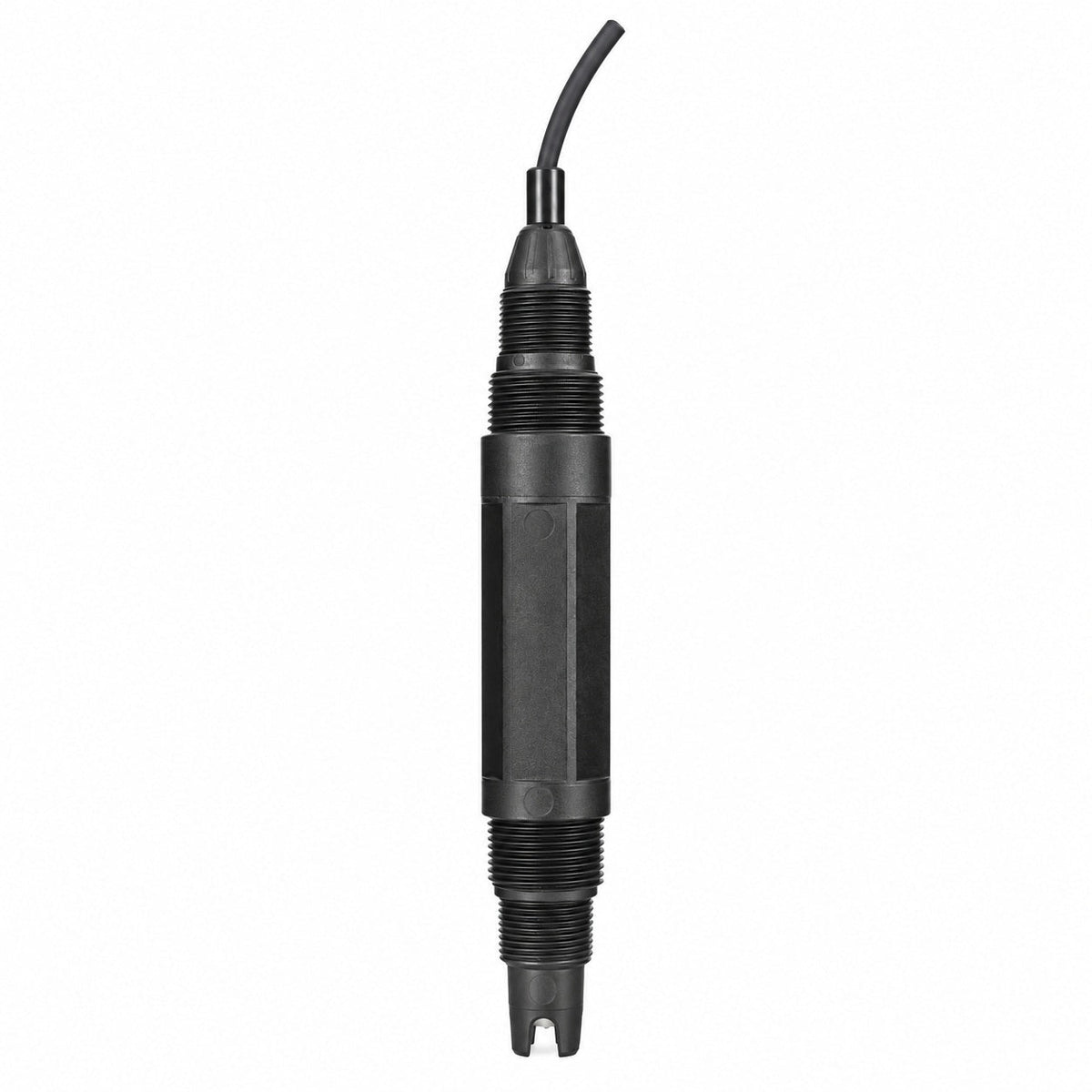

This pH sensor monitors process liquids in flue gas desulfurization and industrial wastewater treatment systems.
A gel-filled electrode and flat glass sensing surface are designed for contaminated process liquids. The sensing surface helps resist fouling and mechanical impact, while the PPS body provides a durable housing for industrial installations. The sensor measures across a 0–14 pH range and operates at temperatures from 0 to 95 °C.
Upper and lower 3/4 in. NPT threads support process mounting. A direct low-noise cable provides a 5 m connection to a compatible pH analyzer. Optional 2.252 kΩ or Pt1000 temperature compensation elements can be specified to match the analyzer's input requirements.
Features
- Designed for flue gas desulfurization and wastewater pH monitoring
- Flat glass sensing surface for fouling and impact resistance
- Gel-filled electrode construction
- PPS body for industrial service
- Upper and lower 3/4 in. NPT mounting threads
- 5 m low-noise cable
- Optional temperature compensation matched to the analyzer
Specifications
| Part number | 870002-PHC8X |
| pH range | 0–14 pH |
| Operating temperature | 0–95 °C |
| Pressure resistance | 0.6 MPa |
| Body material | PPS |
| Zero point | 7 pH ±0.3 |
| Process connections | Upper and lower 3/4 in. NPT threads |
| Cable length | 5 m |
| Electrical connection | Direct low-noise cable |
| Temperature compensation options | 2.252 kΩ or Pt1000 |
| Applications | Flue gas desulfurization, industrial wastewater treatment and environmental water treatment |
FAQs
What applications is this sensor designed for?
It is intended for pH measurement in flue gas desulfurization, industrial wastewater treatment and environmental water treatment processes.
How does it connect to the process?
The sensor has upper and lower 3/4 in. NPT threads and a direct 5 m low-noise cable.
Does it require a pH analyzer?
Yes. Select a compatible analyzer and match the temperature compensation input to the configured sensor.
