MS3006 Multi-Angle Spectrophotometer

Prix régulier $7,871.00 Prix réduit $8,286.00 Prix unitaire par

The MS3006 Multi-Angle Spectrophotometer is a precision instrument designed for accurate and consistent color measurement, especially for metallic, pearlescent and other complex special-effect finishes.

FREE SHIPPING

With its industrial-grade MCU and six measurement angles, it ensures high accuracy in measuring color variations under different viewing conditions. The advanced optical system guarantees repeatability in measuring key parameters such as Sparkle Grade (SG), Diffuse Coarseness (DC), and Color Variation (CV).

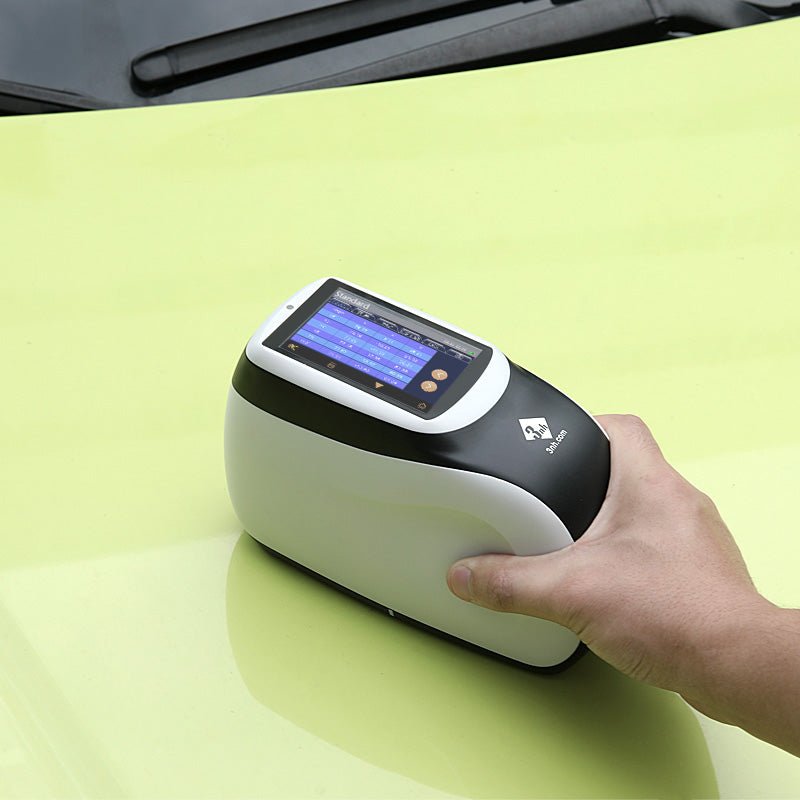

The MS3006 is ideal for analyzing surface paints affected by different viewing angles, providing precise results even on curved surfaces. This versatile device not only measures multi-angle color differences but also characterizes special finishes with outstanding accuracy and stability. Its user-friendly interface and robust performance make it an indispensable tool for quality control in industries requiring high standards of color consistency and special-effect finish measurement.

Key Features:

  • Multi-angle measurement: Simultaneously measures from six angles with six illumination sources and one receiver.

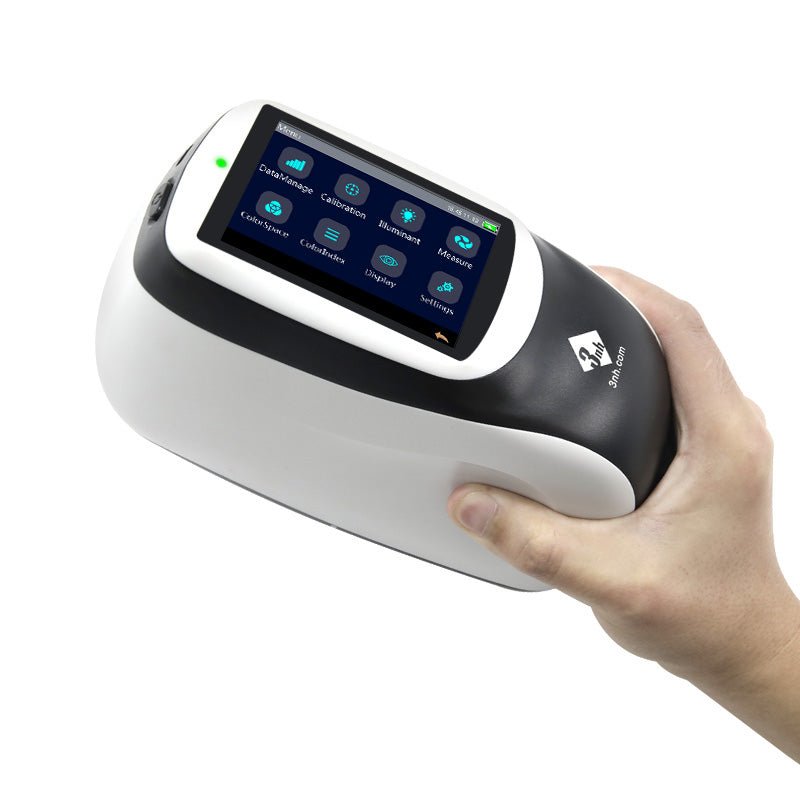

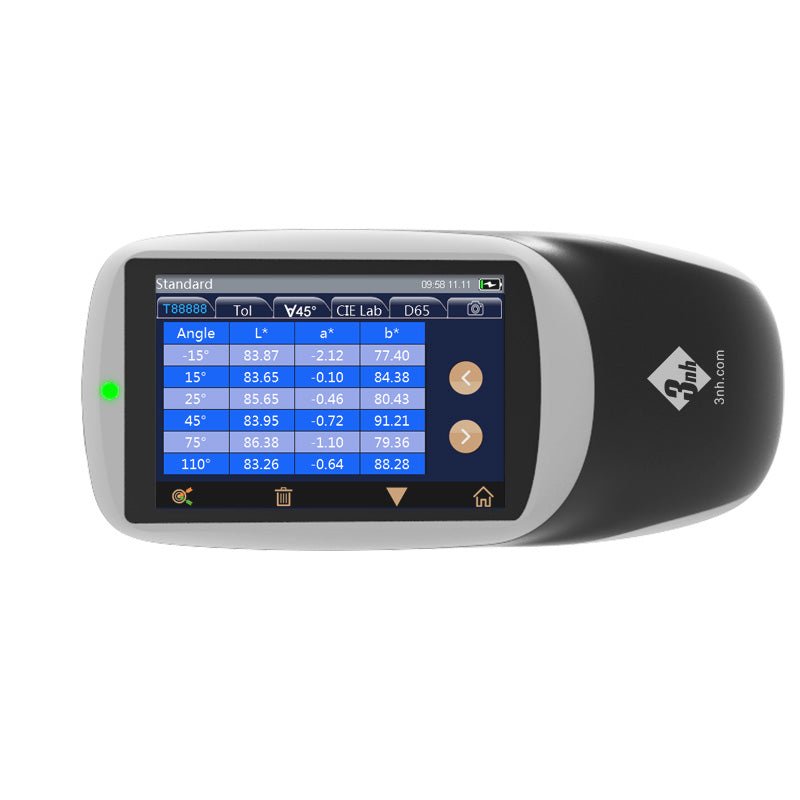

  • Intuitive display: Touchscreen shows comprehensive data for all measurement angles.
  • Effect measurement discrimination: Accurately distinguishes Sparkle Grade (SG), Diffuse Coarseness (DC), and Color Variation (CV) for efficient quality inspection.
  • 256-element double-array CMOS sensor: Ensures high speed, accuracy, stability, and consistency.
  • Full spectrum LED light source with blue enhancement: Provides a broad spectral range for precise measurements and low maintenance costs.

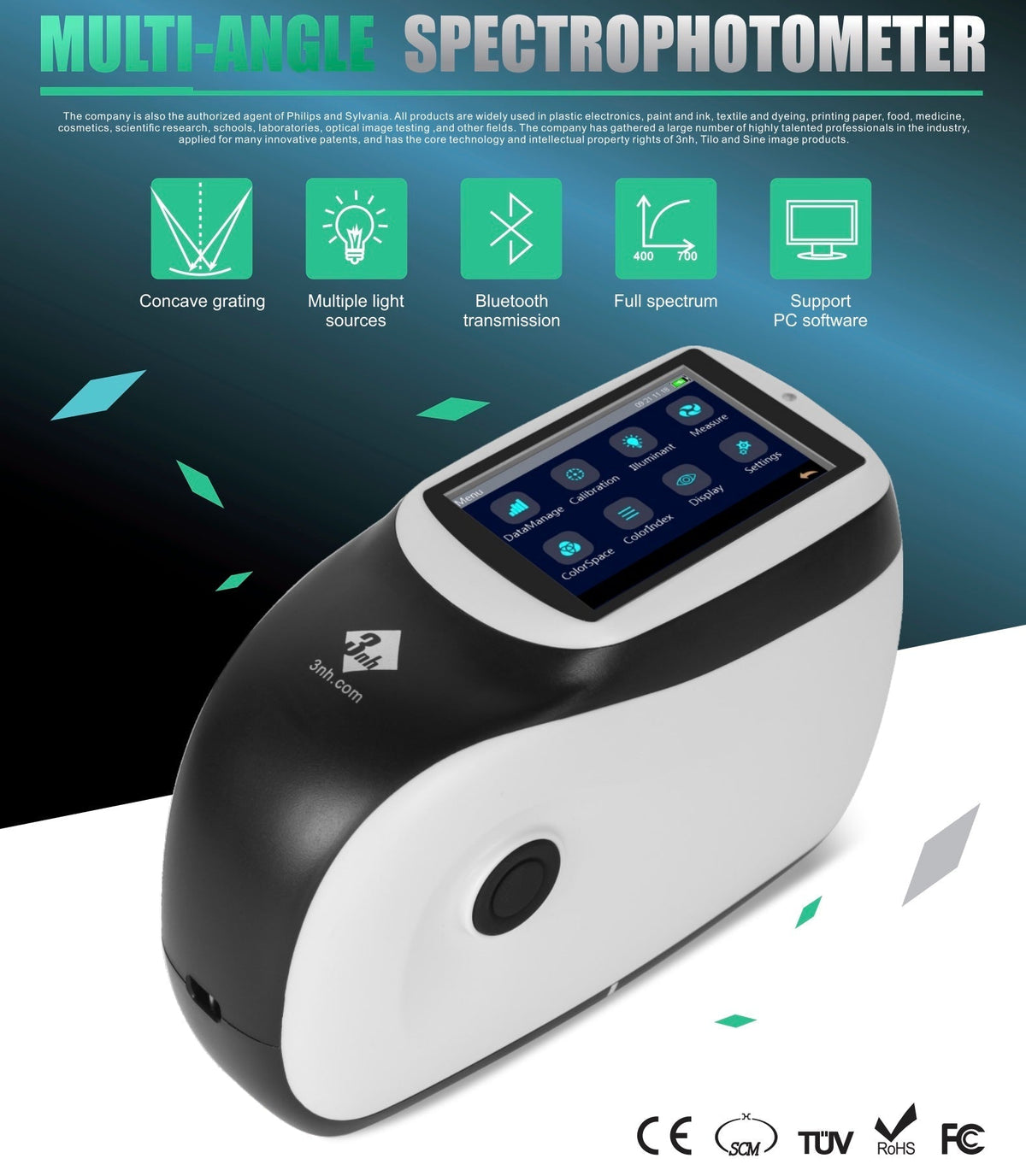

  • Concave grating technology: Delivers higher resolution for more accurate color measurement.
  • Durable professional-grade white board: Offers stable optical performance with a high-hardness surface.
  • Ergonomic design: Comfortable to use, with a smooth surface and well-placed controls for various hand positions.

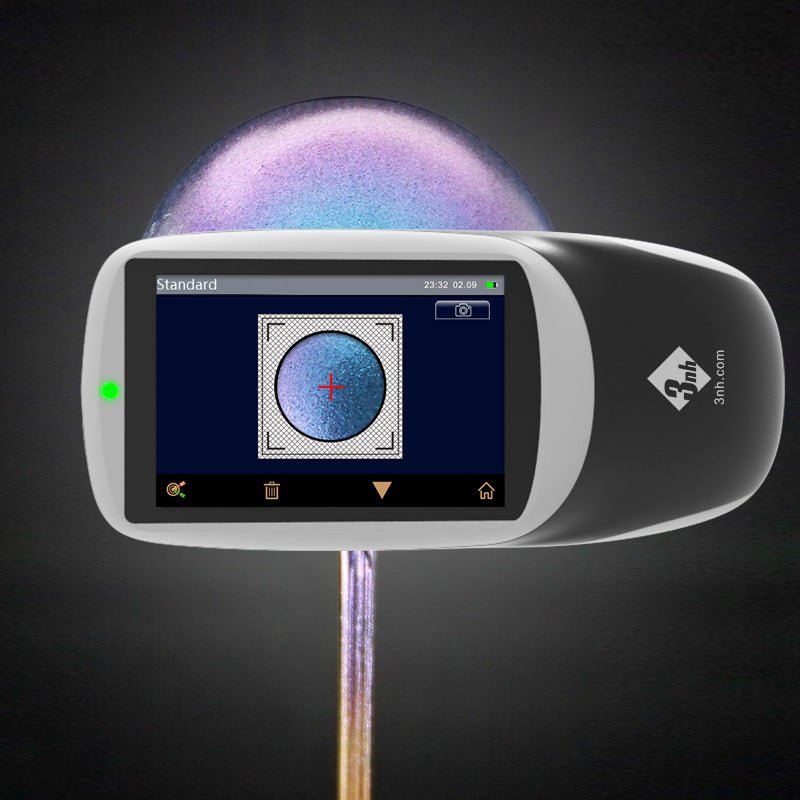

  • Color camera preview: Enables precise positioning of the measured area for improved accuracy.
  • Multiple color spaces and light sources: Supports a variety of color spaces (CIE LAB, XYZ, Yxy) and light sources (D65, A, C, D50, etc.).
  • Easy data analysis: Displays detailed measurement data, including chromaticity values, color differences, pass/fail results, and more for enhanced work efficiency.

Note: This item ships direct from the manufacturer. Please allow an additional 3-5 business days for order processing and shipment on all 3nh instruments.

Model MS3006

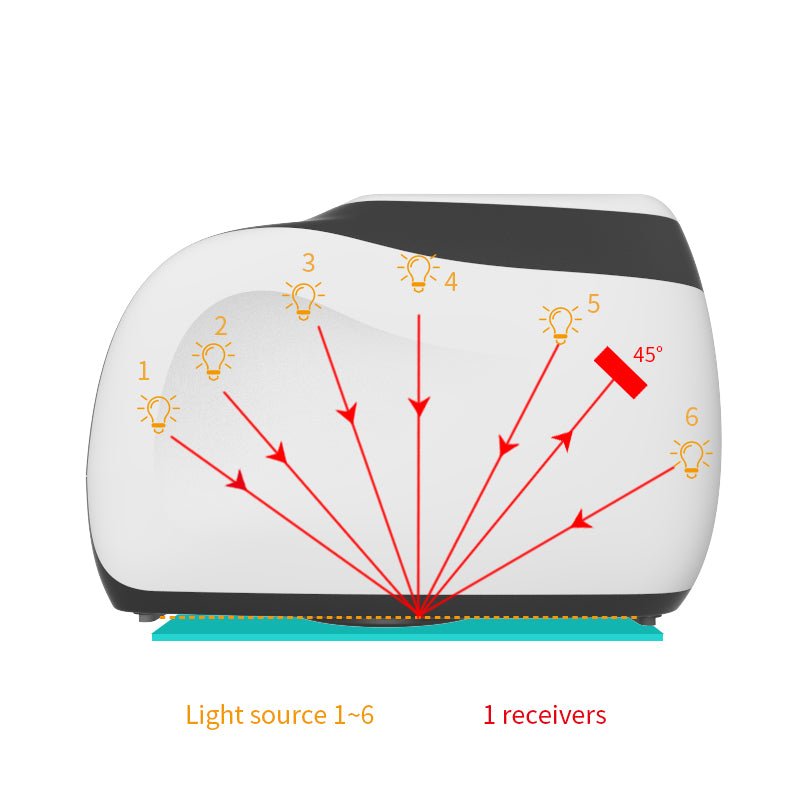

Measurement Geometry 6 measurement angles (6 illumination sources, 1 receivers)
Measure Angle 45° Receiver:
45as-15°, 45as15°, 45as25°, 45as45°, 45as75°, 45as110°
Conform to the standards: ASTM D 2244, E 308, E 1164, E 2194, E2539, DIN 5033, 5036, 6174, 6175-1,6175-2; ISO 7724, 11664-4  SAE J 1545
Application Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products
Light Source Full spectrum LED light source with blue enhancement
Lamp Life 5 years, 3 million times measurements
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400nm-700nm
Wavelength Interval 10nm
Measurement Range 0~600%
Semiband Width 10nm
Measuring Aperture Illumination size Φ23mm / Measuring spot 9X12mm (Customized: Illumination size Φ10mm / Measuring spot 6X8mm)
Color Space CIE LAB, XYZ, Yxy, LCh, βxy, DIN Lab99
Color Difference Formula ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175
Other Colorimetric Index Flop Index, Int-Em
Observer Angle 2°/10°
Illuminant D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30)
Display Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value
Measuring Time Approx. 1 second for one angle
Approx. 6 seconds for all angles
Repeatability Spectral reflectance:  Standard deviation within 0.08%
Chromaticity value:  ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Reproducibility ΔE*<0.10,avg on the gray tile of BCRA tile set
ΔE*<0.25,avg on the color BCRA tile set
Inter-Instrument Error 0.2ΔE*00(avg on reference Series II BCRA tile set)
Effect Parameters Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV)
Effect Measurement 6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80°
15d Diffuse coarseness(DC)
Effect Repeatability Sparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Effect Reproducibility Sparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations)
(avg on reference Series II BCRA tile set)
Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set)
Trigger mode Pressure sensing trigger, button trigger, software trigger
Measuring Mode Single measurement, average measurement (1-99), continuous measurement (1-99)
Locating Mode Color camera preview
Dimension L*W*H=195X83X128mm
Weight About 1Kg
Power lithium-ion battery, 3.7V,5000mAh, Continuous test 6000 times within 8 hours of full charge
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB, Bluetooth 5.0
Data Storage 1000 pcs Standards, 4000 pcs Samples
Language Simplified Chinese, Traditional Chinese, English
Operating Environment 10℃ to 50℃, humidity does not exceed 85%, no condensation
Storage Environment -20℃ to 50℃, humidity does not exceed 85%, no condensation
Calibration Built-in white board parameters, external white board, black cavity
Calibration Interval 4 hours,8 hours,24 hours,Startup calibration
Standard accessories Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband
Optional Accessory Micro-printer
Notes Technical parameters are for reference only, subject to actual sales products.
