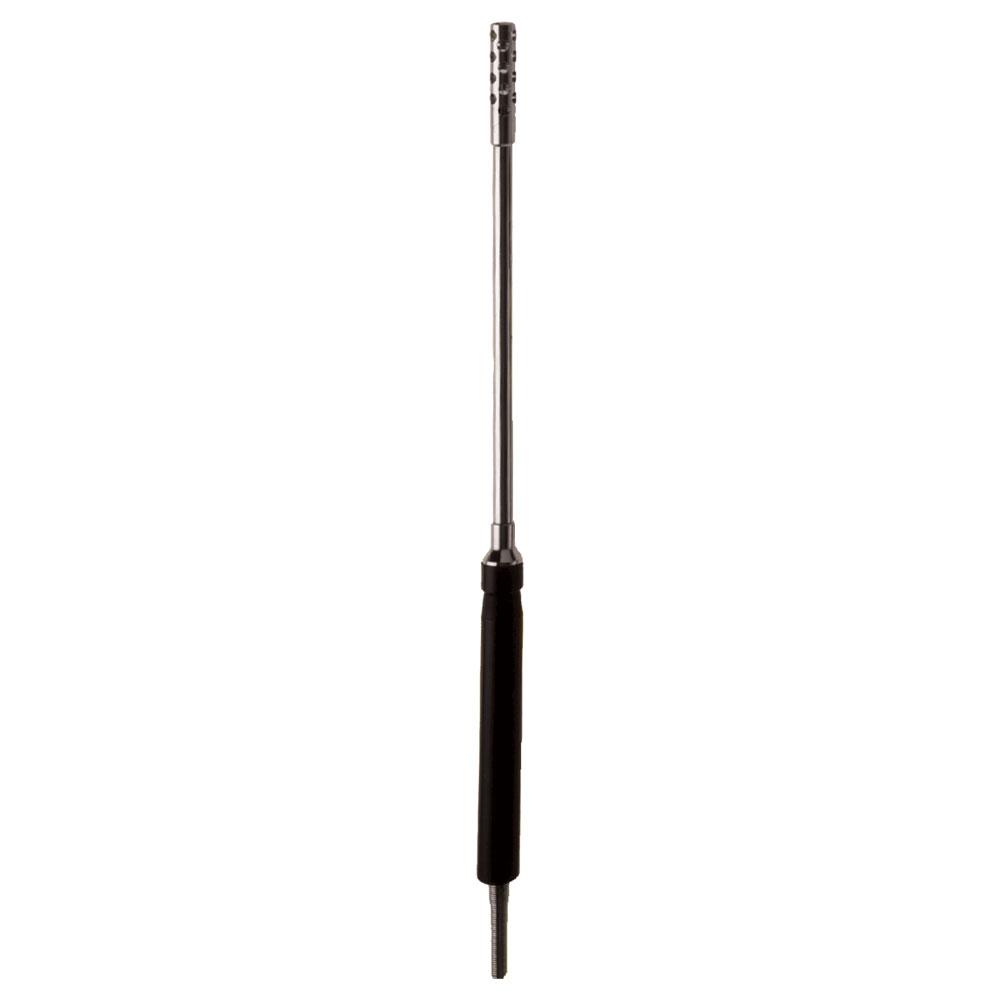

Type K Ambient Thermometer Probe
Download
Download
The primary difference between Type J and Type K thermocouples is the measuring range, and the sensitivity. Type K is the most common general purpose thermocouple with a sensitivity of approximately 41 µV/°C.
A wide variety of probes are available in its −50°C to +900°C / -58°F to +1652°F range. Type K wire color standard is yellow (+) and red (-). Type J has a more restricted range of −50 to +400°C, but higher sensitivity of about 50 µV/°C. Type J wire color standard is white (+) and red (-).
| Ambient Thermometer Probe | |||
|---|---|---|---|
| Type | Application | Temperature Range | Dimensions |
| K | Fast response in air & gas. Sheath protected element |
-50 to 600ºC -58 to 1112ºF |
Handle Length: 4.5" (114 mm) Probe Length: 8" (203 mm) Probe Diam: 11 mm Max Cord Length: 40" |
Comparison Chart
Impossible d’afficher la disponibilité du retrait.
Product Information
Product Information
The primary difference between Type J and Type K thermocouples is the measuring range, and the sensitivity. Type K is the most common general purpose thermocouple with a sensitivity of approximately 41 µV/°C.
A wide variety of probes are available in its −50°C to +900°C / -58°F to +1652°F range. Type K wire color standard is yellow (+) and red (-). Type J has a more restricted range of −50 to +400°C, but higher sensitivity of about 50 µV/°C. Type J wire color standard is white (+) and red (-).
| Ambient Thermometer Probe | |||
|---|---|---|---|
| Type | Application | Temperature Range | Dimensions |
| K | Fast response in air & gas. Sheath protected element |
-50 to 600ºC -58 to 1112ºF |
Handle Length: 4.5" (114 mm) Probe Length: 8" (203 mm) Probe Diam: 11 mm Max Cord Length: 40" |
