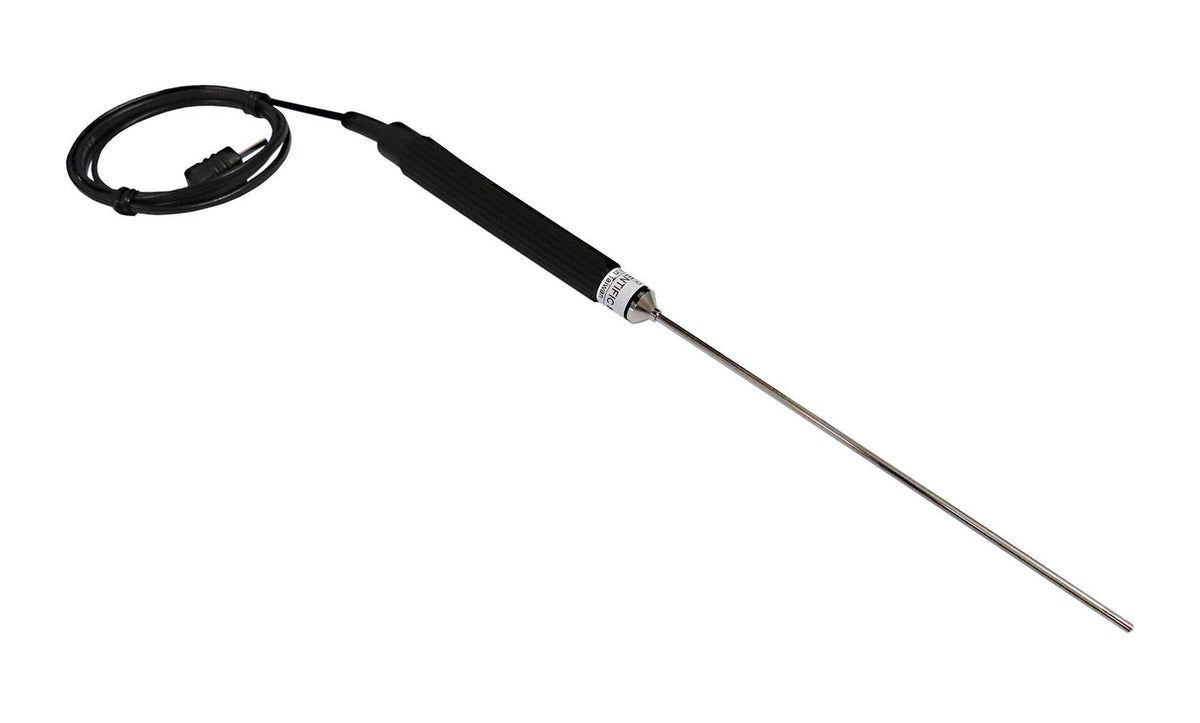

Type J Immersion and General Purpose Thermometer Probe
Download
Download
The primary difference between Type J and Type K thermocouples is the measuring range, and the sensitivity. Type K is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C.
A wide variety of probes are available in its −50°C to +900°C / -58°F to +1652°F range. Type K wire color standard is yellow (+) and red (-). Type J has a more restricted range of −50 to +400°C, but higher sensitivity of about 50 µV/°C. Type J wire color standard is white (+) and red (-).
Specifications
| Immersion & General Purpose Thermometer Probe | |||
|---|---|---|---|
| Type | Application | Temperature Range | Accuracy |
| J | Large | -50 to 400ºC -58 to 752ºF |
± 0.75% |

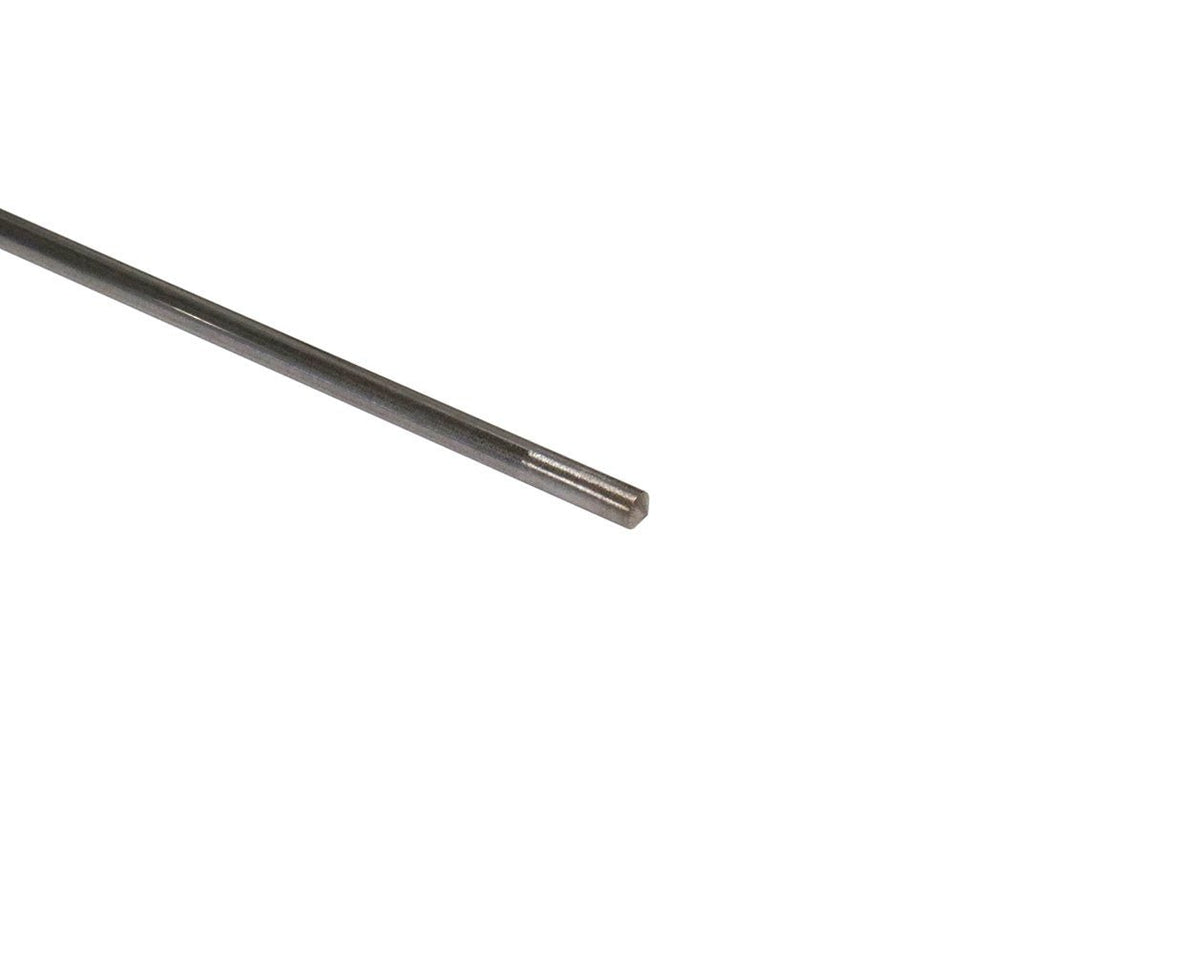

| Dimensions | Handle Length: 5.2" (133 mm) Probe Length: 6" (152 mm) Probe Diam: 3 mm Cord Length: 40" |
||
Comparison Chart
Impossible d’afficher la disponibilité du retrait.
Product Information
Product Information
The primary difference between Type J and Type K thermocouples is the measuring range, and the sensitivity. Type K is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C.
A wide variety of probes are available in its −50°C to +900°C / -58°F to +1652°F range. Type K wire color standard is yellow (+) and red (-). Type J has a more restricted range of −50 to +400°C, but higher sensitivity of about 50 µV/°C. Type J wire color standard is white (+) and red (-).
Specifications
| Immersion & General Purpose Thermometer Probe | |||
|---|---|---|---|
| Type | Application | Temperature Range | Accuracy |
| J | Large | -50 to 400ºC -58 to 752ºF |
± 0.75% |
| Dimensions | Handle Length: 5.2" (133 mm) Probe Length: 6" (152 mm) Probe Diam: 3 mm Cord Length: 40" |
||
Comparison Chart
