Digital Type 2 Sound Meter
Download
Download

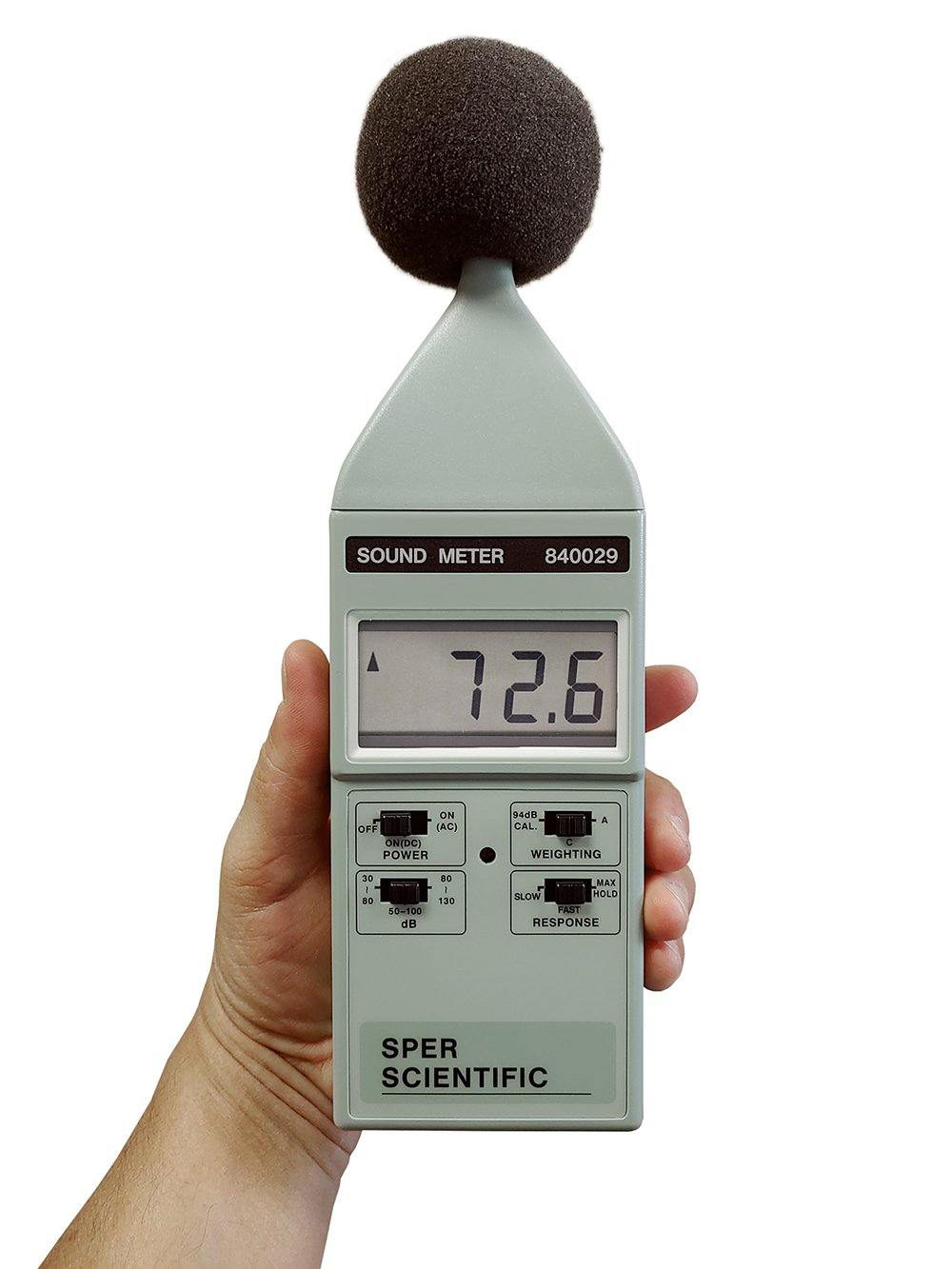

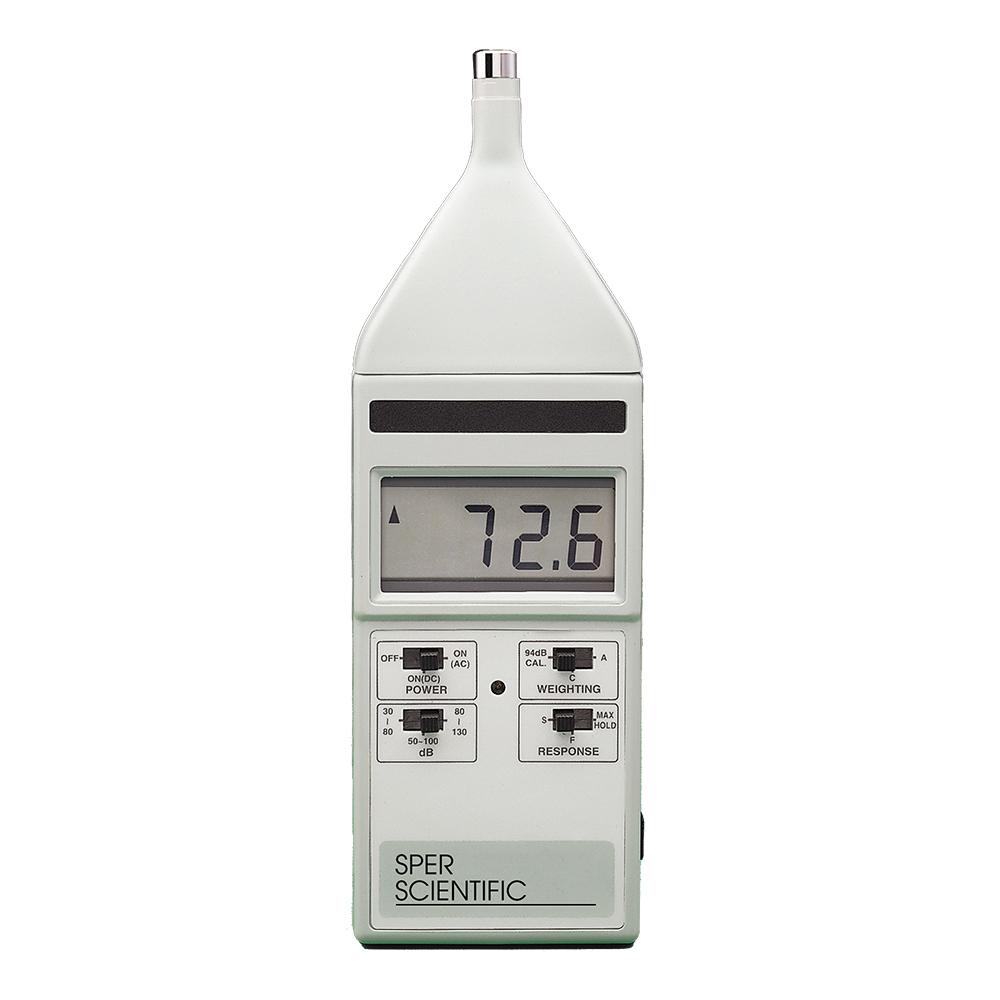

This sound meter offers a wide variety of measuring options including A and C decibel frequency weighting scales, fast or slow response, AC or DC output, and peak function.
Perfect for testing for OSHA requirements. Meets IEC 61672:2013 and ANSI S1.4: 2014 frequency and time weighting specifications for a Type 2 sound meter. The large display has a resolution of 0.1 dB and also indicates low battery and over or under load. Covers 30 to 130 dB in the A scale and 35 to 130 dB in the C scale, with an accuracy of ±1.0 dB. Can be easily calibrated using the internal oscillation system. Has a fold out stand and comes with carrying case, instructions, calibration tool, windscreen, and a 9V battery. N.I.S.T. Traceable Certificate of Calibration available.
This instrument features a tripod mount, and we recommend using a tripod for the most stable and accurate readings.
- Display:¾" LCD, 3½ digits
- Power Consumption: Approx. DC 6mA
- 5 Year Warranty, CE, RoHS, UL
Dimensions: 8½" × 3⅛" × 1⅜" (216 × 80 × 35 mm)
Weight: 10 oz (283 g)
*Certification Option
Specifications
| Ranges | Resolution | Accuracy |
| 30 to 130 dBA 35 to 130 dBC |
0.1 dB | ±1.0 dB |
Downloads
Comparison Chart
Impossible d’afficher la disponibilité du retrait.
Product Information
Product Information
This sound meter offers a wide variety of measuring options including A and C decibel frequency weighting scales, fast or slow response, AC or DC output, and peak function.
Perfect for testing for OSHA requirements. Meets IEC 61672:2013 and ANSI S1.4: 2014 frequency and time weighting specifications for a Type 2 sound meter. The large display has a resolution of 0.1 dB and also indicates low battery and over or under load. Covers 30 to 130 dB in the A scale and 35 to 130 dB in the C scale, with an accuracy of ±1.0 dB. Can be easily calibrated using the internal oscillation system. Has a fold out stand and comes with carrying case, instructions, calibration tool, windscreen, and a 9V battery. N.I.S.T. Traceable Certificate of Calibration available.
This instrument features a tripod mount, and we recommend using a tripod for the most stable and accurate readings.
- Display:¾" LCD, 3½ digits
- Power Consumption: Approx. DC 6mA
- 5 Year Warranty, CE, RoHS, UL
Dimensions: 8½" × 3⅛" × 1⅜" (216 × 80 × 35 mm)
Weight: 10 oz (283 g)
*Certification Option
Specifications
| Ranges | Resolution | Accuracy |
| 30 to 130 dBA 35 to 130 dBC |
0.1 dB | ±1.0 dB |
Downloads
Comparison Chart
