YX360TRF | Analog Multimeter with Built-In Case
Download
Download

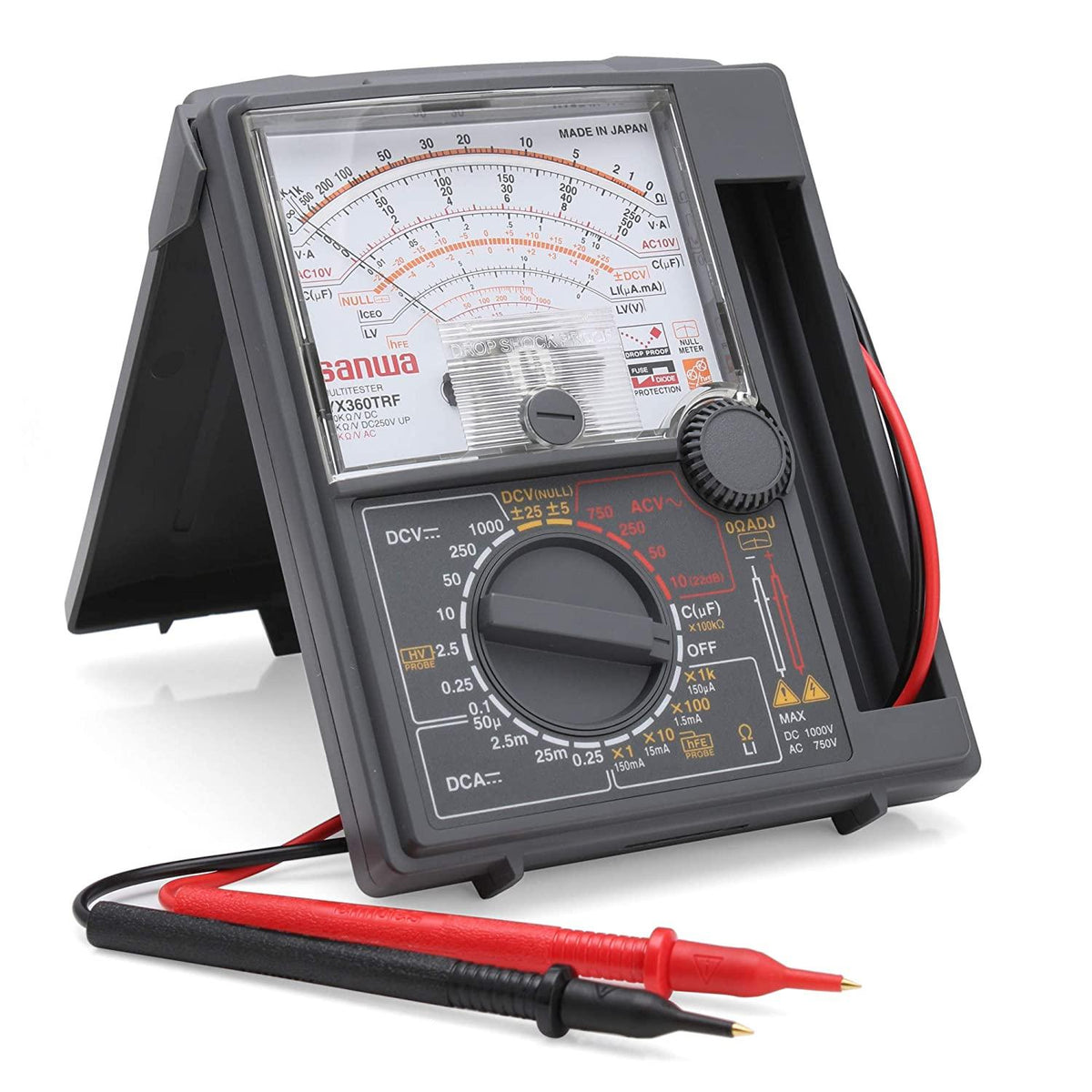

A convenient multimeter with it's own built-in, shock resistant case.

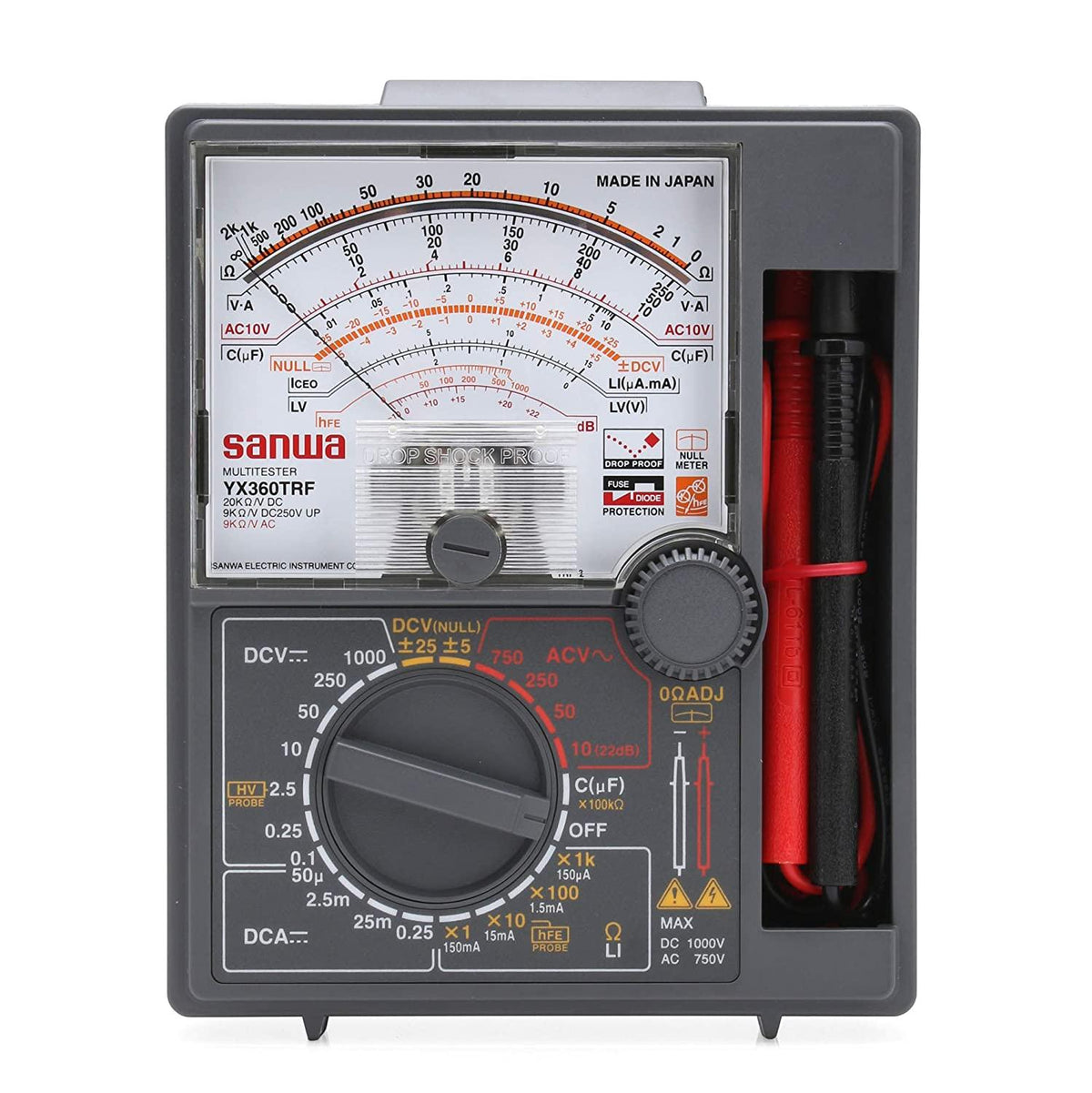

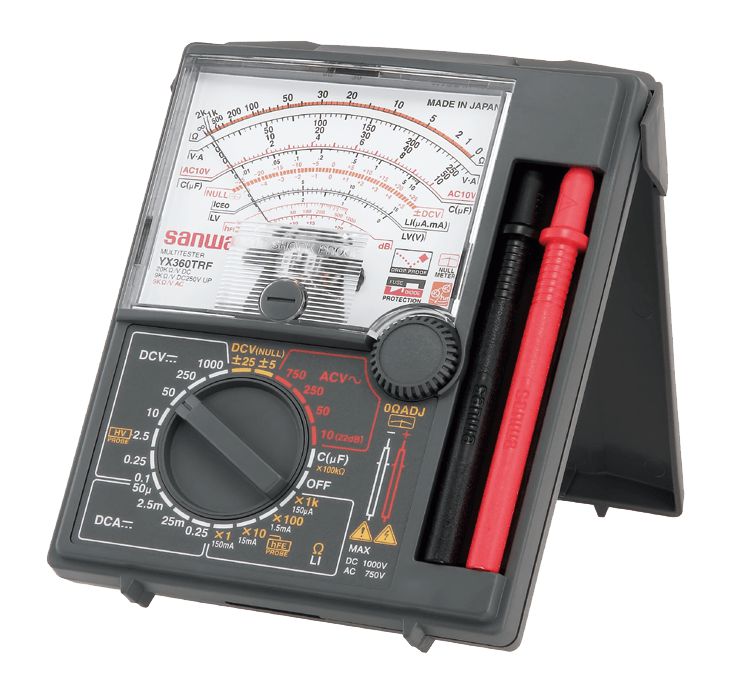

The YX360TRF is a taut-band type meter designed for low-voltage circuit measurements. It can measure DCV, DCA, AC, resistance, capacitance(10uF), Load line current, Signal power in dB as well as high DC voltage of up to 25kV using an HV-10T probe (optional). When measuring DCV the meter utilizes the Null reading for ±25V with an accuracy of ±5% full-scale accuracy.

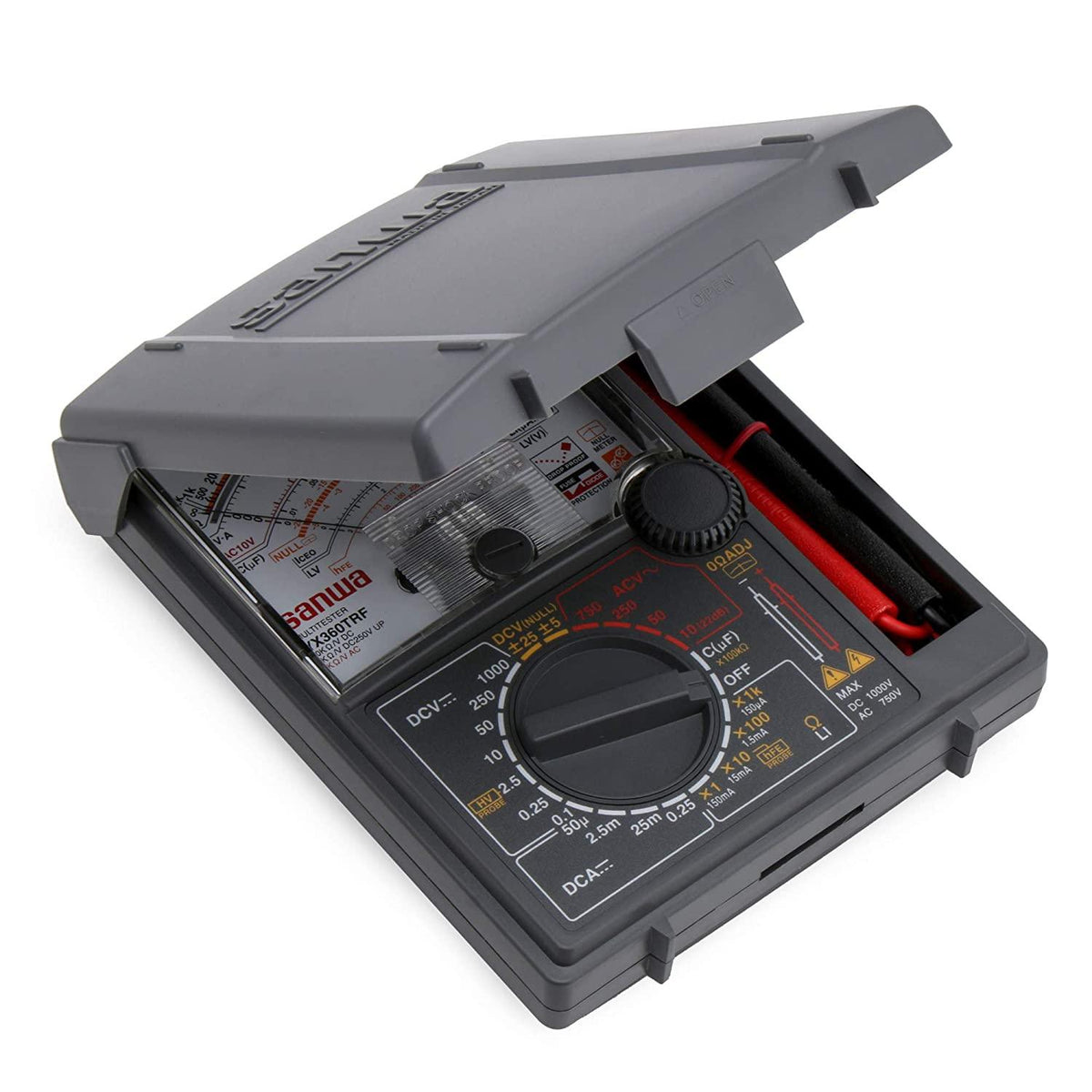

This multimeter has a solid cover that provides protection against drop shocks, and conveniently folds over to use as a tilt stand, and features a compartment for storing the attached test leads. For circuit protection, the device features a replaceable fuse rated at (250V / 0.5A).

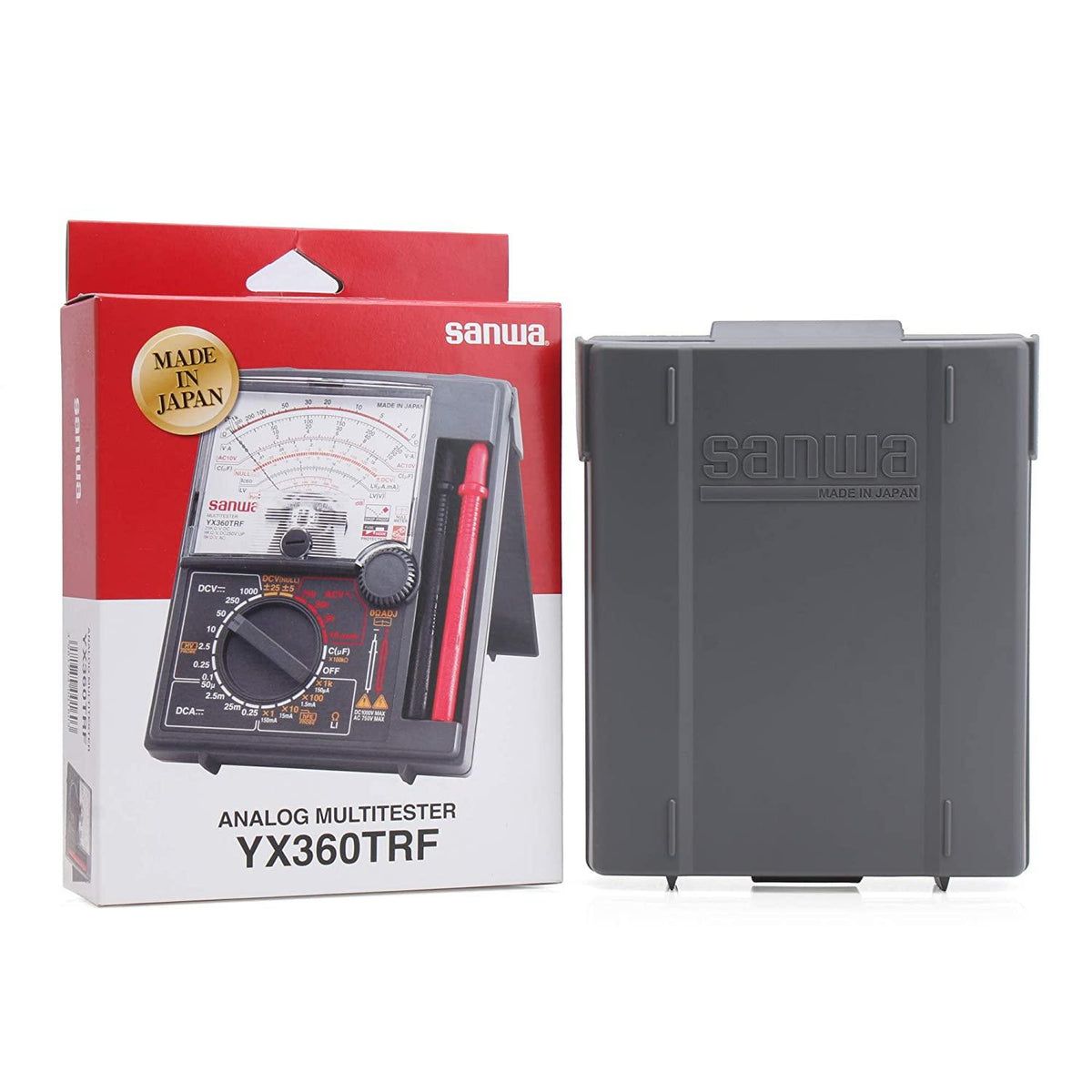

Meter includes attached test leads and instruction manual.
- Drop shock proof meter
- Null (zero center) meter ±5 / ±25 in DCV
- High resistance up to 200MΩ with low voltage
- Solid & protective body cover that can also be used as a tilt stand
- Capacitance, dB, LI measurement
Specifications
| Function | Measuring Range | Tolerance |
|---|---|---|
| DCV | 0.1（20kΩ/V) 0.25/2.5/10/50 （20kΩ/V)/250/1000V（9kΩ/V) |
±5% of full scale ±3% of full scale |
| DCV (NULL) | ±5/25V（40kΩ/V) | ±5% of full scale |
| ACV | 10/50/250/750（9kΩ/V) | ±4% of full scale |
| DCA | 50μ/2.5m/25m/0.25A | *1 ±3% of full scale |
| Resistance | 2k/20k/200k/2MΩ (x1/x10/x100/x1k) 200MΩ (x100k) |
±3% of arc ±5% of arc |
| Capacitance | 10μF | Approximate value |
| dB | -10dB～+22dB (for 10VAC) ～+62dB | Approximate value |
| Load current (LI) | 0-150m/15m/1.5m/150μ/1.5μA | Approximate value |
| DC high voltage | DC25kV (optional probe "HV-10T" is necessary) |
- |
| hFE | 1000 at x10 range (optional probe "HFE-6T" is necessary) |
- |
| Battery | R6 (IEC) or UM-3 (1.5V)x2 |
| Fuse | Φ5.2x20mm (250V/0.5A) |
| Size/Mass | H159.5×W129×D41.5mm/Approx. 320g |
|
*The value in ( ）at DCV and ACV is input resistance |
