The YG60L Plus is an industrial-grade, online non-contact gloss meter designed for continuous gloss measurement and quality control in automated production environments.

Note: This item ships direct from the manufacturer. Please allow an additional 3-5 business days for order processing and shipment on all 3nh instruments.

Developed by 3nh, the YG60L Plus enables high-speed, high-accuracy gloss monitoring without touching or contaminating the product surface. Using a 60° measurement geometry compliant with international standards, the YG60L Plus delivers reliable gloss data for coatings, inks, plastics, ceramics, metals and other finished surfaces. Its non-contact design makes it ideal for liquids, powders, pastes and delicate materials where traditional contact gloss meters are impractical.

With support for RS485 multi-machine networking and GQC6 quality management software, the YG60L Plus integrates seamlessly into modern production lines for real-time inspection, SPC monitoring and automated quality control.

Applications

The YG60L Plus is widely used for inline gloss inspection across industrial and manufacturing environments, including:

• Paint and coatings production
• Printing inks and paper finishing
• Plastics and polymer processing
• Ceramics and glass manufacturing
• Electroplating and surface treatment
• Furniture, marble and decorative materials
• Consumer goods and cosmetics packaging

It supports both matte and high-gloss surfaces, with a measurement range extending to mirror-like finishes.

Features and Benefits

• Non-contact gloss measurement
  Measures gloss without touching the surface, eliminating contamination, wear or damage to products.

• High-speed online testing
  Capable of measuring up to 5 samples per second, making it ideal for continuous production lines.

• Wide measurement range
  Measures from 0 to 1000 GU, covering matte through high-gloss finishes.

• High precision and repeatability
  Delivers 0.1 GU resolution with excellent repeatability and long-term stability.

• Multiple measurement modes
  Supports Basic, Statistical, Continuous and Quality modes for flexible inspection workflows

• Industrial standard compliance
  Conforms to ISO 2813, ASTM D523 and GB/T 9754 standards.

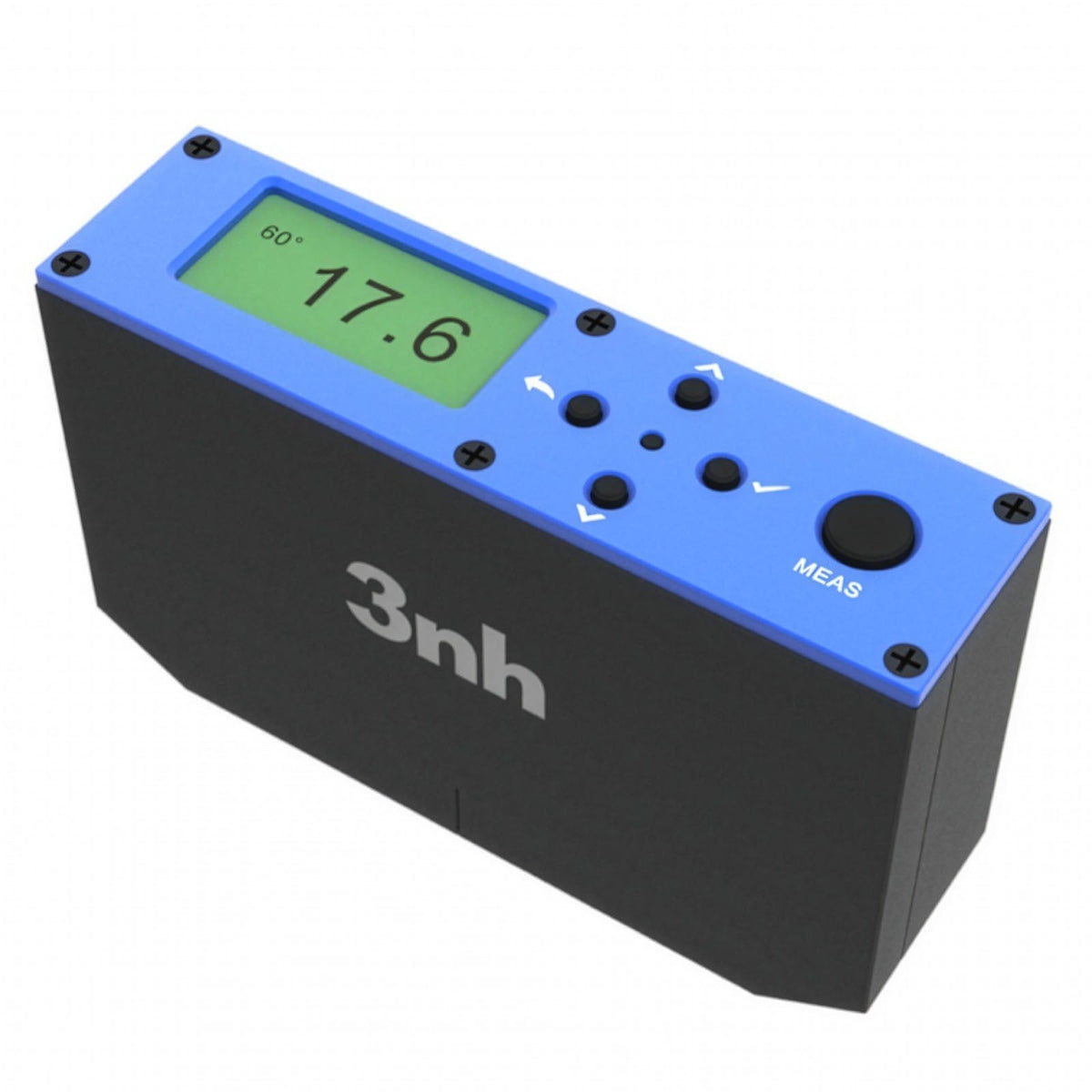

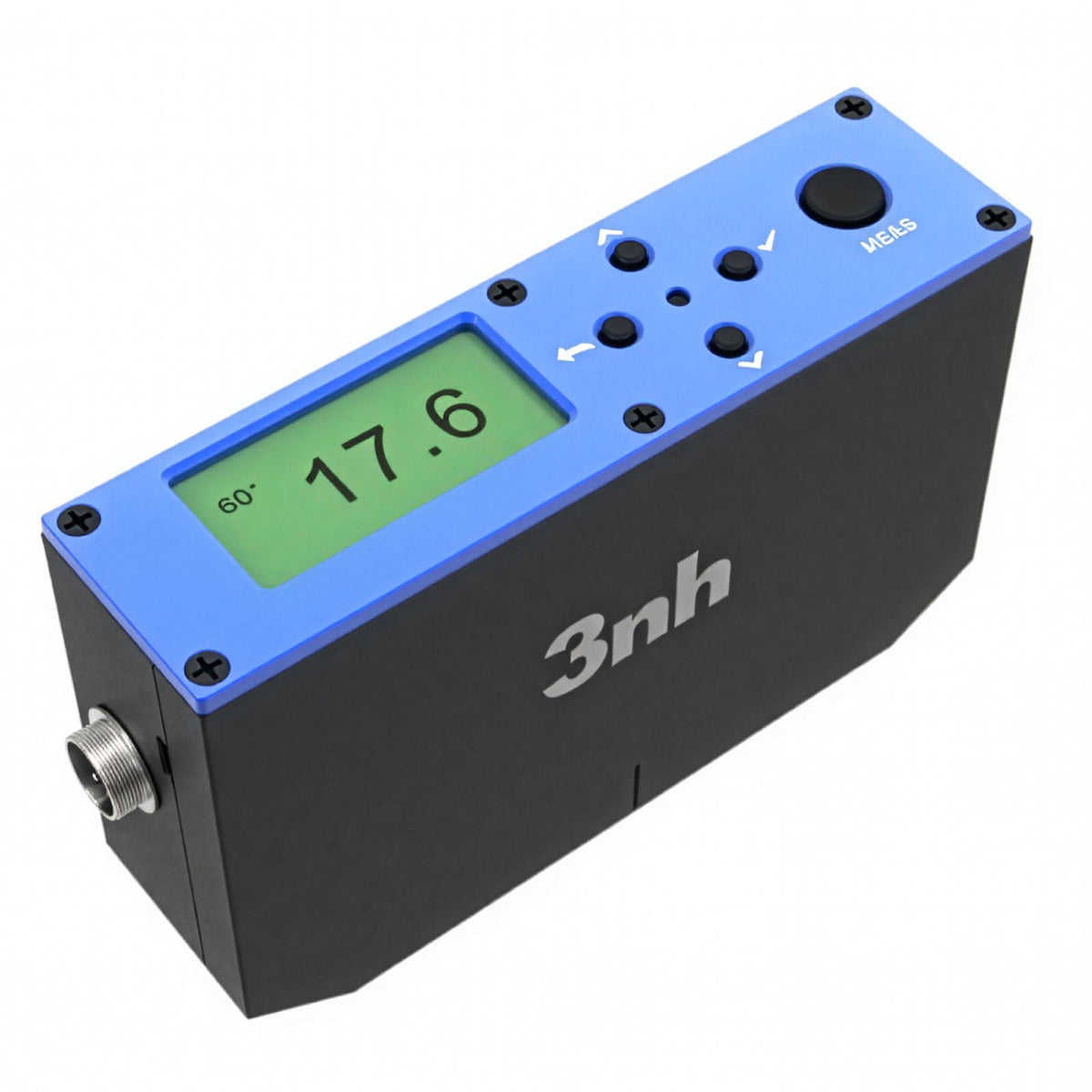

• Integrated display and controls
  Built-in screen with simple navigation for real-time readings and mode selection.

• Data storage and connectivity
  Stores up to 35,000 measurement records and supports USB and RS485 communication.

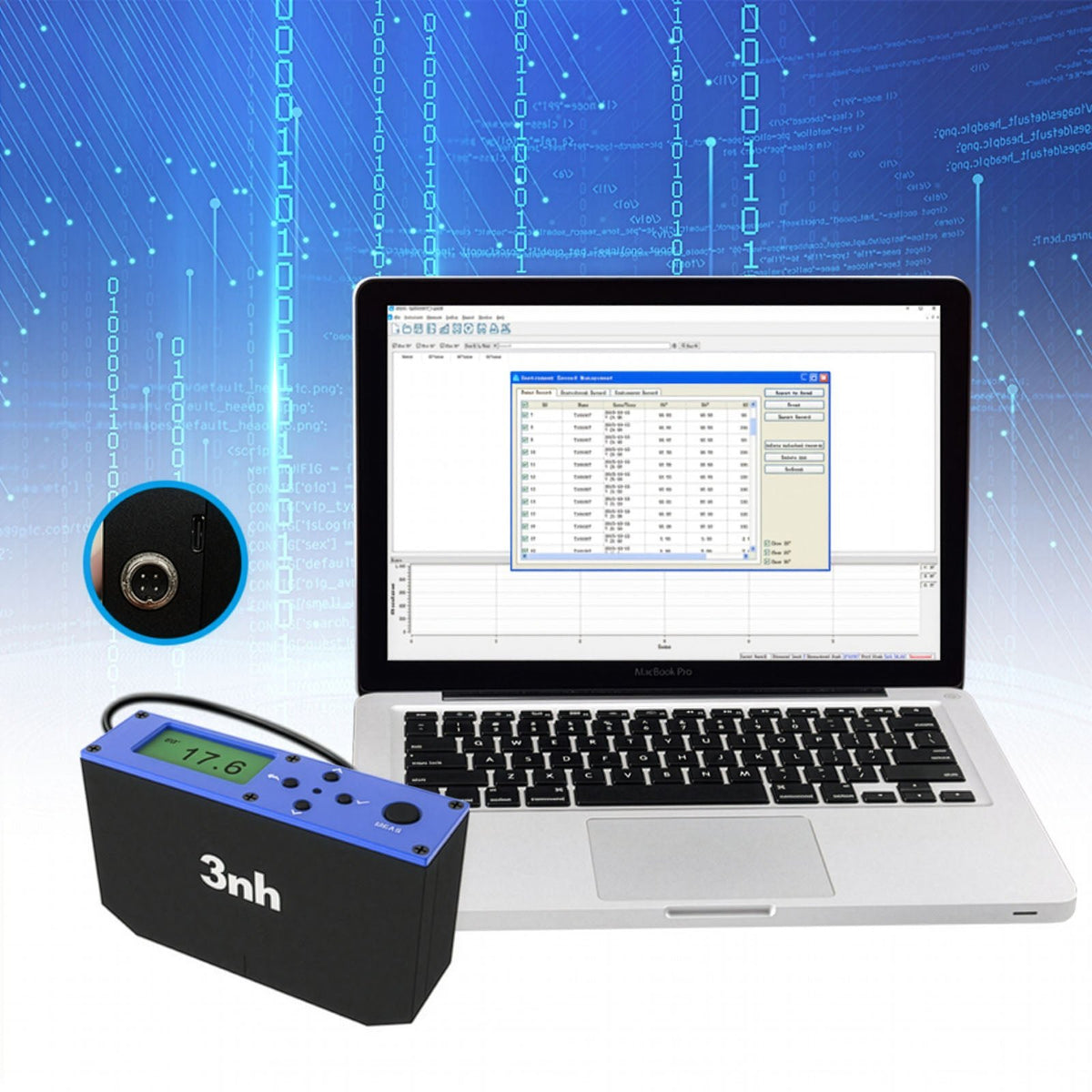

Quality Control with GQC6 Software

The YG60L Plus works with GQC6 quality management software to support advanced production monitoring and analysis:

• Real-time data transfer from the gloss meter to PC
• Automatic generation of QC reports, charts and data tables
• Product specification and tolerance management
• Pass/fail qualification tracking
• Trend analysis and SPC charts for process stability monitoring
• Easy data export, printing and record management

This makes the YG60L Plus an excellent solution for manufacturers implementing statistical process control (SPC)and digital quality systems.

Specifications

Downloads

YG60L Plus Product Datasheet

YG60L Plus Users Manual
