Fast, precise thickness measurement of metals, plastics, ceramics and other ultrasonic-conductive materials

All BRK meters and probes ship direct from the manufacturer and require 10-15 business days for shipping.

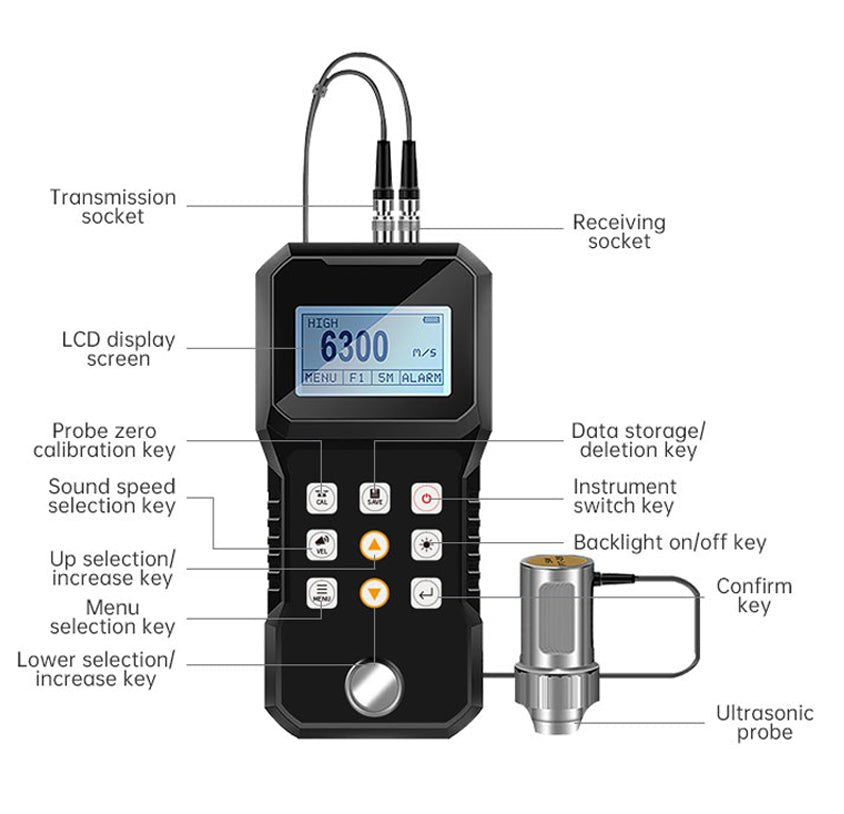

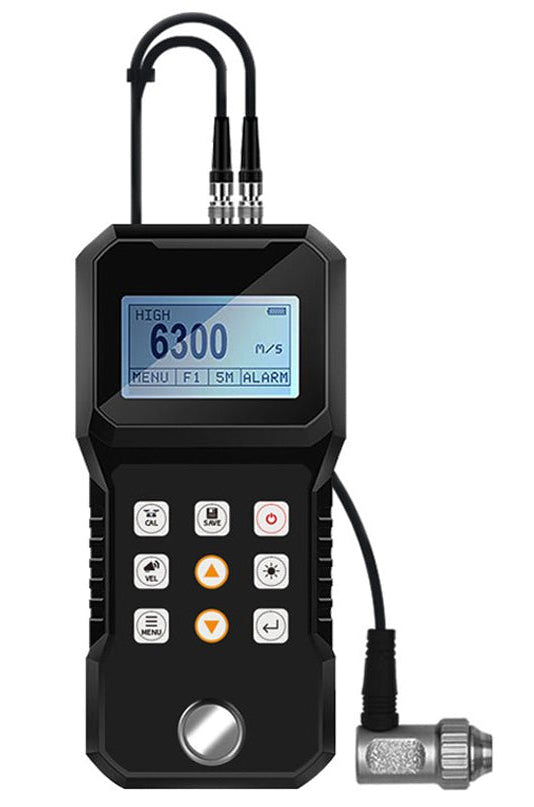

The BRK UCT-180C Ultrasonic Thickness Gauge delivers fast, precise thickness measurement of metals, plastics, ceramics and other ultrasonic-conductive materials without damaging the test surface. Engineered with advanced microprocessor control, it provides consistent accuracy for corrosion monitoring, quality control and structural inspection applications.

Designed for real-world industrial use, the UCT-180C supports both single-point and scanning measurement modes, allowing users to capture spot readings or continuously track thickness variations across surfaces. With a measurement rate of up to 10 readings per second in scan mode, it is well-suited for identifying thinning, pitting and material loss in pipelines, tanks and structural components.

The gauge supports a wide range of interchangeable probes, including standard, small-diameter, coarse-grain and high-temperature probes, enabling accurate measurement across different materials and surface conditions. This flexibility makes it effective for applications ranging from fine tubing to heavy cast materials.

Its rugged, portable design ensures reliable operation in harsh environments, with an operating temperature range of -20°C to 50°C and a compact, lightweight form factor for field inspections.

• High-precision ultrasonic measurement for metals, plastics, ceramics and composites
• Dual measurement modes: single-point and continuous scan
• Fast sampling rate: up to 10 readings per second in scan mode
• Wide probe compatibility: Unit includes a standard 10mm probe, and also supports optional standard, micro, coarse-grain and high-temperature probes
• Corrosion monitoring capability for pipelines, tanks and pressure vessels

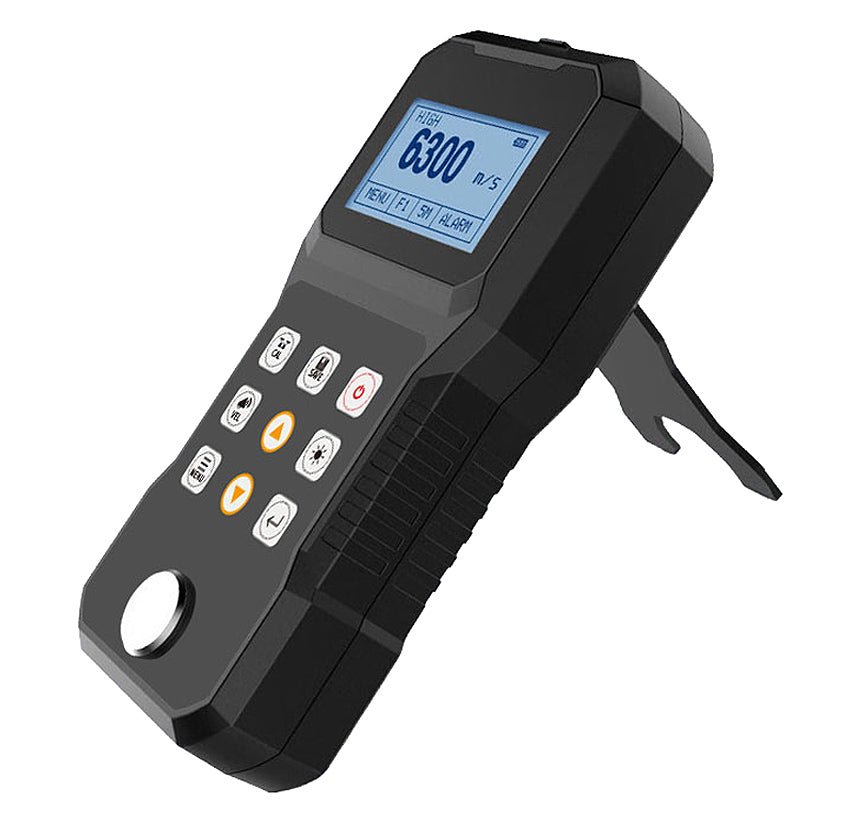

• Portable, rugged design for industrial field use
• Clear LCD display with backlight for low-light environments
• Compact and lightweight (approx. 255g) for easy handling

Applications

The UCT-180C is ideal for professionals requiring reliable thickness measurement in:

• Oil and gas pipelines and storage tanks
• Marine and ship hull inspection
• Pressure vessels and boilers
• Manufacturing quality control
• Aerospace and automotive components
• Structural steel and infrastructure inspection

Specifications

Probe Options

Probe Type	Frequency	Diameter	Range	Application
Standard Probe (included)	5 MHz	10 mm	1 – 500 mm	General purpose
Micro / Thin Wall	7 MHz	4 or 6 mm	0.65 – 260 mm	Thin materials
Coarse Grain	2–5 MHz	14 mm	Up to 500 mm	Cast materials
High Temp	5 MHz	14 mm	3 – 200 mm	Up to 350°C



Downloads

BRK UCT-180 Series Datasheet

BRK UCT-180 Series Users Manual



Comparison Chart

Compare Ultrasonic Thickness Gauges

Feature	UCT-180B	UCT-180C	PMT-360 Series
Best For	Field inspection, corrosion testing	Enhanced inspection with coating capability	Advanced analysis, lab + field
Measurement Range	0.65 – 500 mm	0.65 – 500 mm	0.05 – 2000 mm
Resolution	0.01 mm	0.01 mm	Up to 0.0001 mm
Measurement Modes	Basic + Scan	Pulse-Echo + Echo-Echo	E-E, P-E, Coating, Multi-mode
Through Coating	Limited	Yes	Yes (advanced)
Display	Standard LCD	Enhanced LCD	A-scan + B-scan waveform
Data Storage	2000 readings	10,000 readings (typical)	Up to 1TB
Ease of Use	Very easy	Easy with added features	Advanced user
Price Tier	$$	$$$	$$$$
Ideal Buyer	Technicians, inspectors	Inspectors needing coating measurement	Engineers, NDT specialists



Probes

Probe Comparison

Optional Probes for UCT-180 Series
