TS70 Series Handheld Spectrocolorimeter
Regular price
Sale price
$1,288.32 USD
Regular price
$1,356.13 USD
Shipping calculated at checkout.
Download
Download
The 3NH TS70 Series Spectrocolorimeter is a cutting-edge solution for precise color measurement and analysis.
TS7010 / TS7020 / TS7030 / TS7036
Professional Color Measurement for Precision-Driven Results
The 3nh TS70 Series includes four advanced models, all designed for accurate, repeatable color measurement in quality control applications across a wide variety of industries. Each device features a high-end optical system with a dual-row 24-group silicon photodiode array, full-spectrum LED light source, and true-color capacitive touchscreen, delivering rapid, precise results without the need for a connected PC.
Whether you're working in plastics, coatings, textiles, ceramics or electronics, the TS70 Series ensures consistent evaluation of both color difference (ΔE) and absolute color values (L, a, b*)**, while meeting international and national color measurement standards.
Models:
-
TS7010: Standard model with 8 mm aperture
-
TS7020: Includes UV light source for measuring fluorescent samples
-
TS7030: Offers dual apertures for flexible sample compatibility
-
TS7036: Optimized for textured or glossy surfaces
Key Features:
- Exceptional repeatability and accuracy with ΔEab ≤ 0.1 and long-term Lab stability
-
Full-spectrum LED, plane grating optics and high-resolution sensor array for superior color precision
-
Built-in memory stores up to 500 standard samples and 10,000 test records
-
Rechargeable lithium battery supports up to 6,000 measurements on a single charge
-

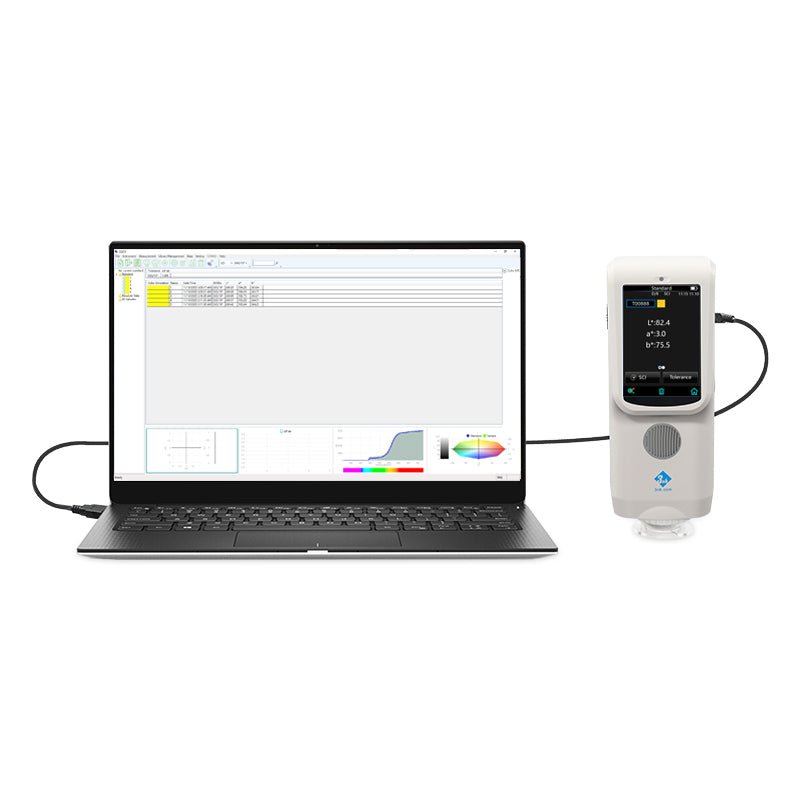

Operates independently—no need for PC connection or software to assess and compare color differences
Applications
-
Plastics and polymers
-
Paint, ink and coatings
-
Textiles, dyeing and printing
-
Ceramics and tile
-
Electronics casings and components
Note: This item ships direct from the manufacturer. Please allow an additional 3-5 business days for order processing and shipment on all 3nh instruments.
Specifications
| Model | TS7010 | TS7020 | TS7030 | TS7036 |
| Optical Geometry | D/8 (diffused illumination, 8-degree viewing angle) SCI Mode Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | D/8 (diffused illumination, 8-degree viewing angle) | D/8 (diffused illumination, 8-degree viewing angle) | D/8 (diffused illumination, 8-degree viewing angle) |
| Characteristic | Φ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries | Φ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries | Single aperture, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries | Double apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries. Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Integrating Sphere Size | Φ40mm | Φ40mm | Φ40mm | Φ40mm |
| Light Source | Combined full spectrum LED light source | Combined full spectrum LED light source | Combined full spectrum LED light source, UV light source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating | Flat Grating | Flat Grating | Flat Grating |
| Sensor | Silicon photodiode array (double row 24 groups) | Silicon photodiode array (double row 24 groups) | Silicon photodiode array (double row 32 groups) | Silicon photodiode array (double row 32 groups) |
| Wavelength Range | 400～700nm | 400～700nm | 400～700nm | 400～700nm |
| Wavelength Interval | / | / | 10nm | 10nm |
| Semiband Width | 10nm | 10nm | 10nm | 10nm |
| Measured Reflectance Range | L:0~100; reflectivity:The reflectivity can be measured at 1 specific wavelengths specified by the user (default: 550nm) | L:0~100; reflectivity:The reflectivity can be measured at 3 specific wavelengths specified by the user (default: 440nm, 550nm, 600nm) | L:0~120; reflectivity:0~200% | L:0~120; reflectivity:0~200% |
| Measuring Aperture | Φ8mm | Φ8mm | Single Apertures：Φ8mm/Φ10mm | Dual Apertures：MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm |
| Specular Component | SCI | SCI | SCI/SCE | |
| Color Space | CIE LAB,XYZ,Yxy,LCh | CIE LAB,XYZ,Yxy,LCh | CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy,Munsell(C/2) | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2) |
| Color Difference Formula | ΔE*ab,ΔE*00 | ΔE*ab,ΔE*00 | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99 | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99 |
| Other Colorimetric Index | / | / | WI(ASTM E313,CIE/ISO,AATCC,Hunter)， | WI(ASTM E313,CIE/ISO,AATCC,Hunter)，YI(ASTM D1925,ASTM 313), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity,Color Card Search |
| Observer Angle | 10° | 10° | 2°/10° | 2°/10° |
| Illuminant | D65,A,F2(CWF) | D65,A,F2(CWF) | D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30) | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Reflectivity (the user specifies the reflectivity at 1 specific wavelengths), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset | Reflectivity (the user specifies the reflectivity at 3 specific wavelengths), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
| Displayed Accuracy | 0.1 | Display 0.1, storage 0.01 | 0.01 | 0.01 |
| Measuring Time | About 1.5s | About 1.5s | About 1.5s (Measure SCI & SCE about 3.2s) | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.1 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | Chromaticity value: MAV/SCI, within ΔE*ab 0.08 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | Chromaticity value: MAV/SCI, within ΔE*ab 0.06 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | Chromaticity value: MAV/SCI, within ΔE*ab 0.05 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.4 | MAV/SCI, Within ΔE*ab 0.4 | MAV/SCI, Within ΔE*ab 0.3 (Average for 12 BCRA Series II color tiles) | MAV/SCI, Within ΔE*ab 0.3 (Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) | Single Measurement, Average Measurement(2-99times) | Single Measurement, Average Measurement(2-99times) | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Stabilizer cross position | Stabilizer cross position | Camera Locating,stabilizer cross position | Camera Locating,stabilizer cross position |
| Dimension | L*W*H=81X71X214mm | L*W*H=81X71X214mm | L*W*H=81X71X214mm | L*W*H=81X71X214mm |
| Weight | About 460g | About 460g | About 460g | About 460g |
| Battery | Li-ion battery, 6000 measurements within 8 hours | Li-ion battery, 6000 measurements within 8 hours | Li-ion battery, 6000 measurements within 8 hours | Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements | 5 years, more than 3 million times measurements | 5 years, more than 3 million times measurements | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen | 3.5-inch TFT color LCD, Capacitive Touch Screen | 3.5-inch TFT color LCD, Capacitive Touch Screen | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB | USB | USB | USB,Bluetooth 5.0 |
| Data Storage | Standard 500 Pcs, Sample 10000 Pcs | Standard 500 Pcs, Sample 10000 Pcs | Standard 1000 Pcs, Sample 20000 Pcs(One data is able to include SCI/SCE) | Standard 1000 Pcs, Sample 30000 Pcs(One data is able to include SCI/SCE) |
| Language | Simplified Chinese, English, Traditional Chinese | Simplified Chinese, English, Traditional Chinese | Simplified Chinese, English, Traditional Chinese | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) | -20~50℃, 0~85%RH (no condensing) | -20~50℃, 0~85%RH (no condensing) | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, USB Cable, User Guide, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture | Power Adapter, USB Cable, User Guide, SQCX Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture | Power Adapter, USB Cable, User Guide, SQCX Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture | Power Adapter, USB Cable, User Guide, SQCX Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture |
| Optional Accessory | USB Micro Printer, Powder Test Box | USB Micro Printer, Powder Test Box | USB Micro Printer, Powder Test Box, | USB Micro Printer, Powder Test Box,Bluetooth Micro Printer |
| Notes | Technical parameters are only for reference, subject to the actual sale of the product | Technical parameters are only for reference, subject to the actual sale of the product | Technical parameters are only for reference, subject to the actual sale of the product | Technical parameters are only for reference, subject to the actual sale of the product |
