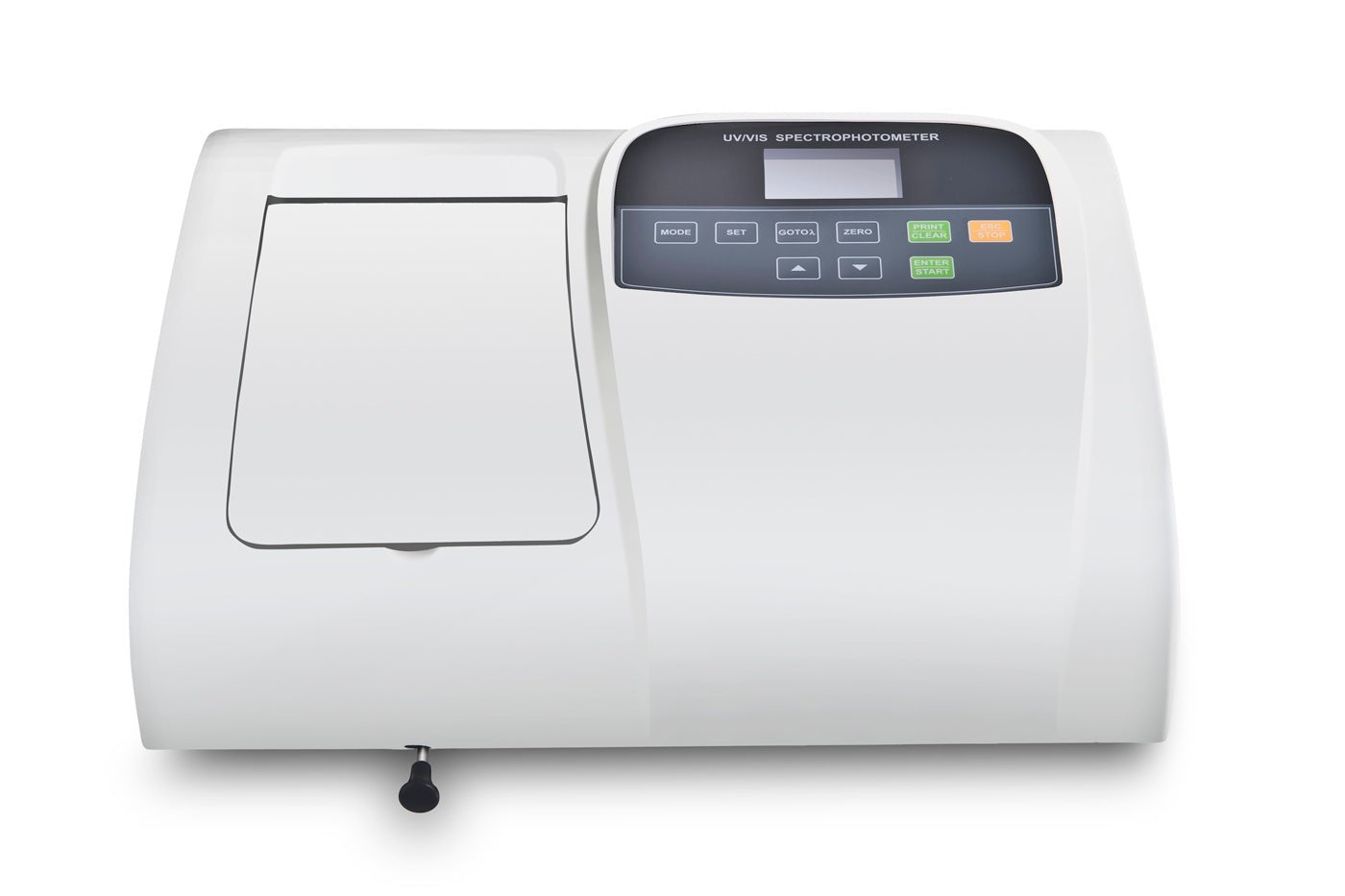

SPSV-5100/SPSUV-5100 Visible UV-Vis Spectrophotometer
Download
Download
High-Performance Visible & UV-Visible Spectrophotometers for Reliable and Accurate Analysis
Note:
Please allow 2-3 weeks for order processing and delivery on all Sper UV/Visible Light Spectrophotometers and accessories.
The SPSV-5100 and SPSUV-5100 are advanced spectrophotometers designed for precise absorbance and transmittance measurement across various laboratory applications. Featuring a clear 2.5-inch LCD display, high-stability Tungsten and Deuterium lamps, and user-friendly controls, these instruments are ideal for rapid quantitative analysis using standard curves.
Whether you're measuring in the visible range (SPSV-5100) or the UV-visible spectrum (SPSUV-5100), both models deliver high photometric accuracy, intuitive operation, and efficient data management through USB and parallel port outputs. All units are calibrated and include a factory calibration report.
-
2.5" High-Definition LCD Display
View real-time standard curves and results with clarity and precision. -
Dual High-Quality Light Sources
Tungsten and Deuterium lamps provide low stray light, stable readings, and extended service life. -
Easy Standard Curve Setup
Establish standard curves quickly and perform fast analysis of unknown samples. -
USB & Parallel Data Output
USB port: Connect to PC (optional software required).
Parallel port: Connect to optional micro thermal printer for direct printouts. -
Large Data Storage
Display up to 5 readings per screen (wavelength, absorbance, transmittance).
Save up to 200 test result sets internally. -
Automatic Wavelength Adjustment
Set the measurement wavelength quickly using arrow keys—reduces user error and setup time.
Shipping Weight and Dimensions
SPSV-5100
12 kg / 26 lb 7.3 oz
59 x 45 x 32cm / 23 2/8" x 17 6/8" x 12 5/8"
SPSUV-5100
13 kg / 28 lb 10.6 oz
59 x 45 x 32cm / 23 2/8" x 17 6/8" x 12 5/8"
Includes:
Spectrophotometer
Factory calibration report
1cm Glass cuvettes (4)
1cm Quartz cuvettes (2)
Power cord
User’s manual
Dust cover
Model Comparison
| Feature | SPSV-5100 | SPSUV-5100 |
|---|---|---|
| Spectral Range | 320–1100 nm (Visible) | 190–1100 nm (UV-Visible) |
| Light Source | Tungsten Lamp | Tungsten + Deuterium Lamps |
| LCD Display | 2.5" HD LCD | 2.5" HD LCD |
| Wavelength Setting | Automatic (via arrow keys) | Automatic (via arrow keys) |
| Data Output | USB, Parallel Port | USB, Parallel Port |
| Software Compatibility | PC Software (optional) | PC Software (optional) |
| Printer Support | Micro thermal printer (optional) | Micro thermal printer (optional) |
| Storage Capacity | 200 result sets | 200 result sets |
| Applications | General laboratory analysis | UV-visible sample analysis |
Applications
These spectrophotometers are widely used in:
-
Educational and academic laboratories
-
Environmental and water quality testing
-
Food, beverage, and agriculture testing
-
Industrial quality control
-
Chemical and pharmaceutical analysis
Specifications
|
Model |
SPSV-5100 |
SPSUV-5100 |
|
Optical System |
Single beam, grating 1200 lines/mm |
|
|
Wavelength Range |
325-1000nm |
190-1000nm |
|
Bandwidth |
2nm |
|
|
Wavelength Accuracy |
±2nm |
|
|
Wavelength Repeatability |
≤0.5nm |
|
|
Wavelength Setting |
Automatically |
|
|
Wavelength Resolution |
0.1nm |
|
|
Photometric Accuracy |
±0.5%T |
|
|
Photometric Repeatability |
≤0.2%T |
|
|
Photometric Range |
-0.3-3A, 0-200%T, 0-9999C |
|
|
Photometric Mode |
T, A, C, F |
|
|
Stray Light |
≤0.1%Tat 360nm |
≤0.1%Tat 220nm & 360nm |
|
Stability |
≤0.002A/30min at 500nm |
|
|
Display |
128*64Dots LCD |
|
|
Detector |
Silicon Photodiode |
|
|
Light Source |
W Lamp |
W Lamp & D2 Lamp |
|
Output |
USB port& Parallel Port |
|
|
Power Requirements |
AC 85~250V |
|
