The Ultimate Tool for Lighting Color Control

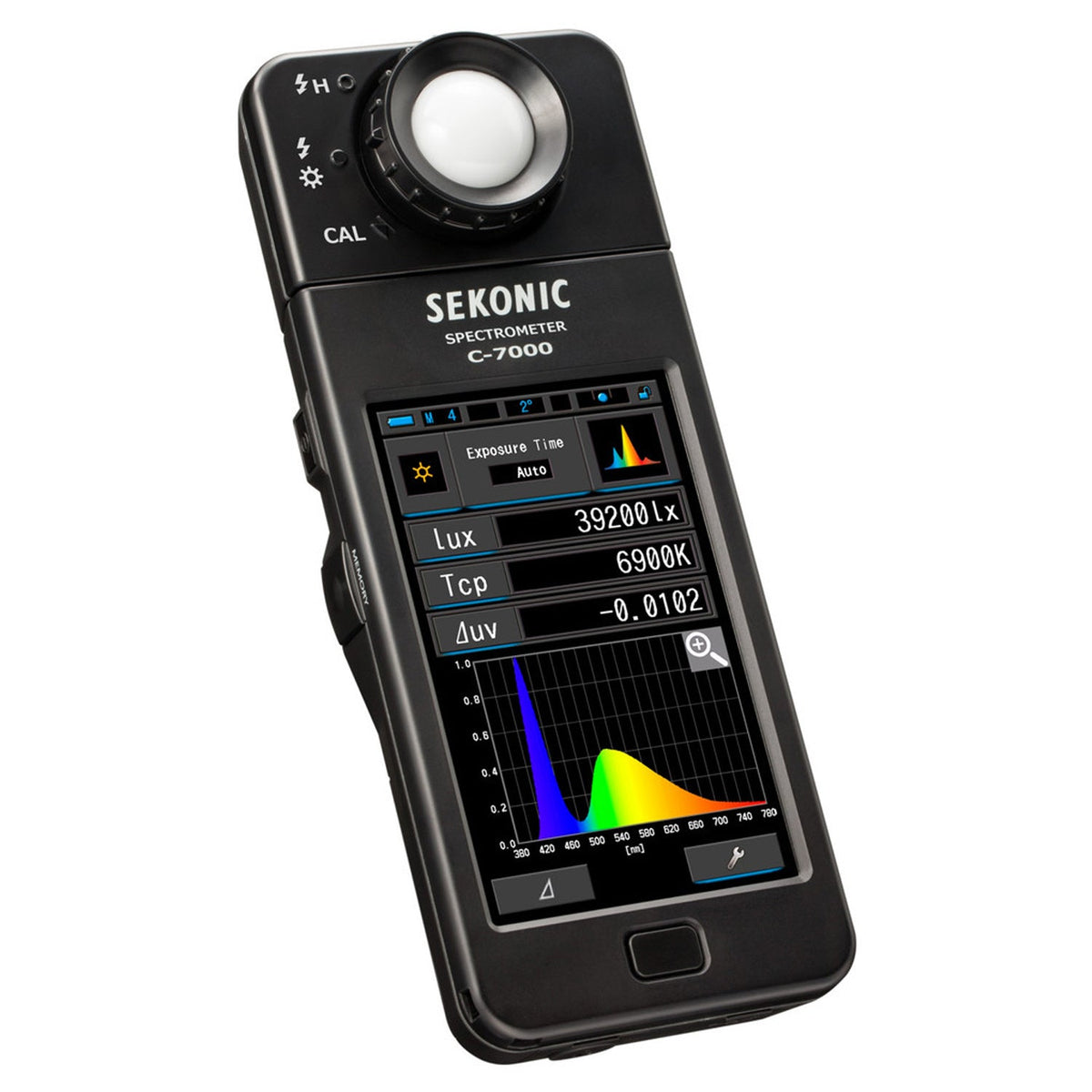

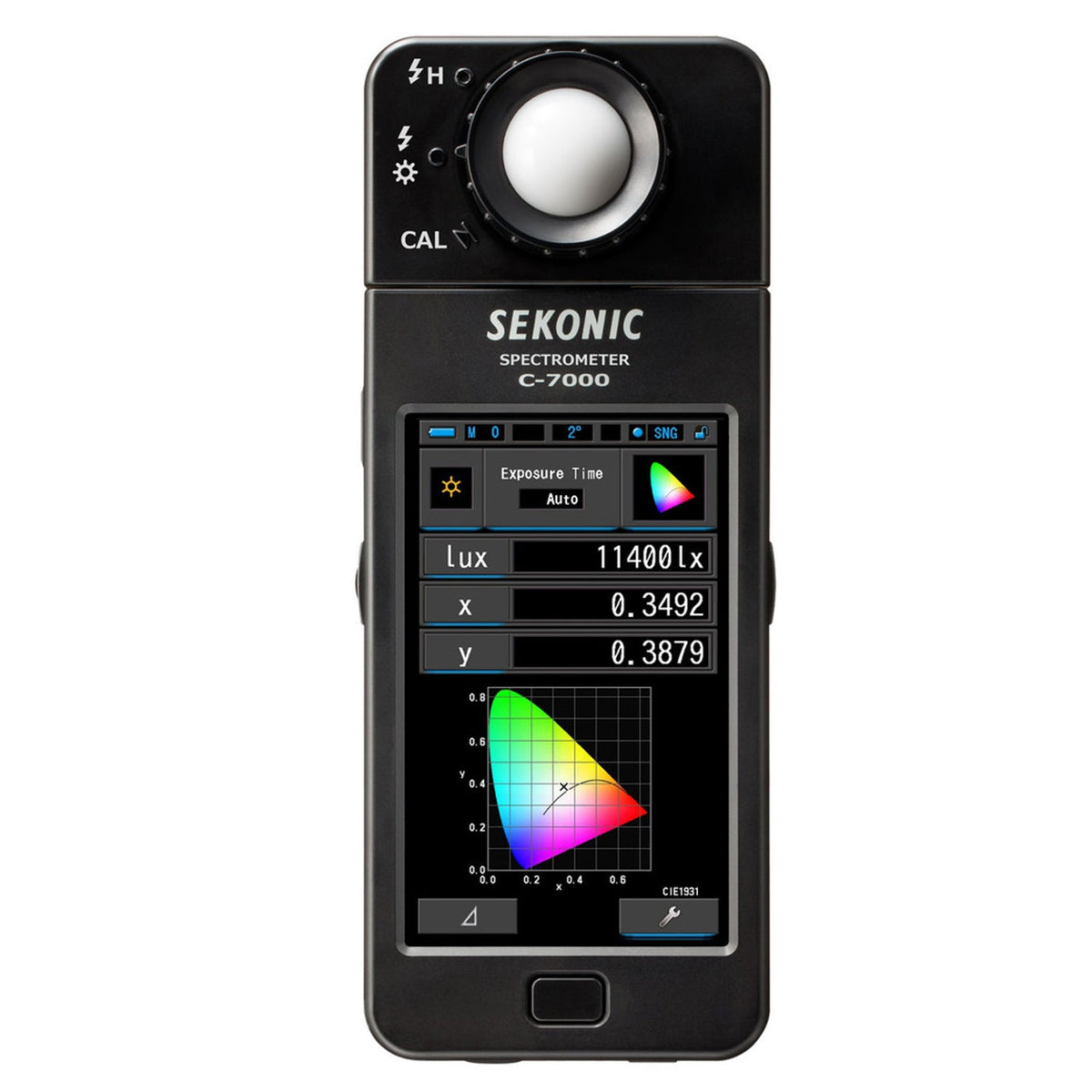

The Sekonic C-7000 Spectrometer is a portable handheld spectrometer designed especially for industrial use.
At home in any lighting designer’s office or engineering lab, the C-7000 provides an extensive selection of measuring modes for every application. Utilizing Sekonic’s CMOS linear image sensor design and software, the C-7000 can measure every light source (LED, HMI, Fluorescent, Flash, Natural Light spectrum) with remarkable precision and data feedback. Offering either a 2° or 10° angel of view measurement, select CIE Chromaticity Coordinates, XYZ values, as well as Lux/fc measurements, the C-7000 is the lighting tool for every industrial project.
In addition, with recent firmware enhancements it offers expanded lighting interpretation metrics and metering applications for industrial lighting. The new firmware provides expanded color interpretation (TM-30, TLCI/TLMF, SSI and CRI comparison), to enhance its precision color control for every light source. New enhancements provide single and continuous measurement modes, Windows and MAC OS compatibility, Preset Display and SDK (Software Development Kit) in Visual Basic for remote control operation. Final with the C-7000 Utility software, output of memorized data is provided at every 1nm (nanometer) increments in CSV format.
2 options are available:
- C-7000 | Includes: Meter Only
-

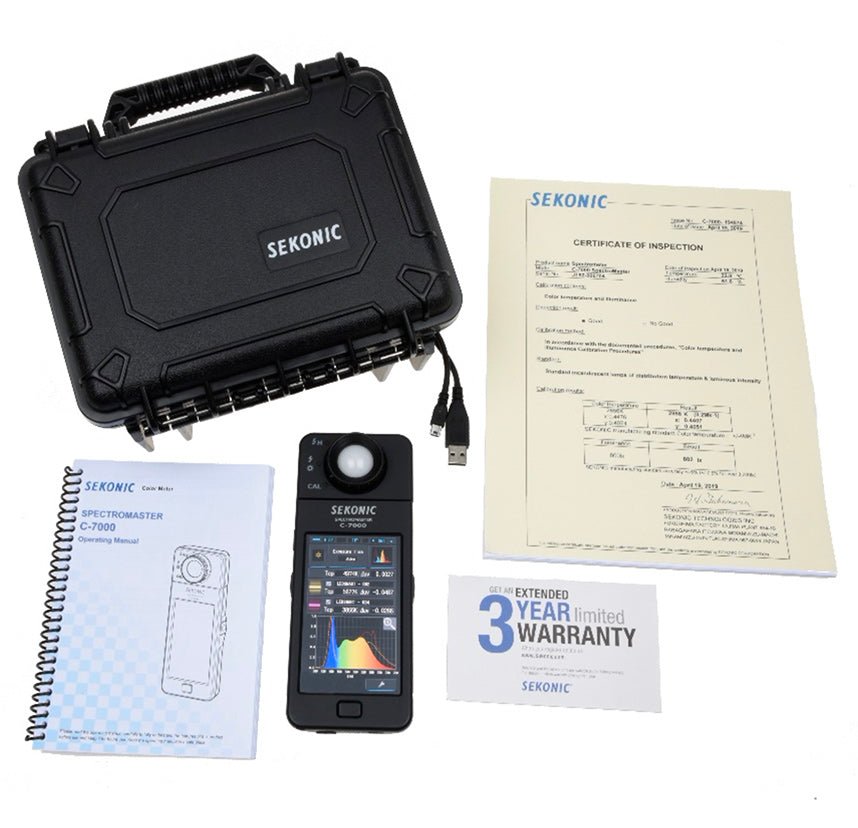

C-7000-KIT | Includes: Meter, Weatherproof Hard Case, Calibration Certificate, MiniB USB Cable, Printed Spiral-Bound Manual, 3 Year Warranty (US only)
Spectrometer (Color Meter)
- Measures Color Temperature (TCP)
- Expanded Color Interpretation
- Continues/Single measurement selection
- Preset Display (Toolbox menu)
- Provides Color Compensation DATA
- Provides Light Quality Information such as CRI, TM-30, SSI, TLCI/ TLMF, and Spectrum distribution graph
- Wide measurement range of Color Temperature (1,563 to 100,000K)
- Windows (7 to 10) and MAC OS (10.13 to 10.15) Ready Utility
- MiniB USB cable included
- SDK in Visual Basic (Windows only) for Remote Control
- For Industrial & Commercial applications
- For all Light Sources
Illuminance (Light Meter)
- Measures Brightness of Light Sources
- Provides LUX, Foot-Candle, LUX SECOND and FOOT-CANDLE Second
- Provides AMBIENT or FLASH Measurements
- Illumination (1 to 200,000lx = 0.1 to 18,600fc in ambient light, 20 to 20,500lx • s = 1.86 to 1,900fc • s in flash light). *1
- It conforms to requirement of “Illuminance meter class” for JIS C 1609-1: 2006 “Illuminance meters Part 1: General measuring instruments” Class A, and DIN 5032 Part 7 Class C
*Models sold in some countries do not display illuminance and exposure in fc (fcs) due to legal restrictions.
Specifications
| Model # | Sekonic C-7000 Spectrometer |
| Illuminance Meter Class | Class A of JIS C 1609-1:2006 Illuminance meters Part 1: General measuring instruments; DIN 5032 Part 7 Class C |
| Sensor | CMOS linear image sensor |
| Spectral Wavelength Range | 380nm to 780nm |
| Output Wavelength Pitch | 1nm (Requires the C-7000 Utility to output memorized data) |
| Spectral Bandwidth | Approx. 11nm (half bandwidth) |
| Measuring Mode | Ambient light: Yes; Cord flash: Yes; Cordless flash: Yes; Radio triggering: No |
| Measuring Range | Ambient light: 1 to 200,000lx; 1,563 to 100,000K; Flash light: 20 to 20,500lx*s; 1,563 to 100,000K |
| Accuracy (Standard Illuminant A) | Illuminance: ±5% ± 1 digit (1 to 2,990lx), ±7.5% ± 1 digit (3,000 to 200,000lx); x,y: 0.003 |
| Repeatability (Standard Illuminant A) | Illuminance: 1% + 1 digit (30 to 200,000lx), 5% + 1 digit (1 to 29.9lx); x,y various ranges |
| Visible-region Relative Spectral Response Characteristics (f1’) | Within 9% |
| Cosine Response (f2) | Within 6% |
| Temperature Drift (fT) | Illuminance: ±5% of indicated value; x,y: ±0.006 |
| Humidity Drift (fH) | Illuminance: ±3% of indicated value; x,y: ±0.006 |
| Power Source | AA (1.5v) x 2 pcs, USB bus power |
| Measurement Time | Ambient: Auto max 15s, min 0.5s; Manual 0.1s, 1s; Flash: 1 to 1/500 sec |
| Display Mode | Text, Spectrum, CRI, TM-30, SSI, TLCI/TLMF, CIE1931/1964, Spectrum comparison |
| Measuring Capability | CCT, Δuv, XYZ, CIE1931/1964, u',v', dominant wavelength, purity, peak wavelength, Lux/Lx, Foot-candle, PPFD, TM-30, SSI, TLCI/TLMF, CRI |
| Other Functions | Up to 999 memory, Preset function, Auto power off, Auto dimmer, 2 or 10 deg FOV, Continuous/Single measurement |
| Display languages | English, Japanese, Chinese (Simplified) |
| Interface | USB 2.0 (Mini B) |
| Operating Temperature | -10 to 40°C |
| Storage Temperature | -10 to 60°C |
| Dimensions | 73mm (w) x 183mm (h) x 27mm (d); protruding part max 40mm |
| Weight | 230g = 8.1oz (without batteries) |
| Standard Accessories | Software/Utility, Operating Manual, USB cable, Start Up Guide, Strap, Synchro terminal cap, Soft case |
Comparison Chart
| Model # | C-4000 | C-7000 | C-800 |
| Applications | Lighting designer, Lighting installer, Museum lighting coordinator, Photographer | Industrial (lighting manufacturer, lighting designer, etc.), Academic research | Photographer, Filmmaker, industrial use |
| Measuring Range | 1,600 to 40,000K | 1,543 to 100,000K | 1,600 to 40,000K |
| 5 to 10,000lx | 1 to 200,000lx | 1 to 200,000lx | |
| 20 to 20,500lxs | 20 to 20,500lxs | ||
| Measurement Unit | Kelvin, Δuv, lx, fc, | Kelvin, Δuv, lx, fc, Hlx, Hfc, | Kelvin, Δuv, LB/CC index, |
| Ra, Rf, Rg, xy | Ra, R1 to R15, Rf, Rg, SSIt, | LB/CClf, LB/CCcf, lx, fc, Hlx, | |
| SSId, TLCI, XYZ, xyz, u'v', | Hfc, Ra, R1 to R15, Rf, Rg, | ||
| λd, λp, Pe, PPFD | SSIt, SSId, TLCI, xy, | ||
| Hue/Saturation | |||
| Display Mode | Text | Text, Spectrum, Spectrum | Text, Spectrum, Spectrum |
| comp., CRI, CRI comp., | comp., CRI, CRI comp., | ||
| TM-30-18, SSI, TLCI/ | TM-30-18, SSI, TLCI/TLMF, | ||
| TLMF, CIE1931 (CIE1964), | Filter (Camera or Lighting), | ||
| CIE1931 (CIE1964) comp., | Multi lights, WB comp. | ||
| CIE1976, CIE 1976 comp. | |||
| Software | Smartphone/tablet app, Utility | Excel Add-in, SDK, Utility | Utility |
| Other Functions | Continuous/Single measurement selection, Up to 99 memory, Bluetooth interface for smartphone/tablet app | Continuous/Single measurement selection, Up to 999 memory, 1nm increment spectrum output by Utility, 2°or 10° field of view | Up to 99 memory, Memory title can be edited in Utility, Memorized value can be saved back and forth between computer and meter. |
