RTD Transmitters
Download
Download
Temperature transmitters make it possible to send a scalable (4 to 20) mA signal from a temperature sensor to a control device without investing in long, expensive runs of thermocouple or RTD wire.

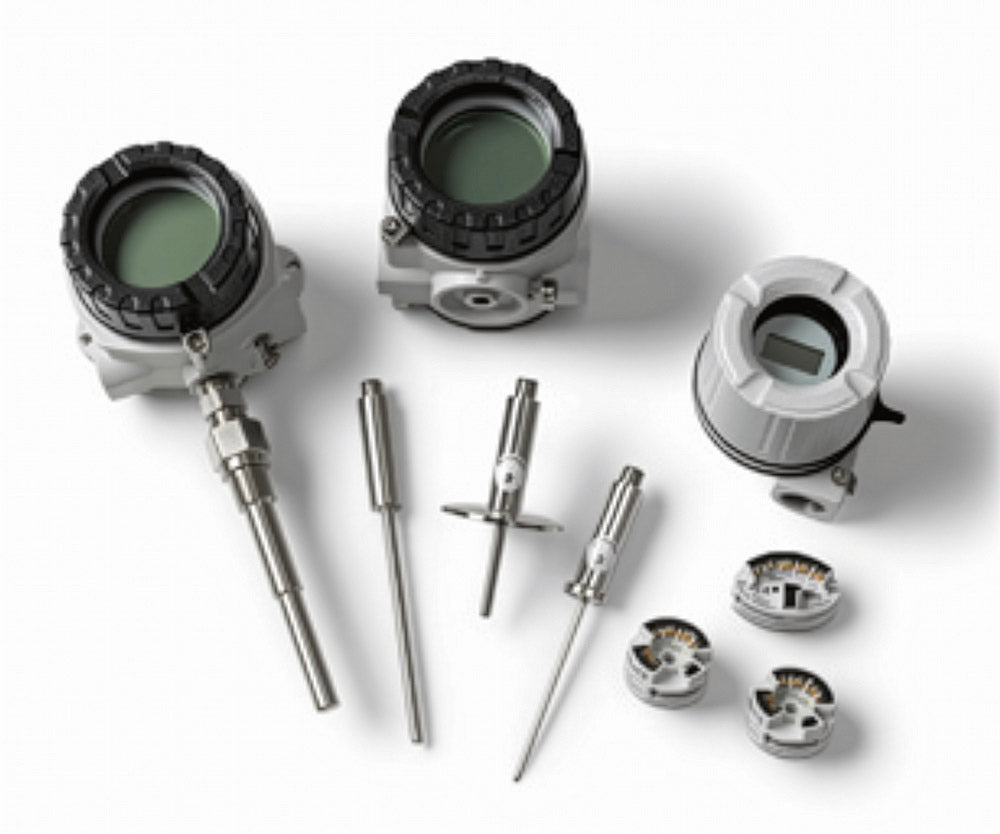

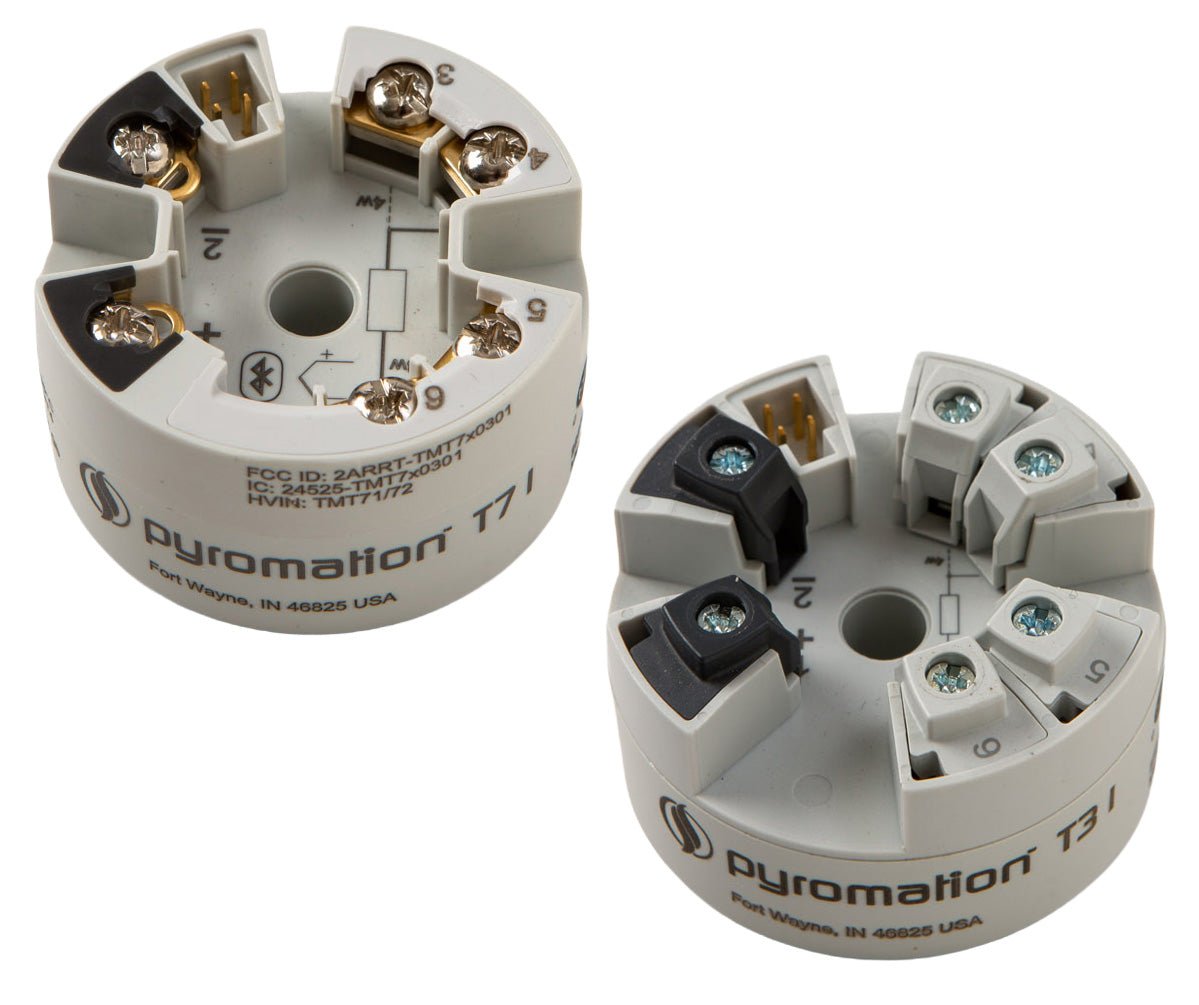

Programmable RTD and thermocouple temperature transmitters can be mounted in the temperature sensor assembly connection head, or surface mounted using a DIN rail mounting clip. Some units offer a visual digital display that shows the current measured value. All are PC programmable and convert various signals into a scalable (4 to 20) mA analog output signal. We also carry transmitters programmable with Hart® protocol for various signal inputs. Depending on type, some of Pyromation’s thermocouple and RTD temperature transmitters are UL recognized components and/or CSA, ATEX and IECEx approved, including styles that are intrinsically safe, SIL-rated and approved for use in hazardous locations.
Pyromation temperature transmitters are used in many demanding industries including Pharmaceuticals, Oil & Gas, Power Generation, Chemical, Petrochemical, and Food, Beverage and Dairy.
- All Pyromation products are built to order and typically ship 2-4 business days after we receive your order.
- If you have a specific requirement or need a thermocouple you don't see listed just send us a note and we'll get you a quote.
Specifications
|
Part Number |
Description |
|
T31-385U-S(0-200F) |
T31 Programmable Head Mount Transmitter, 100 Ohm .00385, 4-20mA Scaled to 0-400F |
|
T31-385U-S(0-400F) |
T31 Programmable Head Mount Transmitter, 100 Ohm .00385, 4-20mA Scaled to 0-200F |
|
T31-385U-S(0-100C) |
T31 Programmable Head Mount Transmitter, 100 Ohm .00385, 4-20mA Scaled to 0-100C |
|
T31-385U-S(0-200C) |
T31 Programmable Head Mount Transmitter, 100 Ohm .00385, 4-20mA Scaled to 0-200C |
|
T31-385U-S(0-150)F |
Transmitter, 3 Wire RTD, 4-20mA, 0-150F |
|
T31-385U-S(0-400)F |
Transmitter, 3 Wire RTD, 4-20mA, 0-400F |
|
T31-385U-S(0-200)C |
Transmitter, 3 Wire RTD, 4-20mA, 0-200C |
Downloads
Videos
Couldn't load pickup availability
Product Information
Product Information
Temperature transmitters make it possible to send a scalable (4 to 20) mA signal from a temperature sensor to a control device without investing in long, expensive runs of thermocouple or RTD wire.
Programmable RTD and thermocouple temperature transmitters can be mounted in the temperature sensor assembly connection head, or surface mounted using a DIN rail mounting clip. Some units offer a visual digital display that shows the current measured value. All are PC programmable and convert various signals into a scalable (4 to 20) mA analog output signal. We also carry transmitters programmable with Hart® protocol for various signal inputs. Depending on type, some of Pyromation’s thermocouple and RTD temperature transmitters are UL recognized components and/or CSA, ATEX and IECEx approved, including styles that are intrinsically safe, SIL-rated and approved for use in hazardous locations.
Pyromation temperature transmitters are used in many demanding industries including Pharmaceuticals, Oil & Gas, Power Generation, Chemical, Petrochemical, and Food, Beverage and Dairy.
- All Pyromation products are built to order and typically ship 2-4 business days after we receive your order.
- If you have a specific requirement or need a thermocouple you don't see listed just send us a note and we'll get you a quote.
