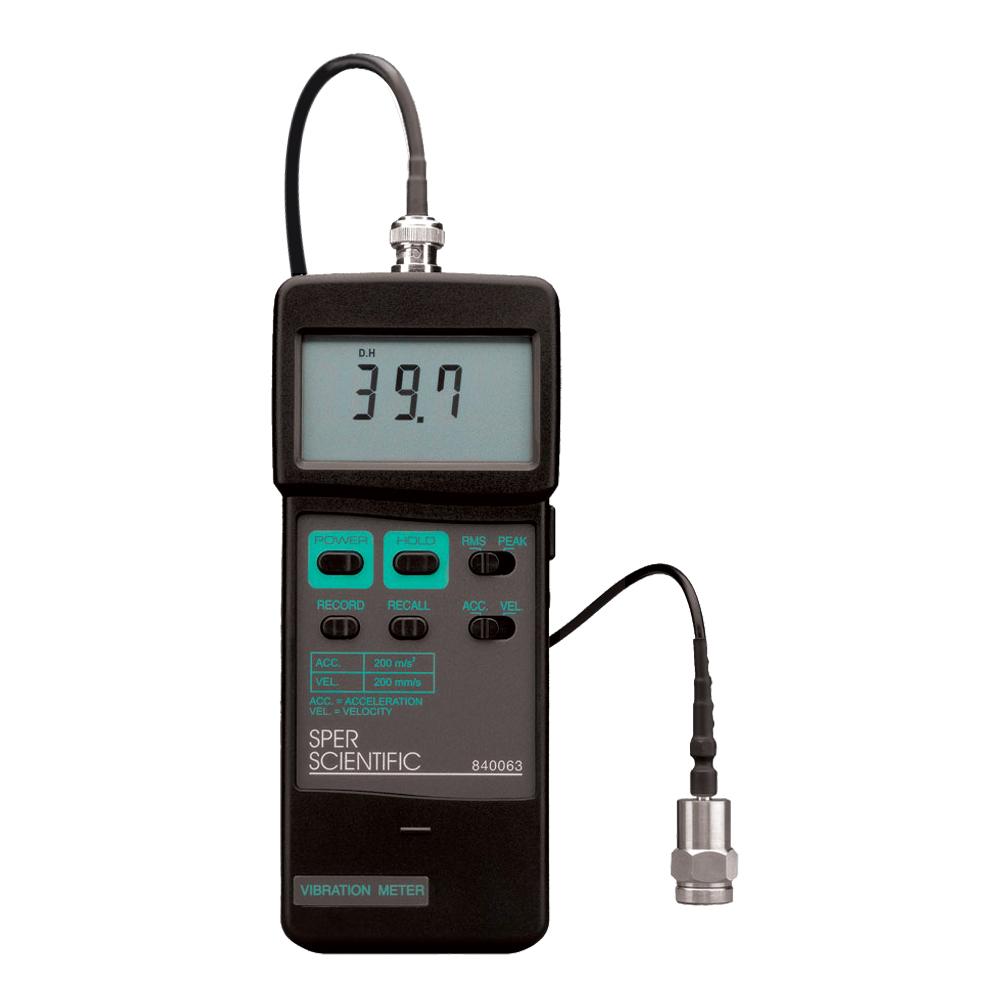

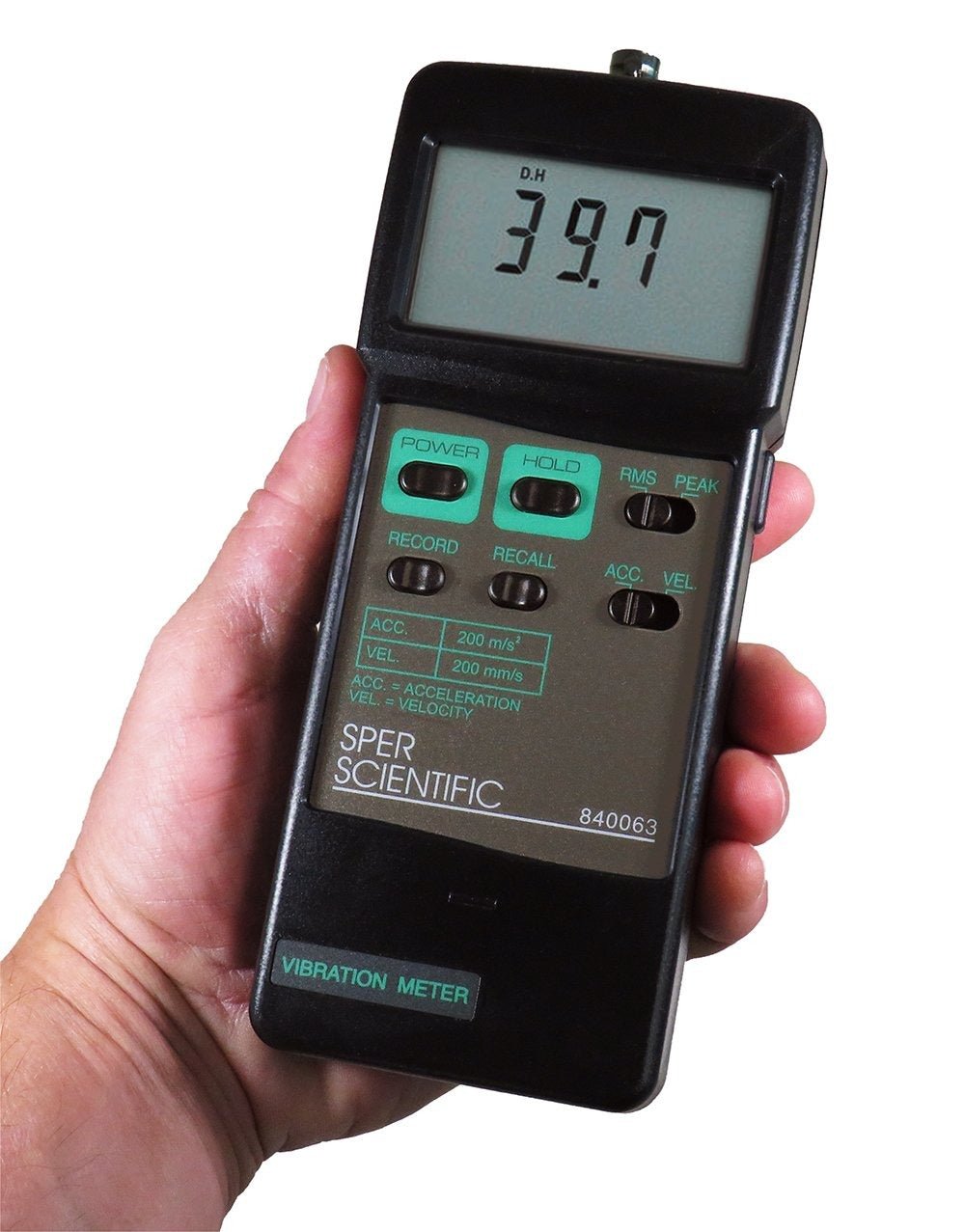

Portable Handheld Vibration Meter
Download
Download
Accurately measures vibration velocity and acceleration.
The level of vibration is a useful guide to the balance, alignment and general condition of pumps, motors, and other machinery. Poor balance, misalignment, and looseness results in higher levels of vibration and indicates maintenance is required for operational as well as safety reasons.

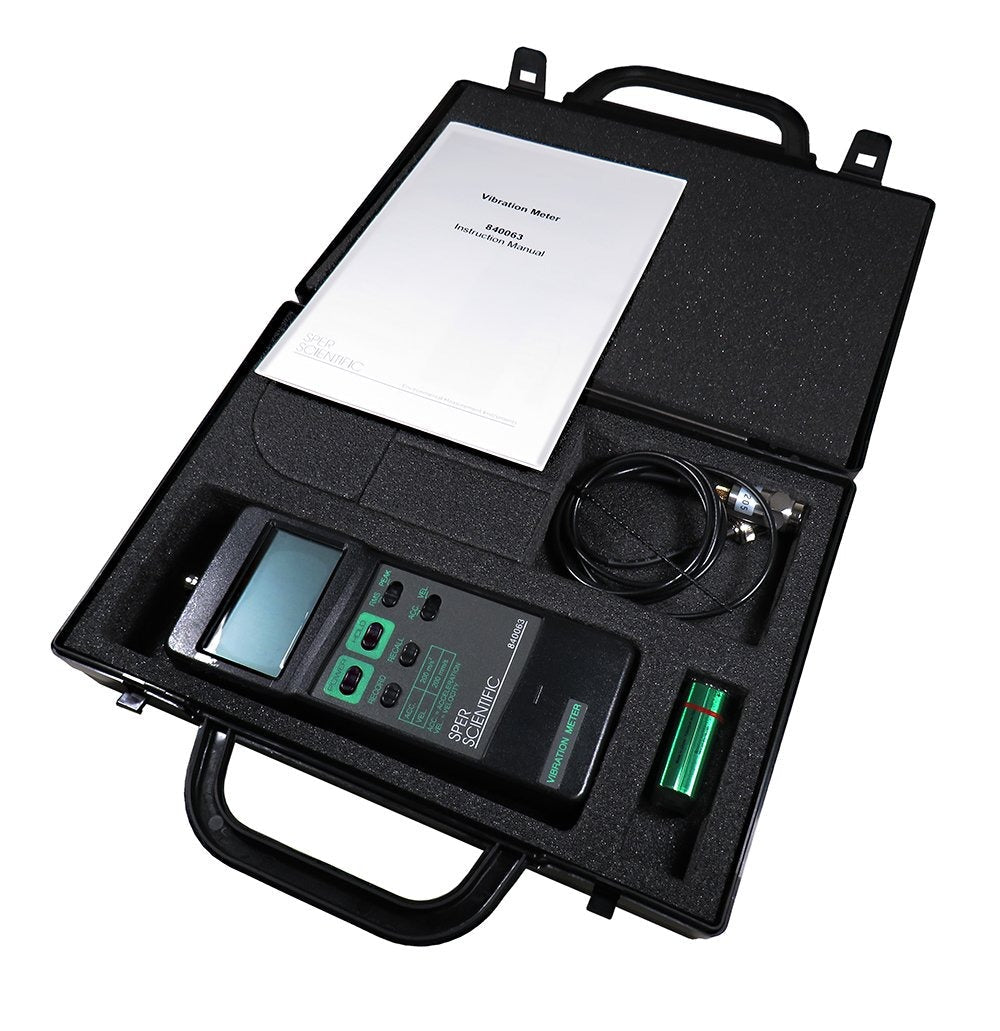

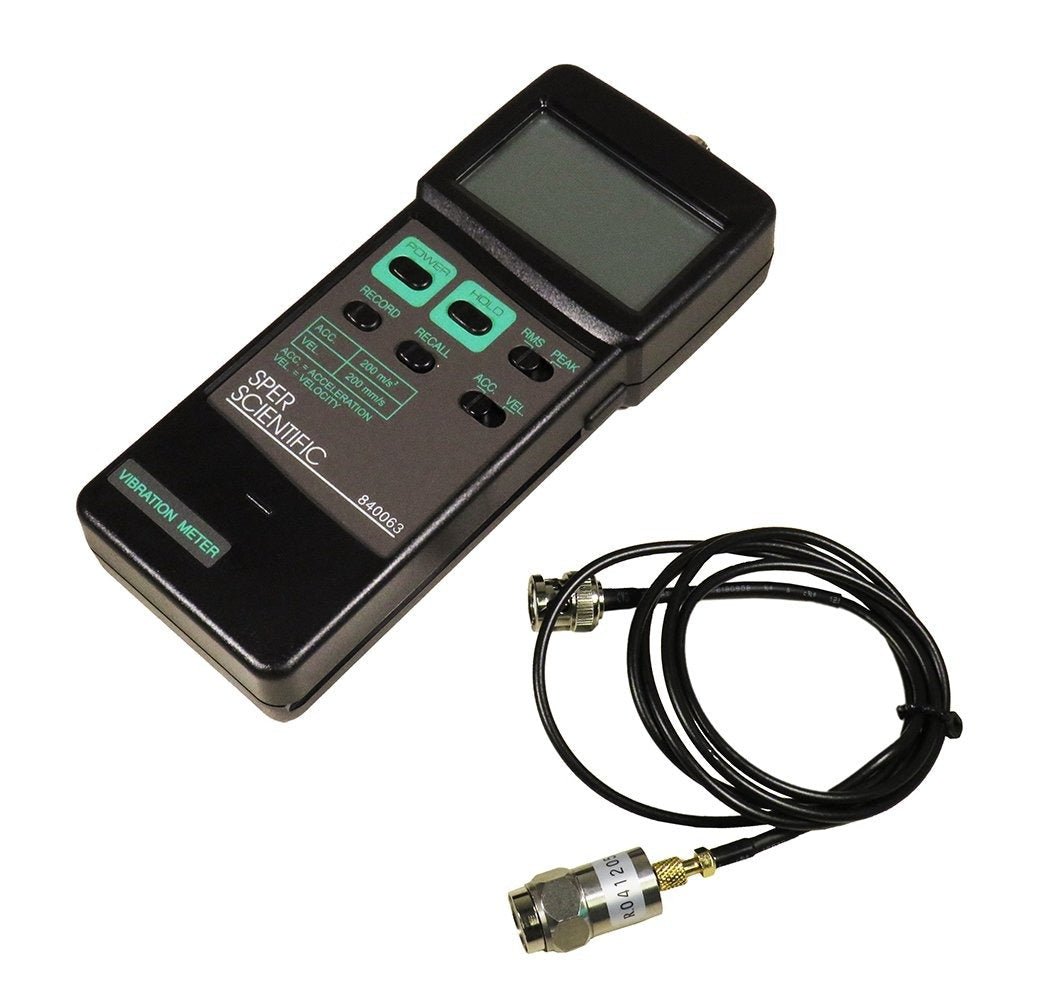

The large display indicates RMS, Peak, min/max, hold, low battery, and features an auto power off. Comes ready to use in a foam-lined, hard-shell carrying case, with a detachable strongly magnetic probe, 9V battery and instructions.
Specifications
| Acceleration | Range | Resolution | Accuracy (@ 160 Hz, 80 Hz, 23 ± 5°C) |
|---|---|---|---|
| m/s² | 0.5 to 199.9 m/s² | 0.1 m/s² | ±(5 % +2 d) reading |
| g @ 1 g=9.8m/s² | 0.05 to 20.39 g | 0.01 g | ±(5 % +2 d) reading |
| ft/s² | 2 to 656 ft/s² | 1 ft/s² | ±(5 % +2 d) reading |
| Velocity | |||
| mm/s | 0.5 to 199.99 mm/s | 0.1 mm/s | ±(5 % +2 d) reading |
| Frequency | |||
| Hz | 10Hz to 1KHz | ||
Downloads
Comparison Chart
Couldn't load pickup availability
Product Information
Product Information
Accurately measures vibration velocity and acceleration.
The level of vibration is a useful guide to the balance, alignment and general condition of pumps, motors, and other machinery. Poor balance, misalignment, and looseness results in higher levels of vibration and indicates maintenance is required for operational as well as safety reasons.
The large display indicates RMS, Peak, min/max, hold, low battery, and features an auto power off. Comes ready to use in a foam-lined, hard-shell carrying case, with a detachable strongly magnetic probe, 9V battery and instructions.
Specifications
| Acceleration | Range | Resolution | Accuracy (@ 160 Hz, 80 Hz, 23 ± 5°C) |
|---|---|---|---|
| m/s² | 0.5 to 199.9 m/s² | 0.1 m/s² | ±(5 % +2 d) reading |
| g @ 1 g=9.8m/s² | 0.05 to 20.39 g | 0.01 g | ±(5 % +2 d) reading |
| ft/s² | 2 to 656 ft/s² | 1 ft/s² | ±(5 % +2 d) reading |
| Velocity | |||
| mm/s | 0.5 to 199.99 mm/s | 0.1 mm/s | ±(5 % +2 d) reading |
| Frequency | |||
| Hz | 10Hz to 1KHz | ||
Downloads
Comparison Chart
