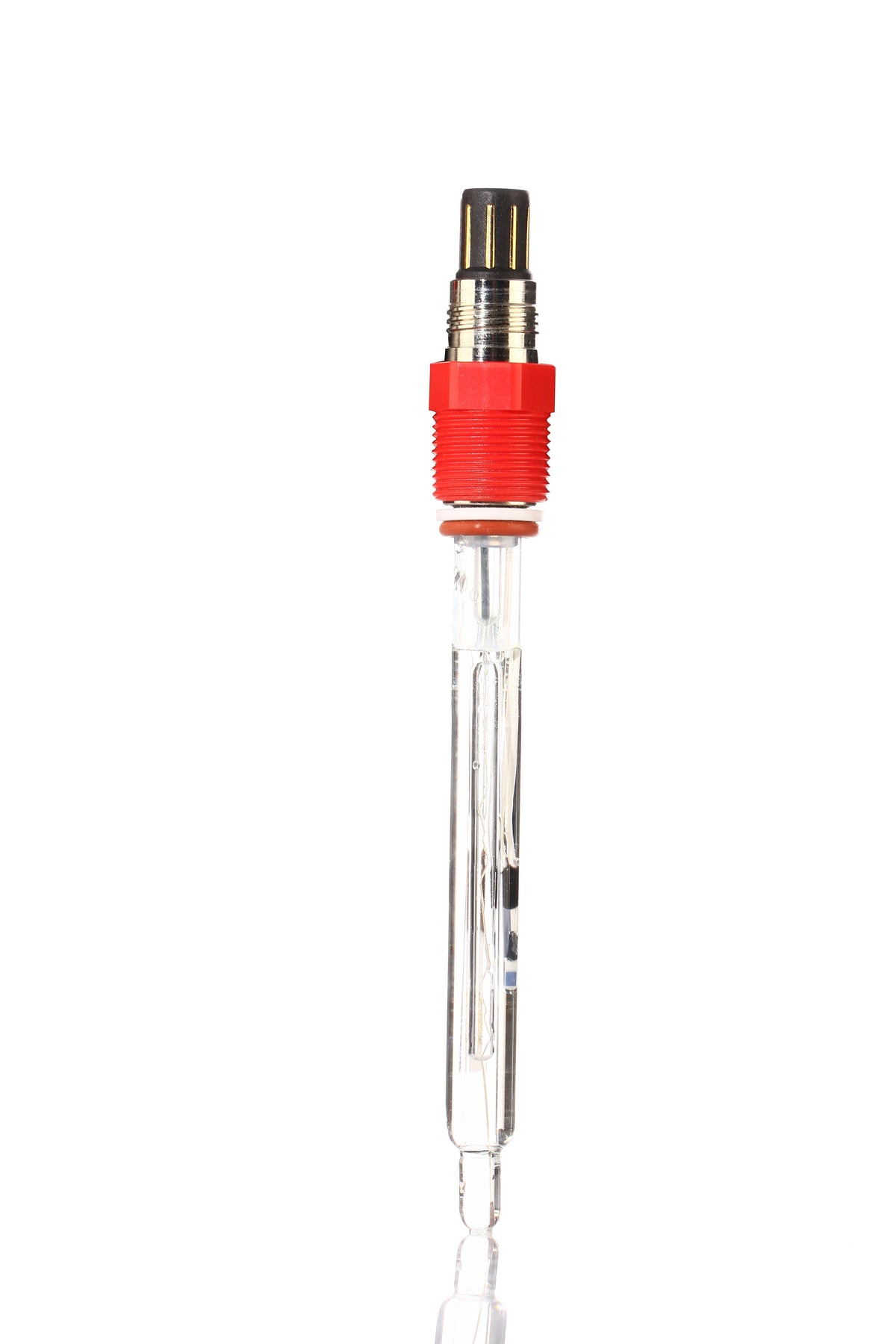

Online High Temperature pH Sensor
Download
Download
The Online High Temperature pH Sensor is built with premium materials and components, ensuring exceptional performance in even the most demanding industrial and process measurement applications.
These advanced electrodes integrate both a glass or metal electrode and a reference electrode in a single shaft, with an optional Pt1000 temperature probe for added functionality.
Engineered for durability, they feature an optimized PTFE annular diaphragm, which enables rapid response times and remains highly effective even in contaminated or oily/fatty wastewater environments. The 870001-HPH series exemplifies cutting-edge technology in pH and redox measurement, with each electrode individually tested and accompanied by a calibration certificate for assured accuracy and reliability.
Manufactured in state-of-the-art facilities, these electrodes are built for consistent quality and compliance with modern standards. Made from physiologically safe, FDA-listed materials, they feature lead-free shaft glass and are fully RoHS-2 compliant.
Key Features
- Integrated Design: Combines a glass or metal electrode and reference electrode in one shaft; optional Pt1000 temperature probe for added versatility.
- Optimized PTFE Diaphragm: Fast-responding PTFE annular diaphragm is resistant to contamination, ideal for use in oily or fatty wastewater environments.
- Precision and Reliability: Each electrode is individually tested, ensuring accuracy and quality, and comes with a calibration certificate.
- Quality Manufacturing: Produced in modern facilities for consistent quality in every electrode.
- Safety and Compliance: Made with physiologically safe, FDA-listed materials and lead-free shaft glass; RoHS-2 compliant for safe and environmentally friendly use.
- Cable Included: Includes a 5 meter VP cable.
Ordering Notes:
1. All Sper Online Water Quality Meters and Sensors are sold separately - one of each is required for a complete system.
2. All Online Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
Specifications
| Parameters Measured | pH, Temperature |
| Measuring Range | 0-14PH |
| Temperature Range | 0-130℃ |
| Accuracy | ±0.1pH |
| Compressive Strength | 0.6MPa |
| Temperature Compensation | PT1000, 10K etc |
| Socket | VP |
| Cable | VP6 |
| Dimensions & Insertion Length | 12x120mm, 150mm, 225mm and 325mm |
Downloads
