DCM60R | Digital Clamp Meter / Multimeter
Download
Download

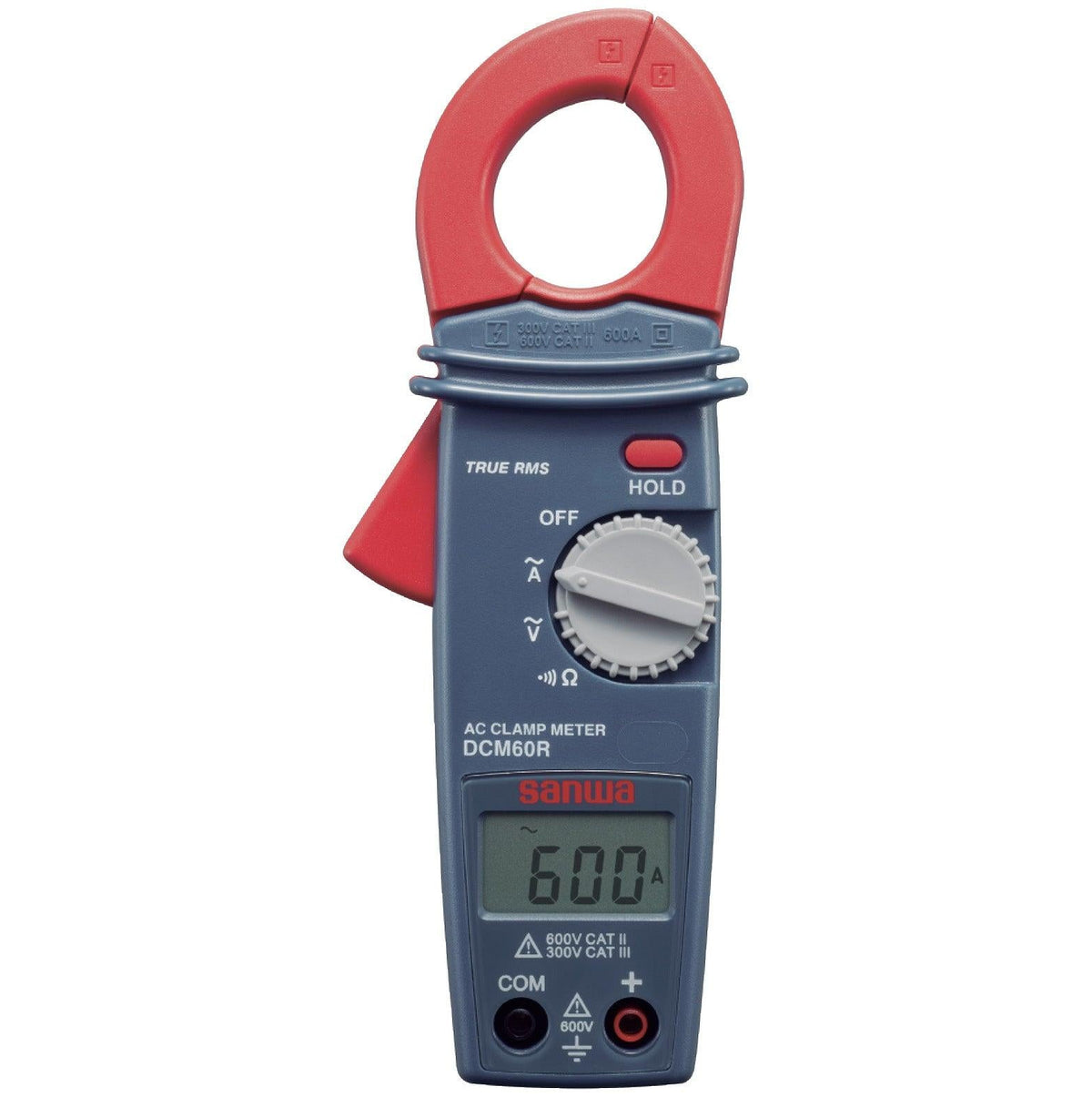

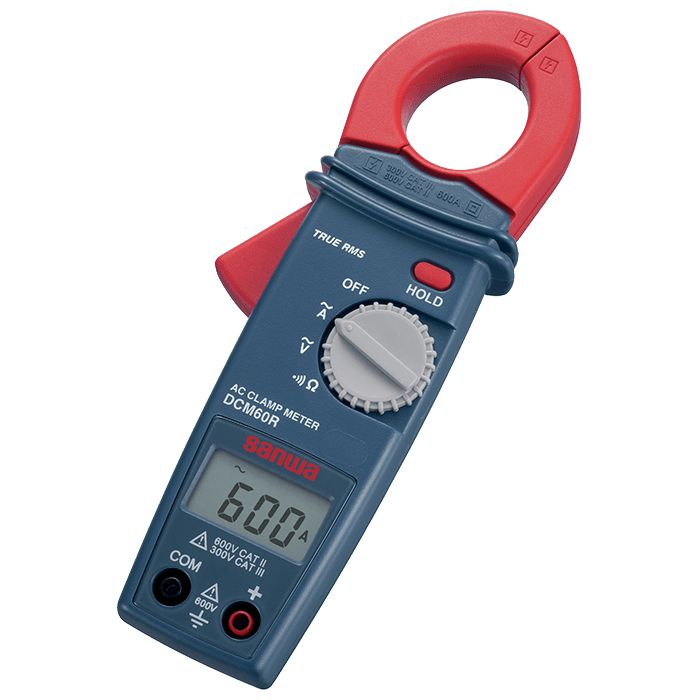

The Sanwa DCM60R is a True RMS, 2000-Count AC Clamp Meter with Accuracy of ± (2%+5).
The DCM60R is a highly accurate, compact and budget-friendly RMS meter that offers a number of useful features. It can measure both AC current and AC voltage, as well as resistance of up to 199.9Ω, and perform continuity tests. It's 2000 count display is easy to read and features a data hold function.
This device is compliant with IEC61010-1, and IEC61010-2-030 CAT.III 300V / II 600V IEC61010-2-032, IEC61010-2-033, IEC61010-31 standards, and is designed for measuring the current of electrical lines, appliances and power supply facilities operating on low voltages in the ranges of CAT. III environment.

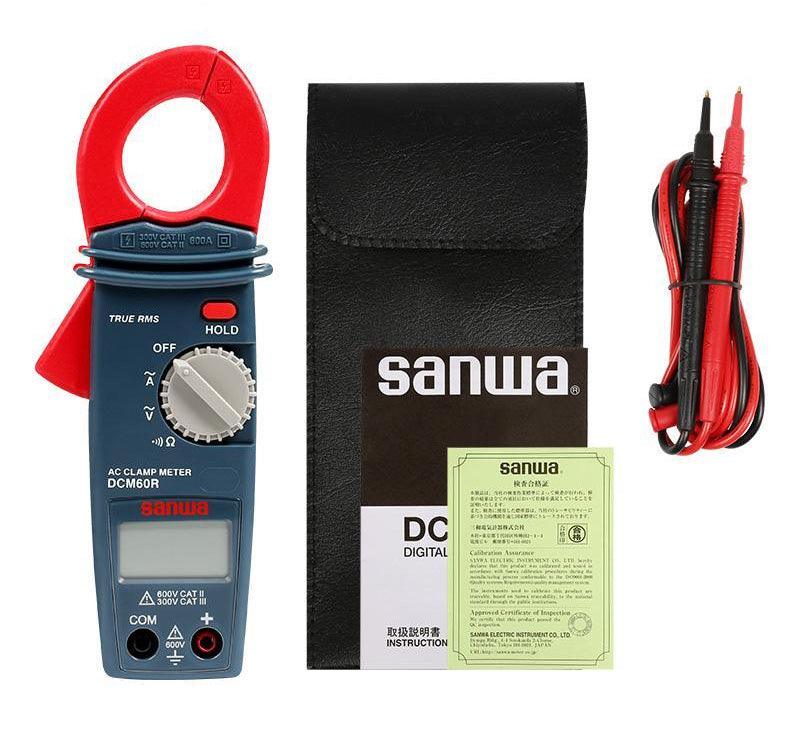

Includes meter, one set of test leads, carrying case and instruction manual.
- True RMS
- 2000 Count Display
- Low cost & DMM functions
- Data hold function
- Compliant with IEC standards
Specifications
| Function | Range | Accuracy | Resistance |
|---|---|---|---|
| ACA | 199.9/600A | ±(2%+5) | 0.1A |
| ACV | 199.9/600V | ±(1.5%+5) | 0.1V |
| Resistance | 199.9Ω | ±(1.0%+8) | 0.1Ω |
| Continuity | Buzzer sounds at less than 100Ω | ||
| Operation method | Δ-Σ method |
| AC measuring method | True RMS |
| Sampling rate | 2 times / sec |
| Display | 1999 count |
| Range selection | Auto |
| Battery low warning | Battery ( ) mark lights at approx. 2.2V or below |
| Operating temperature / humidity | 0℃～40℃, below 80%RH No condensation |
| Storage temperature / humidity | -10℃～60℃, below 70%RH No condensation |
| Continuous use time | About 250 hours |
| Power consumption | Approx. 5.0mW |
| Safety standards | IEC61010-1, IEC61010-2-030 CAT.III 300V / II 600V IEC61010-2-032, IEC61010-2-033, IEC61010-31 |
| Bandwidth | 50～400Hz |

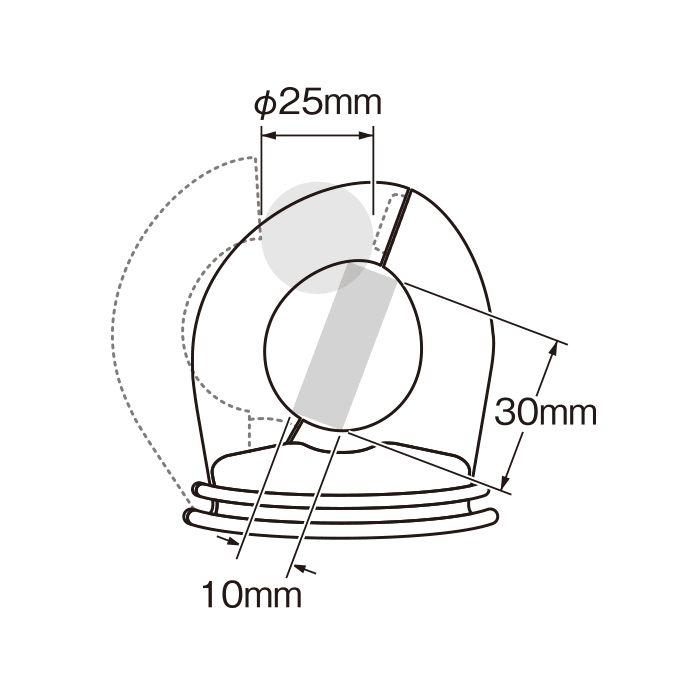

| Clamp diameter / Conductor size | 25mm / 10 x 30mm |
| Battery | R03(UM-4) or AAA x 2 |
| Size / Mass | H187 x W50 x D29mm / 210g |
| Standard accessories included | Test leads (TL-21a), carrying case (C-DCM60L), instruction manual |
Couldn't load pickup availability
Product Information
Product Information
The Sanwa DCM60R is a True RMS, 2000-Count AC Clamp Meter with Accuracy of ± (2%+5).
The DCM60R is a highly accurate, compact and budget-friendly RMS meter that offers a number of useful features. It can measure both AC current and AC voltage, as well as resistance of up to 199.9Ω, and perform continuity tests. It's 2000 count display is easy to read and features a data hold function.
This device is compliant with IEC61010-1, and IEC61010-2-030 CAT.III 300V / II 600V IEC61010-2-032, IEC61010-2-033, IEC61010-31 standards, and is designed for measuring the current of electrical lines, appliances and power supply facilities operating on low voltages in the ranges of CAT. III environment.
Includes meter, one set of test leads, carrying case and instruction manual.
- True RMS
- 2000 Count Display
- Low cost & DMM functions
- Data hold function
- Compliant with IEC standards
Specifications
| Function | Range | Accuracy | Resistance |
|---|---|---|---|
| ACA | 199.9/600A | ±(2%+5) | 0.1A |
| ACV | 199.9/600V | ±(1.5%+5) | 0.1V |
| Resistance | 199.9Ω | ±(1.0%+8) | 0.1Ω |
| Continuity | Buzzer sounds at less than 100Ω | ||
| Operation method | Δ-Σ method |
| AC measuring method | True RMS |
| Sampling rate | 2 times / sec |
| Display | 1999 count |
| Range selection | Auto |
| Battery low warning | Battery ( ) mark lights at approx. 2.2V or below |
| Operating temperature / humidity | 0℃～40℃, below 80%RH No condensation |
| Storage temperature / humidity | -10℃～60℃, below 70%RH No condensation |
| Continuous use time | About 250 hours |
| Power consumption | Approx. 5.0mW |
| Safety standards | IEC61010-1, IEC61010-2-030 CAT.III 300V / II 600V IEC61010-2-032, IEC61010-2-033, IEC61010-31 |
| Bandwidth | 50～400Hz |
| Clamp diameter / Conductor size | 25mm / 10 x 30mm |
| Battery | R03(UM-4) or AAA x 2 |
| Size / Mass | H187 x W50 x D29mm / 210g |
| Standard accessories included | Test leads (TL-21a), carrying case (C-DCM60L), instruction manual |
