DCL31DR | Mini AC/DC Clamp Meter with True RMS and Peak Hold
Download
Download

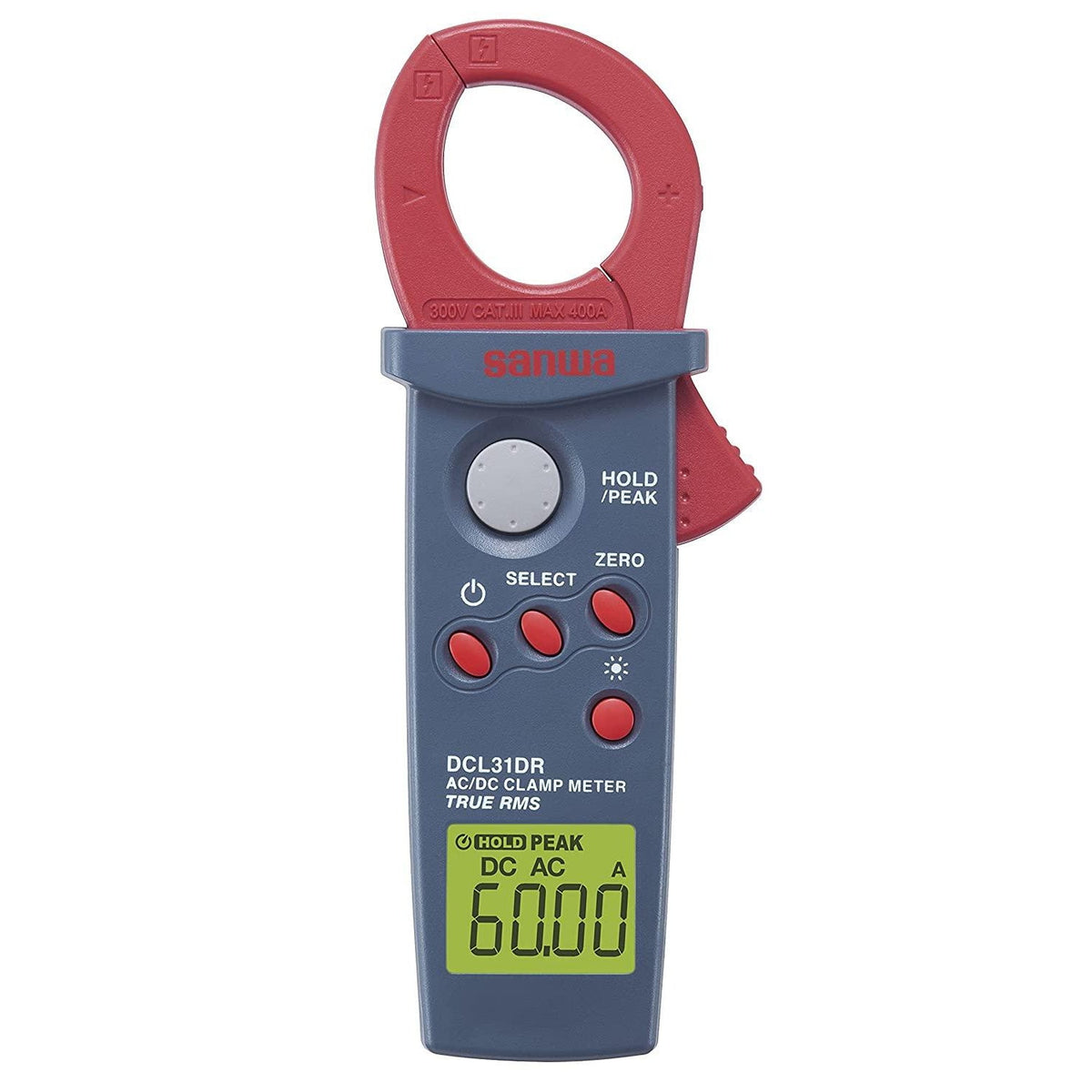

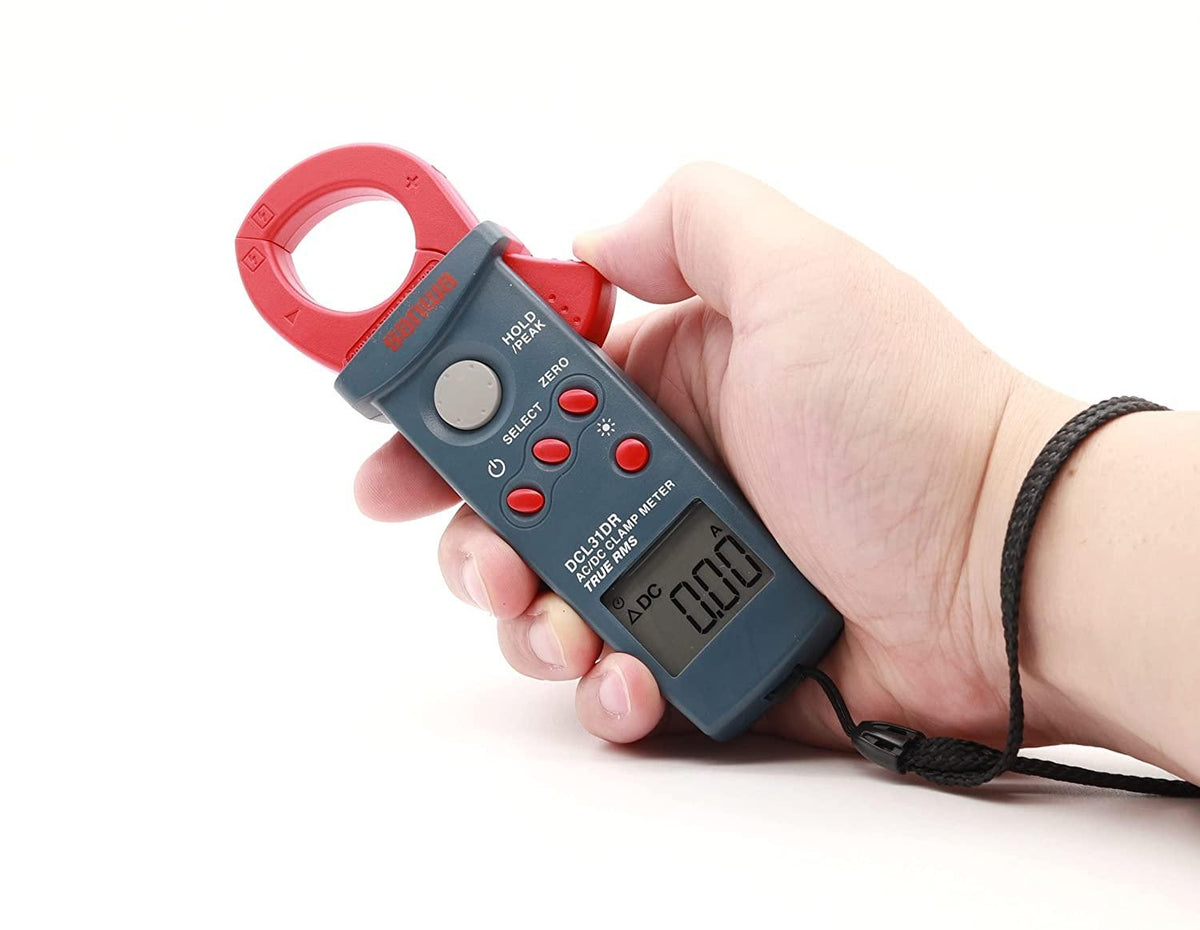

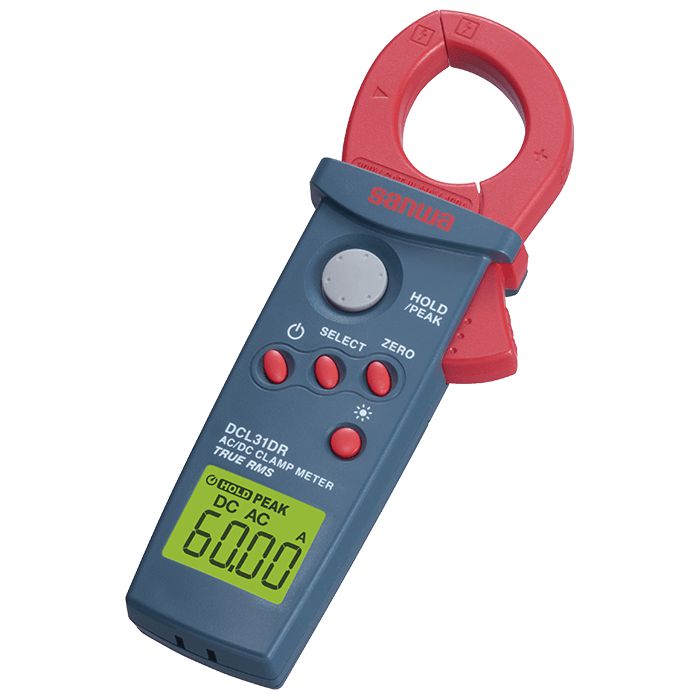

The Sanwa DCL31DR is a compact DC/AC digital clamp meter with an RMS response feature.
The DCL31DR can measure a current of up to 400 Amperes in both AC and DC modes with an accuracy of 3% when in AC mode. The DCL31DR offers many features such as a 6000-count large LCD display with a backlight, a Data Hold function for pausing the measurement on screen, a Peak Hold function for detecting the peak value of AC current to pausing it, and a Zero setting feature that allows users to remove DC offsets before measuring DC currents.
This device allows you to measure the current range specified in IEC61010-1 CAT.
Specifications
| Function | Range | Accuracy | Resolution |
|---|---|---|---|
| DCA | 60/400A | ±(2.0%+5) | 0.01A |
| ACA | 60/400A | ±(2.0%+5) | 0.01A |
| Sampling rate | 2 times/sec. |
| Bandwidth | 45-400Hz |
| Display | 6000 |

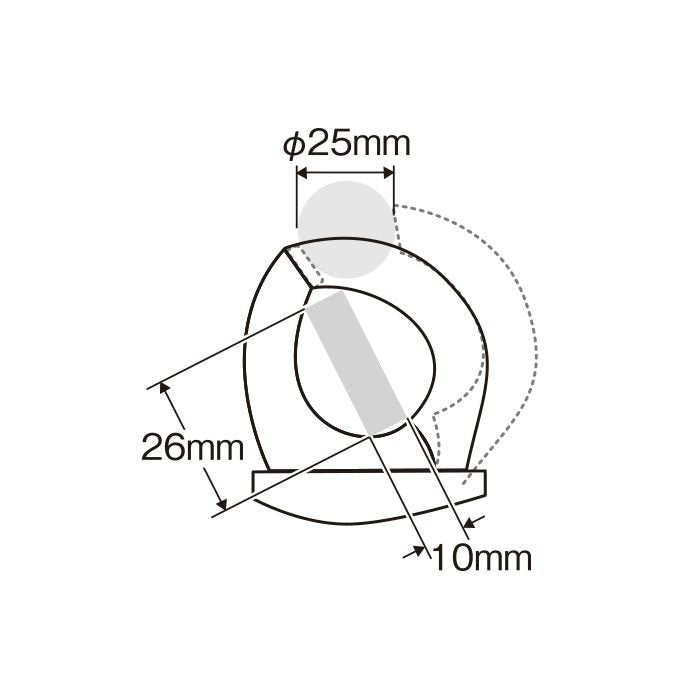

| Clamp diameter/Conductor size | 25mm/10x26mm |
| Battery | LR03x2 |
| Battery life | Approx. 35 hrs. |
| Size/Mass | H145xW54xD31mm / Approx. 120g |
| Safety standards | IEC61010 CAT.III 300V |
|
*In the peak hold mode, the measuring range is fixed at 400A. |
Couldn't load pickup availability
Product Information
Product Information
The Sanwa DCL31DR is a compact DC/AC digital clamp meter with an RMS response feature.
The DCL31DR can measure a current of up to 400 Amperes in both AC and DC modes with an accuracy of 3% when in AC mode. The DCL31DR offers many features such as a 6000-count large LCD display with a backlight, a Data Hold function for pausing the measurement on screen, a Peak Hold function for detecting the peak value of AC current to pausing it, and a Zero setting feature that allows users to remove DC offsets before measuring DC currents.
This device allows you to measure the current range specified in IEC61010-1 CAT.
Specifications
| Function | Range | Accuracy | Resolution |
|---|---|---|---|
| DCA | 60/400A | ±(2.0%+5) | 0.01A |
| ACA | 60/400A | ±(2.0%+5) | 0.01A |
| Sampling rate | 2 times/sec. |
| Bandwidth | 45-400Hz |
| Display | 6000 |
| Clamp diameter/Conductor size | 25mm/10x26mm |
| Battery | LR03x2 |
| Battery life | Approx. 35 hrs. |
| Size/Mass | H145xW54xD31mm / Approx. 120g |
| Safety standards | IEC61010 CAT.III 300V |
|
*In the peak hold mode, the measuring range is fixed at 400A. |
