DCL3000R | True RMS AC Clamp Meter with Flexible Conductor
Download
Download
The Sanwa DCL3000R is a flexible clamp meter with True RMS capability.

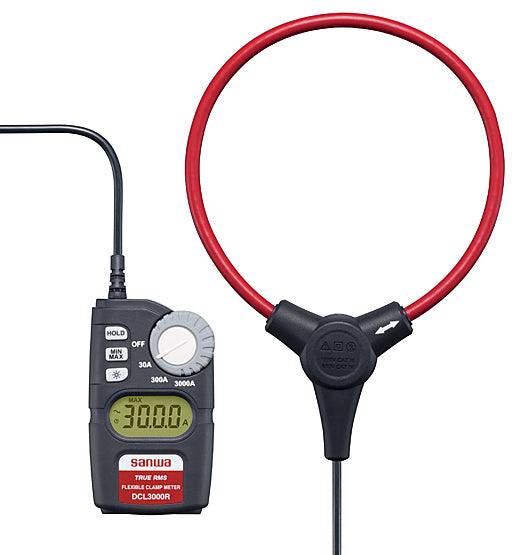

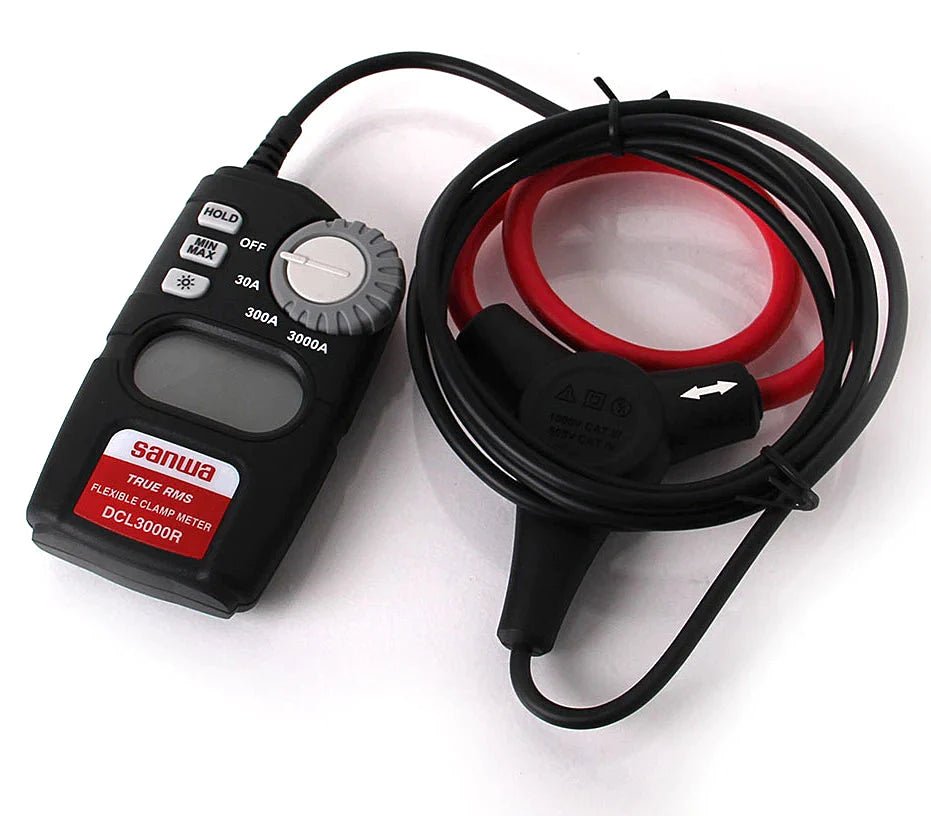

The DCL3000R has a unique design as it features a flexible conductor sensor that can be detached and looped around a wire or a conductor. The device is great for measuring currents across conductors in narrow spaces where a traditional clamp-meter might be difficult to use. This instrument is a True RMS AC clamp meter designed in compliance with IEC61010-1 CAT.IV 600V. It is suitable for measuring the current of electrical lines, and appliance power supply facilities operating on low voltages of no more than 600V. The device can measure a current of up to 3000 Amperes with accuracy of ± (3%+5) and has a maximum overload protection input of 5000 Amperes.
The instrument features a 3150-count large display with backlight. It also features Data Hold, and Range Hold features along with Max/Min value hold feature. The DCL3000R consumes 20mW of power and also features an Auto-power save feature that turns off the device after 15 mins of no operation.

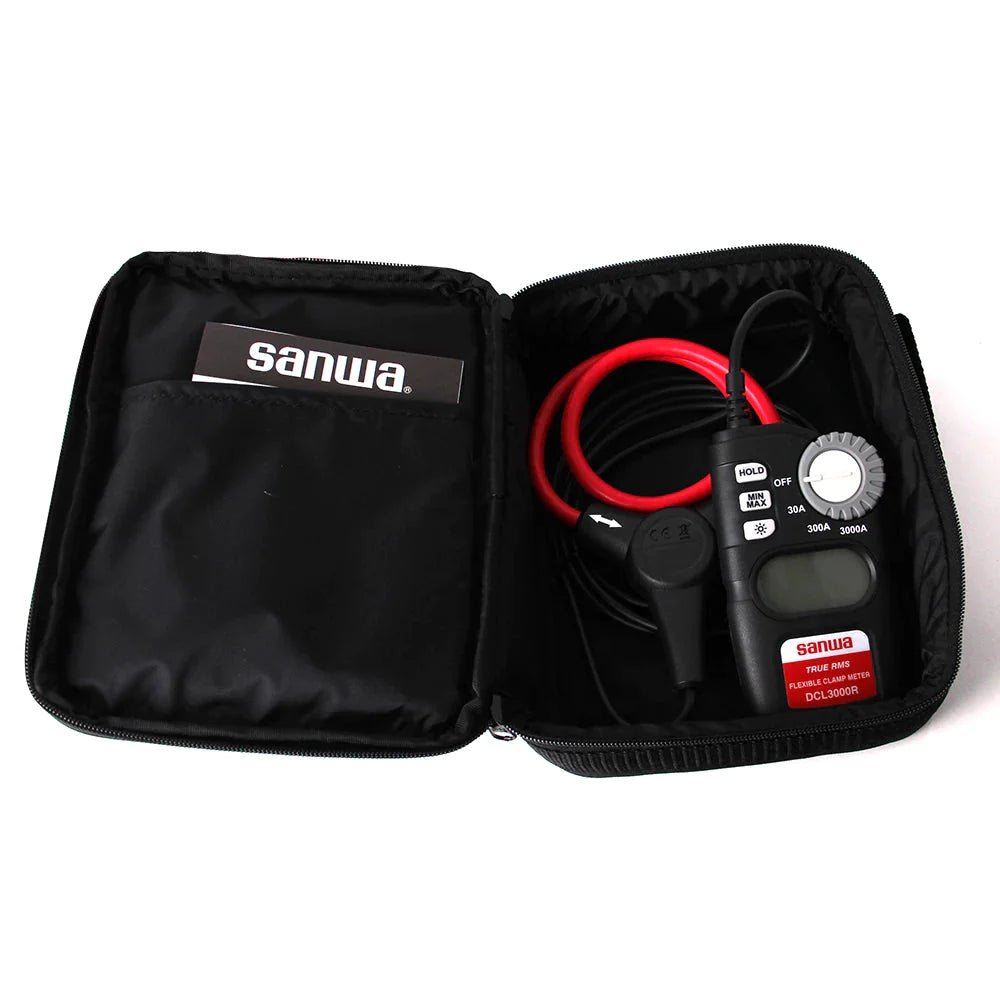

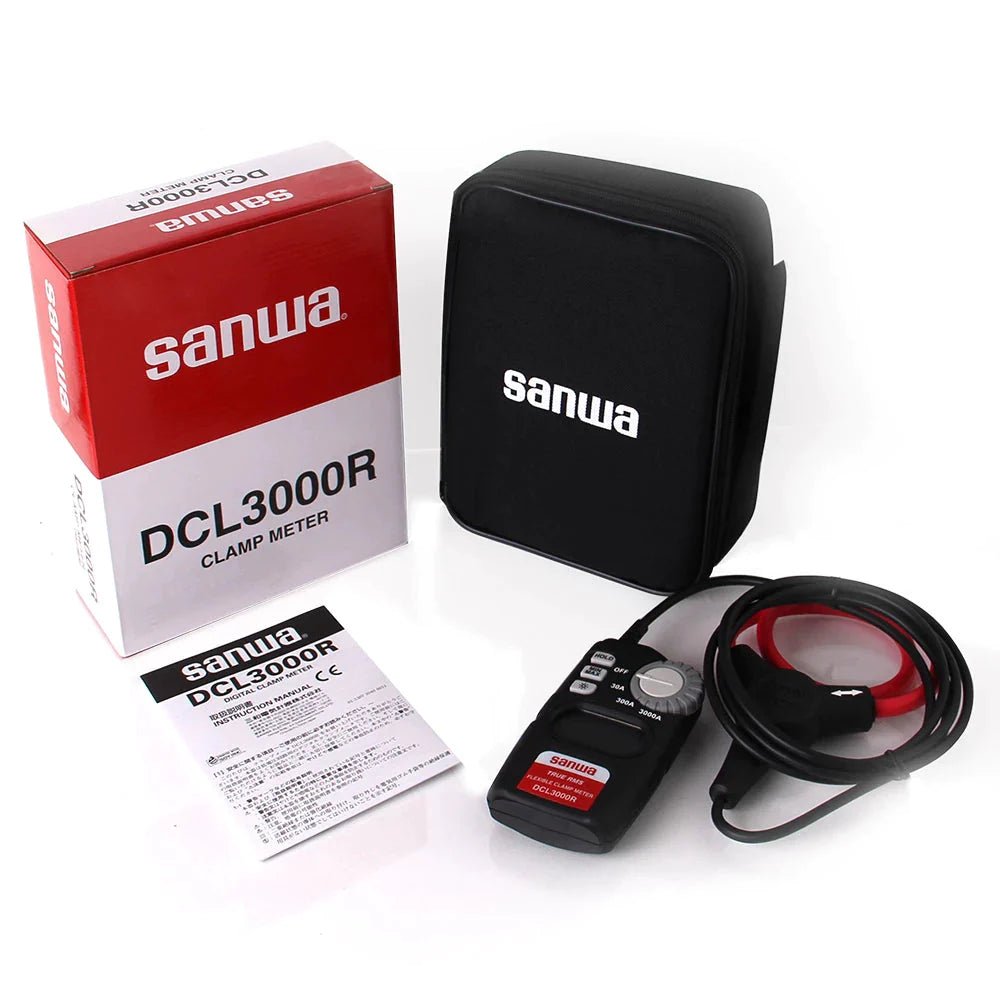

Meter includes flexible conductor, carrying case and instruction manual.
- AC current measurable max. 3000A
- Maximum overload protection input AC 5000A
- 3150 Count Large LCD Display with Backlight
- True RMS
- Accuracy: ± (3%+5)
- Data hold
- Range hold
- Max/Min value hold
- Auto power save (15min.) (non-cancelable)
Specifications
| Function | Range |
Accuracy | Resolution |
|---|---|---|---|
| ACA | 30/300/3000A | ±(3.0%+5) | 0.01A |
| Sampling rate | Approx. 2 times/sec. |
| Bandwidth | 45-500Hz |
| Display | 3150 |
| Clamp diameter/Conductor size | Approx. Φ150mm max. |
| Max. overload protection input | AC5000A |
| Battery | LR03×2 |
| Battery life | Approx. 130 hrs. (Alkaline battery / Backlight off) |
| Size/Mass | H120×W70×D26mm (exc CT) / approx. 300g |
| Cable length | Approx. 1.8m |
| Safety standards | IEC61010 CAT.Ⅳ 600V |
