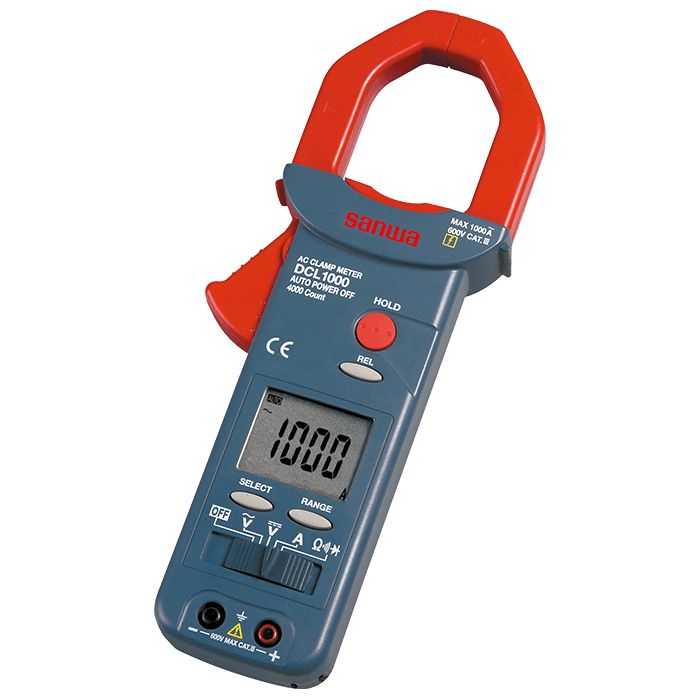

The Sanwa DCL 1000 is a digital clamp-meter that can measure a current of up to 1000A and digital multimeter capabilities.
The DCL1000 is suitable for current and voltage measurements of low-voltage circuitry, electric equipment, and power supply facilities. This instrument is an AC clamp meter/digital multimeter, designed for measurements in the range specified by IEC61010-2-032 CAT.III 600V. The clamp current sensor in the DCL 1000 can measure a max current of 1000A. It features a large 4000-count display, a Data Hold function for pausing a reading on the screen, and Range Hold for manually changing the device's range.
This device also functions as a Digital Multimeter with essential features such as measuring AC and DC voltages with 3% accuracy, Resistance of up to 40MΩ, and a continuity test with a buzzer alarm.
The device is very portable, it has dimensions of H238 x W95 x D45mm and weighs approximately 290 grams which is lighter than a conventional clamp meter.

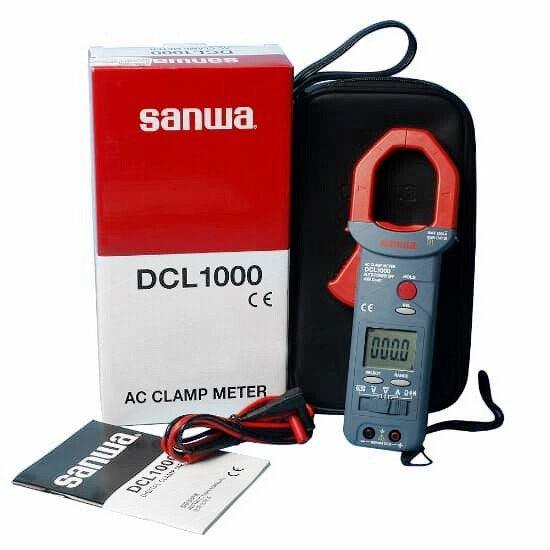

Meter includes (TL-23a) test leads, a carrying case (C-DCL1000), and instruction manual.
- AC current measurable max. 1000A & DMM functions
- Large LCD
- Data hold
- Range hold
- Relative value
- Auto power save (30min.) (non-cancelable)
- Lightweight approx. 290g
- Design compliance with IEC
Specifications
| Function | Range | Accuracy | Resolution |
|---|---|---|---|
| ACA | 400/1000A | ±(1.7%+5) | 0.1A |
| DCV | 400m/4/40/400/600V | ±(1.2%+3) | 0.1mV |
| ACV | 400m/4/40/400/600V | ±(2.2%+5) | 0.1mV |
| Resistance | 400/4k/40k/400k/4M/40M Ω | ±(1.2%+4) | 0.1 Ω |
| Continuity | Buzzer sounds at between 0Ω and 65Ω (±35V) Open voltage: approx. 0.4V |
||
| Diode test | Open voltage: approx. 1.6V | ||
| Sampling rate | 3 times/sec. |
| Bandwidth | ACA 50/60Hz (sine wave) ACV 50-500Hz (sine wave) |
| Display | 4000 |

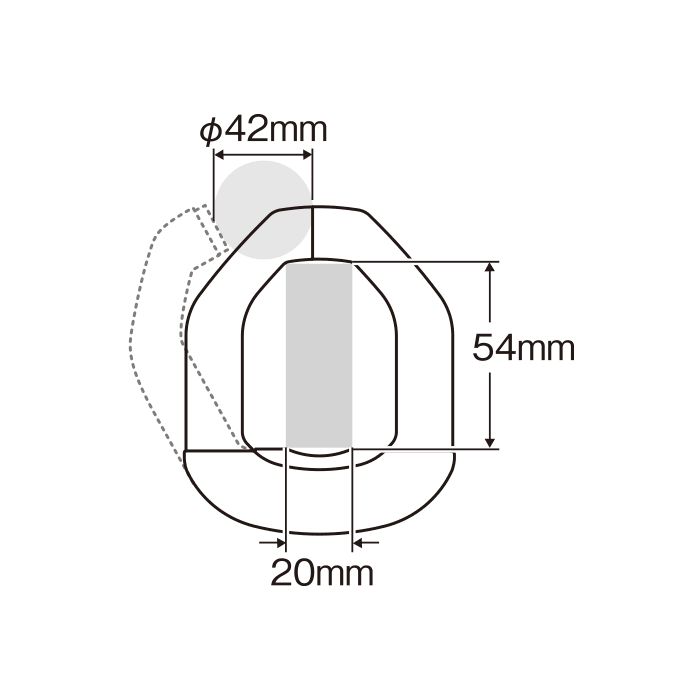

| Clamp diameter/Conductor size | 42mm/20x54mm |
| Battery | R03x2 |
| Battery life | Approx. 120 hrs. at DCV (zinc-carbon battery) |
| Size/Mass | H238xW95xD45mm / Approx. 290g |
| Safety standards | IEC61010 CATIII 600V |
