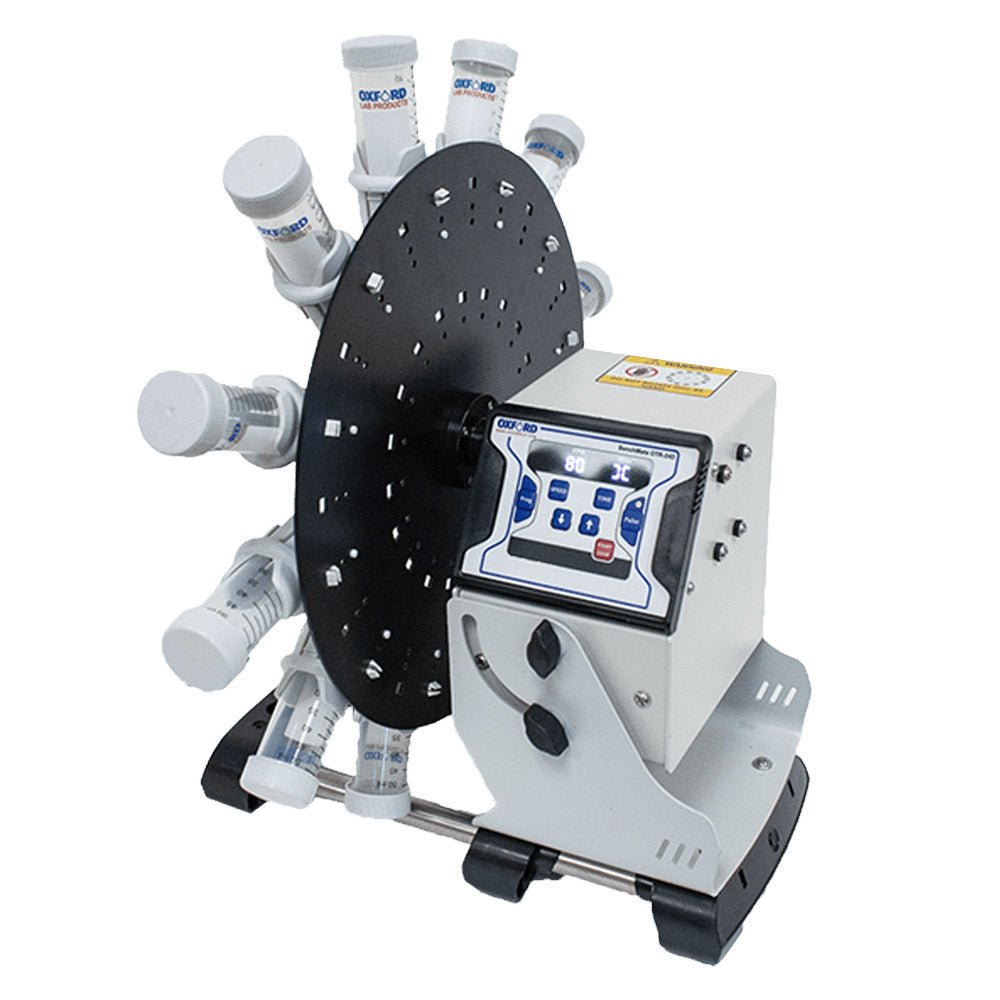

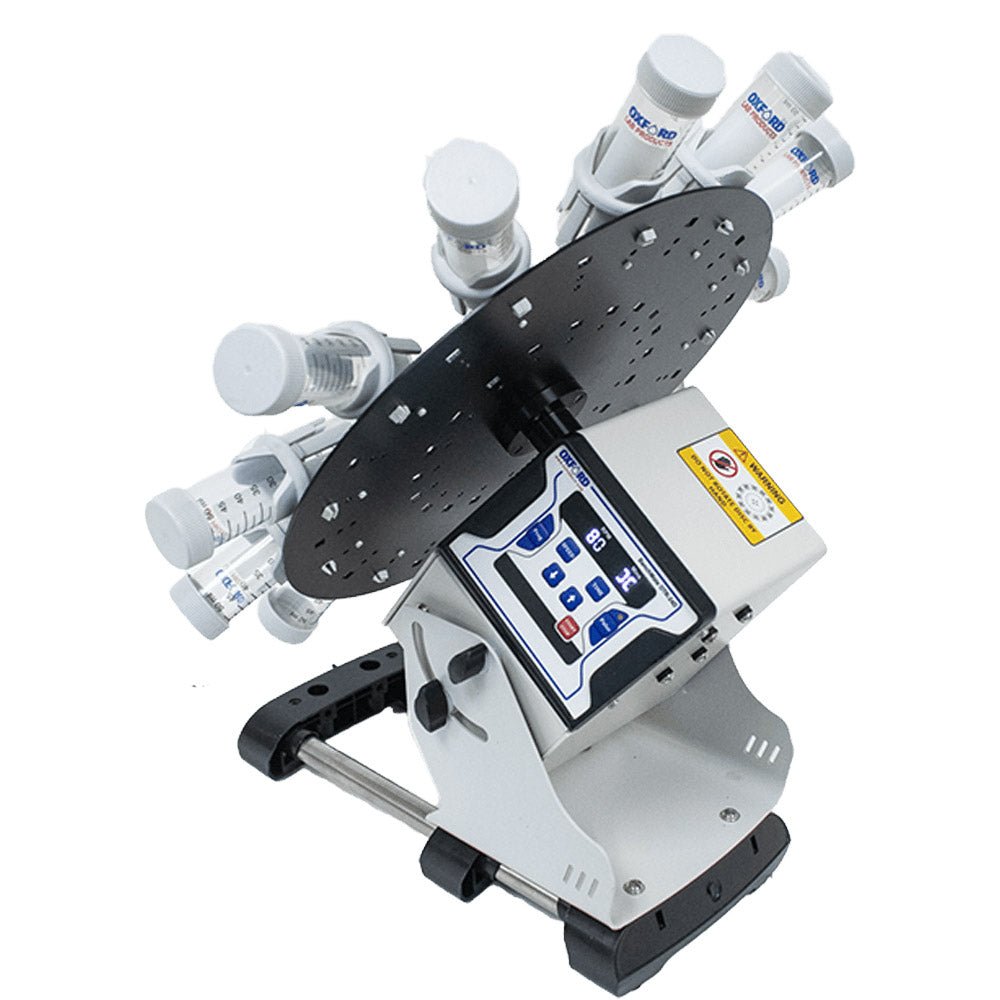

Oxfords' BenchMate Digital Tube Rotator provides gentle, controlled mixing for a variety of biological and clinical applications.
Ideal for preventing coagulation in blood samples, supporting immunoprecipitation, latex agglutination tests and creating uniform dispersions, this versatile rotator ensures consistent, reproducible results.
Powered by a brushless DC motor and managed by a microprocessor control system, the unit delivers smooth, reliable motion across a 10–80 rpm speed range. The adjustable rotation angle from 0° to 90° allows users to fine-tune mixing intensity, while Pulse Mode provides alternating motion for enhanced sample blending. A digital display and user-programmable settings make operation simple and precise.
- Adjustable mixing angle from 0°–90°
- Brushless DC motor for long life and quiet operation
- Microprocessor-controlled speed (10–80 rpm)
- Unique Pulse Mode for improved sample uniformity

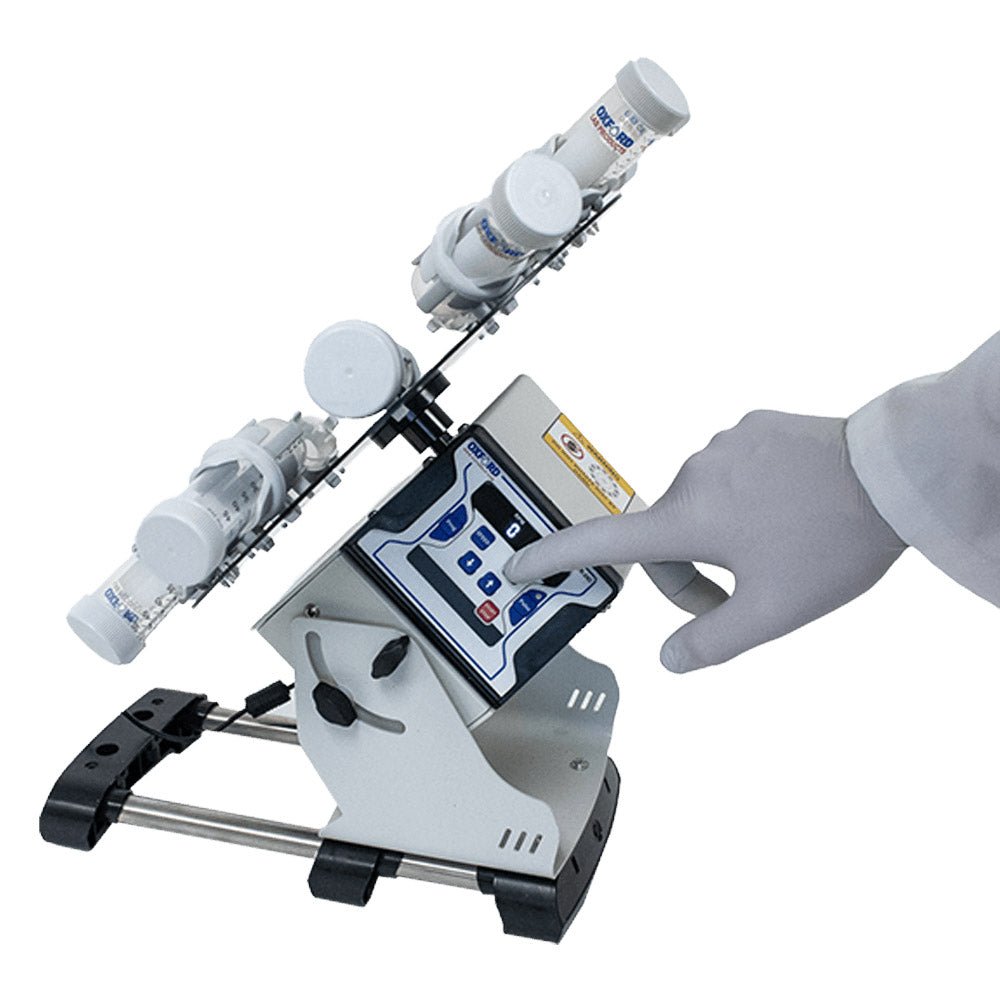

- Digital display with user-programmable settings
- ±1 rpm speed accuracy
- Variable speed and timers settings

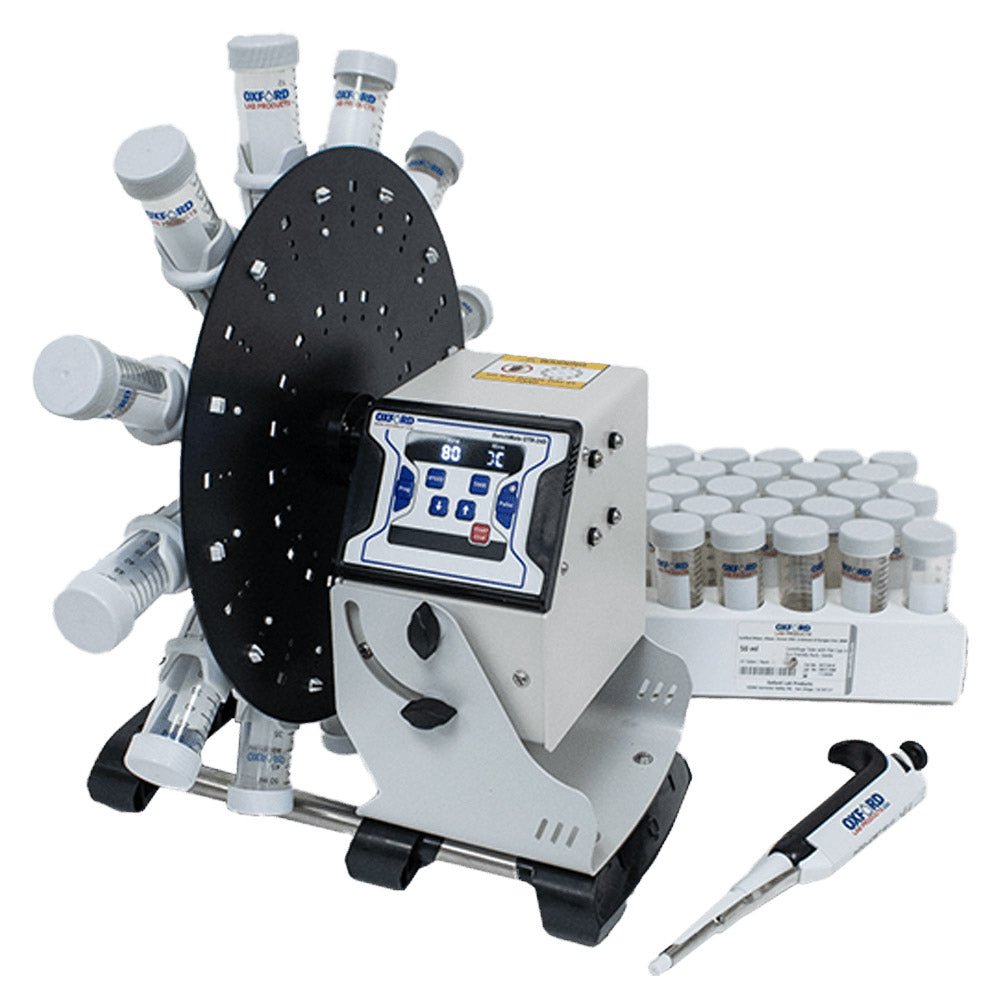

- Includes 50 mL tube disc (holds up to 12 x 50 mL tubes)
- Optional discs available for other tube sizes
Specifications
| Speed Range | 10 to 80 RPM |
|---|---|
| Speed Accuracy | ±1 RPM |
| Speed steps | 1 RPM |
| Timer range | 0 to 99 mins & infinite mode |
| Disc Angle | Flexible - Can be adjusted 0 to 90° |
| Max Loading Capacity | 2 kg |
| Removable Disc plate | Yes |
| Dimensions (mm) | 382 x 330 x 320 |
| Protection class | IP 21 |
| Permissible Ambient Temp | 5°C to 40 °C |
| Permissible Relative Moisture | <80% |
| Weight | 4.5 Kg |
| Input Voltage | 24V – – 0.2A |
| Power Consumption | 4.5 W |
