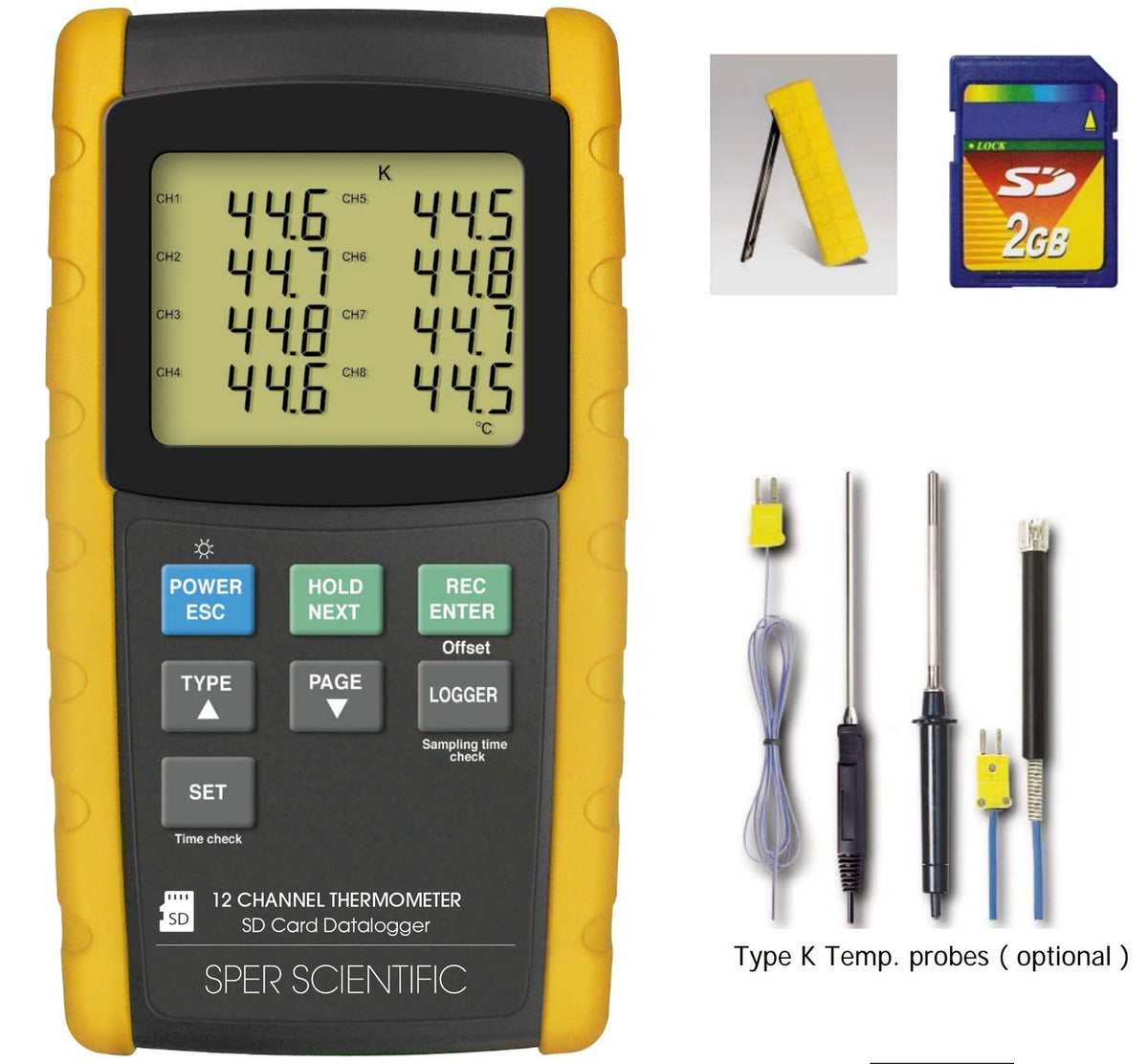

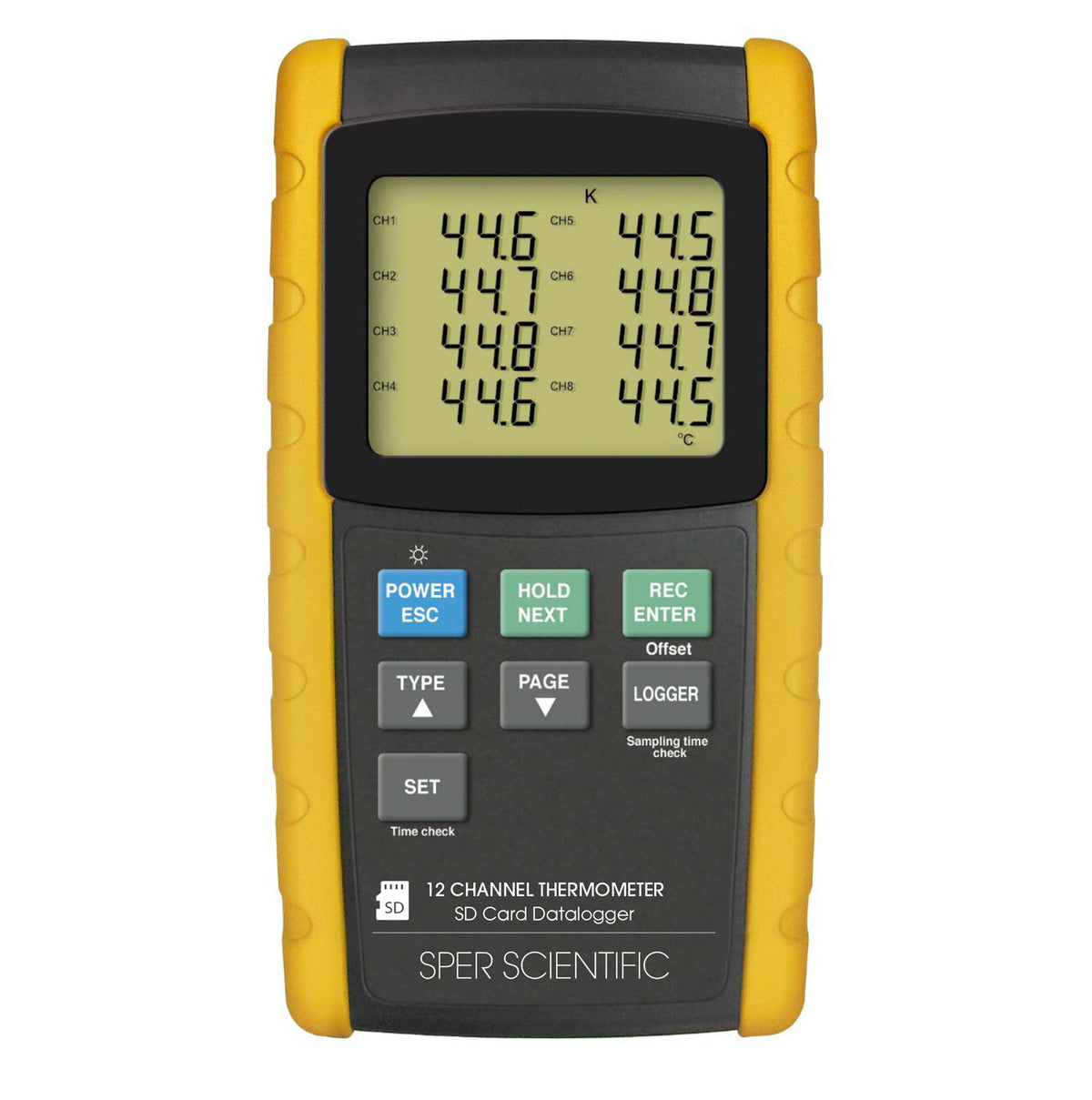

12 Channel Digital Thermometer with Datalogger
Download
Download
12 Channel Digital Thermometer with Datalogger features a large, bright screen and connections for six thermocouple types (J, K, E, T, R, S).
Users can simultaneously display channels 1-8 or 9-12 and store 99 readings manually, or up to 20 million readings with date and time stamp using a 2GB SD card. All data is saved in MS Excel format for further analysis.
The user programmable sampling rate is adjustable from 1 to 3600 seconds with Min/Max, Data Hold, and Auto Power Off. Data can be recorded from all 12 channels simultaneously onto an SD card for later analysis.
-
12 Channel Type J/K/T/E/R/S Thermocouple Thermometer
- Saves Readings with Date and Time Stamps in Excel Format
-
Sampling Time Range: 1 to 3600 Seconds
- Large, Bright Backlit LCD Display
-
Real Time Data Logger w/SD Card
-
SD Card Capacity: 1GB to 16GB
-
Min/Max and Data Hold Functions
-
Optional USB/RS232 Cable

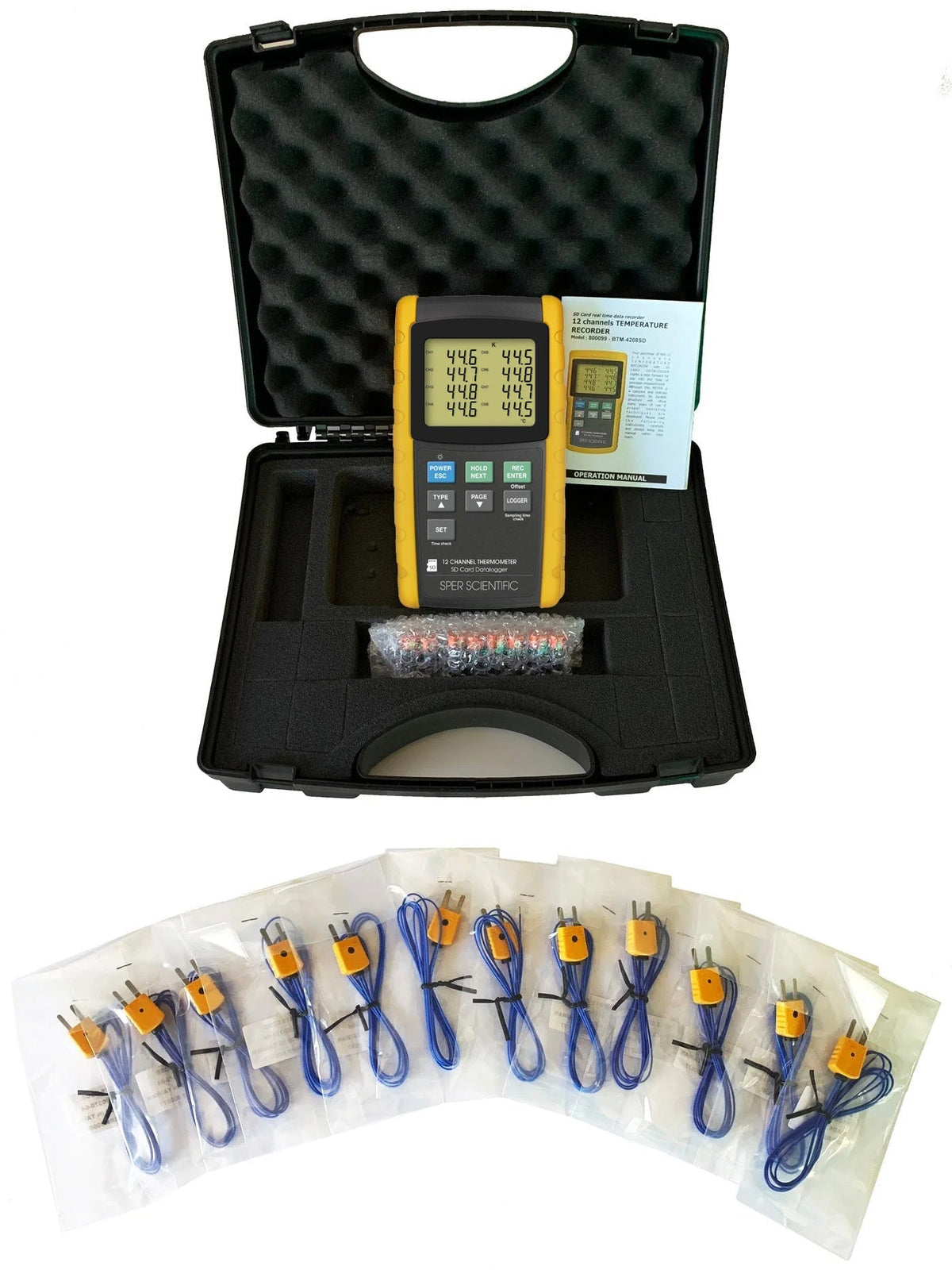

Includes: Hard Carrying Case, (12) Std. Beaded Wire Probes, 2GB SD Card, Batteries and Instructions
Meter Dimensions:
8.86 x 4.92 x 2.52 inches (225 x 125 x 64 mm)
Weight (Meter Only):
2.09 lbs. (948g) including batteries
Specifications
General Specifications
|
Power off |
Auto shut off saves battery life or manual off by push button. |
|
Operating Temperature |
0 to 50 °C. |
|
Operating Humidity |
Less than 85% R.H. |
|
Power Supply |
*Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 8 PCs, or equivalent. |
|
*ADC 9V adapter input. ( AC/DC power adapter is optional ). |
|
|
Power Current |
Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 7.5 mA. |
|
When SD card save the data but and LCD Backlight is OFF) : Approx. DC 25 mA. |
|
|
* AIf LCD backlight on, the power consumption will increase approx. 11 mA. |
|
|
Weight |
Meter Only: 2.09 lbs. (948g) including batteries |
|
Dimensions |
8.86 X 4.92 X 2.52 inches |
|
Accessories Included |
Hard Carrying Case, (12) Beaded Wire Probes, 2GB SD Card, Batteries and Instructions |
|
Circuit |
Custom one-chip of microprocessor LSI circuit. |
|
|
Display LCD size : 82 mm x 61 mm with green backlight. |
||
|
Channels |
12 channels : |
|
|
Sensor Type Resolution |
Type K thermocouple probe. |
|
|
Datalogger Sampling Time Setting Range |
Auto |
1 second to 3600 seconds but memory data may loss. |
|
Manual |
Push the data logger button once will save data one time. @ Set the sampling time to 0 second. |
|
|
Memory Card |
SD memory card. 1 GB to 16 GB. |
|
|
Advanced Settings |
|
|
|
Temperature Compensation |
Automatic temp. compensation for the type K/J/T/E/R/S thermometer. |
|
|
Linear Compensation |
Linear Compensation for the full range. |
|
|
Offset Adjustment |
To adjust the zero temperature deviation value. |
|
|

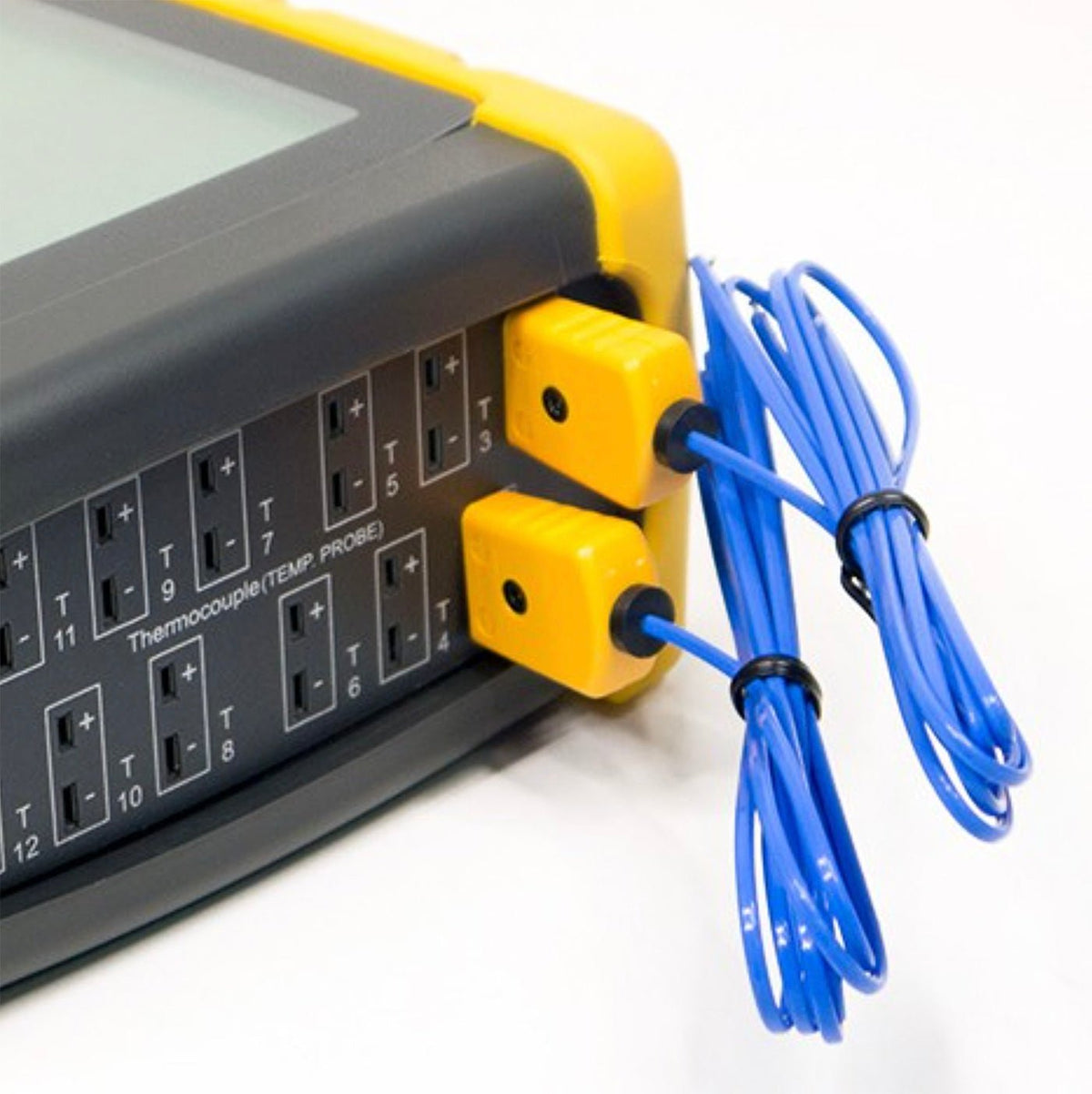

Probe Input Socket |
2 pin thermocouple socket. |
|
|
Over Indication |
Show " - - - - ". |
|
|
Data Hold |
Freeze the display reading. |
|
|
Memory Recall |
Maximum & Minimum value. |
|
|
Sampling Time of Display |
Approx. 1 second. |
|
Electrical Specifications (23± 5 °C)
|
Sensor Type |
Resolution |
Range |
Accuracy |
|
Type K |
0.1 °C |
-50.1 to -100.0 °C |
± (0.4%+1°C) |
|
-50.0 to 999.9 °C |
± (0.4%+0.5°C) |
||
|
1°C |
1000 to 1300 °C |
± (0.4%+1°C) |
|
|
0.1 °F |
-58.1 to -148.0 °F |
± (0.4%+1.8°F) |
|
|
-58.0 to 999.9 °F |
± (0.4%+1°F) |
||
|
1°F |
1000 to 2372 °F |
± (0.4%+2°F) |
|
|
Type J |
0.1 °C |
-50.1 to -100.0 °C |
± (0.4%+1°C) |
|
-50.0 to 999.9 °C |
± (0.4%+0.5°C) |
||
|
1°C |
1000 to 1150 °C |
± (0.4%+1°C) |
|
|
0.1 °F |
-58.1 to -148.0 °F |
± (0.4%+1.8°F) |
|
|
-58.0 to 999.9 °F |
± (0.4%+1°F) |
||
|
1°F |
1000 to 2102 °F |
± (0.4%+2°F) |
|
|
Type T |
0.1 °C |
-50.1 to -100.0 °C |
± (0.4%+1°C) |
|
-50.0 to 400.0 °C |
± (0.4%+0.5°C) |
||
|
0.1 °F |
-58.1 to -148.0 °F |
± (0.4%+1.8°F) |
|
|
-58.0 to 752.0 °F |
± (0.4%+1°F) |
||
|
Type E |
0.1 °C |
-50.1 to -100.0 °C |
± (0.4%+1°C) |
|
-50.0 to 900.0 °C |
± (0.4%+0.5°C) |
||
|
0.1 °F |
-58.1 to -148.0 °F |
± (0.4%+1.8°F) |
|
|
-58.0 to 999.9 °F |
± (0.4%+1°F) |
||
|
1°F |
1000 to 1652 °F |
± (0.4%+2°F) |
|
|
Type R |
1°C |
0 to 600 °C |
± (0.4%+0.5°C) |
|
601 to 1700 °C |
± (0.4%+1°C) |
||
|
1°F |
32 to 1112 °F |
± (0.4%+1°F) |
|
|
1113 to 3092 °F |
± (0.4%+2°F) |
||
|
Type S |
1°C |
0 to 600 °C |
± (0.4%+0.5°C) |
|
601 to 1500 °C |
± (0.4%+1°C) |
||
|
1°F |
32 to 1112 °F |
± (0.4%+1°F) |
|
|
1113 to 2732 °F |
± (0.4%+2°F) |
||
|
Remark :
|
|||
