Online Ultra-Pure Water pH and Temperature Electrode
Product Notes:
1. All Online Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
2. Custom options and configurations are also available. Please contact us if you need help with your specific application.
I-download
I-download

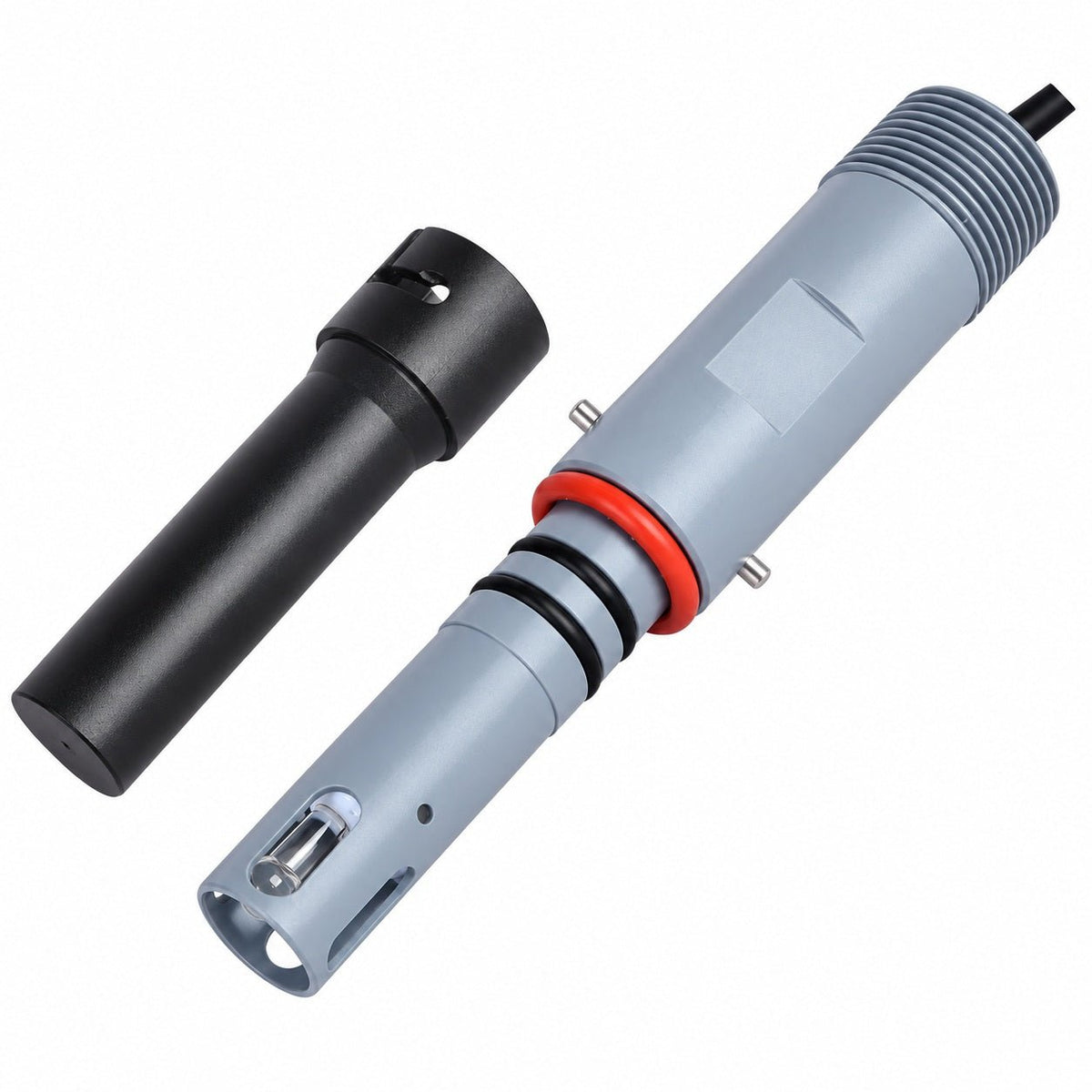

The 870002-PHA Ultra-Pure Water pH electrode measures pH and temperature in pure-water and high-purity water systems.
A polymer-filled reference system helps stabilize the reference junction potential. Its large-area diaphragm sits close to the glass sensing membrane, creating a short, consistent path between the reference junction and measuring element. This arrangement supports a fast response and helps reduce the effect of changes in sample flow on measurement stability.
Controlled electrolyte diffusion limits the amount of electrolyte entering the sample, making the electrode suitable for pure-water monitoring. Applications include thermal power plant water systems, where a suitable flow-through cell is required.
Features
- Designed for pure water and high-purity water applications
- Measures pH and temperature with a compatible analyzer
- Polymer-filled reference junction for stable potential
- Large-area diaphragm positioned close to the glass sensing membrane
- Low-noise cable connection
- Quarter-turn twist-lock mounting for insertion and removal
Specifications
| Part number | 870002-PHA |
| Measurement parameters | pH and temperature |
| pH range | 0.0–14.0 pH |
| Temperature range | 0–60 °C |
| Published pH accuracy | ±0.1 pH |
| Published temperature accuracy | ±0.5 °C |
| Slope | ≥96% |
| Zero point | 7 pH ±0.2 |
| Temperature compensation options | 10 kΩ, 2.252 kΩ, Pt100 or Pt1000 |
| Mounting | Twist-lock with 3/4 in. rear-facing threads |
| Electrical connection | Low-noise cable |
| Application | Pure water and high-purity water monitoring |
FAQs
Why is this electrode suited to pure water?
Its polymer-filled reference system and closely spaced reference junction help maintain stable measurements while controlling electrolyte diffusion into the sample.
How is the electrode installed?
It uses twist-lock mounting and 3/4 in. rear-facing threads. A quarter turn inserts or removes the electrode from the process connection.
Can it connect to any pH analyzer?
Confirm the electrode input and temperature compensation requirements of your analyzer before ordering.
Hindi ma-load ang availability ng pickup
Impormasyon ng Produkto
Impormasyon ng Produkto
The 870002-PHA Ultra-Pure Water pH electrode measures pH and temperature in pure-water and high-purity water systems.
A polymer-filled reference system helps stabilize the reference junction potential. Its large-area diaphragm sits close to the glass sensing membrane, creating a short, consistent path between the reference junction and measuring element. This arrangement supports a fast response and helps reduce the effect of changes in sample flow on measurement stability.
Controlled electrolyte diffusion limits the amount of electrolyte entering the sample, making the electrode suitable for pure-water monitoring. Applications include thermal power plant water systems, where a suitable flow-through cell is required.
Features
- Designed for pure water and high-purity water applications
- Measures pH and temperature with a compatible analyzer
- Polymer-filled reference junction for stable potential
- Large-area diaphragm positioned close to the glass sensing membrane
- Low-noise cable connection
- Quarter-turn twist-lock mounting for insertion and removal
Specifications
| Part number | 870002-PHA |
| Measurement parameters | pH and temperature |
| pH range | 0.0–14.0 pH |
| Temperature range | 0–60 °C |
| Published pH accuracy | ±0.1 pH |
| Published temperature accuracy | ±0.5 °C |
| Slope | ≥96% |
| Zero point | 7 pH ±0.2 |
| Temperature compensation options | 10 kΩ, 2.252 kΩ, Pt100 or Pt1000 |
| Mounting | Twist-lock with 3/4 in. rear-facing threads |
| Electrical connection | Low-noise cable |
| Application | Pure water and high-purity water monitoring |
FAQs
Why is this electrode suited to pure water?
Its polymer-filled reference system and closely spaced reference junction help maintain stable measurements while controlling electrolyte diffusion into the sample.
How is the electrode installed?
It uses twist-lock mounting and 3/4 in. rear-facing threads. A quarter turn inserts or removes the electrode from the process connection.
Can it connect to any pH analyzer?
Confirm the electrode input and temperature compensation requirements of your analyzer before ordering.
